P120 Directional Valve: Quality, Performance, Reliability

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:120 L/dak (31.7 US gpm)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1

Çıkış Portu:G1

Port Boyutu:G1

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P120 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:30*39*17

Brüt ağırlık:19.00 kg

Stok Durumu: Stokta Var

1618 Görünümler Bu Ürünü Arıyor

P120 Directional Valve: Quality, Performance, Reliability

P120 Directional Valve: Quality, Performance, Reliability

P120 Directional Valve: Quality, Performance, Reliability drawing image

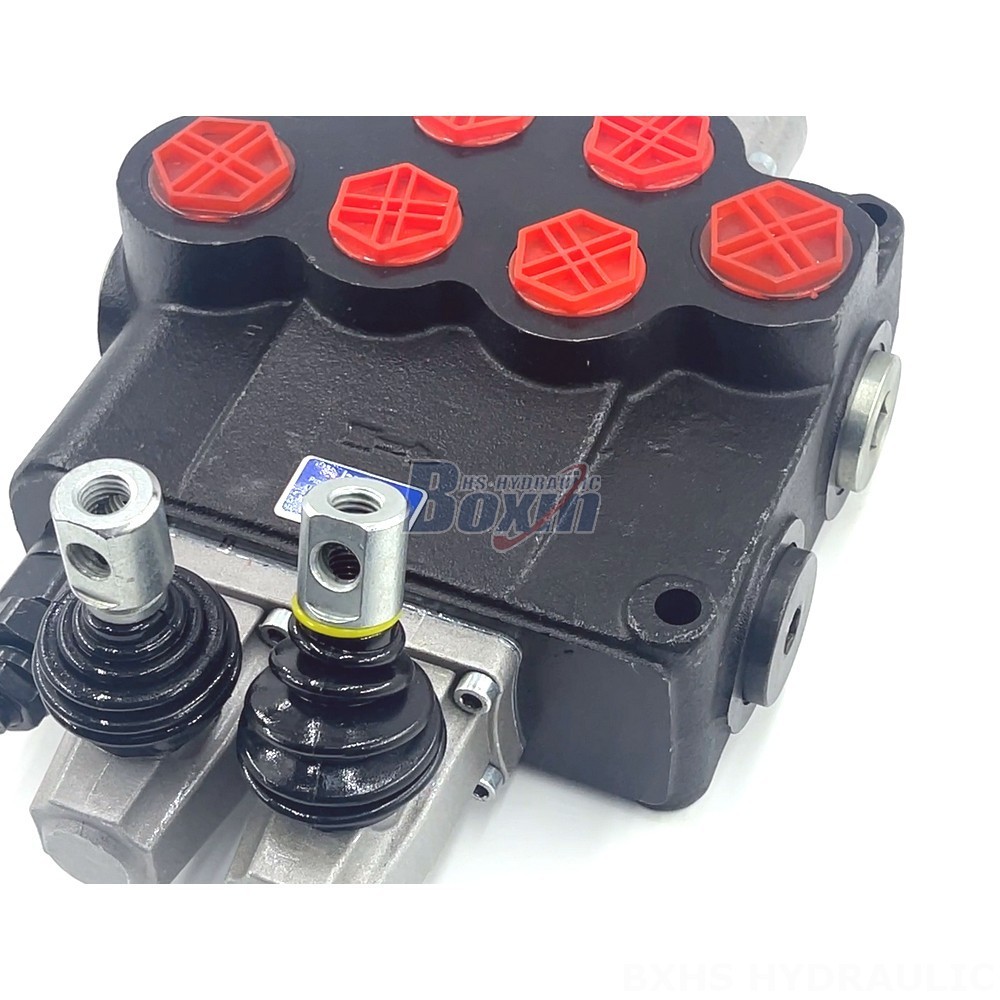

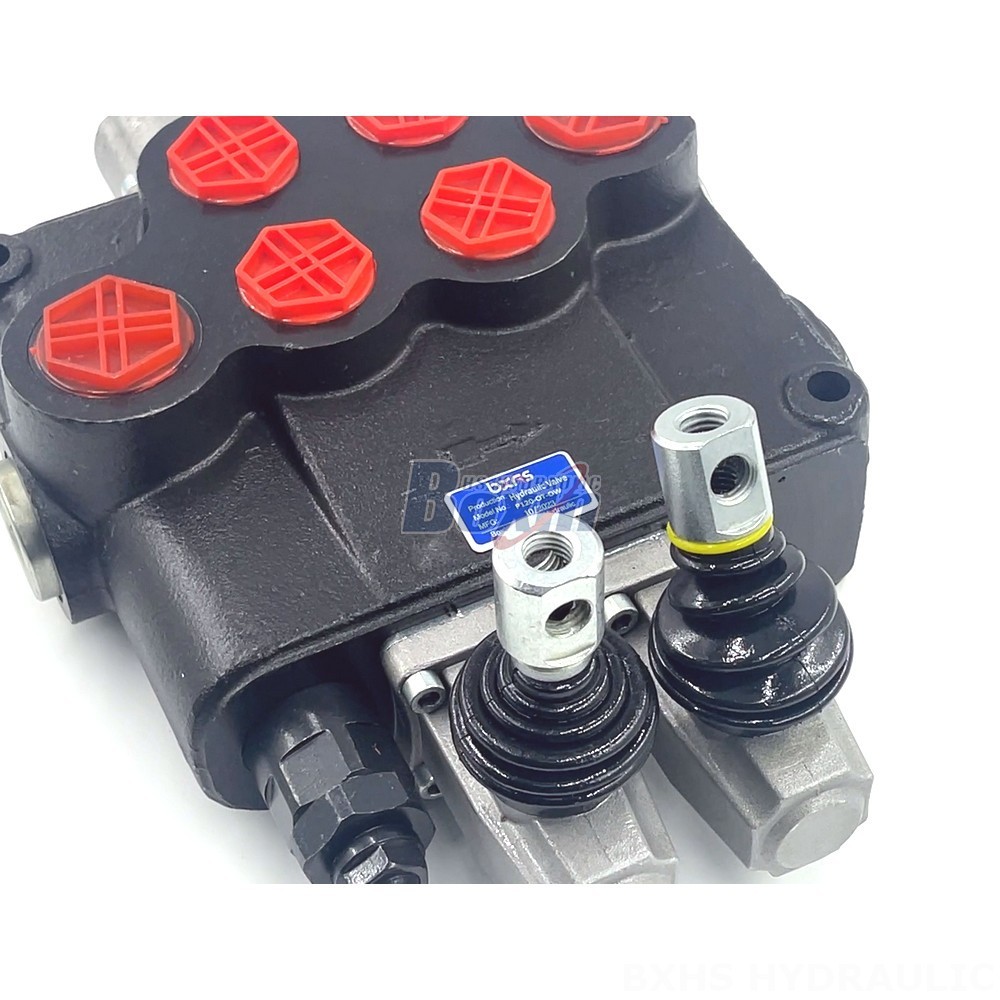

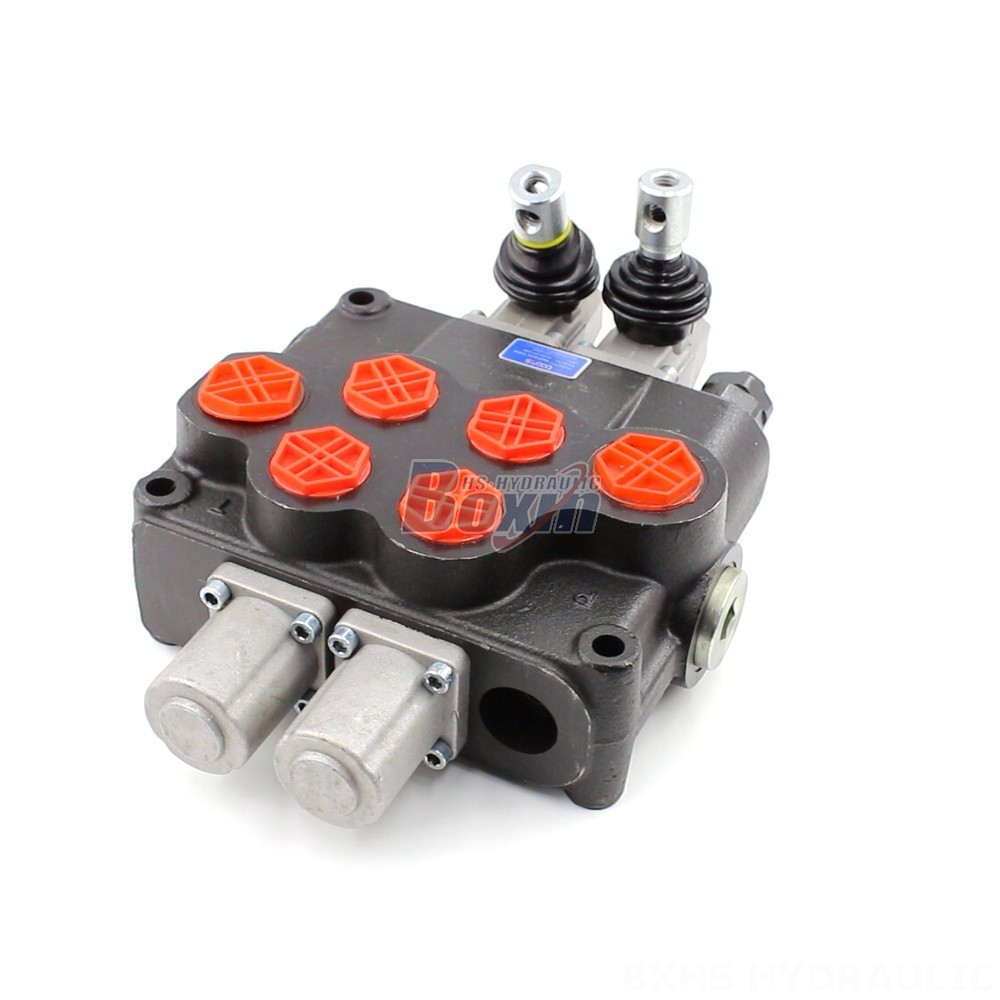

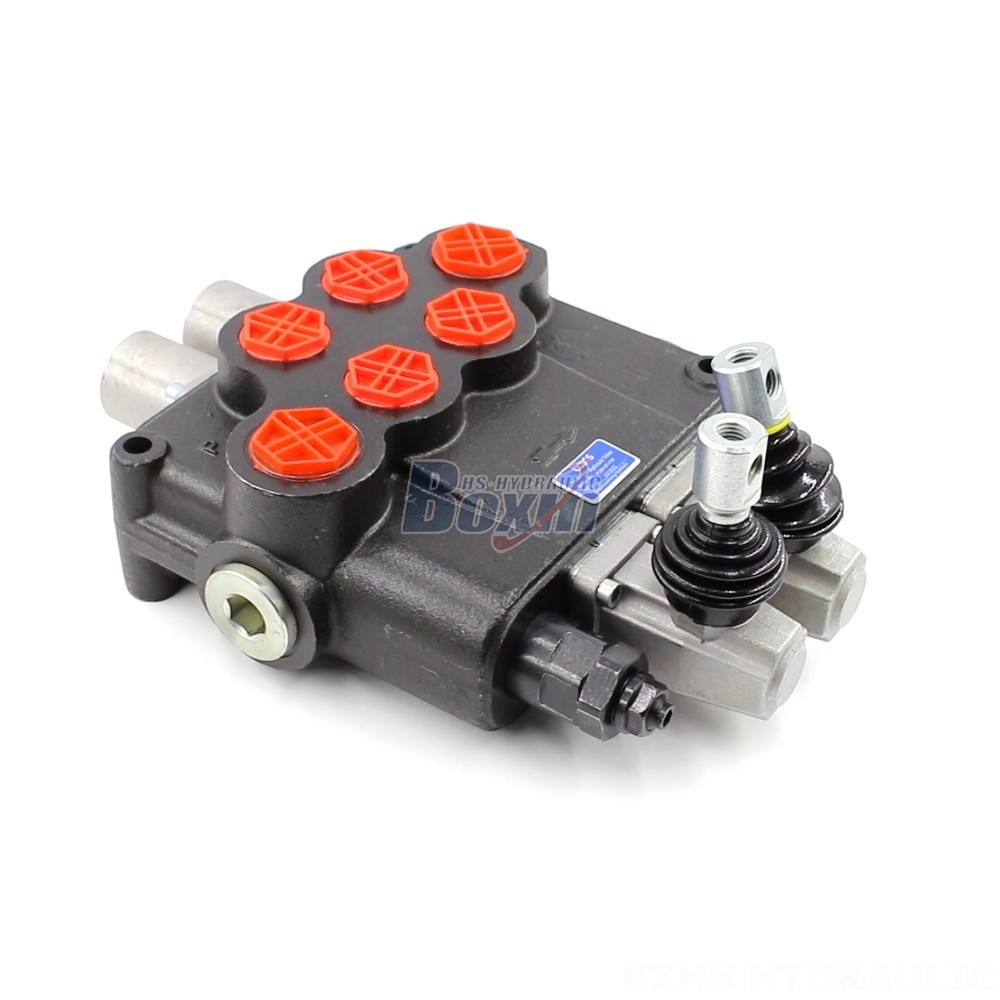

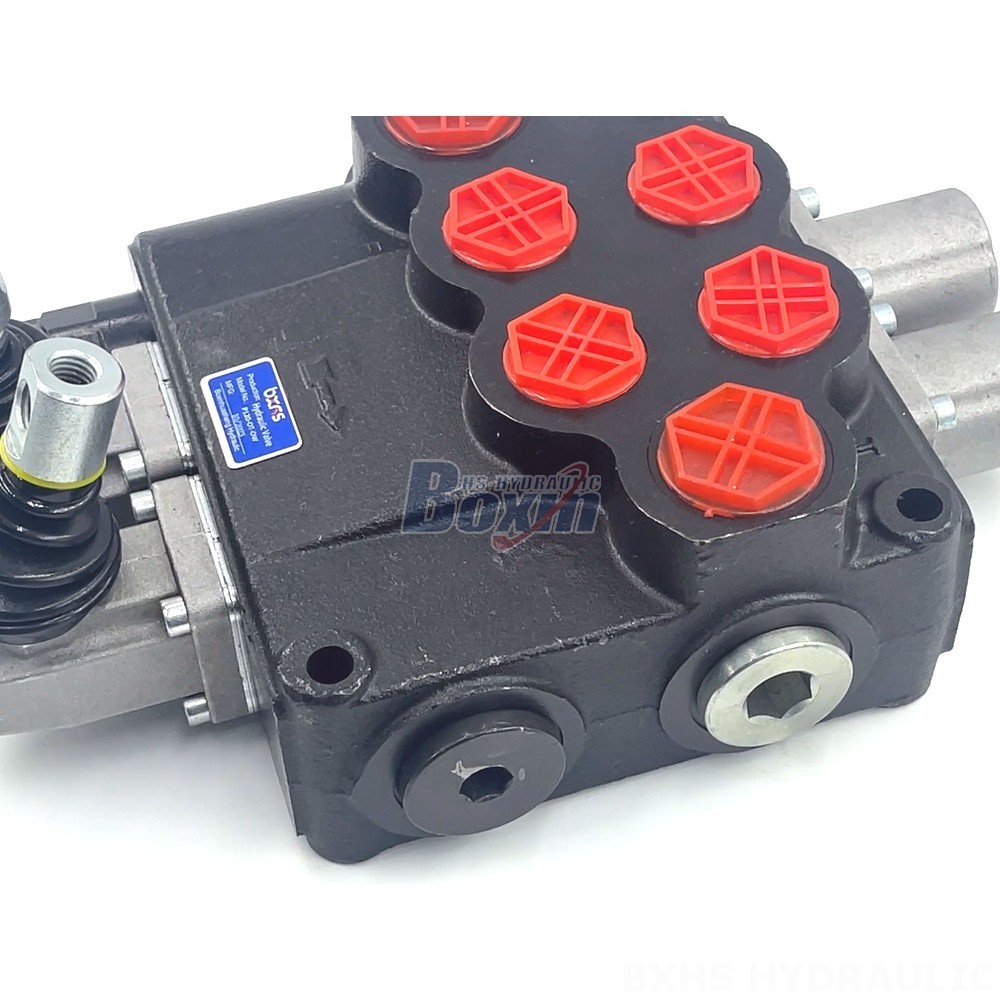

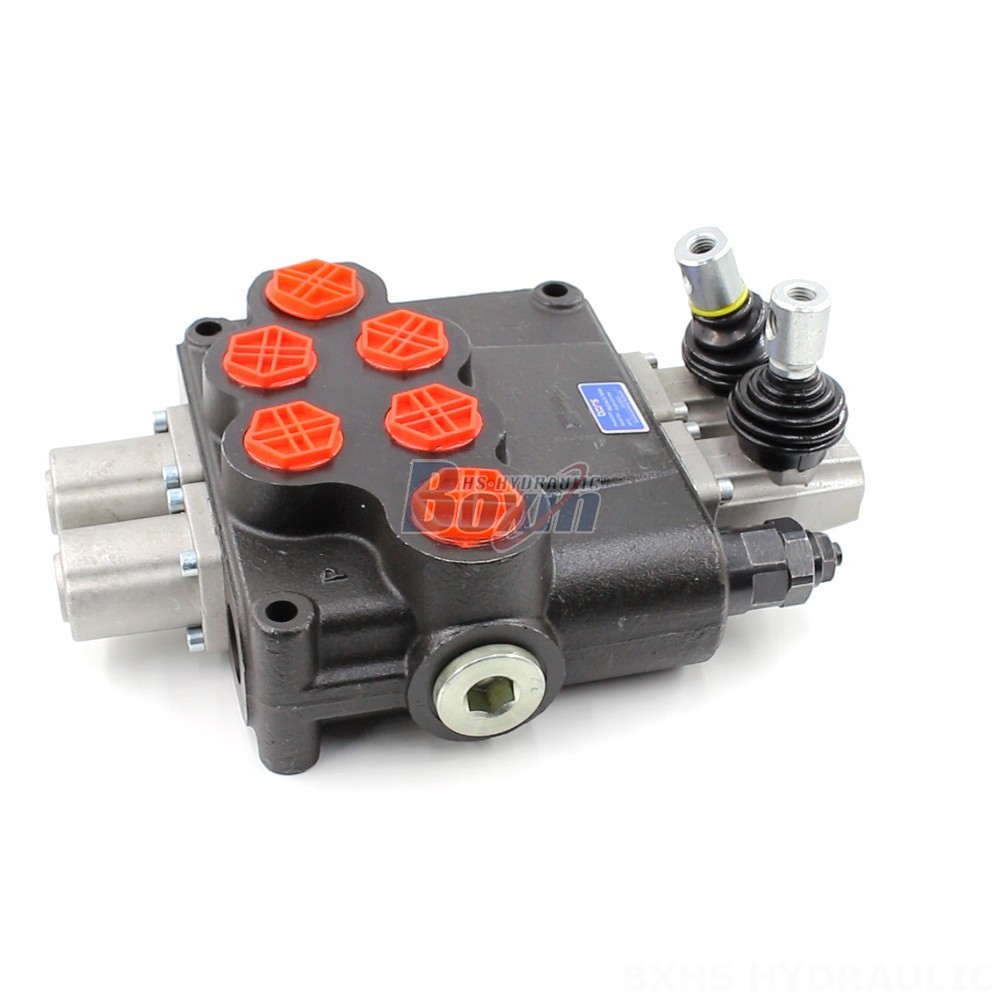

The P120 Series 5/2 Directional Control Valve is a reliable and high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock construction, rated flow of 120 L/min, and a maximum pressure of 250 bar, making it ideal for demanding operating conditions.

P120 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara
Anma Akışı 120 L/dak (31.7 US gpm)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Çıkış Portu G1, SAE 16, 1 NPT, M36×2
Port Boyutu G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm
Yapı Türü Monoblock vana
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)

The P120 Series 5/2 Directional Control Valve is a high-quality hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock construction, providing exceptional durability and reliability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve can handle high flow rates and pressures. The valve operates smoothly across a wide viscosity range (15-75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its 2-section design and 2-spool configuration allow for precise control of hydraulic circuits. The valve is compatible with a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
