P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

Kontrol Yöntemi:Manuel

Makara:7 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:36*23*13

Brüt ağırlık:13.50 kg

Stok Durumu: Stokta Var

1005 Görünümler Bu Ürünü Arıyor

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution drawing image

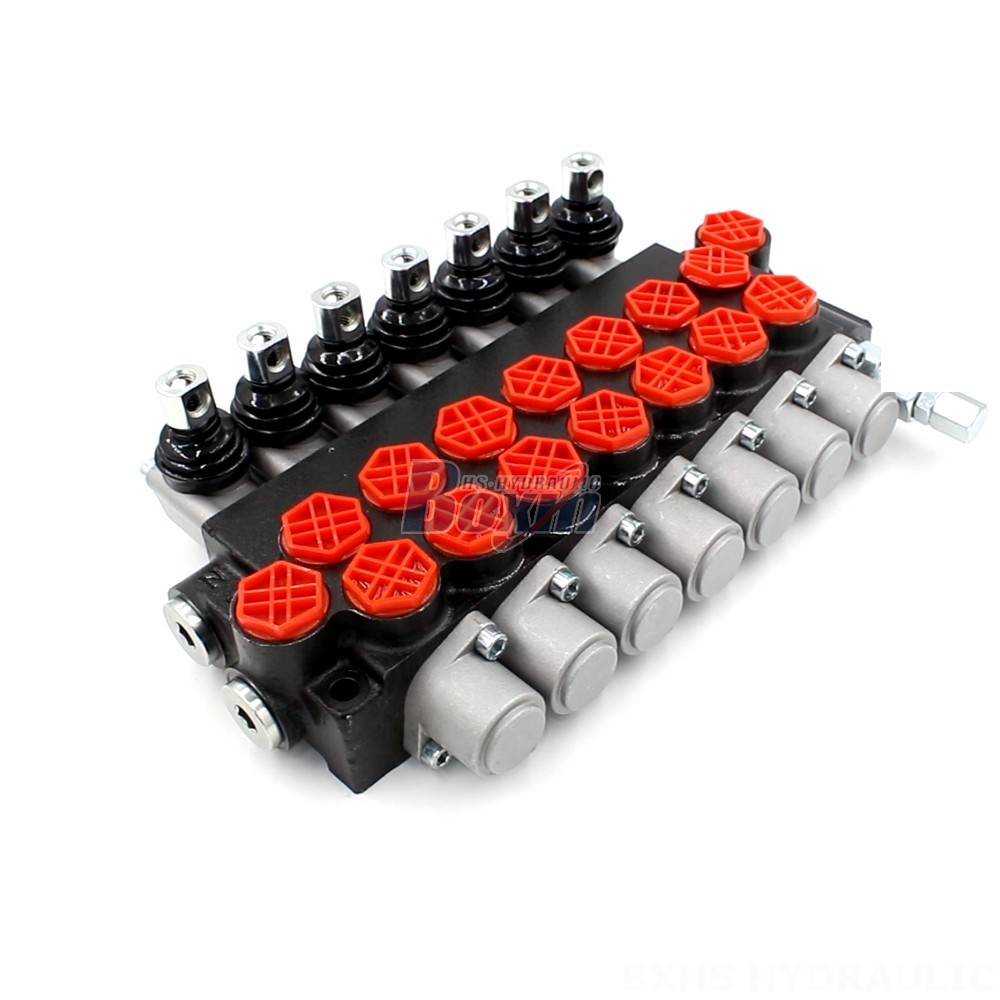

The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a high-performance, reliable solution for controlling fluid flow in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a 7-section design, rated flow of 40 L/min, and maximum pressure of 250 bar, making it ideal for demanding environments.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a robust and versatile component designed for precise hydraulic control. Its monoblock construction ensures strength and durability, while the 7-section design allows for multiple flow paths and directional control. With a rated flow of 40 L/min and maximum pressure of 250 bar, this valve is capable of handling high flow rates and demanding pressures. Its operating viscosity range of 15 to 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of environments. This valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders, among other applications. Its manual control method allows for simple and intuitive operation, making it a user-friendly solution for a wide range of hydraulic systems.
