P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

Kontrol Yöntemi:Manuel

Makara:4 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:24*23*13

Brüt ağırlık:9.00 kg

Stok Durumu: Stokta Var

970 Görünümler Bu Ürünü Arıyor

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications drawing image

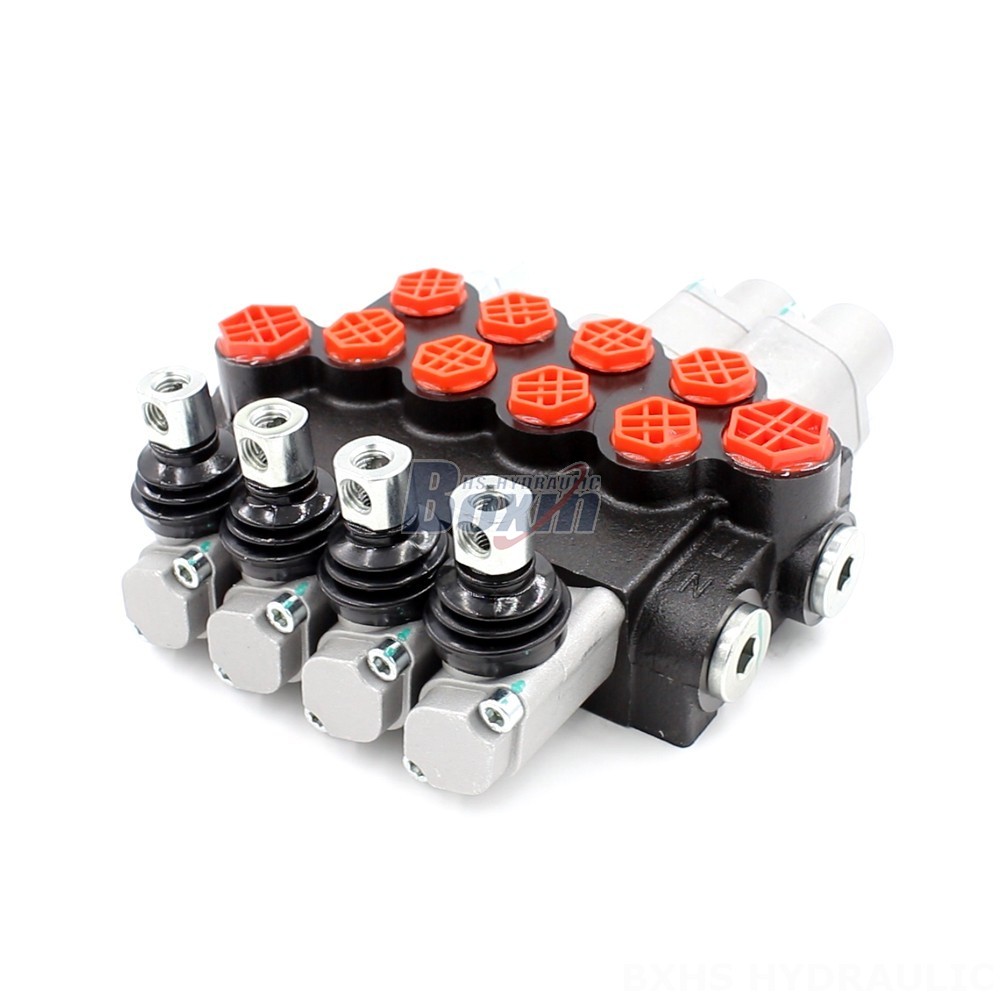

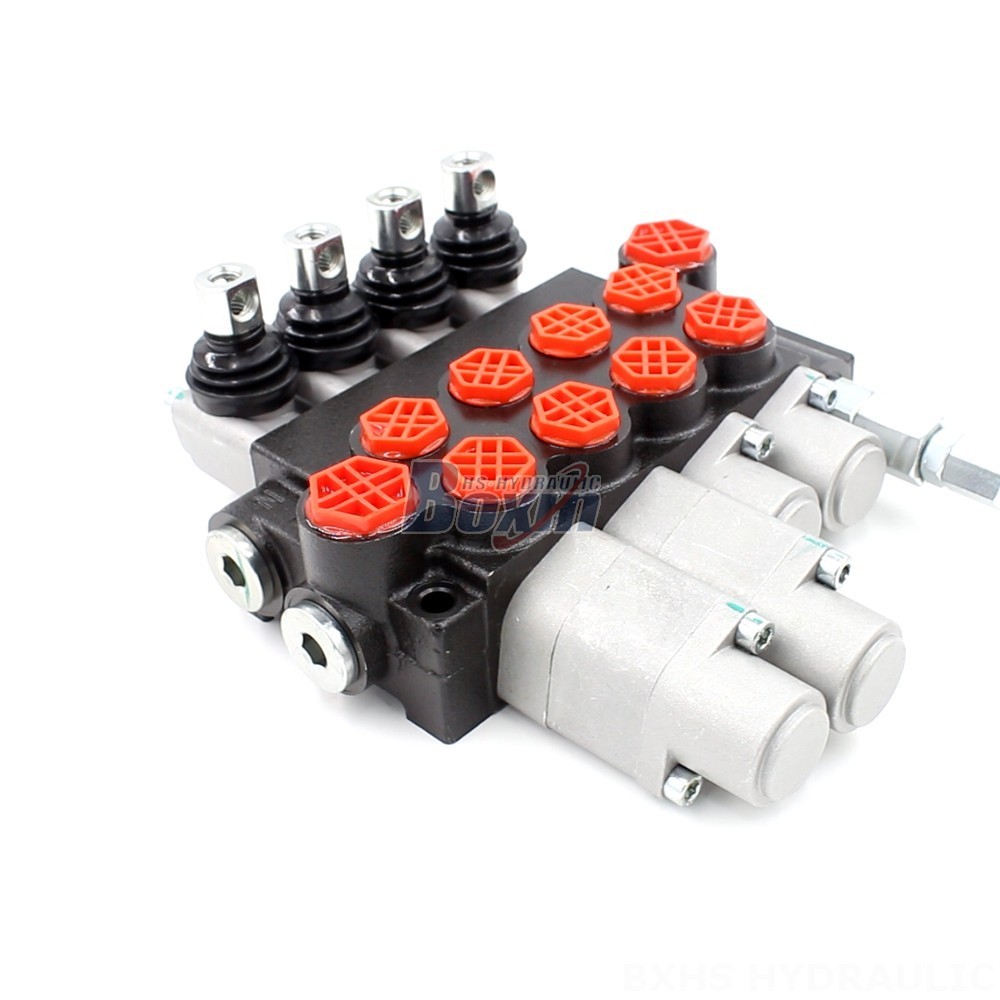

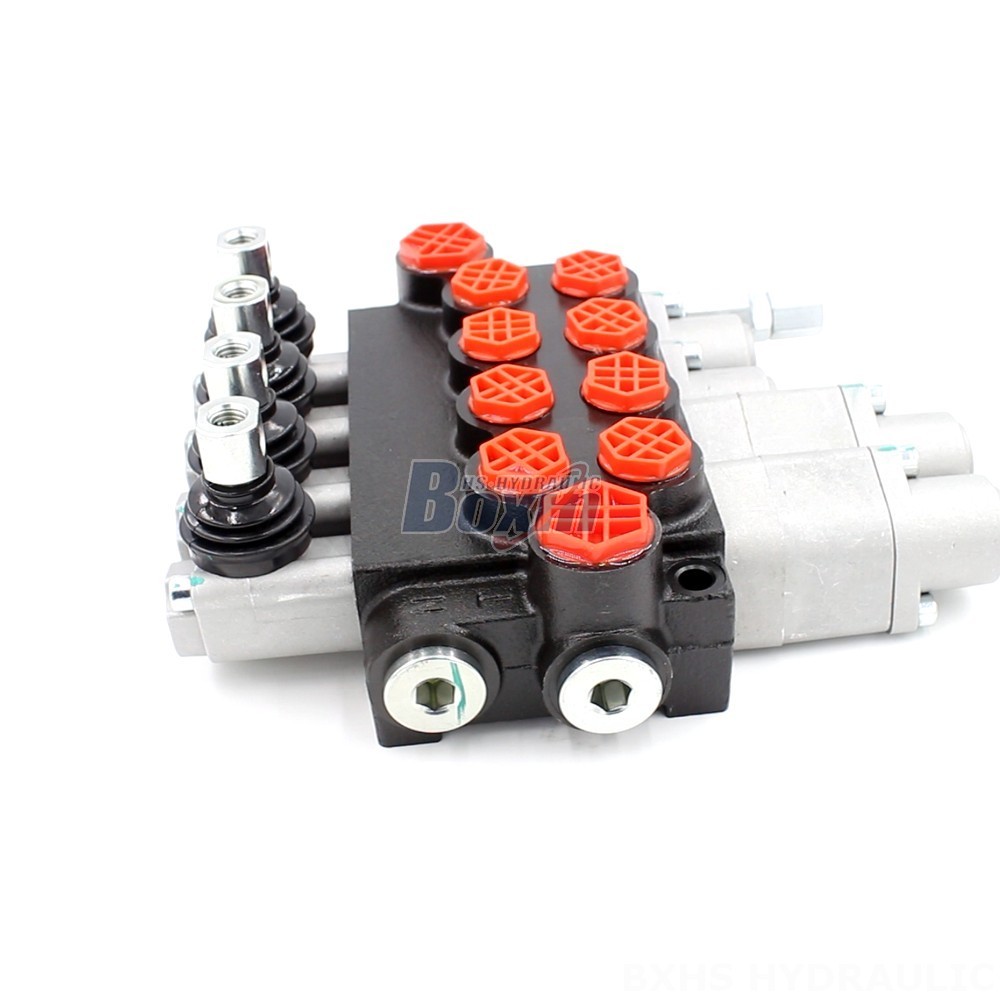

The P40-G12-G38 Hydraulic Valve is a robust and reliable 4-section, manually controlled monoblock valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It offers high performance and durability with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi).

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38 Hydraulic Valve is a premium choice for demanding applications. It features a robust monoblock construction with 4 sections, providing excellent control and responsiveness. The manual control method ensures precise operation and ease of use. This valve is designed to handle high flow rates up to 40 L/min (10.5 US gpm) and withstand pressures up to 250 bar (3600 psi). With its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C), the valve is suitable for a variety of environments. It is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This makes it a versatile and reliable choice for a wide range of industrial equipment.
