Introducing the P40-G12-G38 Monoblock Directional Valve, a high-performance hydraulic valve designed for precision and durability in demanding hydraulic applications. This 4-section, manually controlled valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of hydraulic systems.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

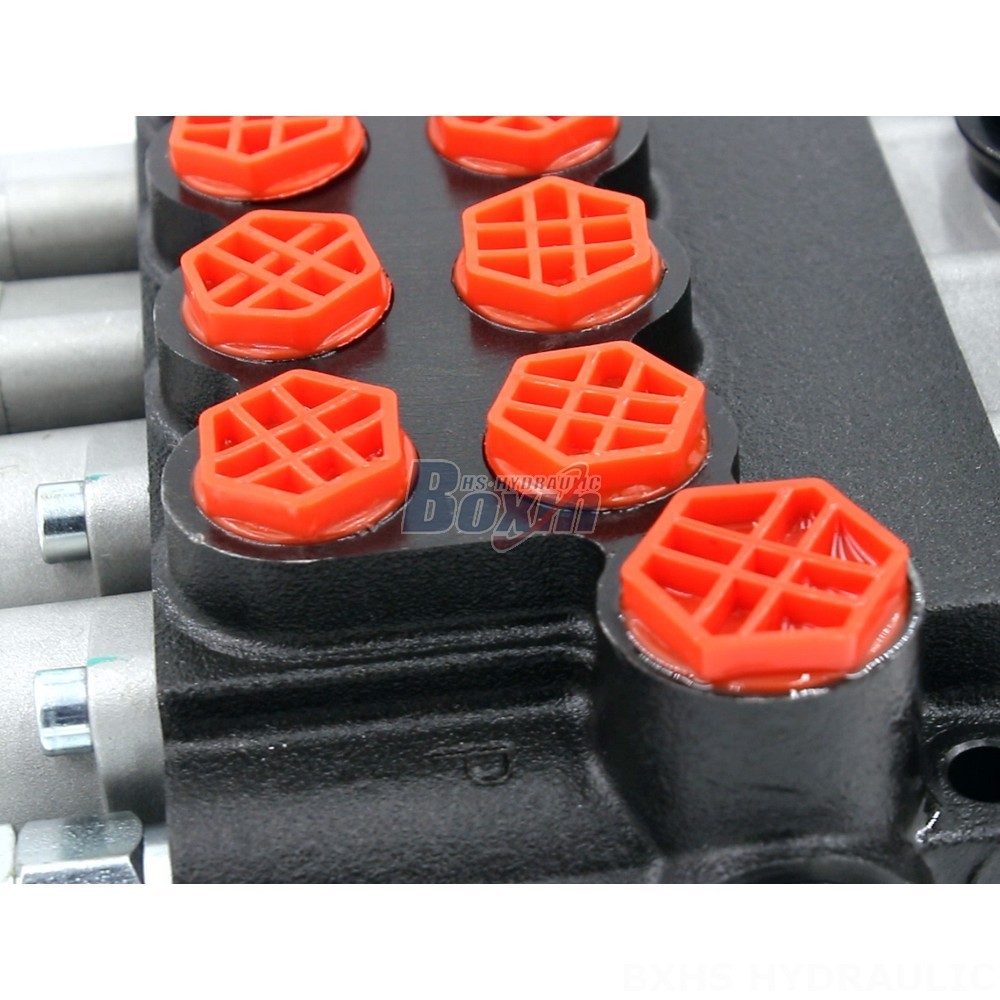

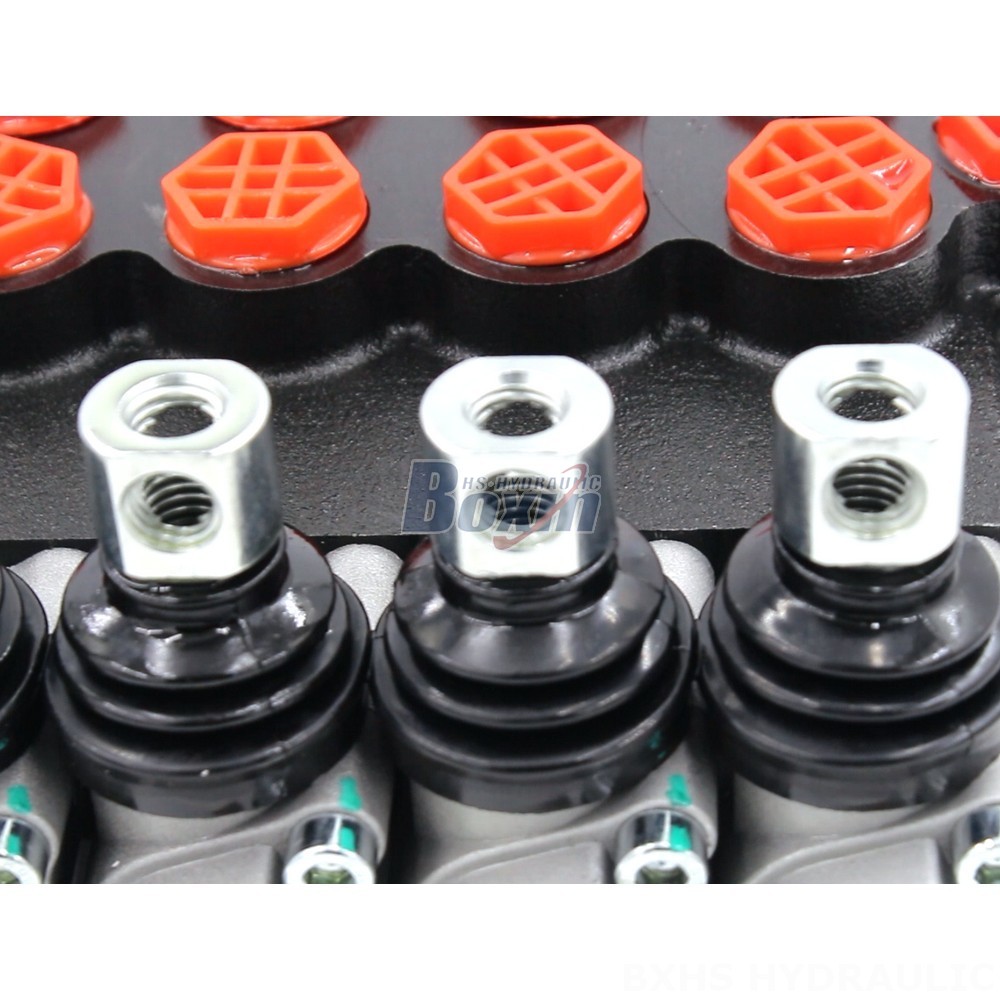

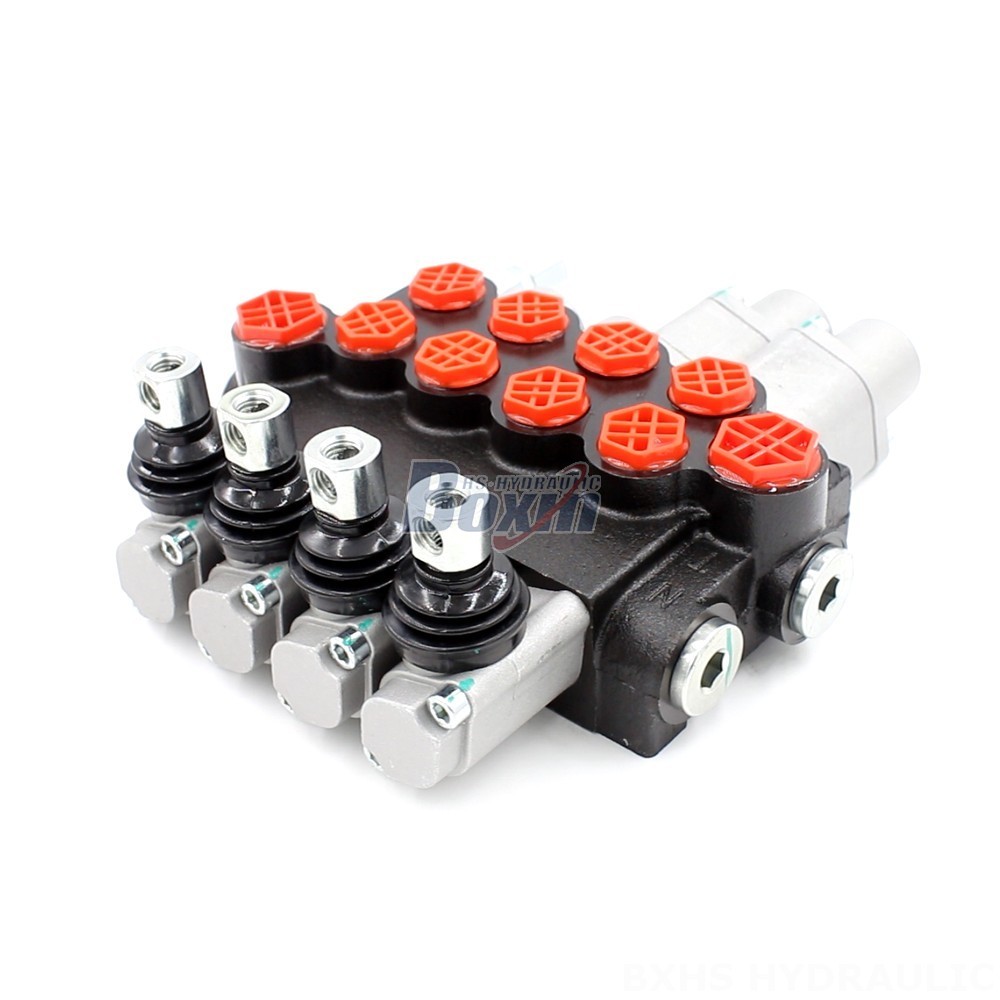

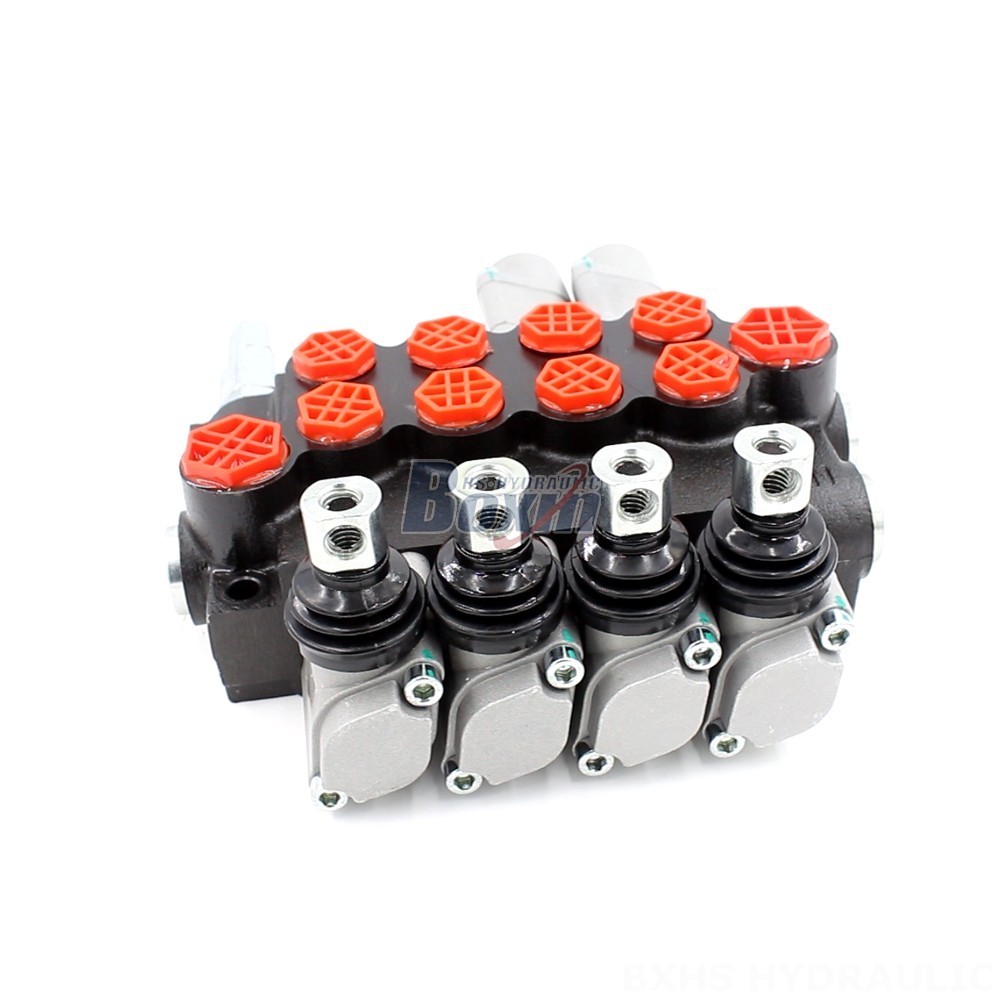

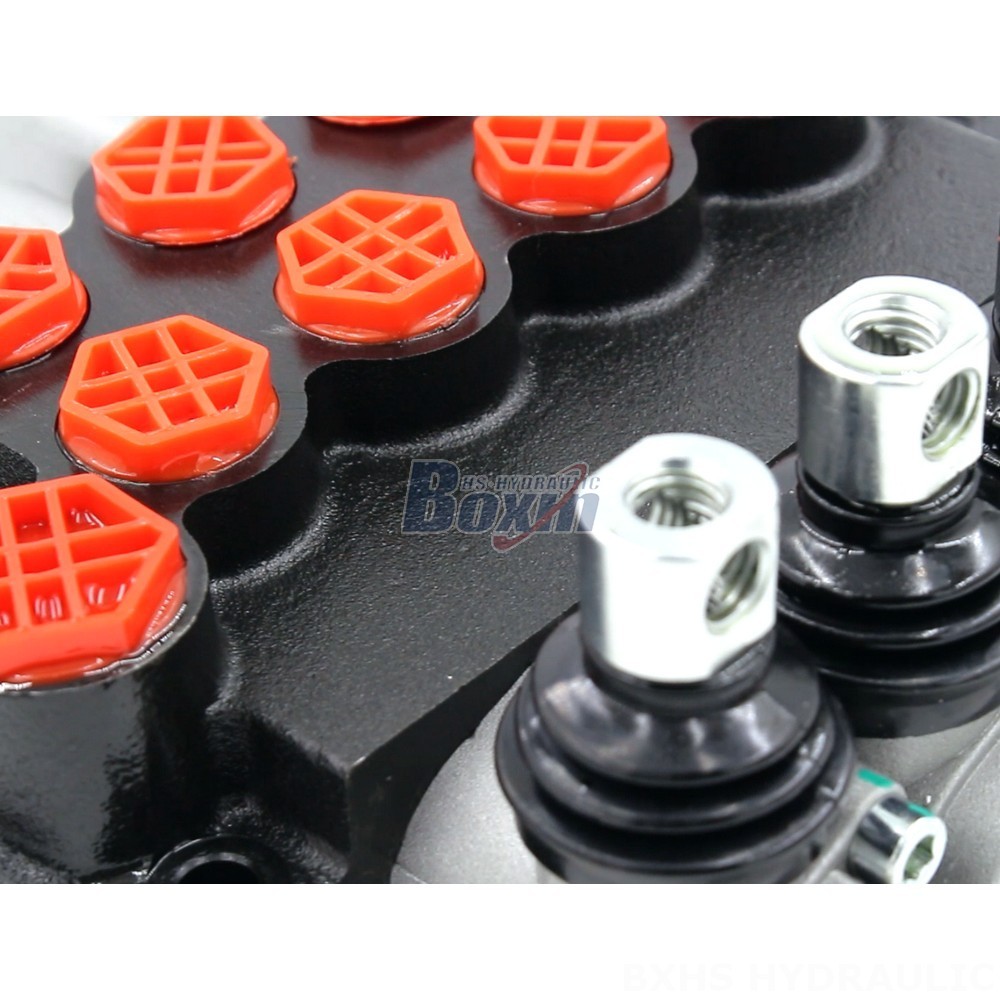

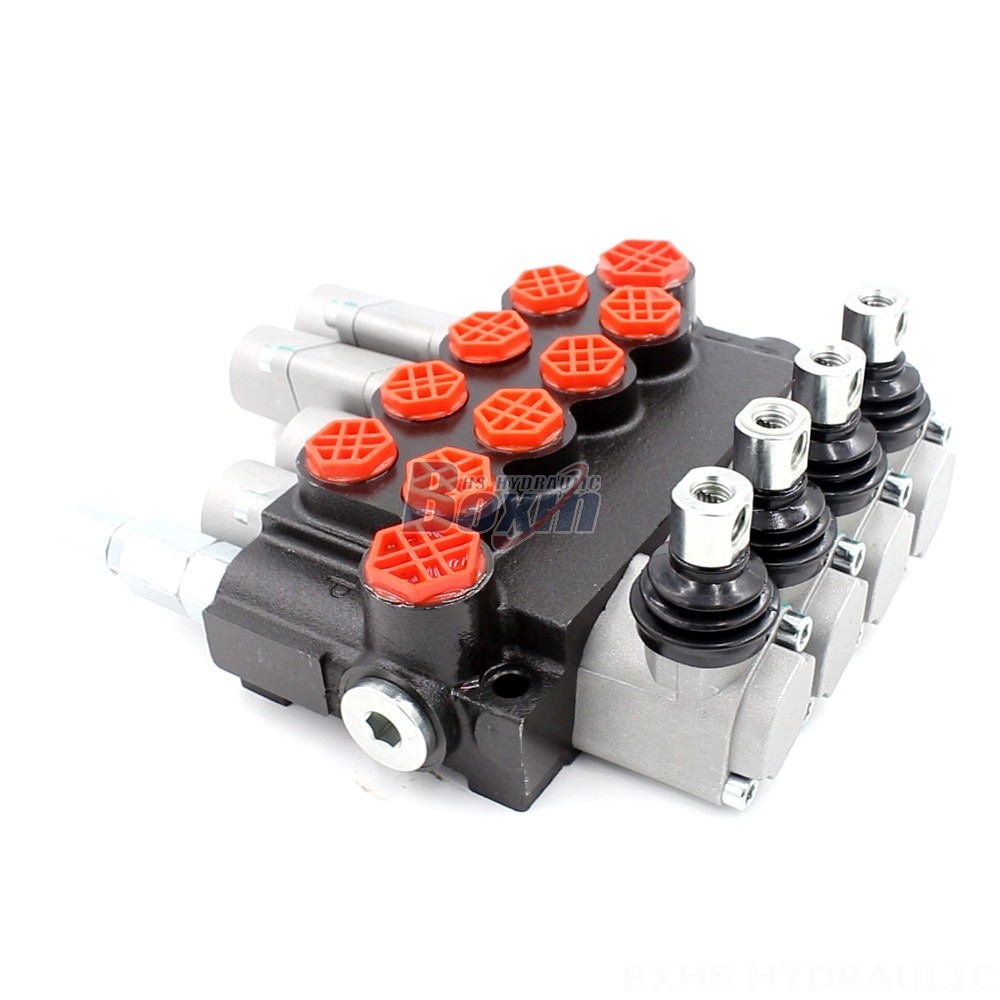

**P40-G12-G38 Monoblock Directional Valve: Precision and Durability in Hydraulics**
**Key Features:**
- **Manual Control** for precise and reliable operation
- **4 Section** design for versatile hydraulic system configurations
- **Monoblock Valve** construction for compact and robust performance
- **Rated Flow of 40 L/min** for efficient hydraulic fluid flow
- **Maximum Pressure of 250 bar** for demanding hydraulic applications
- **Operating Viscosity Range of 15 - 75 mm²/s** for compatibility with various hydraulic fluids
- **Ambient Temperature Range of -40°C to +80°C** for reliable operation in harsh environments
- **4 Spool** design for precise flow control
- **P40 Series** compatibility for seamless integration with other hydraulic components
**Application Areas:**
- Material Handling (e.g., forklifts, telehandlers)
- Construction and Earth Moving (e.g., excavators, motor graders)
- Agriculture (e.g., tractors, harvesters)
- Industrial Vehicles (e.g., skid steer loaders, compact wheel loaders)
**Applicable Models:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
The P40-G12-G38 Monoblock Directional Valve is the ideal choice for hydraulic systems that demand precision, durability, and reliable performance. Its advanced design and robust construction ensure long-lasting operation even in the most challenging hydraulic applications.
