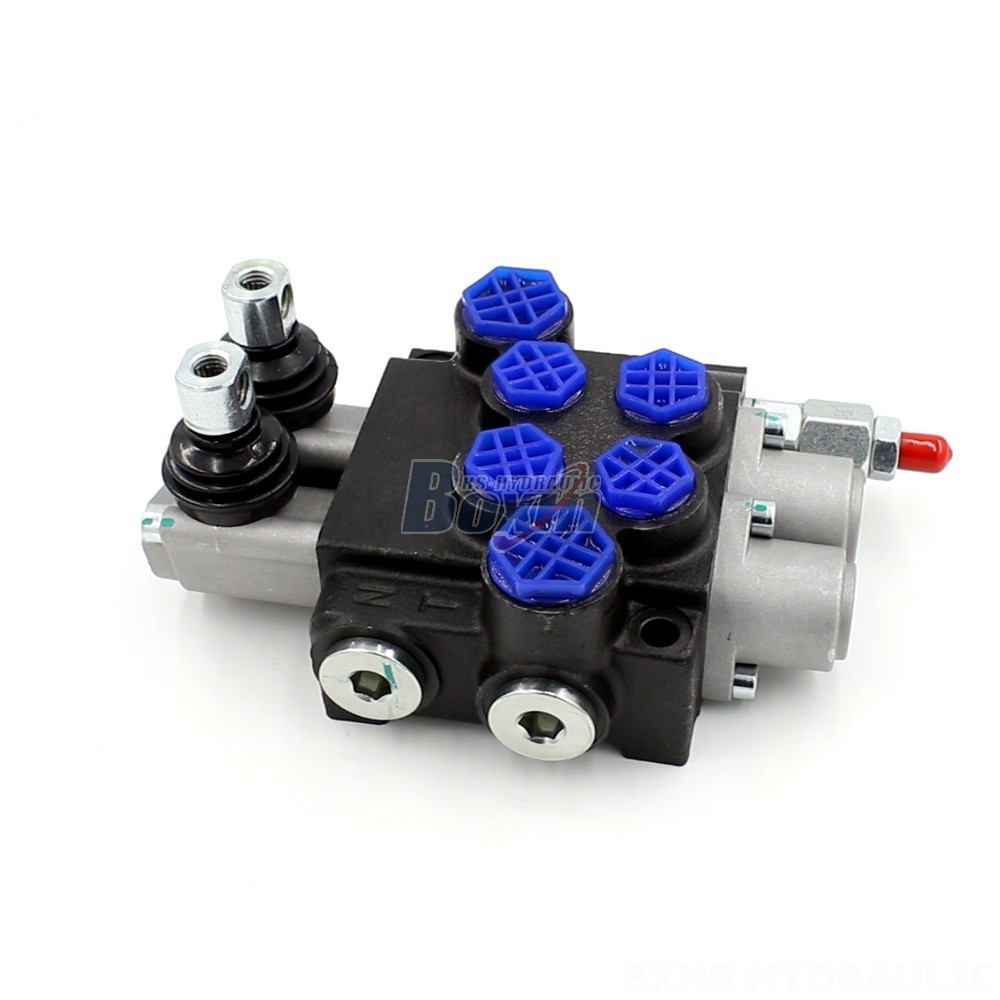

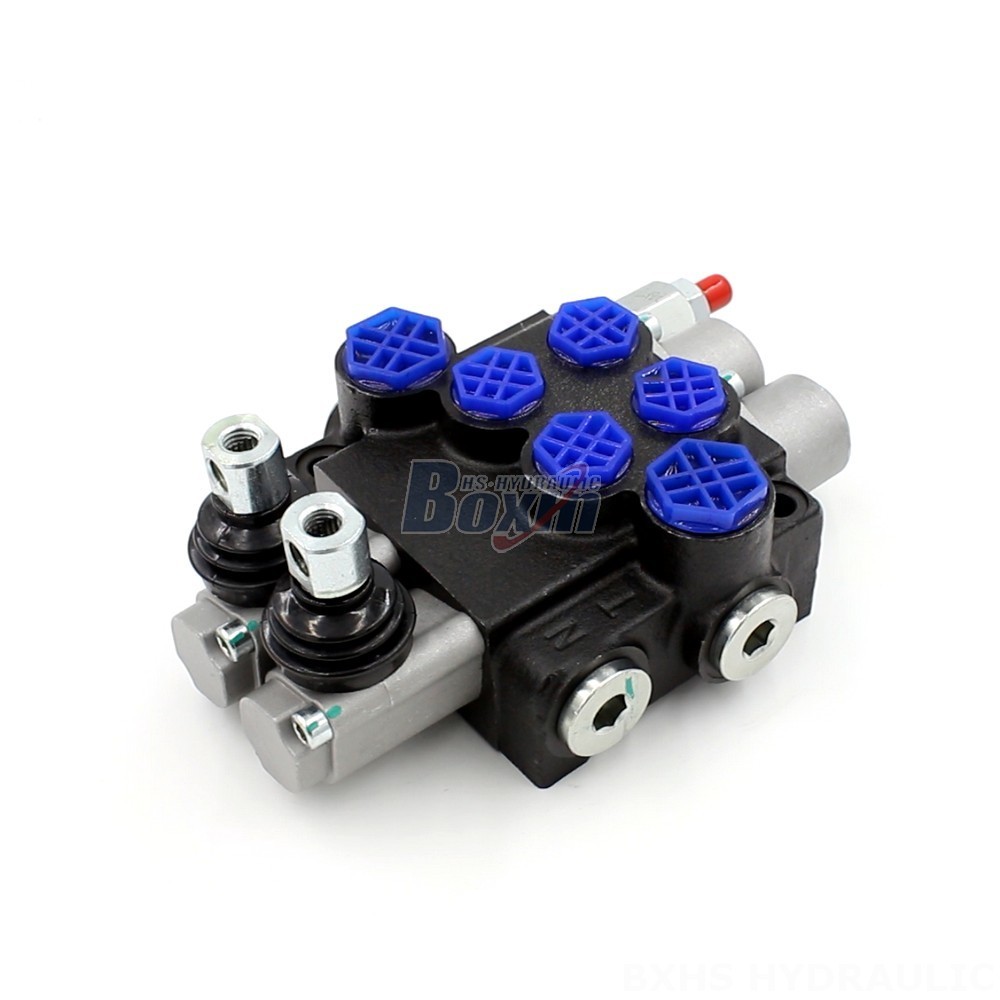

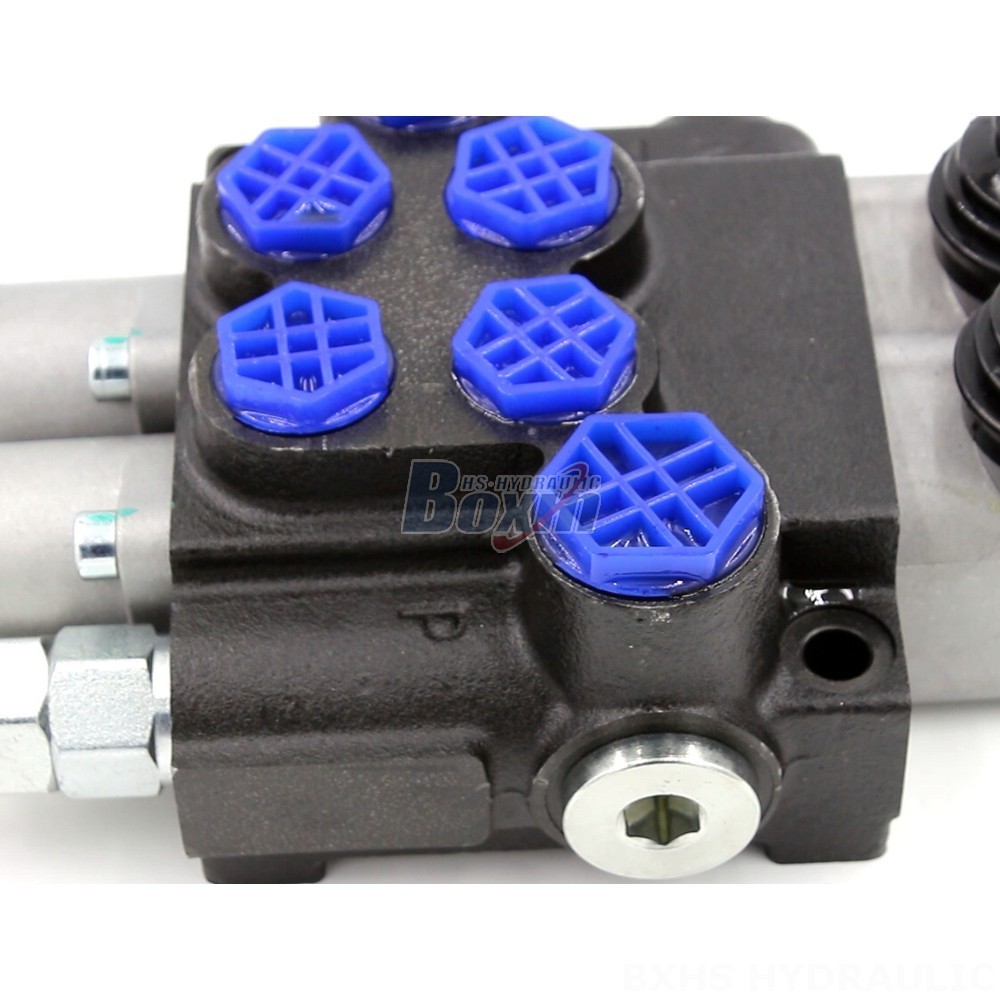

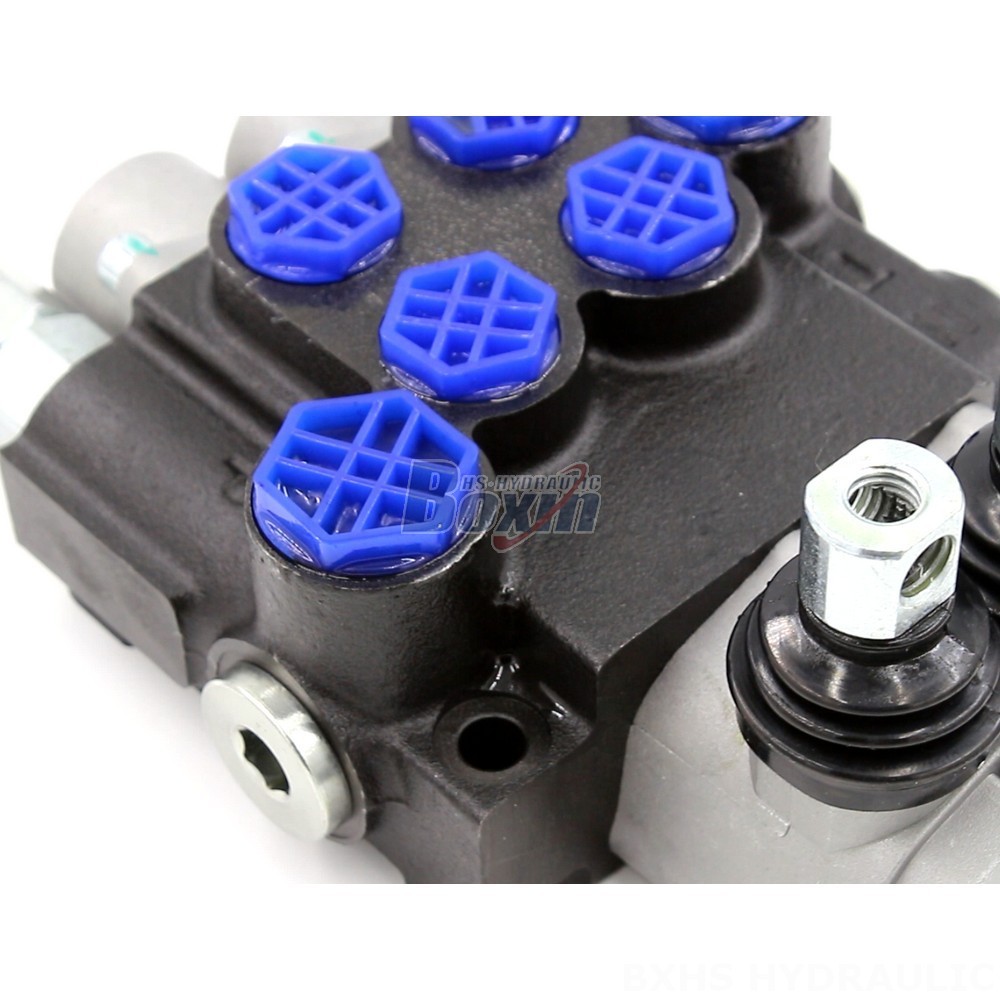

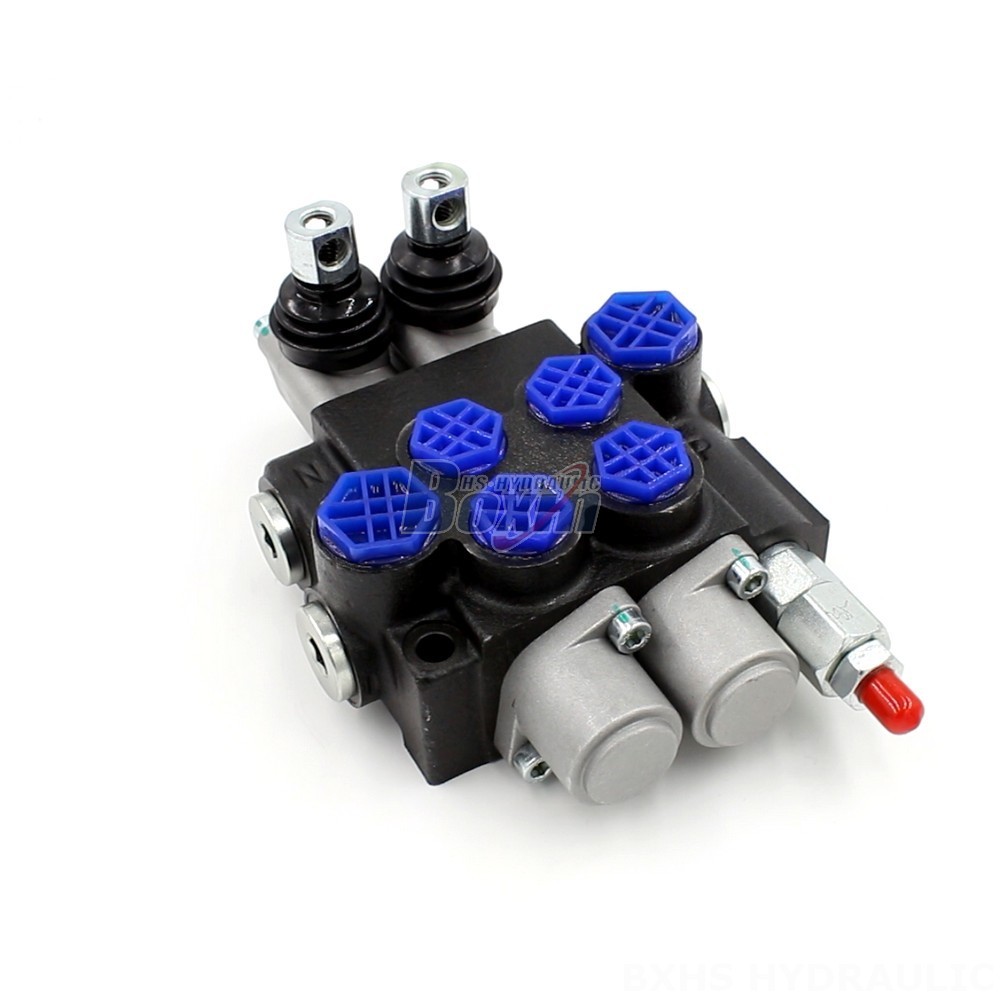

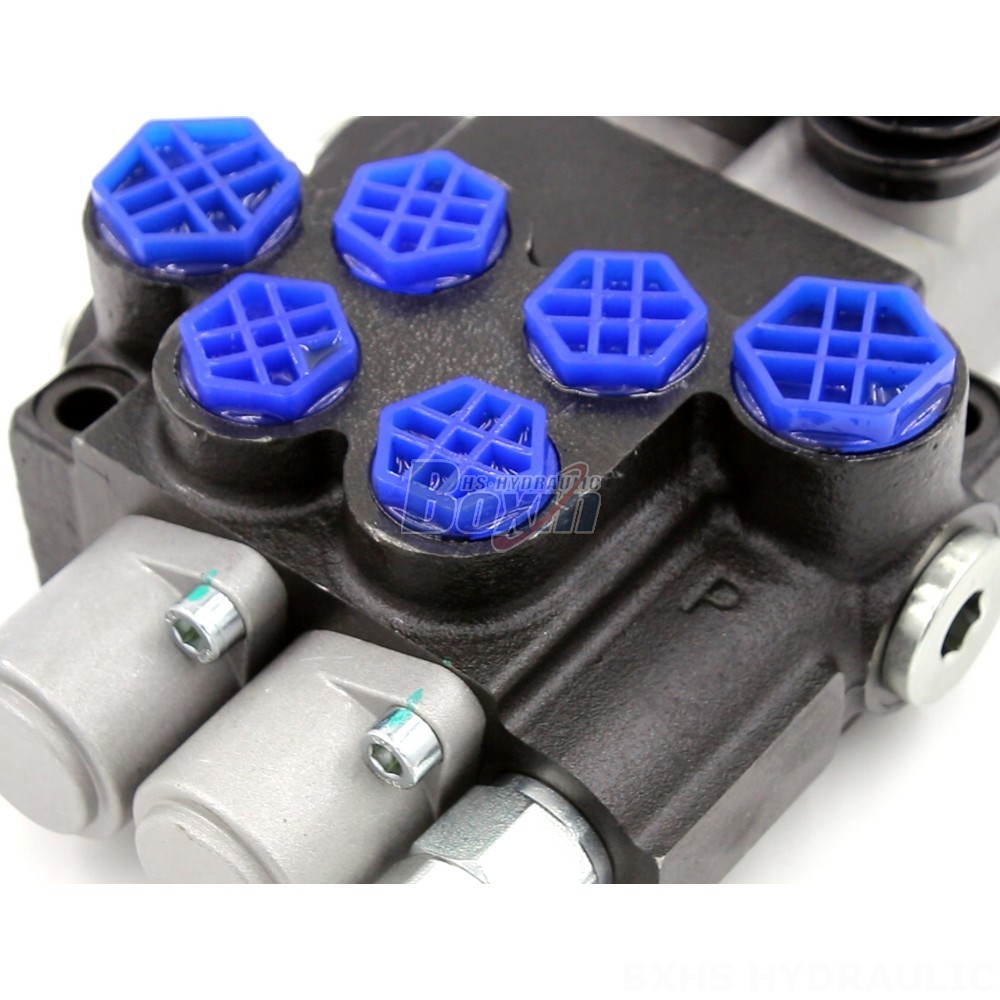

P40-G12-G38-OT Manual Hydraulic Directional Valve | Proven Performance

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:23*18*13

Brüt ağırlık:5.50 kg

Stok Durumu: Stokta Var

929 Görünümler Bu Ürünü Arıyor

P40-G12-G38-OT Manual Hydraulic Directional Valve | Proven Performance

P40-G12-G38-OT Manual Hydraulic Directional Valve | Proven Performance

P40-G12-G38-OT Manual Hydraulic Directional Valve | Proven Performance drawing image

This high-performance manual hydraulic directional valve from the P40 series is designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this robust monoblock valve offers proven reliability and efficiency.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38-OT manual hydraulic directional valve is a two-section, monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). This valve features a robust design with two spools and operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It is suitable for use in a wide range of temperatures, from -40°C to +80°C (-40°F to +176°F). Designed for demanding applications in material handling, construction and earth moving, agriculture, and industrial vehicles, this valve is compatible with a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its proven performance and durability make it a reliable choice for a variety of applications.
