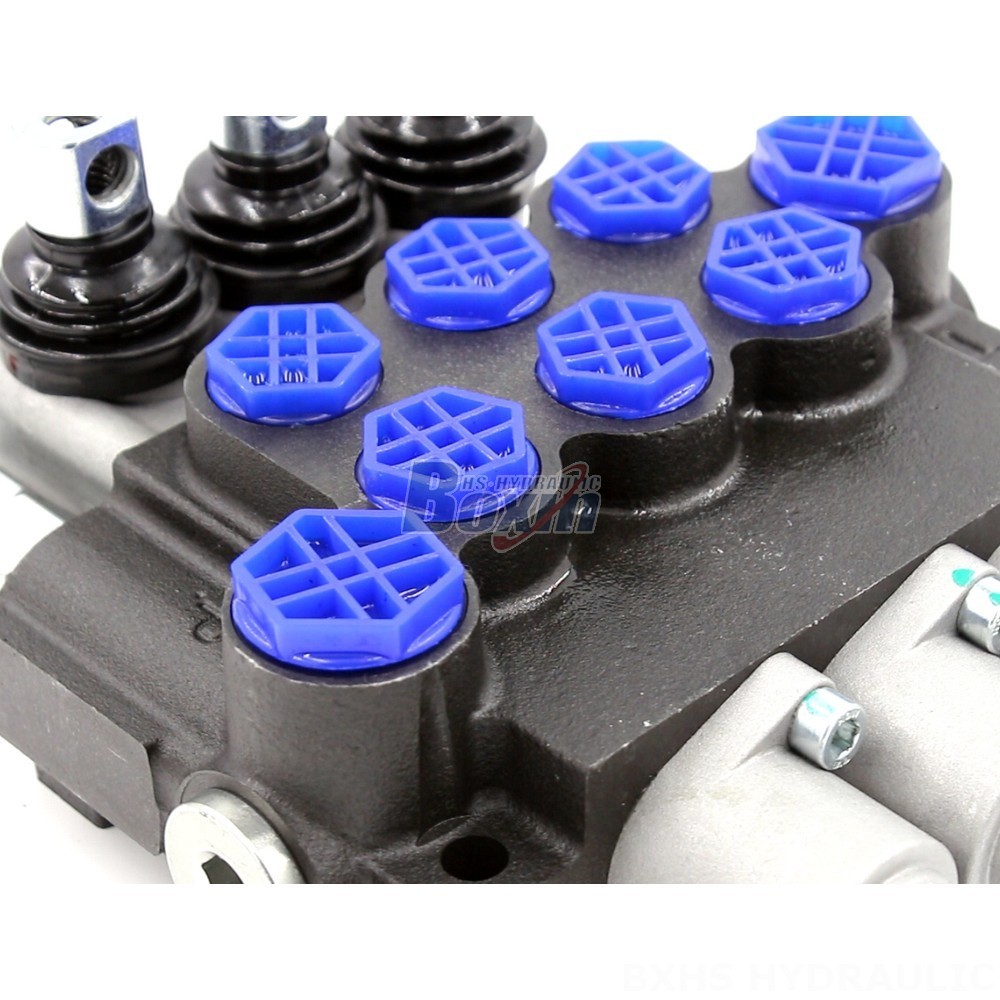

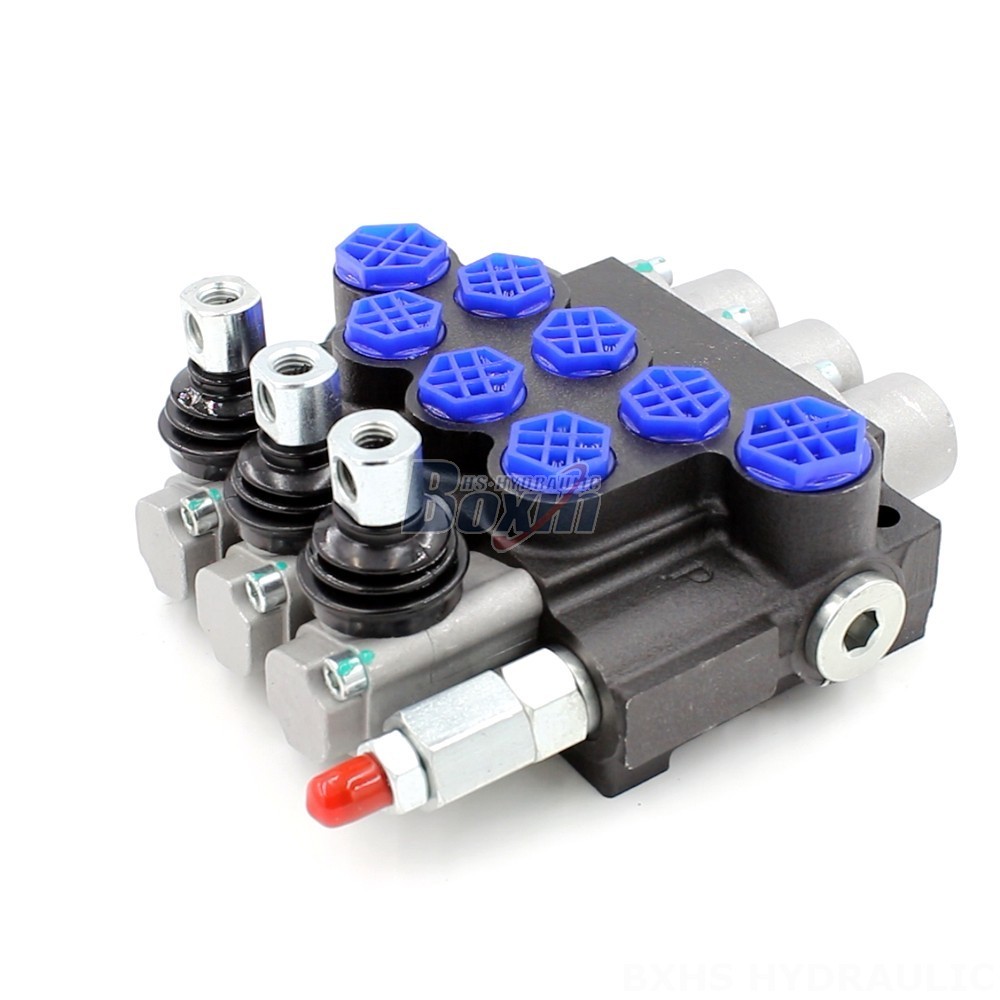

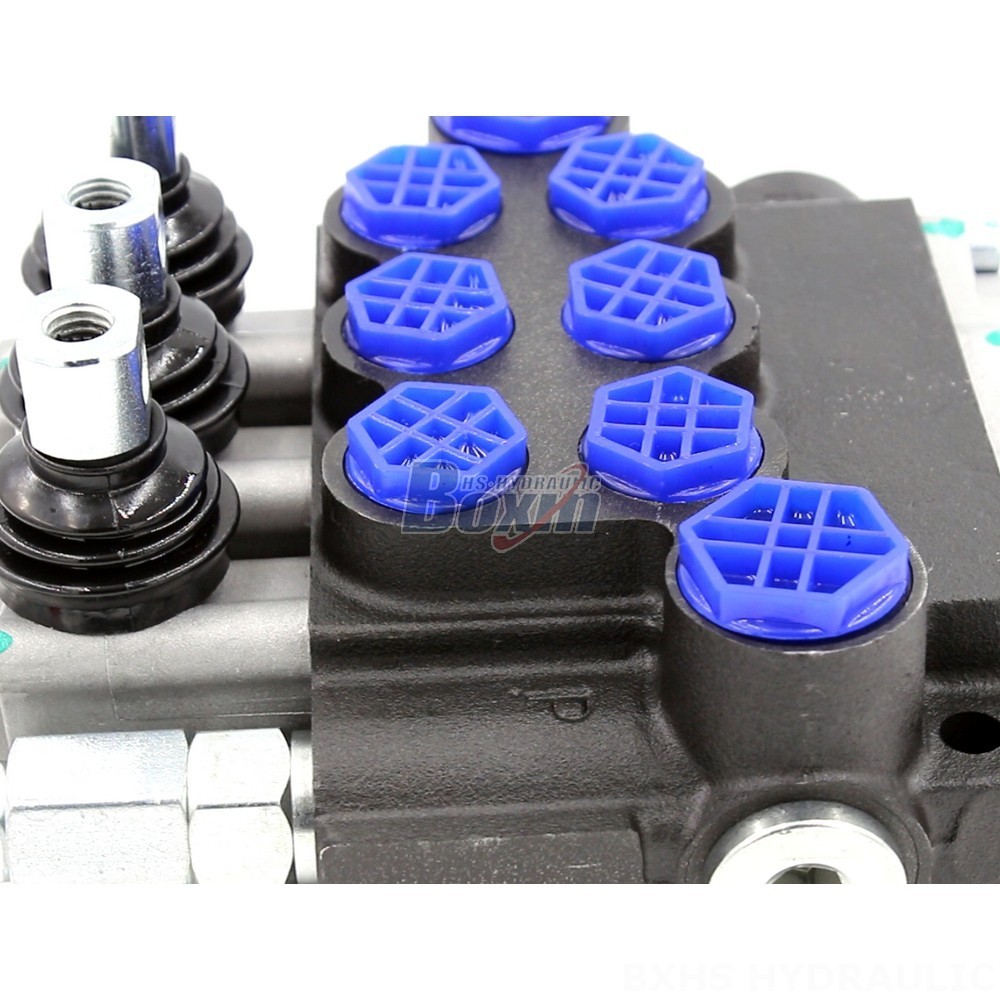

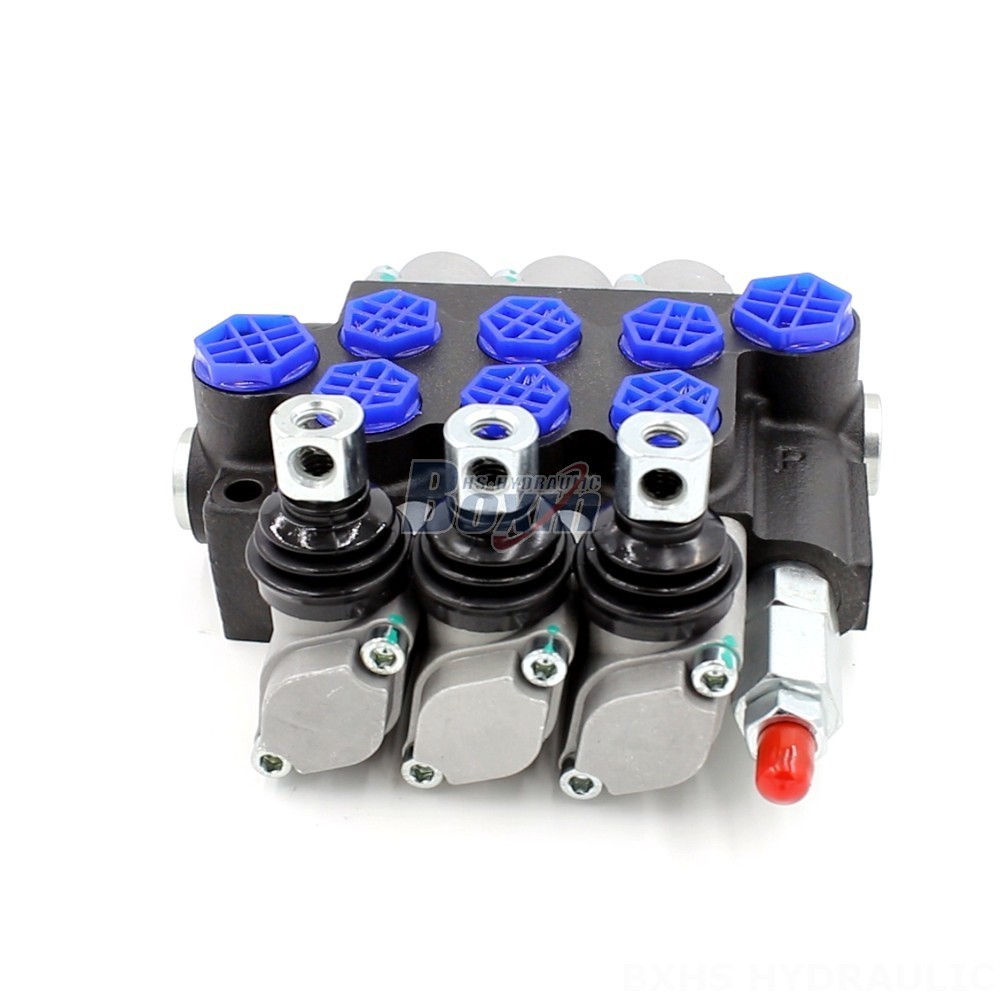

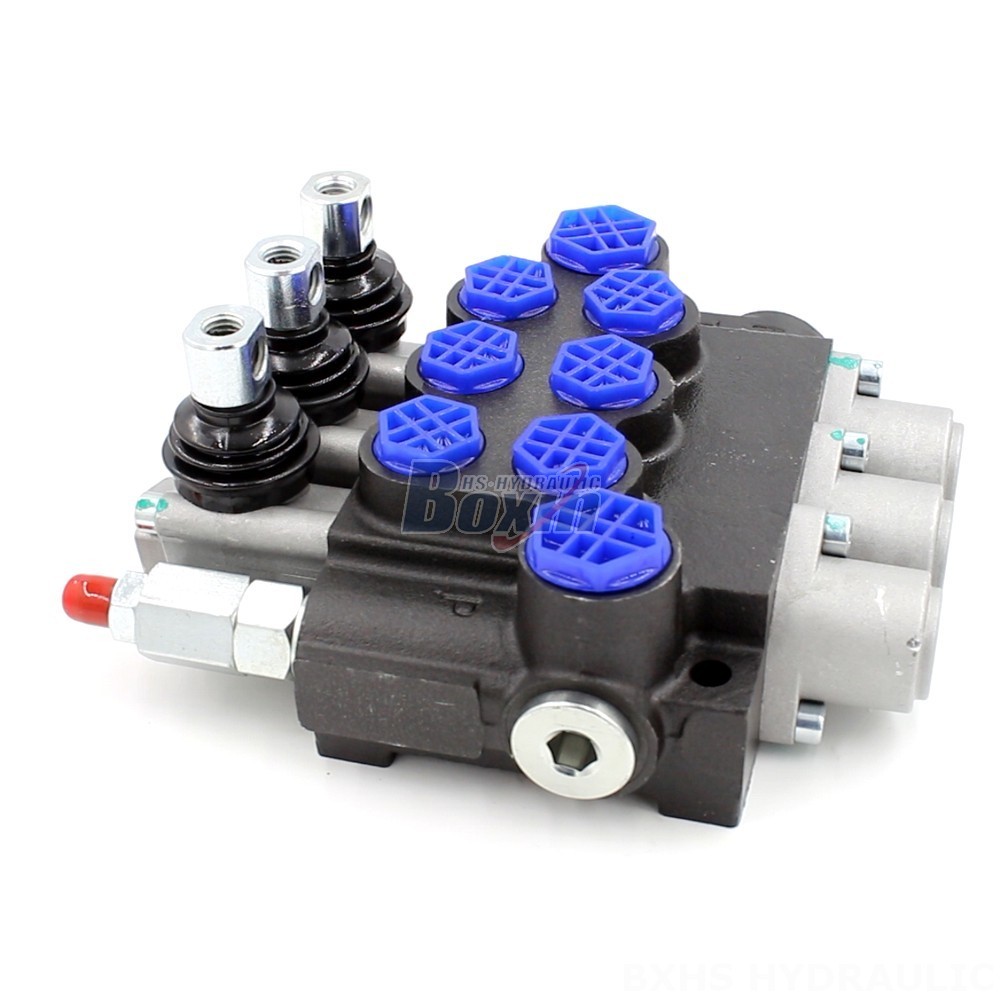

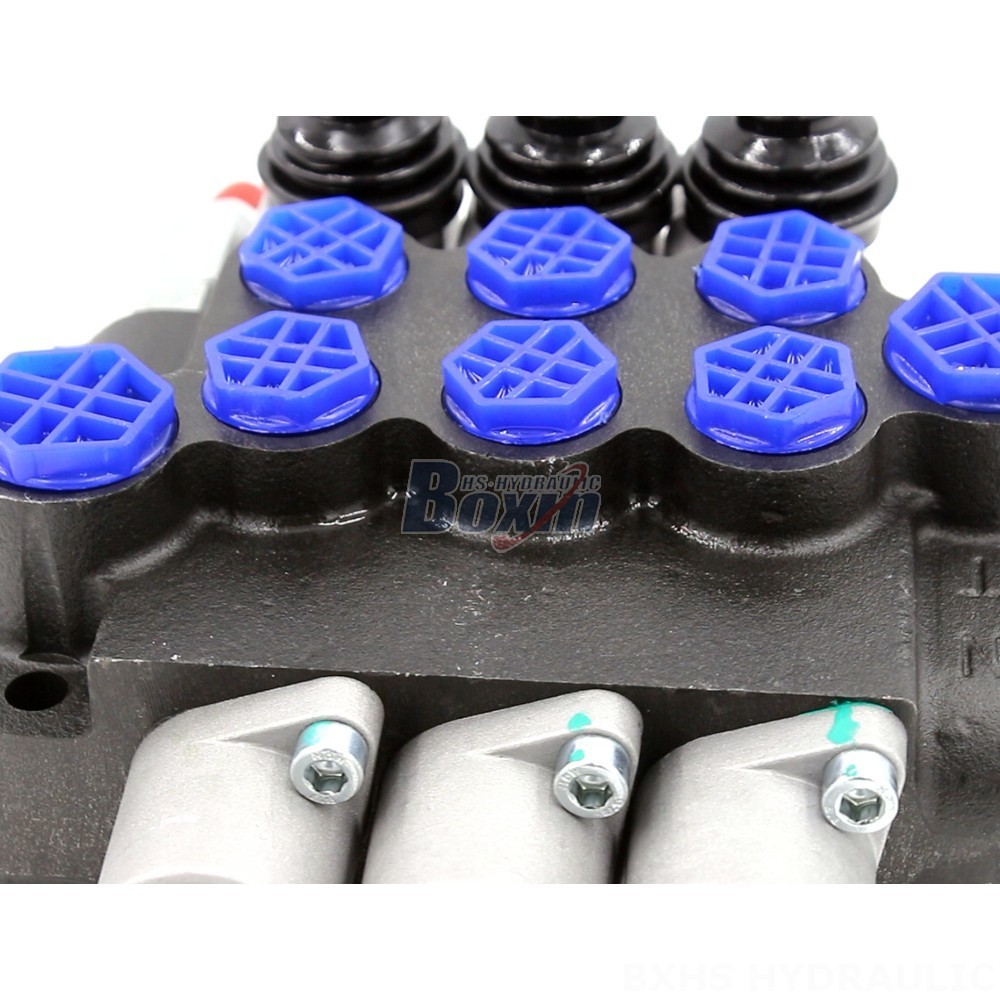

The P40-G12-G38-OT Monoblock Valve is a high-performance hydraulic valve designed for use in a wide range of applications. It features a durable and efficient design, with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a variety of fluids, including hydraulic oil, and has an operating viscosity range of 15 - 75 mm²/s. The valve is also temperature resistant, with an ambient temperature range of -40°C to +80°C.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-OT Monoblock Valve is a 3-section, 3-spool valve that is ideal for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. The valve is designed to control the flow of hydraulic fluid in a system, and can be used to direct the fluid to different parts of the system. The valve is made from high-quality materials and is built to last. It is also easy to install and maintain.
**Key Features:**
* Durable and efficient design
* Rated flow of 40 L/min
* Maximum pressure of 250 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +80°C
* 3-section, 3-spool valve
* Suitable for use with a variety of fluids
* Easy to install and maintain
