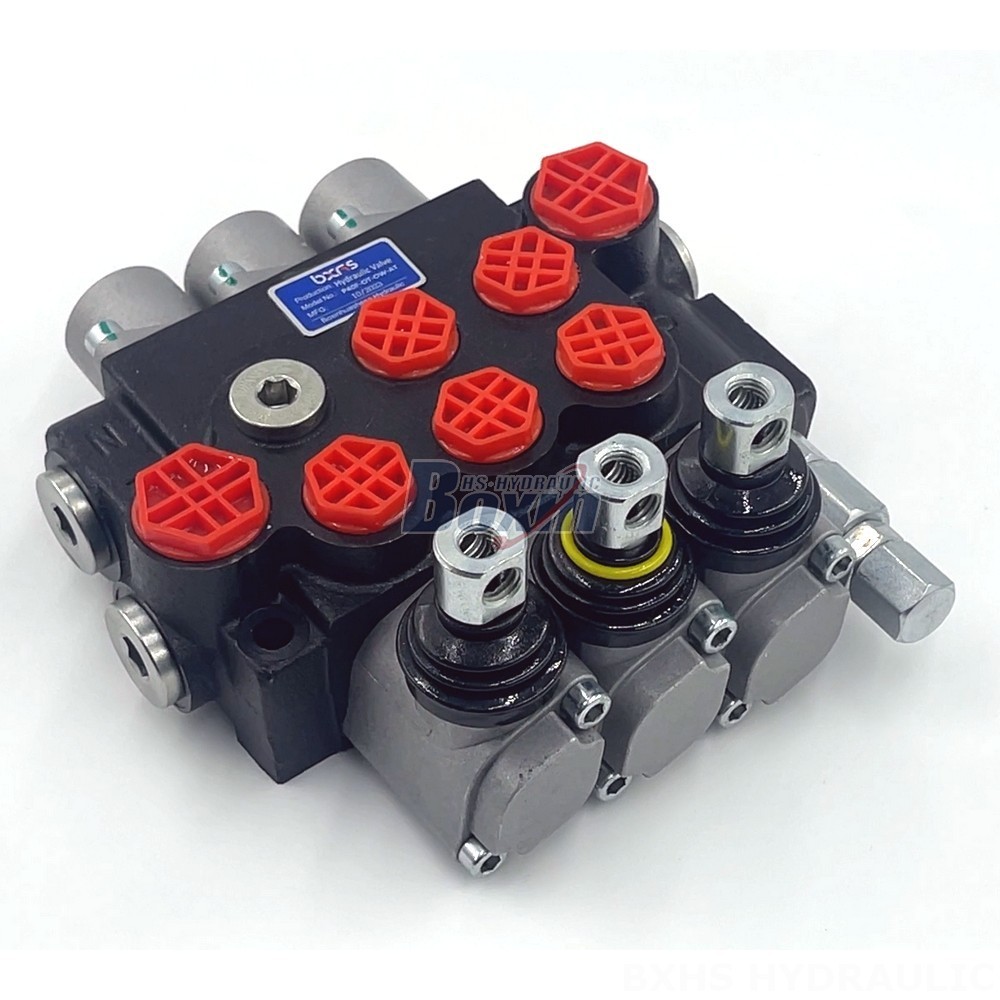

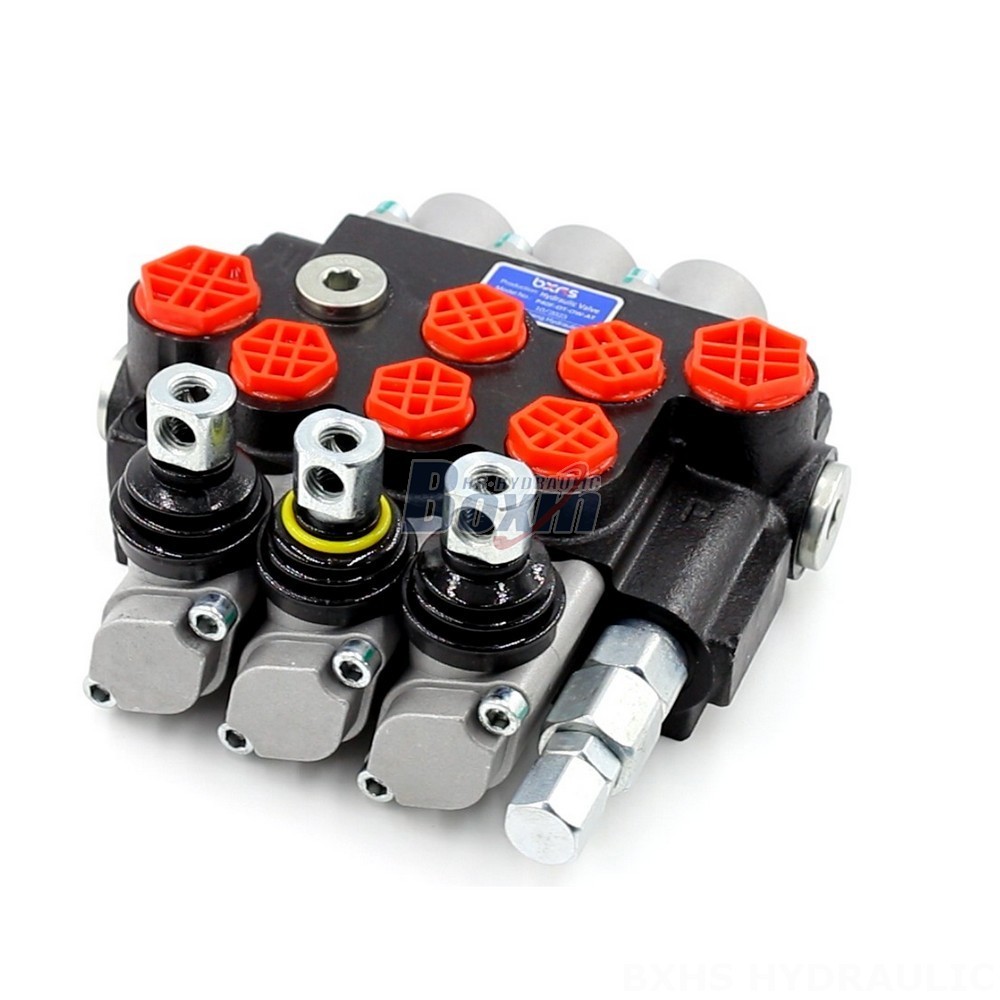

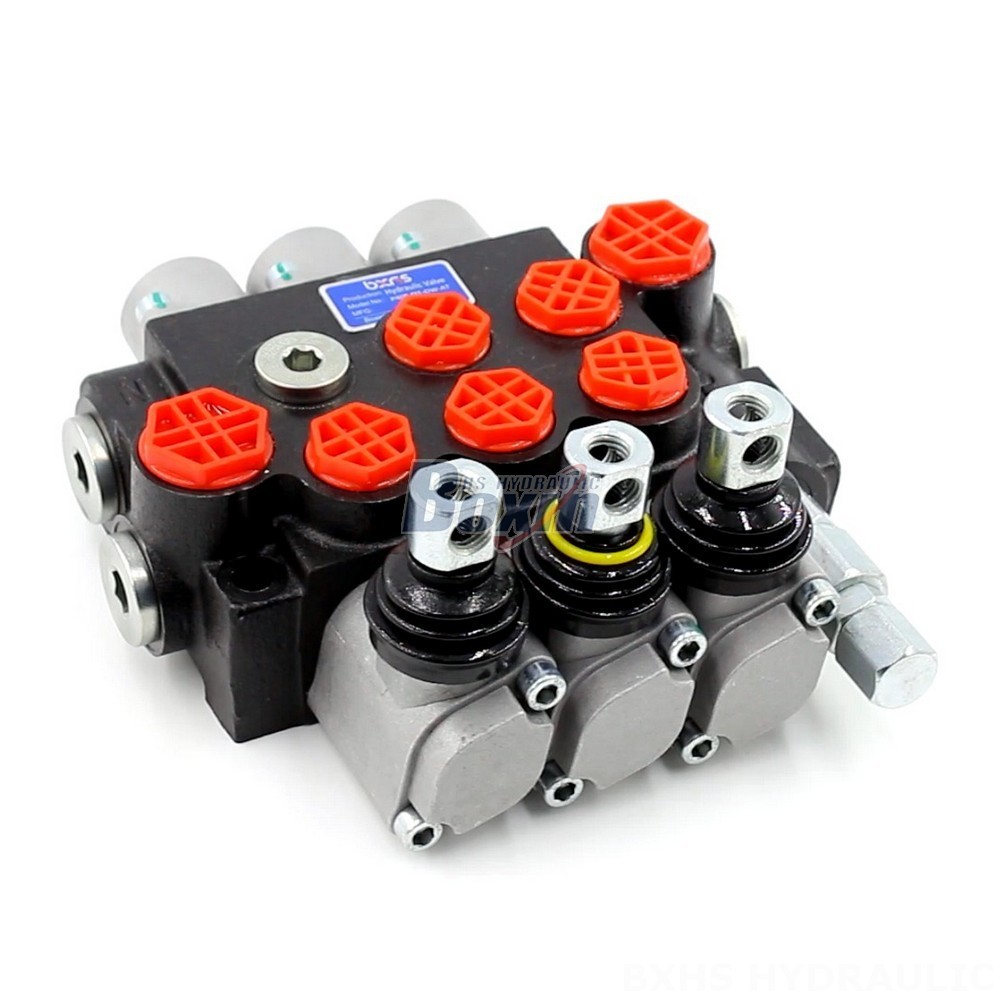

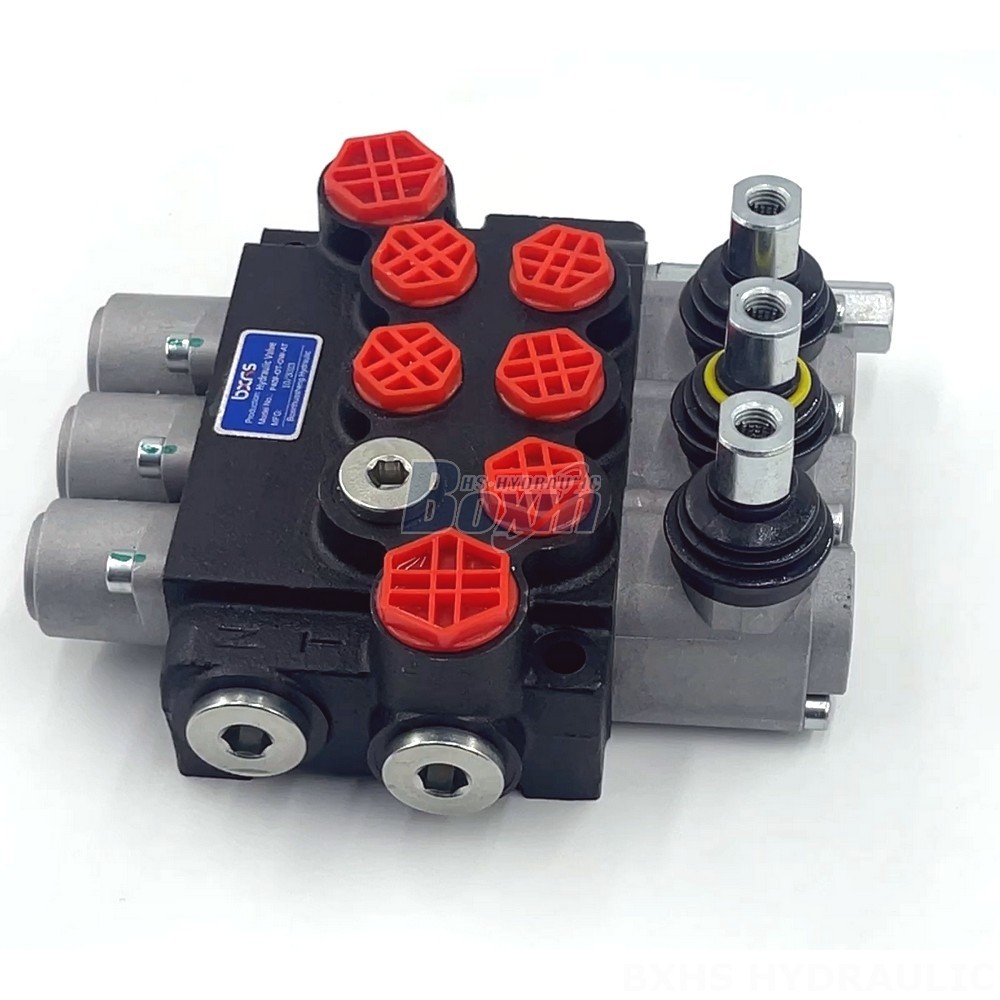

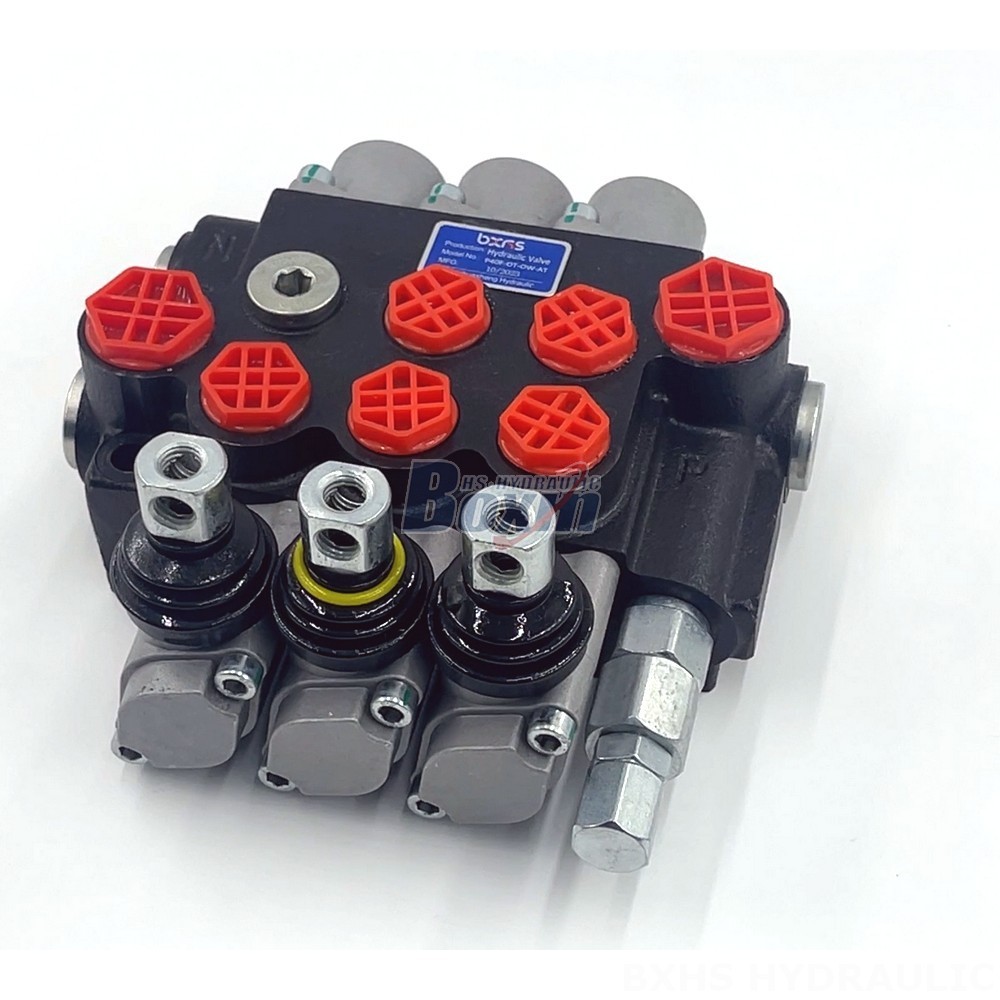

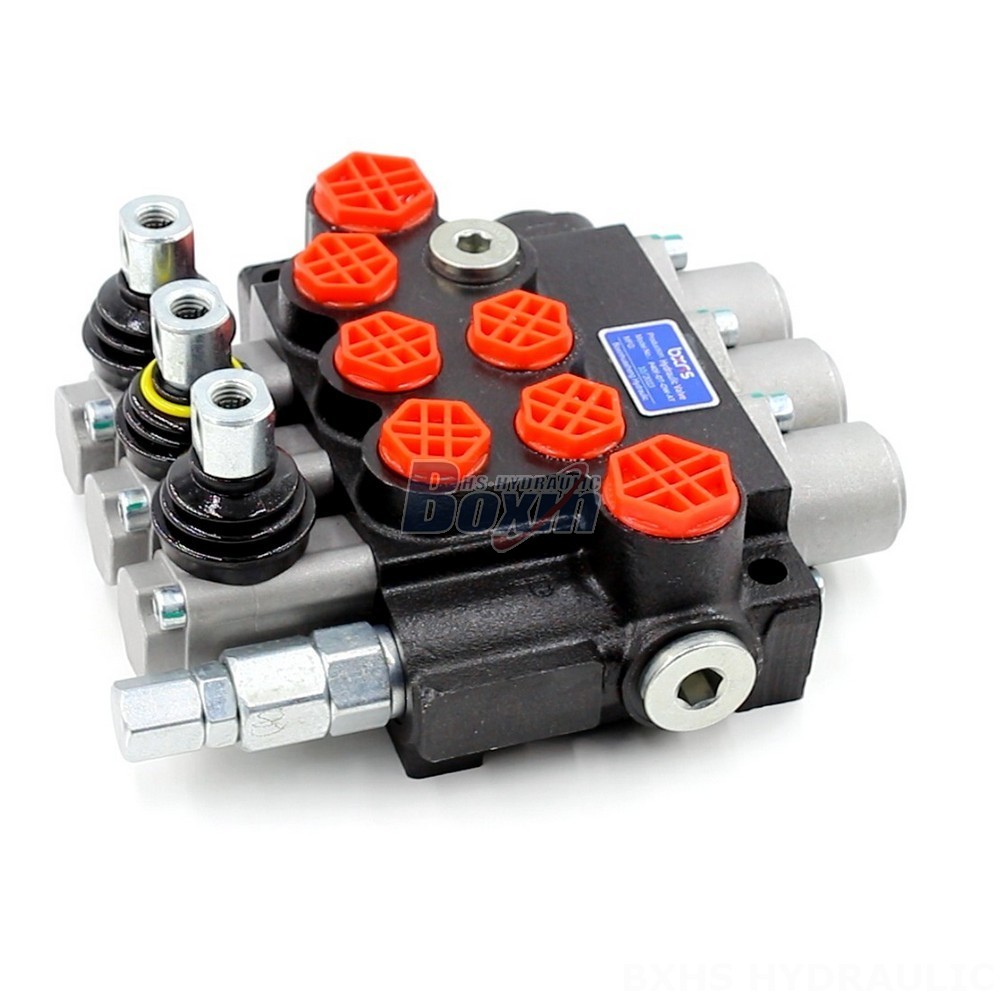

P40 Manual 3 Spool Monoblock Directional Valve

Kontrol Yöntemi:Manuel

Makara:3 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:23*20*12

Brüt ağırlık:6.60 kg

Stok Durumu: Stokta Var

2509 Görünümler Bu Ürünü Arıyor

P40 Manual 3 Spool Monoblock Directional Valve

P40 Manual 3 Spool Monoblock Directional Valve

P40 Manual 3 Spool Monoblock Directional Valve drawing image

The P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve designed for use in construction equipment, material handling, agriculture, and industrial vehicles. It features a compact design and high flow rate, making it ideal for a wide range of applications.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve that offers reliable and precise control of hydraulic fluid flow. It is designed for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. This valve features a compact design and high flow rate, making it ideal for demanding applications. The valve is also equipped with a manual control lever for easy operation. Key features include a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
