P40-U34-2OT Manual Hydraulic Valve | Customizable & Private Label

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:SAE 8

Çıkış Portu:SAE 8

Port Boyutu:SAE 8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:23*18*13

Brüt ağırlık:4.80 kg

Stok Durumu: Stokta Var

1019 Görünümler Bu Ürünü Arıyor

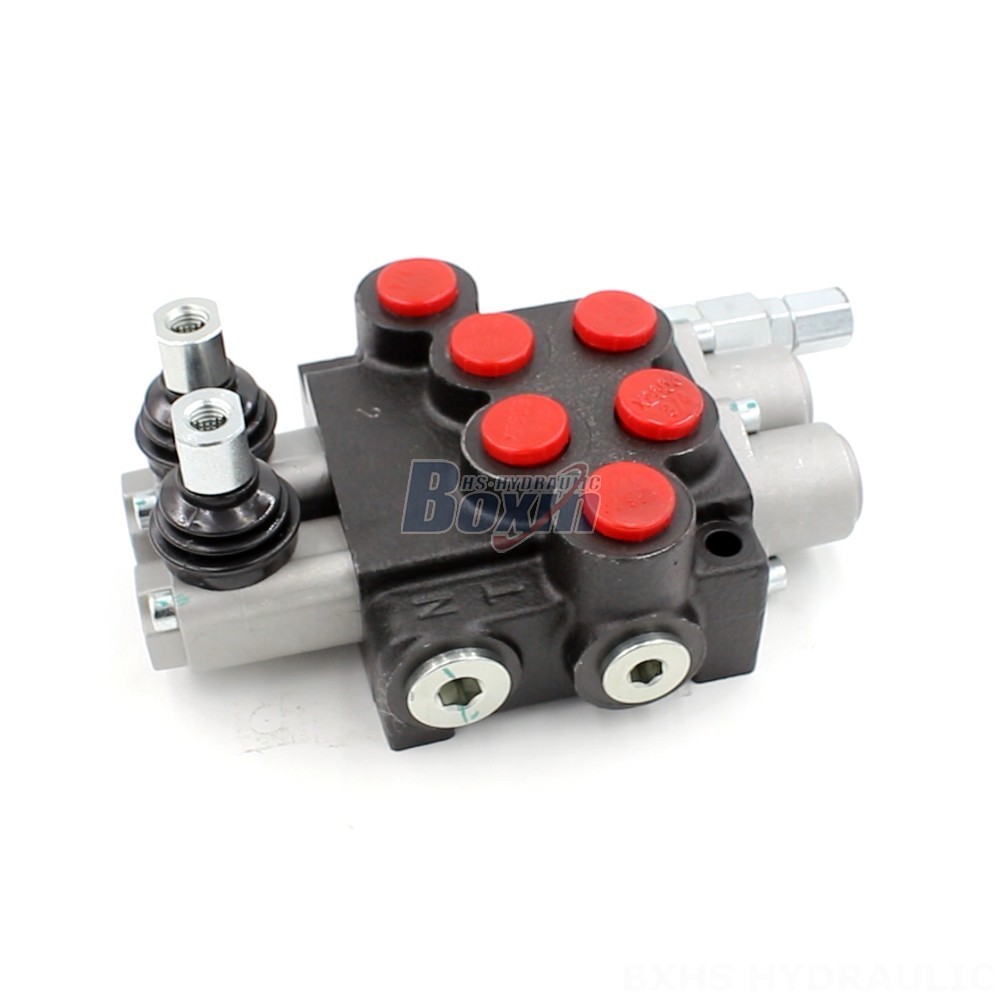

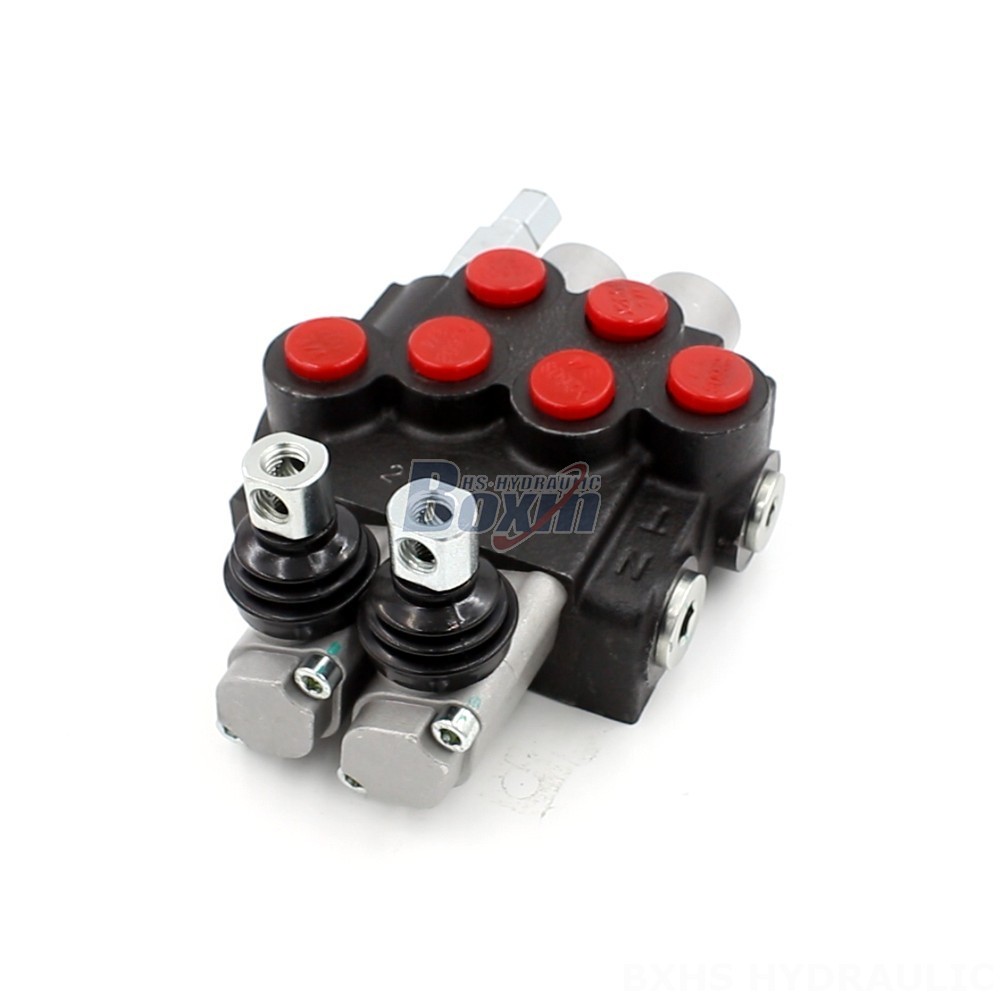

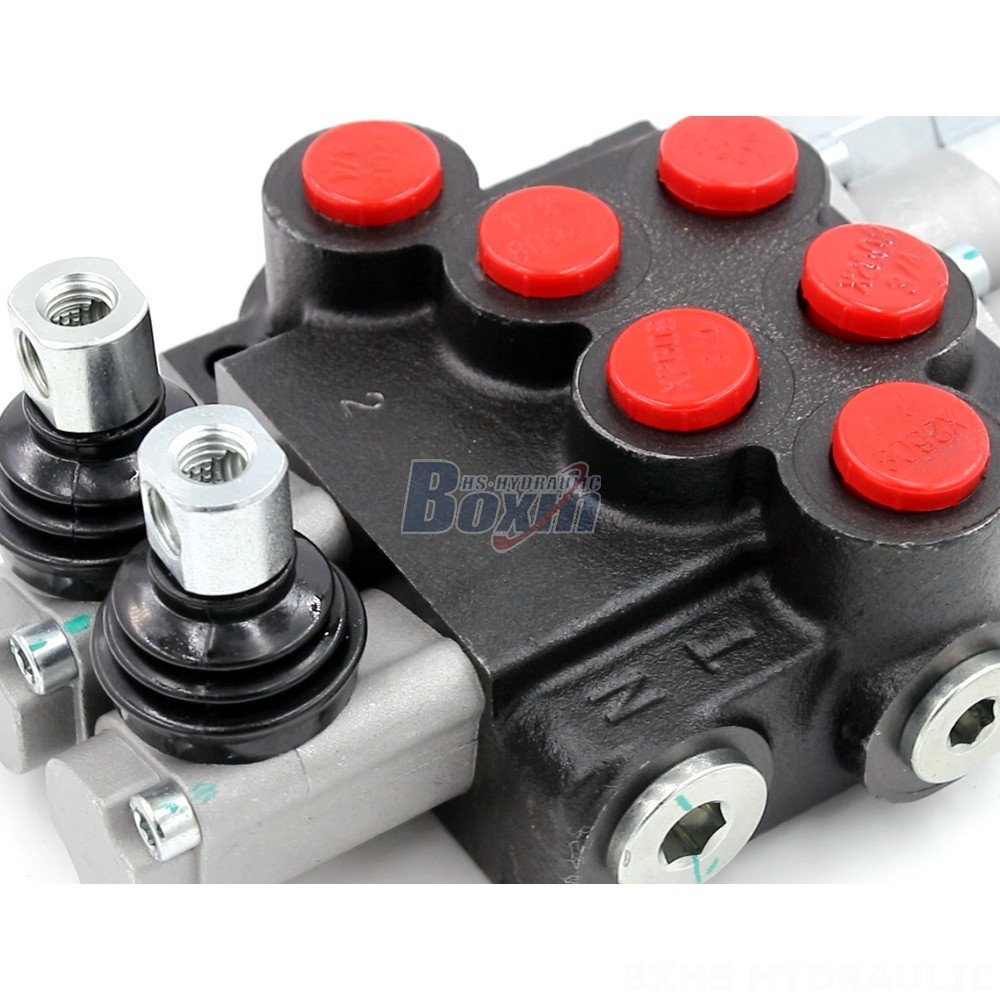

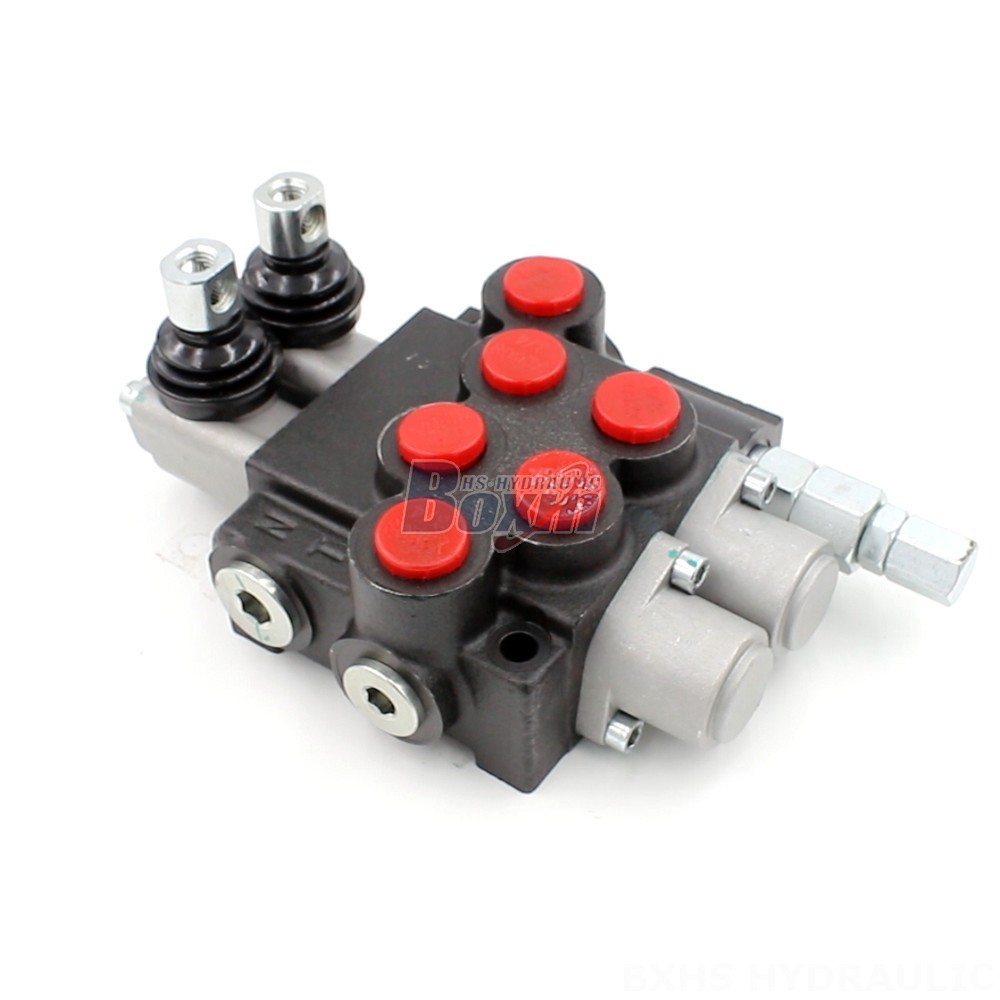

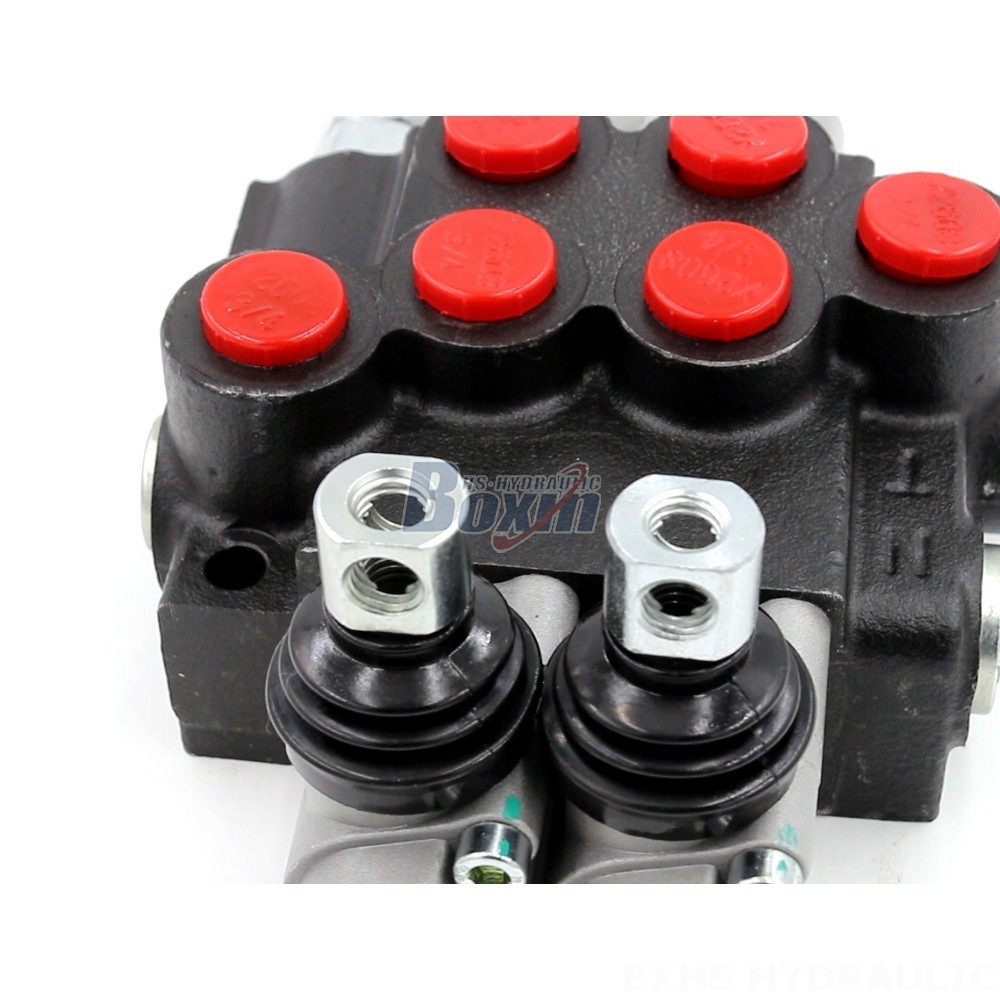

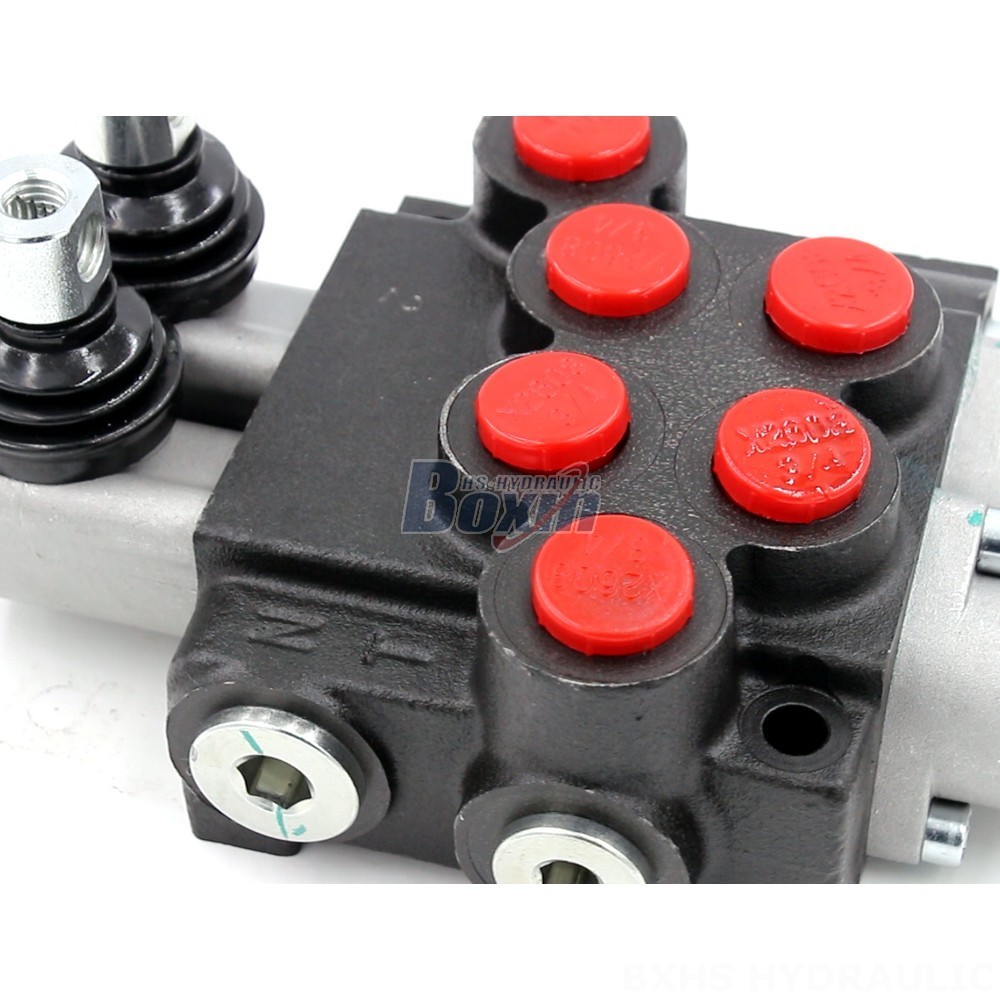

P40-U34-2OT Manual Hydraulic Valve | Customizable & Private Label

P40-U34-2OT Manual Hydraulic Valve | Customizable & Private Label

P40-U34-2OT Manual Hydraulic Valve | Customizable & Private Label drawing image

This P40 Series Directional Control Valve is a manually operated, monoblock valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a 2-section design, a rated flow of 40 L/min, and a maximum pressure of 250 bar. The valve is customizable and available with private label options.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This high-performance P40 Series Directional Control Valve is a reliable solution for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its manual operation provides precise control over hydraulic circuits. The valve is engineered with a robust monoblock structure for superior durability and long service life. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve delivers efficient performance in demanding environments. It operates within a wide viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and withstands ambient temperatures from -40°C to +80°C (-40°F to +176°F). We offer customization options to meet your specific requirements. This valve is also available for private label branding, allowing you to create a unique identity for your products.
