P40-U78 Valve: Compatible Fluids, Operating Conditions & Maintenance

Kontrol Yöntemi:Manuel

Makara:5 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:SAE 10

Çıkış Portu:SAE 10

Port Boyutu:SAE 10

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:28*23*13

Brüt ağırlık:9.80 kg

Stok Durumu: Stokta Var

1136 Görünümler Bu Ürünü Arıyor

P40-U78 Valve: Compatible Fluids, Operating Conditions & Maintenance

P40-U78 Valve: Compatible Fluids, Operating Conditions & Maintenance

P40-U78 Valve: Compatible Fluids, Operating Conditions & Maintenance drawing image

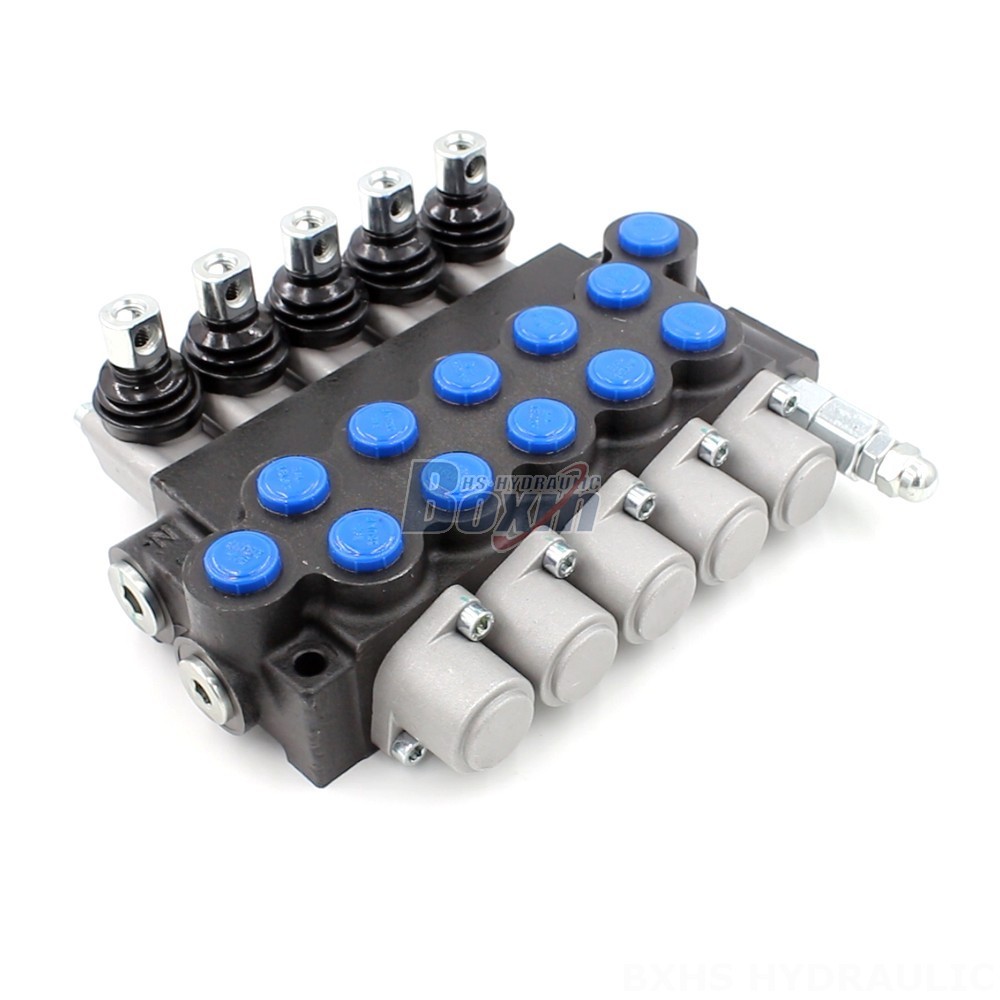

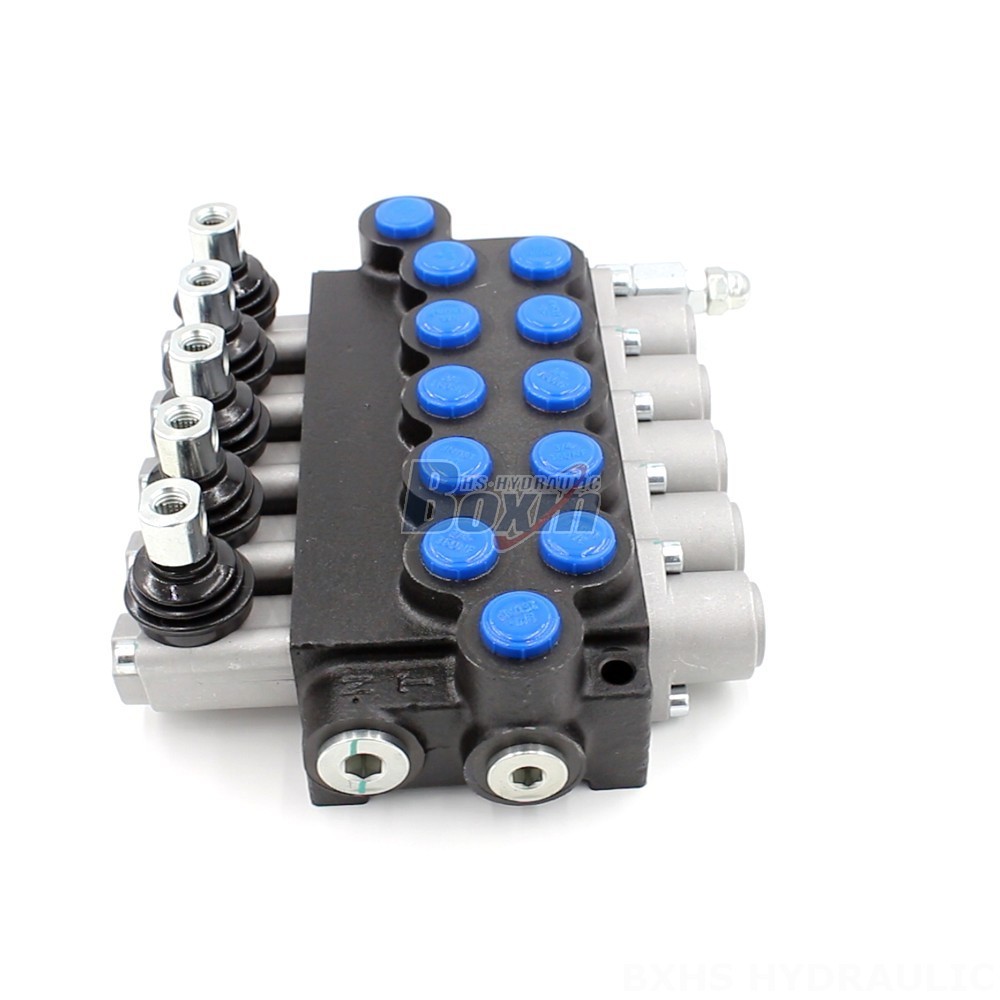

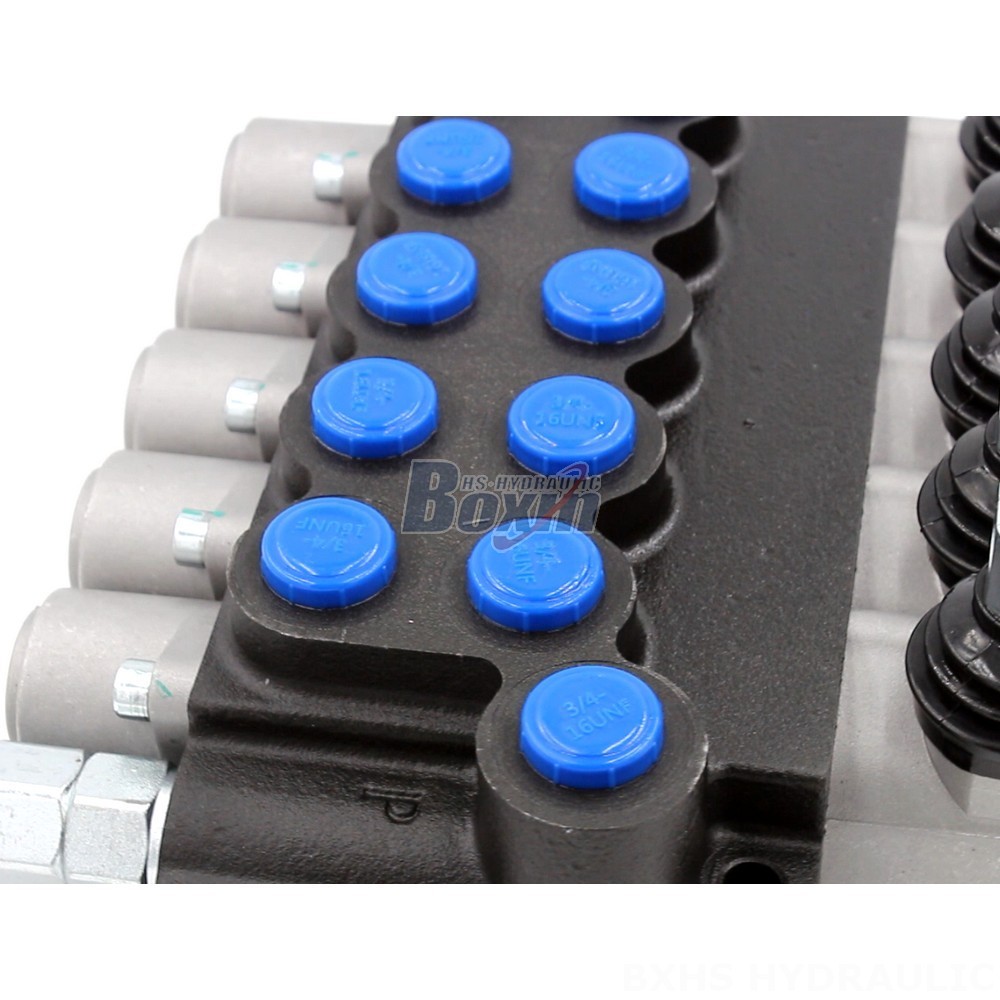

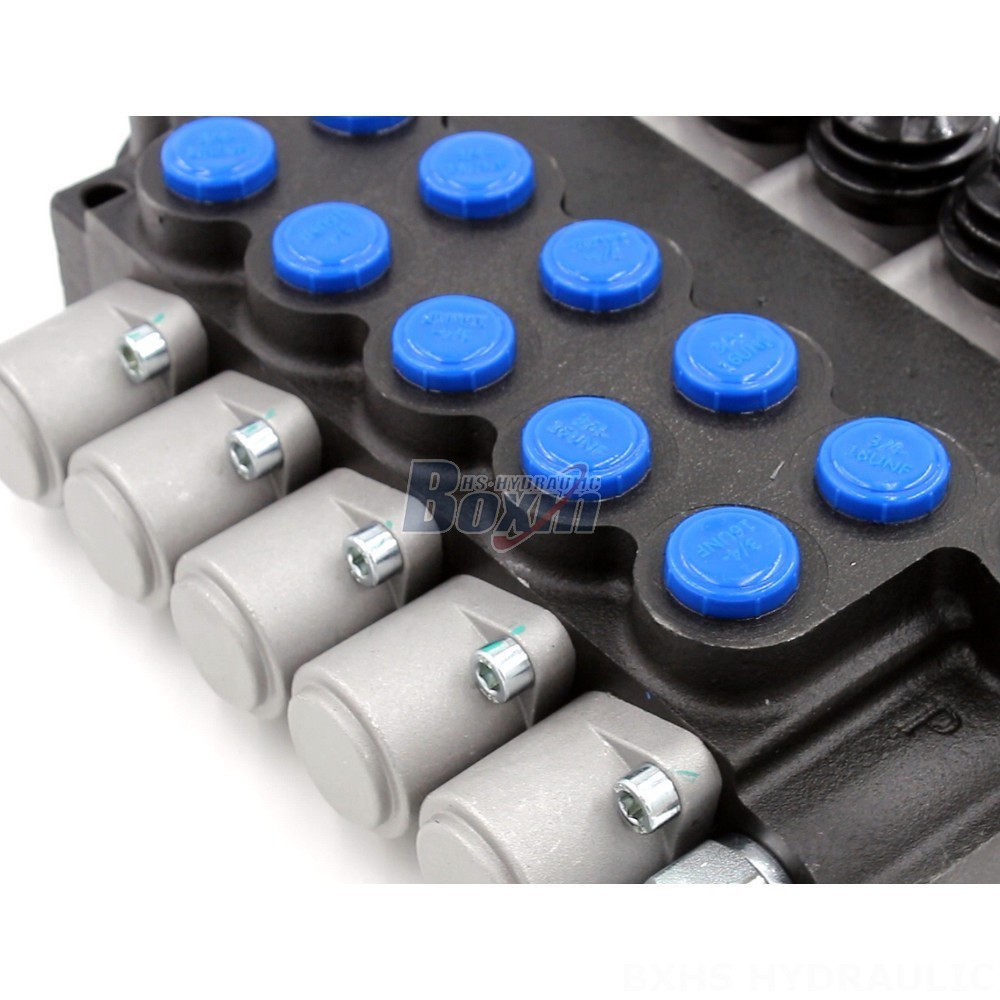

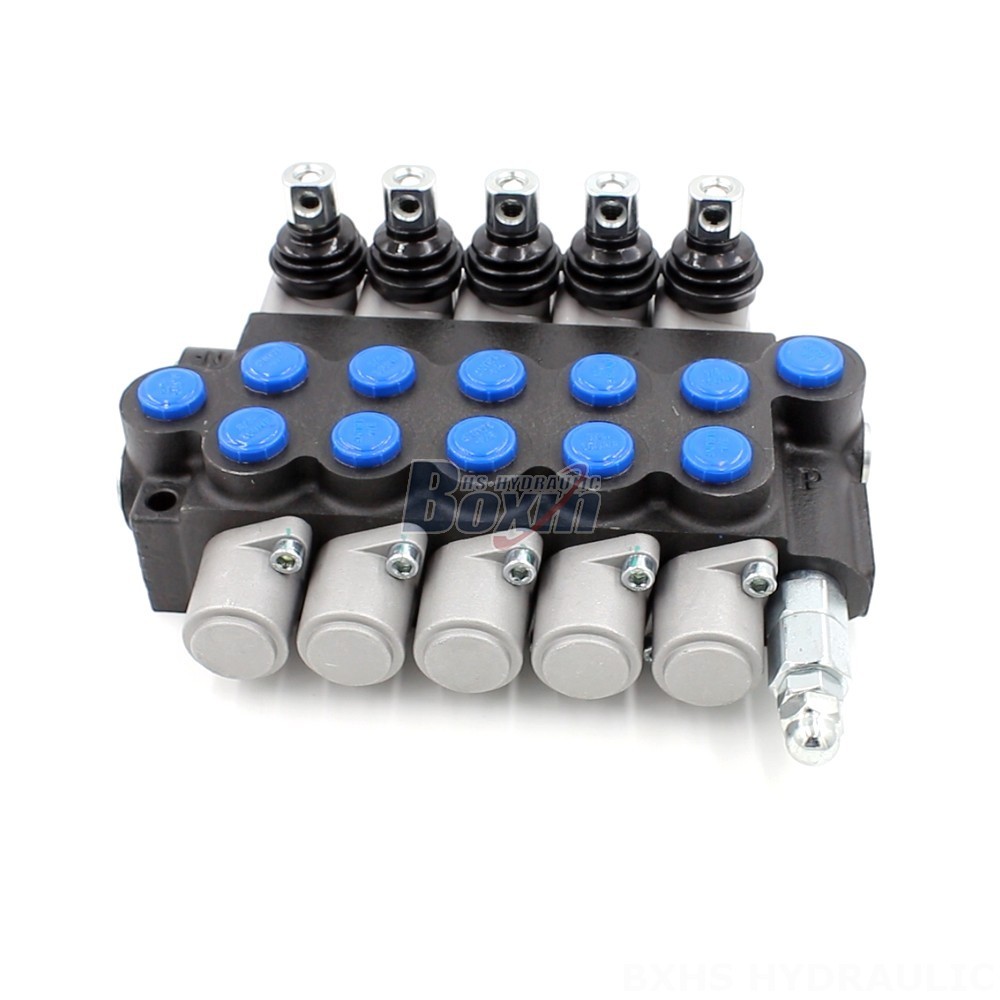

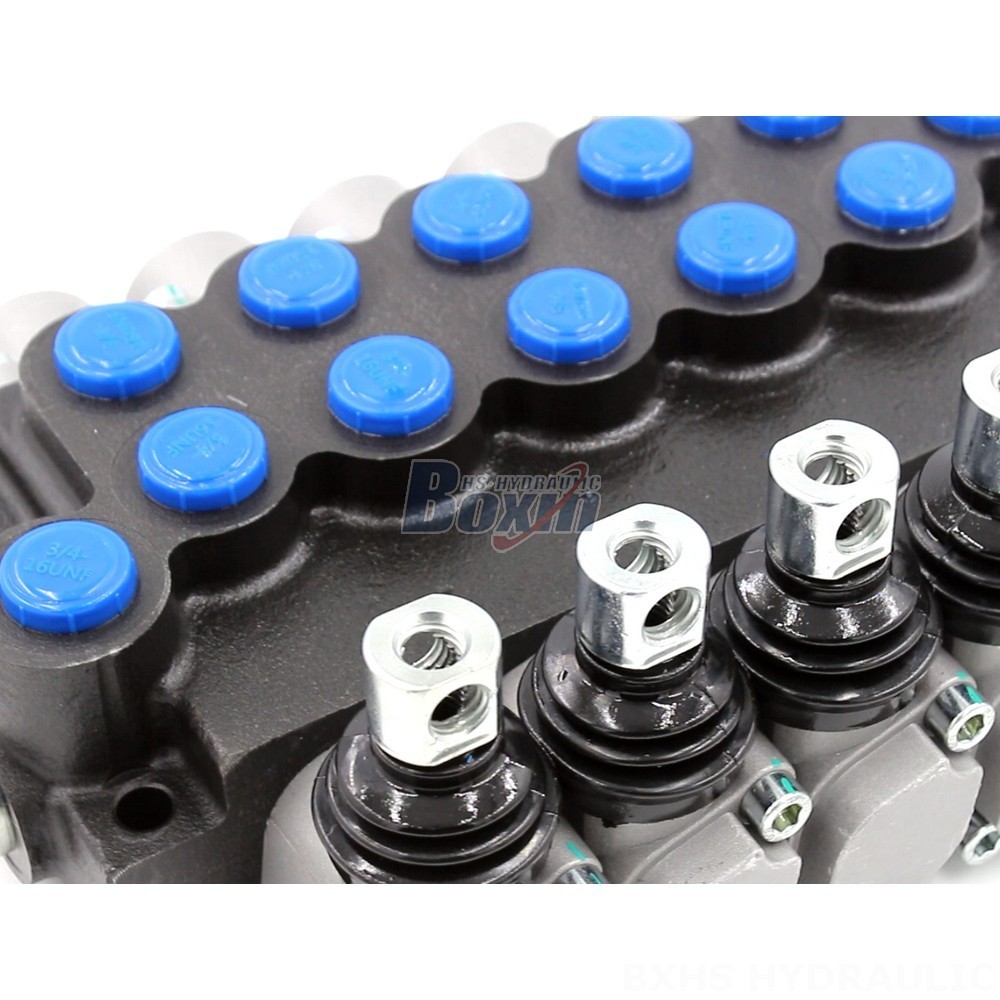

The P40-U78 Adjustable Control Valve is a 5-section, monoblock valve designed for use in a variety of construction, material handling, and industrial equipment. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for demanding applications.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-U78 Adjustable Control Valve is a high-performance, 5-section, monoblock valve that is designed for use in a variety of demanding applications. This valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, and compact wheel loaders. The P40-U78 valve is built with quality materials and is designed for a long service life. With its robust construction and durable components, this valve is capable of withstanding high pressures and demanding operating conditions. The P40-U78 valve is also easy to install and maintain, which can help to reduce downtime and increase productivity. The valve can be used with a variety of hydraulic fluids and is compatible with a wide range of operating conditions. This valve is a reliable and efficient solution for a variety of applications.
