P80-G34-OT Manual 3 Spool Monoblock Directional Valve

Kontrol Yöntemi:Manuel

Makara:3 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G3/4

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:26*23*11

Brüt ağırlık:10.70 kg

Stok Durumu: Stokta Var

1217 Görünümler Bu Ürünü Arıyor

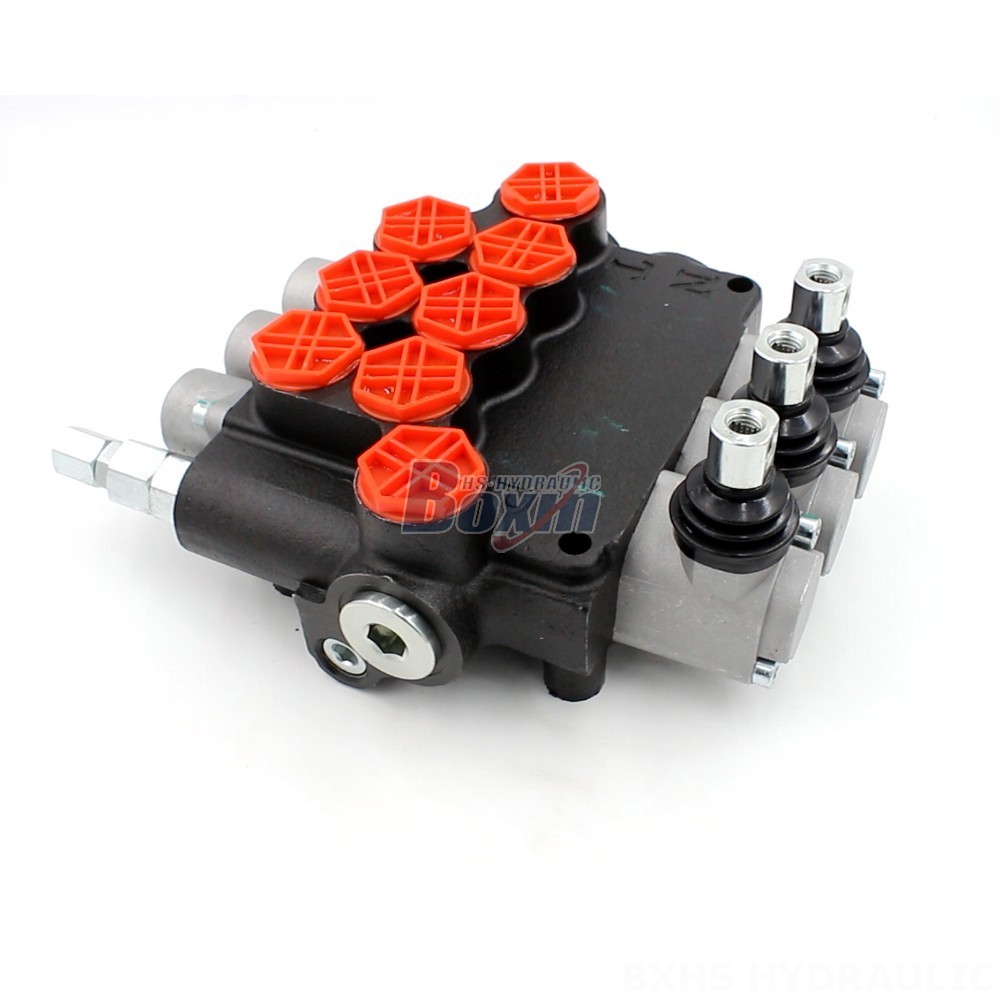

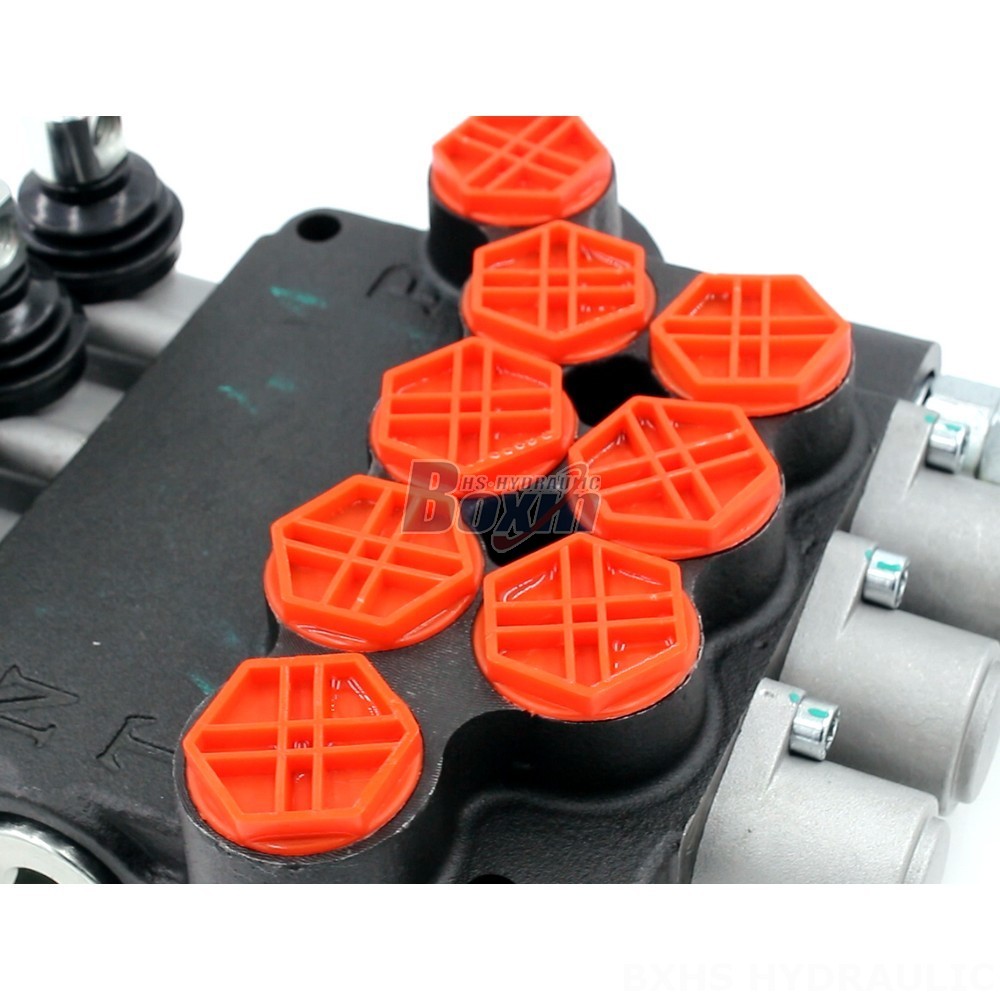

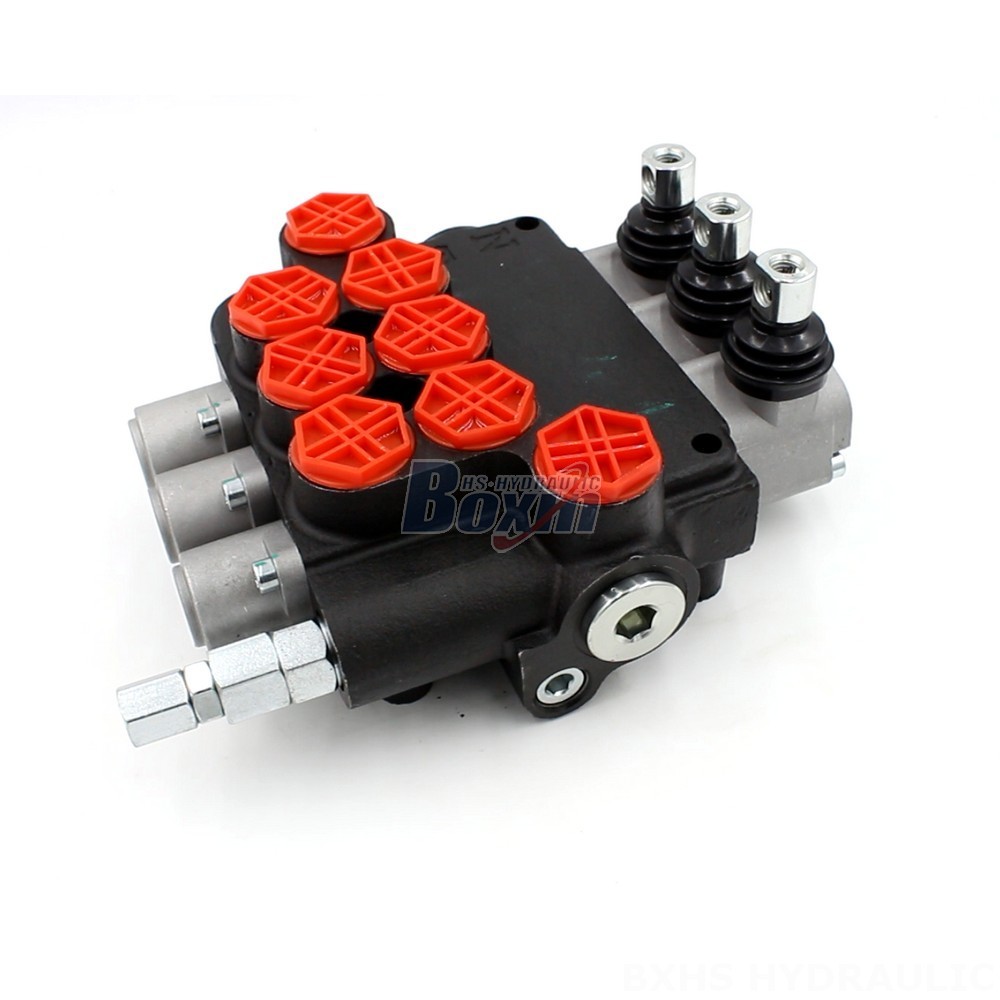

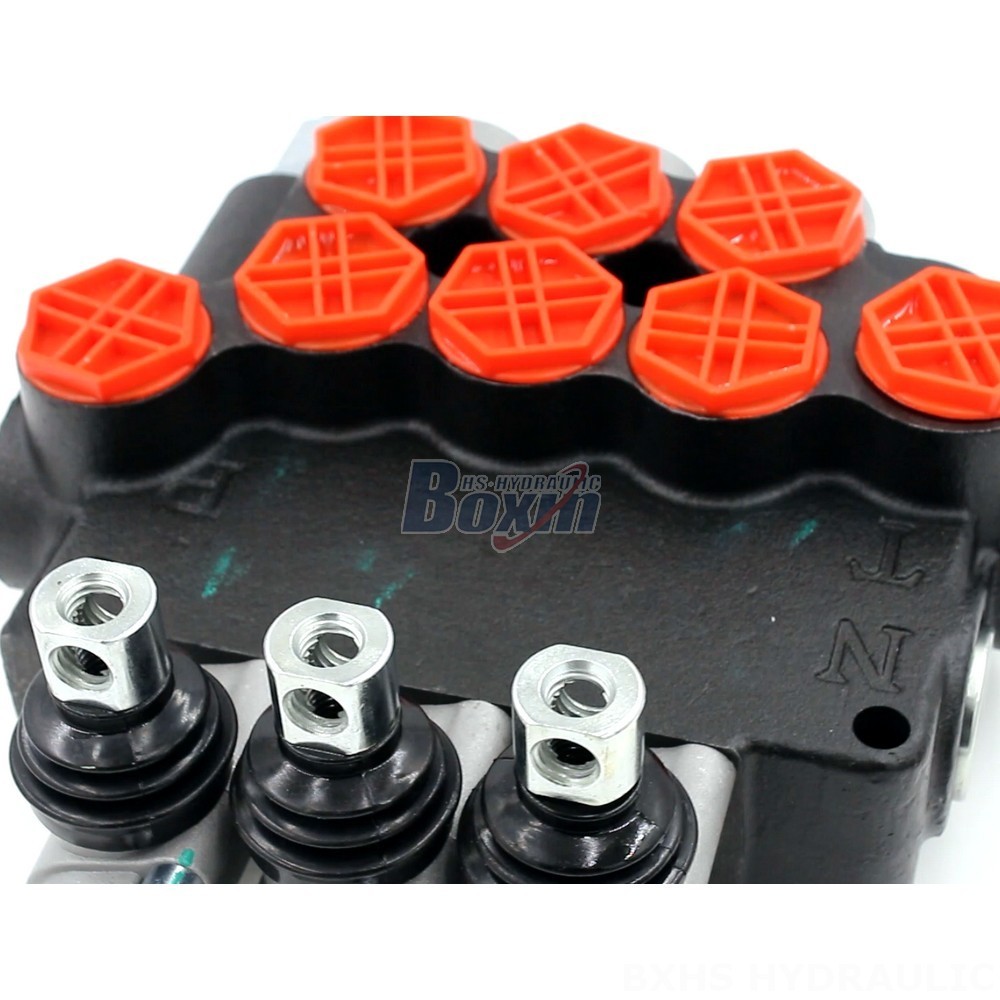

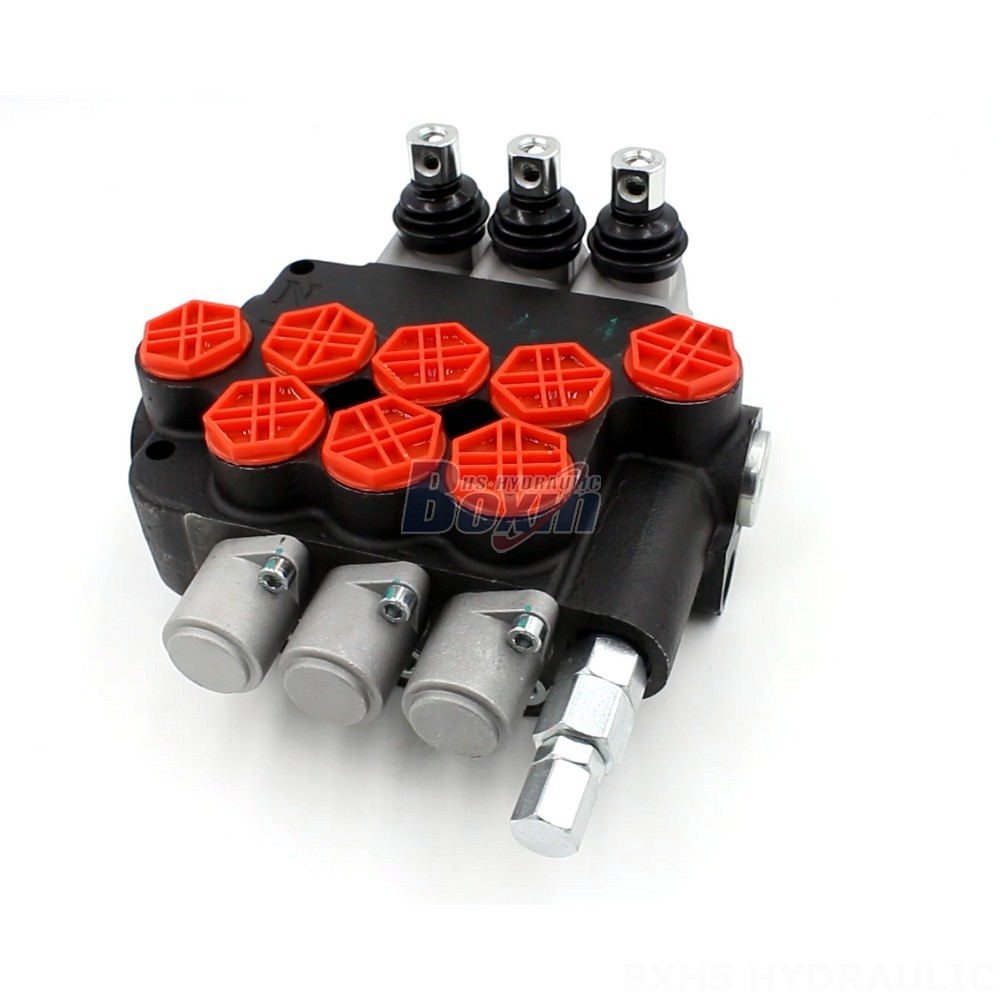

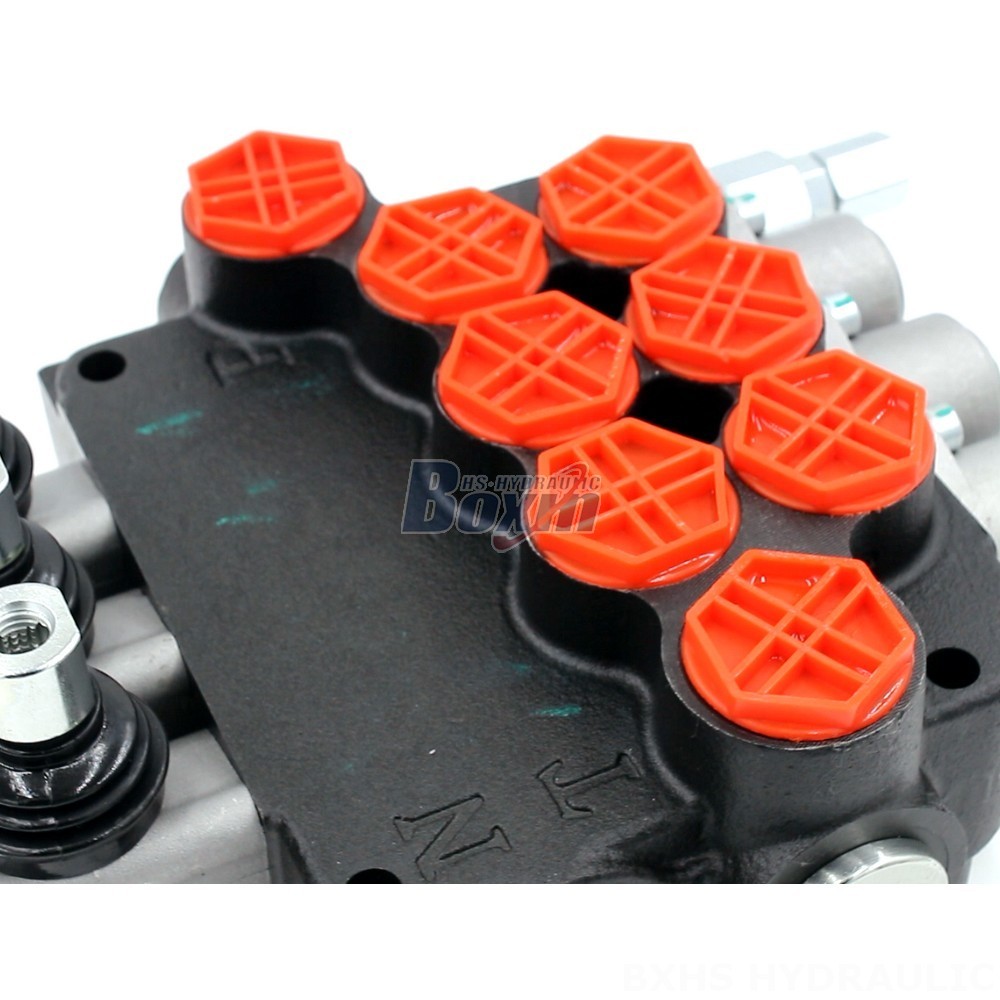

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve drawing image

The Hydraulic Flow Control Valve with Relief P80-G34-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in construction, material handling, and industrial vehicles. This manual control, 3-section, monoblock valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi).

P80 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 series hydraulic flow control valve is a 3-spool monoblock directional valve with manual control. It is designed to regulate the flow of hydraulic fluid in various applications such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This reliable and durable hydraulic valve is ideal for demanding applications in construction, material handling, and industrial settings.
