P80A 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Kontrol Yöntemi:Manuel

Makara:3 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:26*23*11

Brüt ağırlık:10.70 kg

Stok Durumu: Stokta Var

1118 Görünümler Bu Ürünü Arıyor

P80A 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

P80A 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

P80A 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

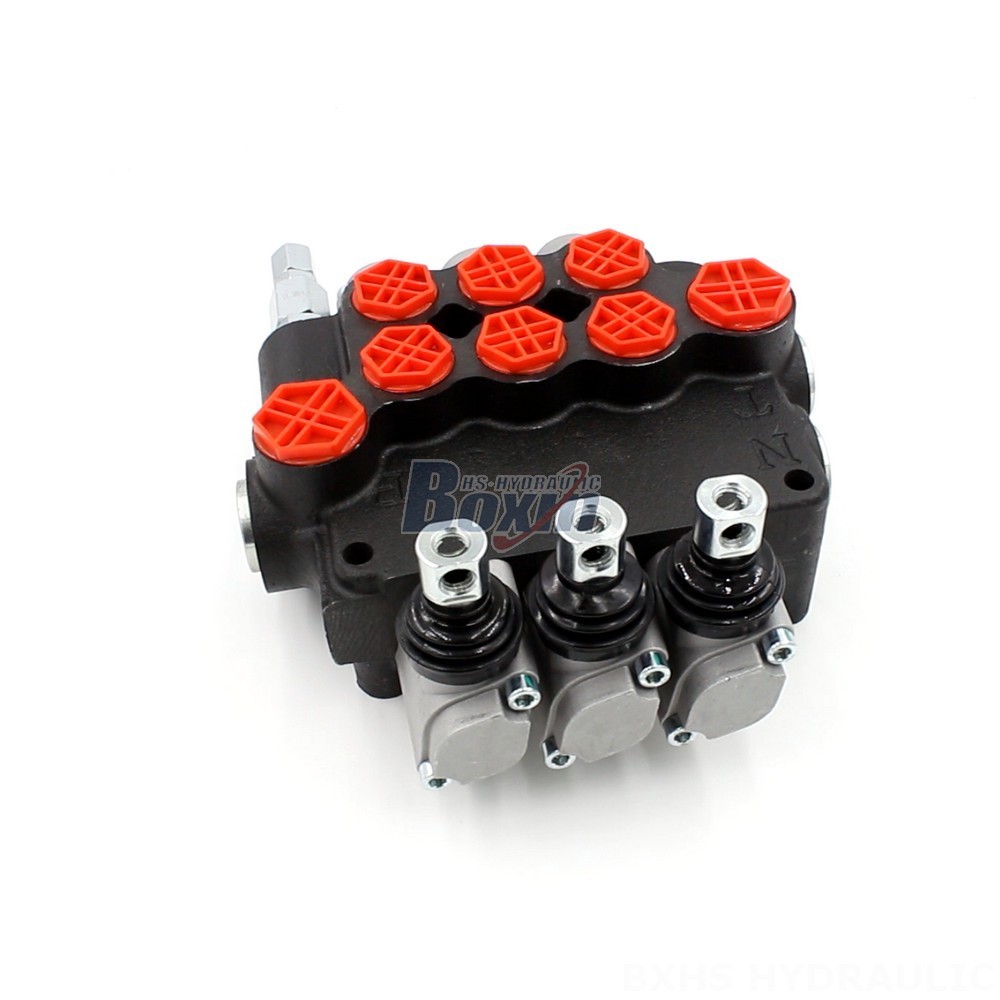

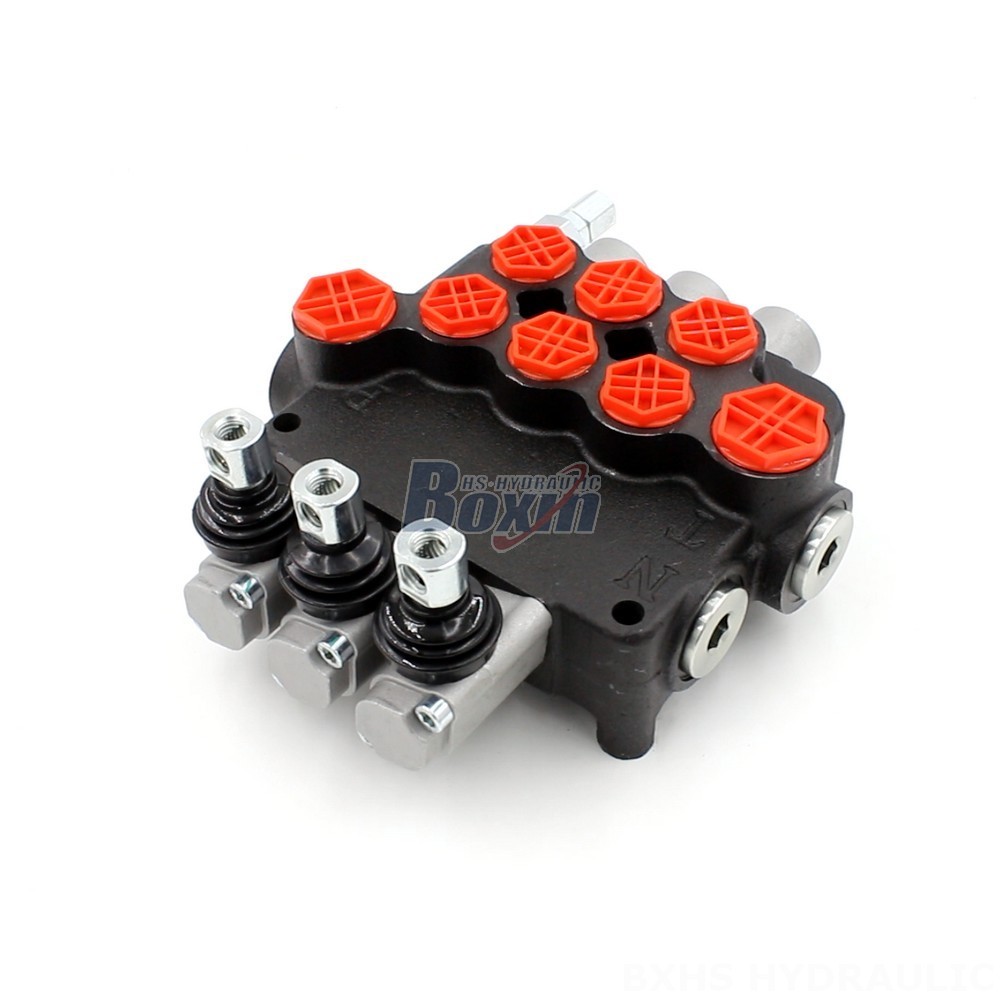

The Dump Truck P80A 2-Spool Hydraulic Directional Valve is a high-performance, heavy-duty valve designed for demanding applications in construction, material handling, and industrial vehicles. It features a 3-section, monoblock construction, a rated flow of 80 L/min, and a maximum pressure of 250 bar.

P80 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This manual control, 3-spool valve is a reliable and efficient solution for operating hydraulic systems in a wide range of vehicles. With a robust design and operating temperature range from -40°C to +80°C, it is suitable for various demanding environments. The Dump Truck P80A valve is available in customizable options, making it a versatile solution for diverse applications. This valve is specifically designed for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its high performance and durability make it a reliable choice for manufacturers and users seeking a robust and adaptable hydraulic valve.
