P80A Hydraulic System Components | Factory Supply & Distribution

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80A Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:28*30*13

Brüt ağırlık:8.00 kg

Stok Durumu: Stokta Var

1051 Görünümler Bu Ürünü Arıyor

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution drawing image

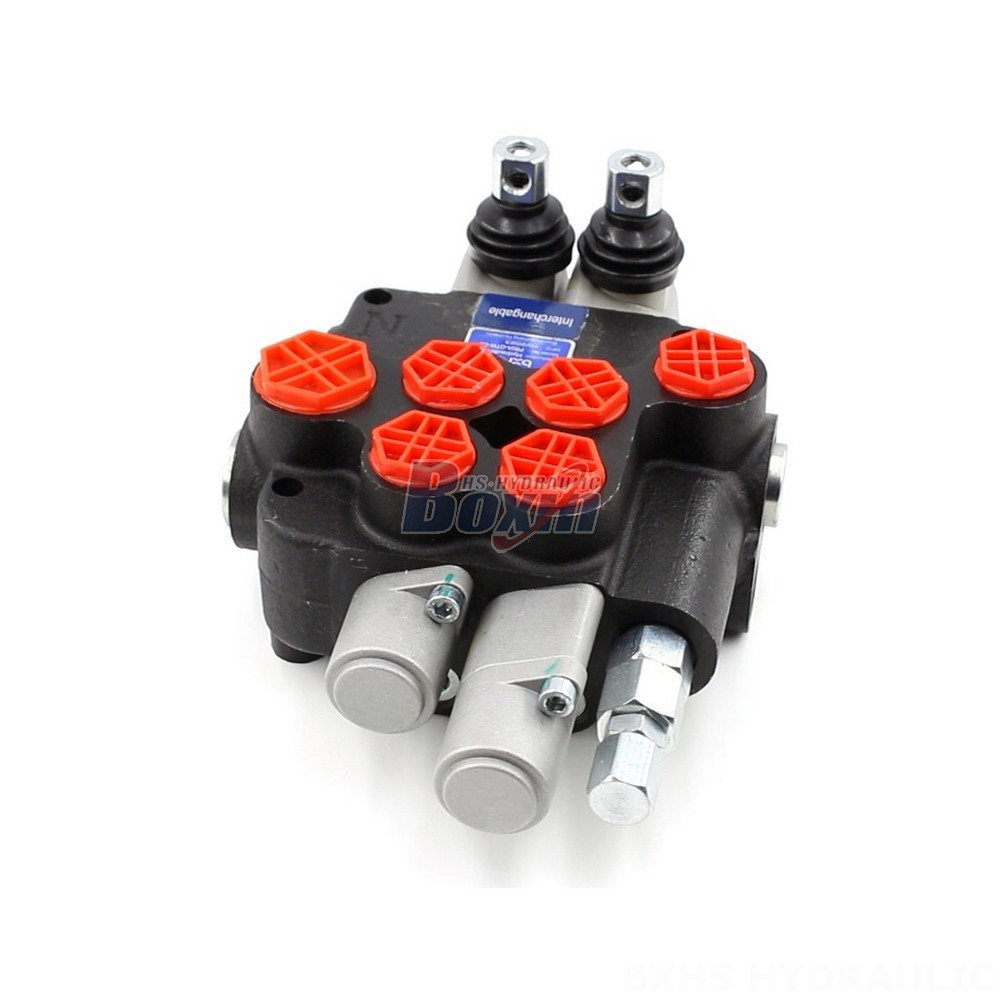

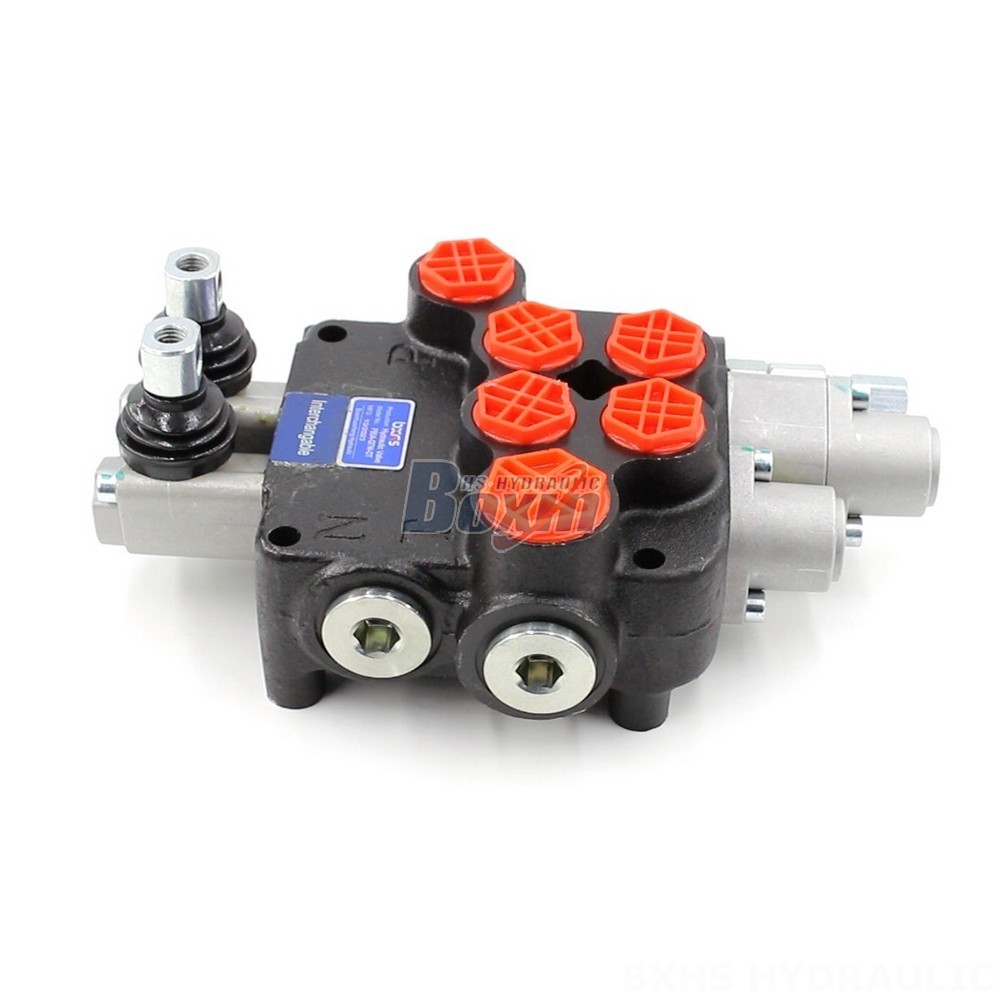

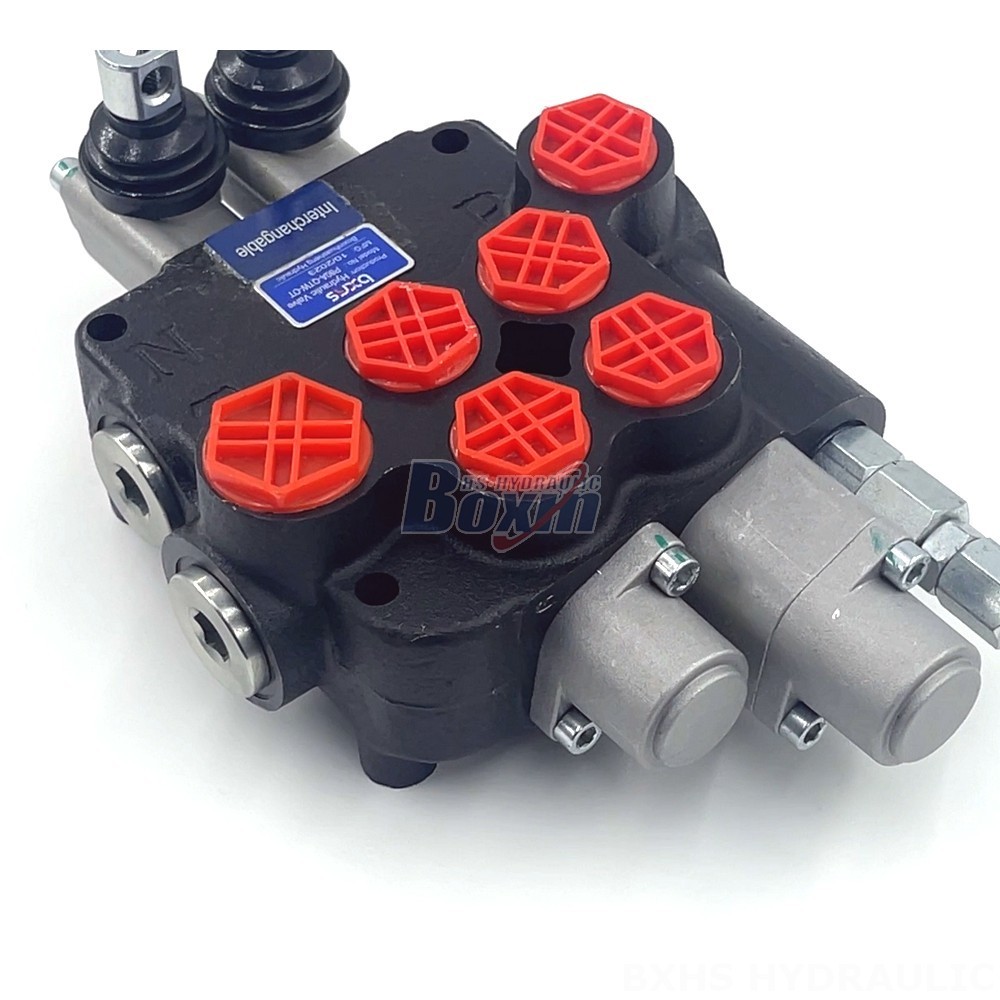

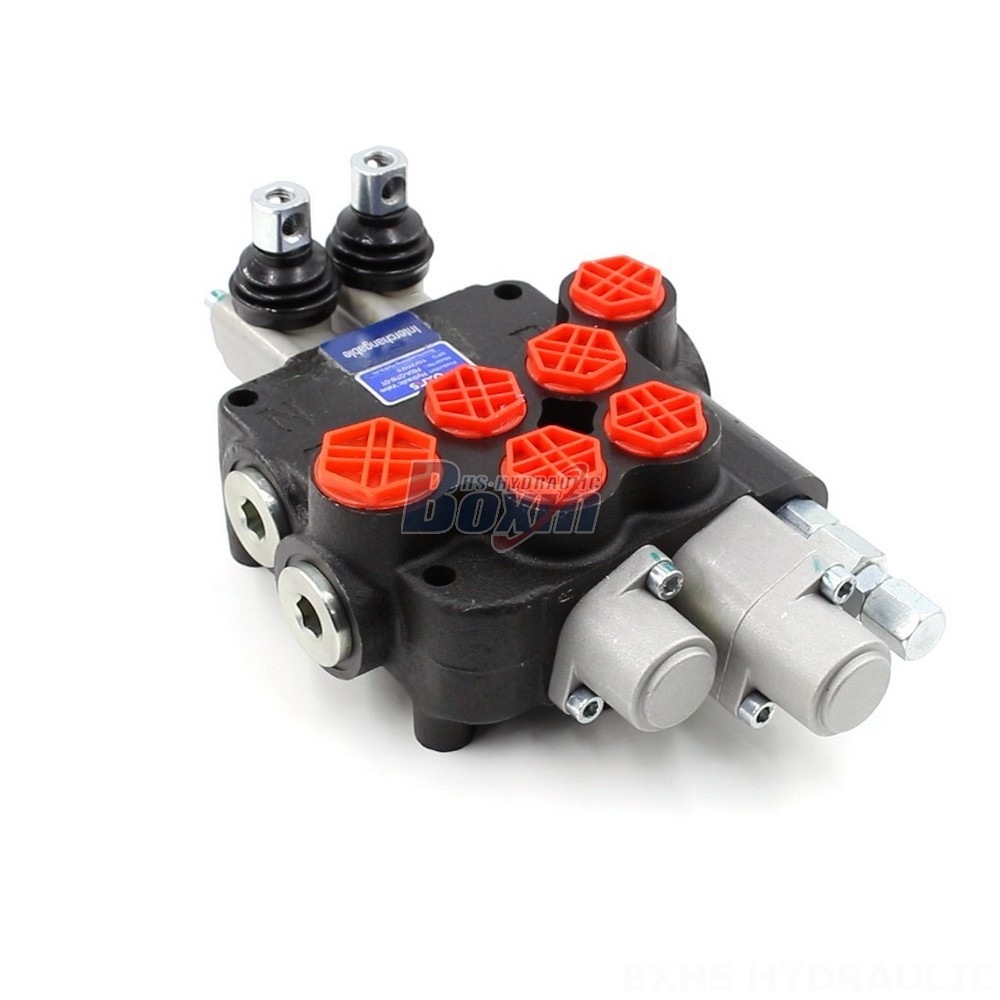

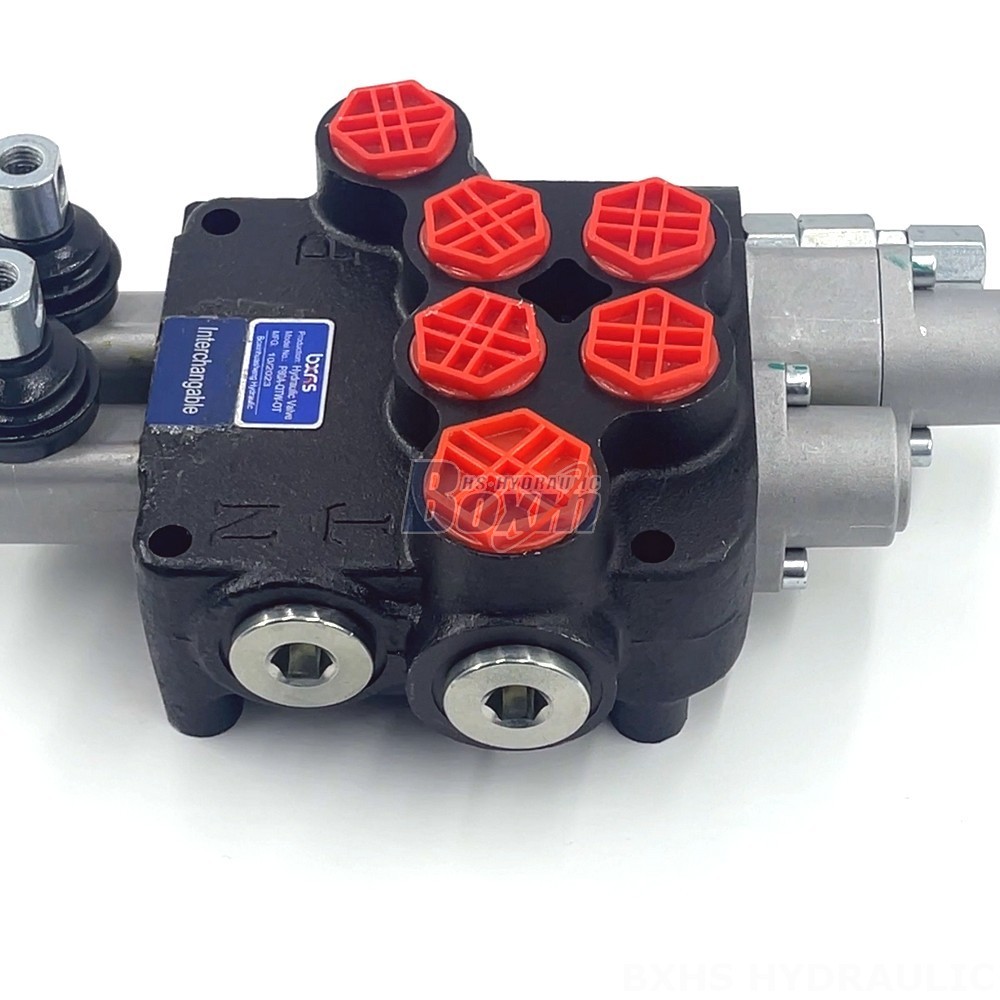

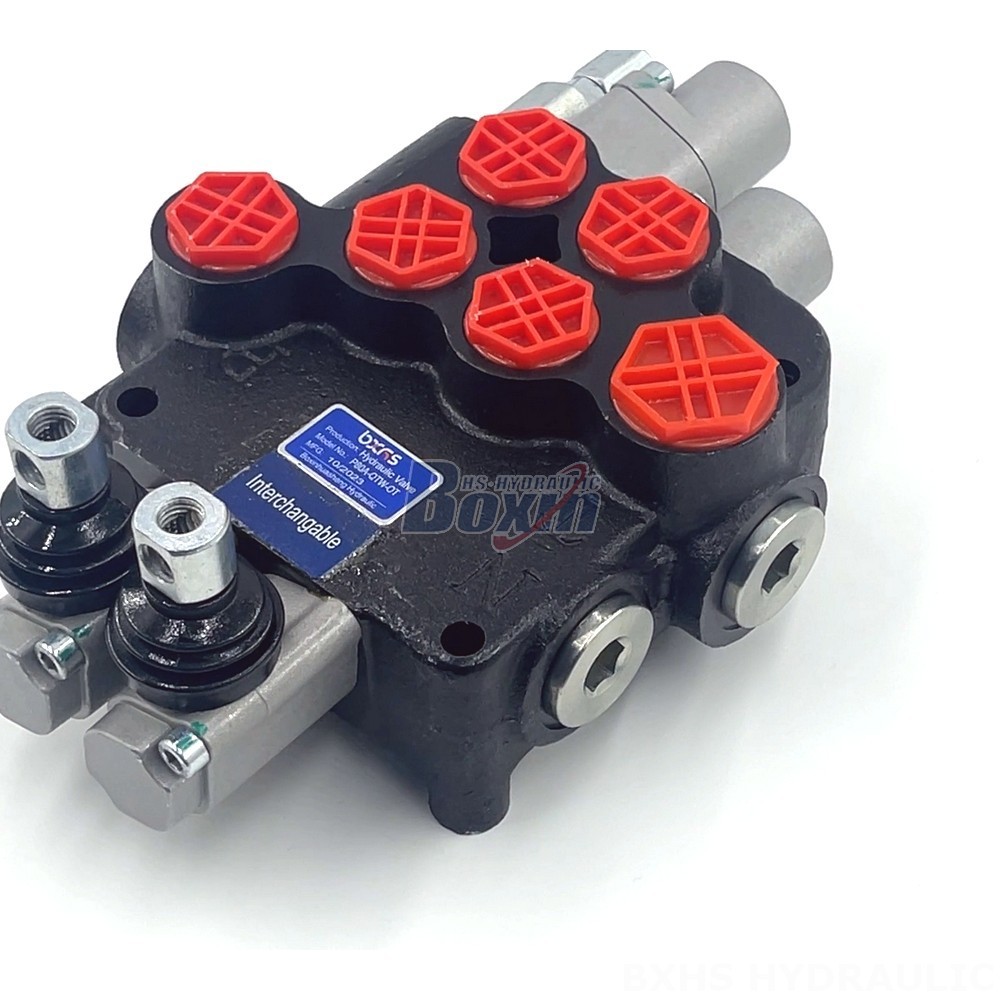

The P80A Series Hydraulic Control Valve is a high-performance, 2-section monoblock valve designed for manual control of hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it's ideal for various applications in material handling, construction, and agriculture.

P80A Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Elektrikli, Solenoid ve Manuel, Solenoid ve Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80A Series Hydraulic Control Valve is a reliable and durable solution for a wide range of hydraulic applications. It features a robust monoblock construction, a manual control method, and a 2-section design for versatile operation. The valve is rated for a flow of 80 L/min and can withstand a maximum pressure of 250 bar, making it suitable for heavy-duty applications. Its 2-spool configuration allows for precise control of hydraulic functions. The P80A Series is ideal for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. We offer manufacturing, OEM, private label, and customization options to meet your specific requirements. We are also looking for distributors, wholesalers, agents, and traders worldwide to partner with us in bringing our high-quality hydraulic products to a wider audience.
