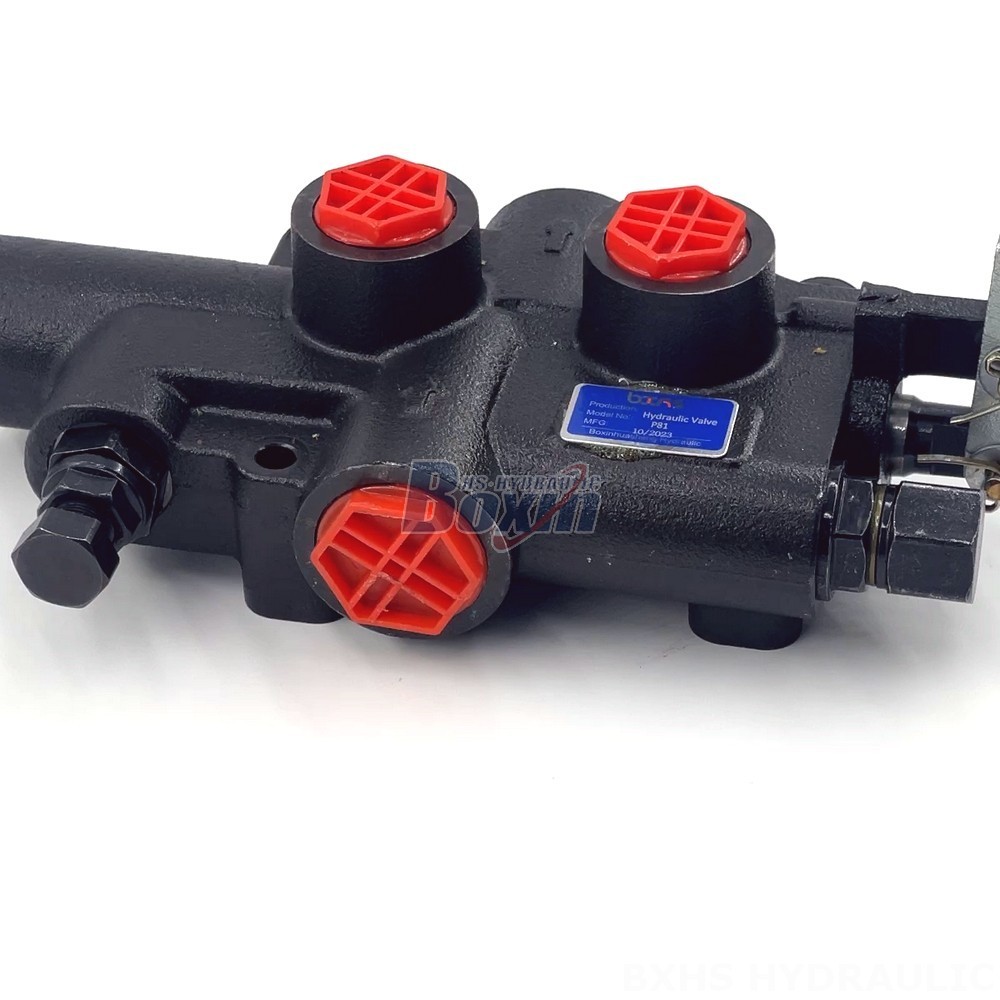

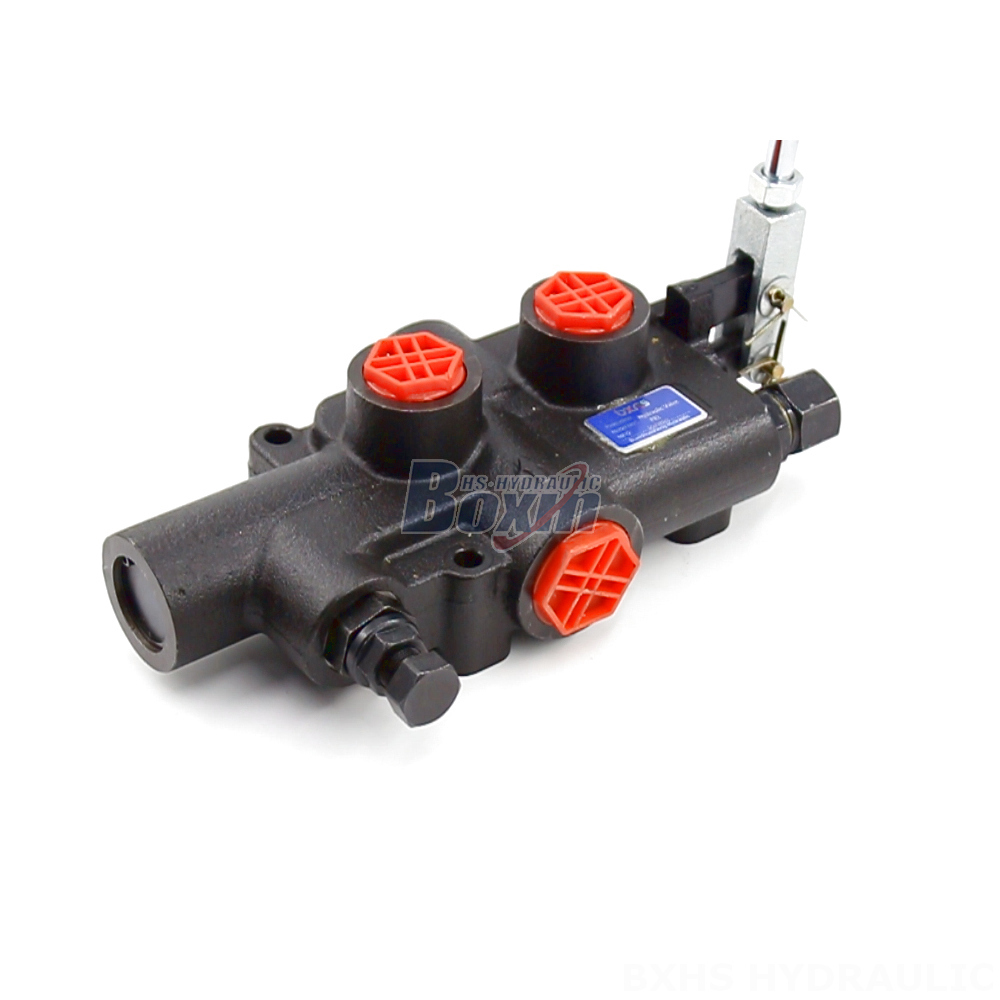

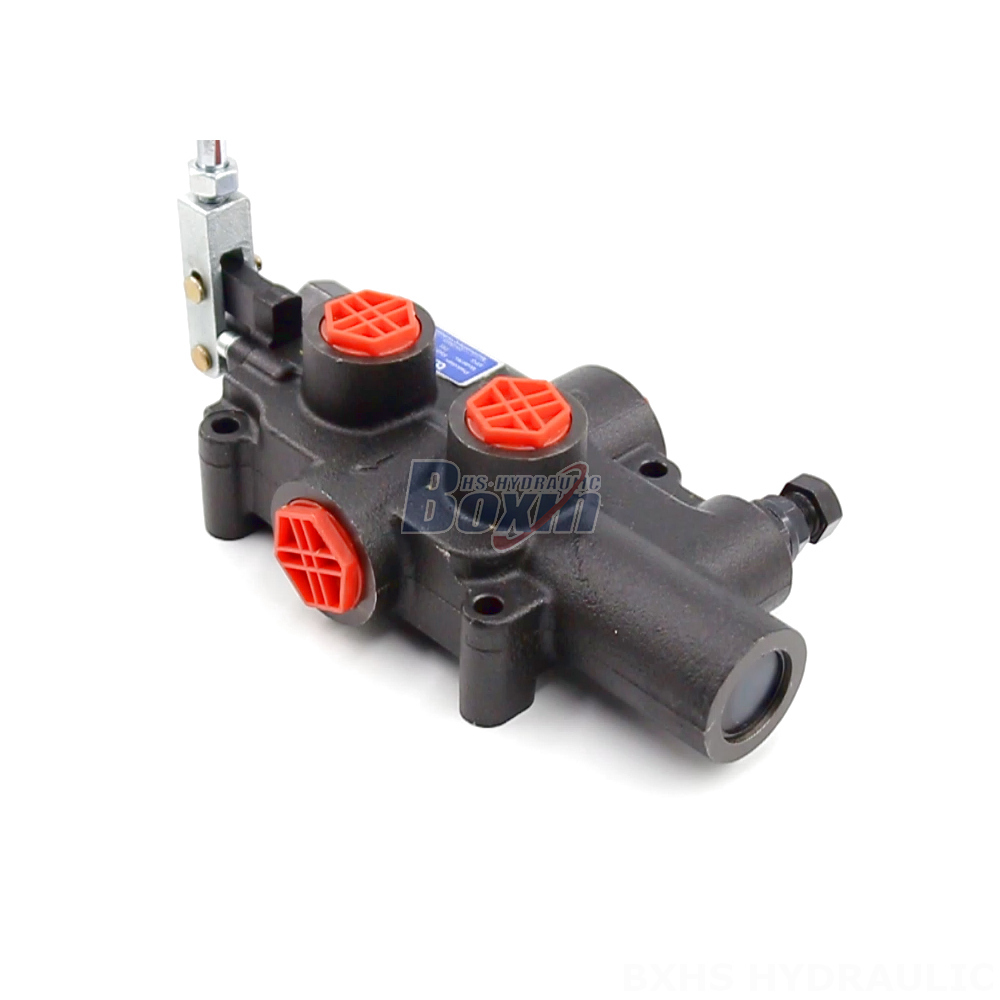

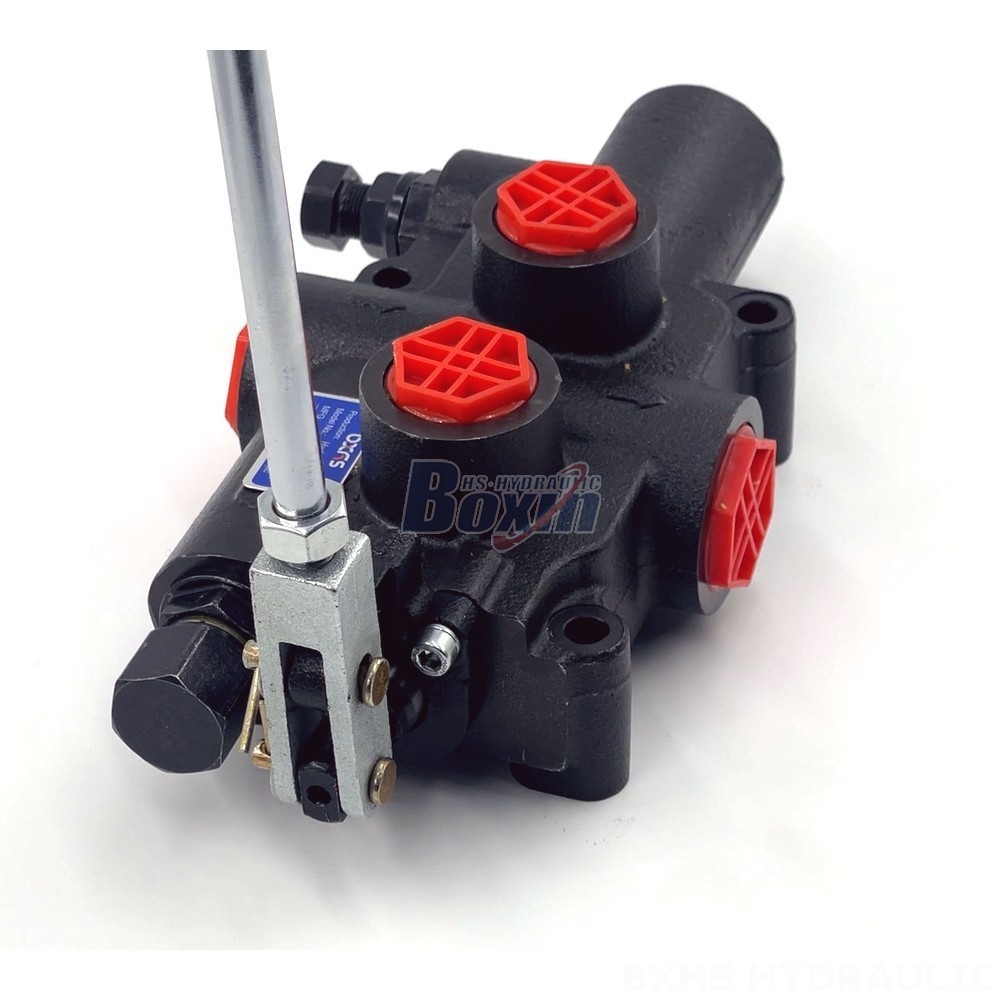

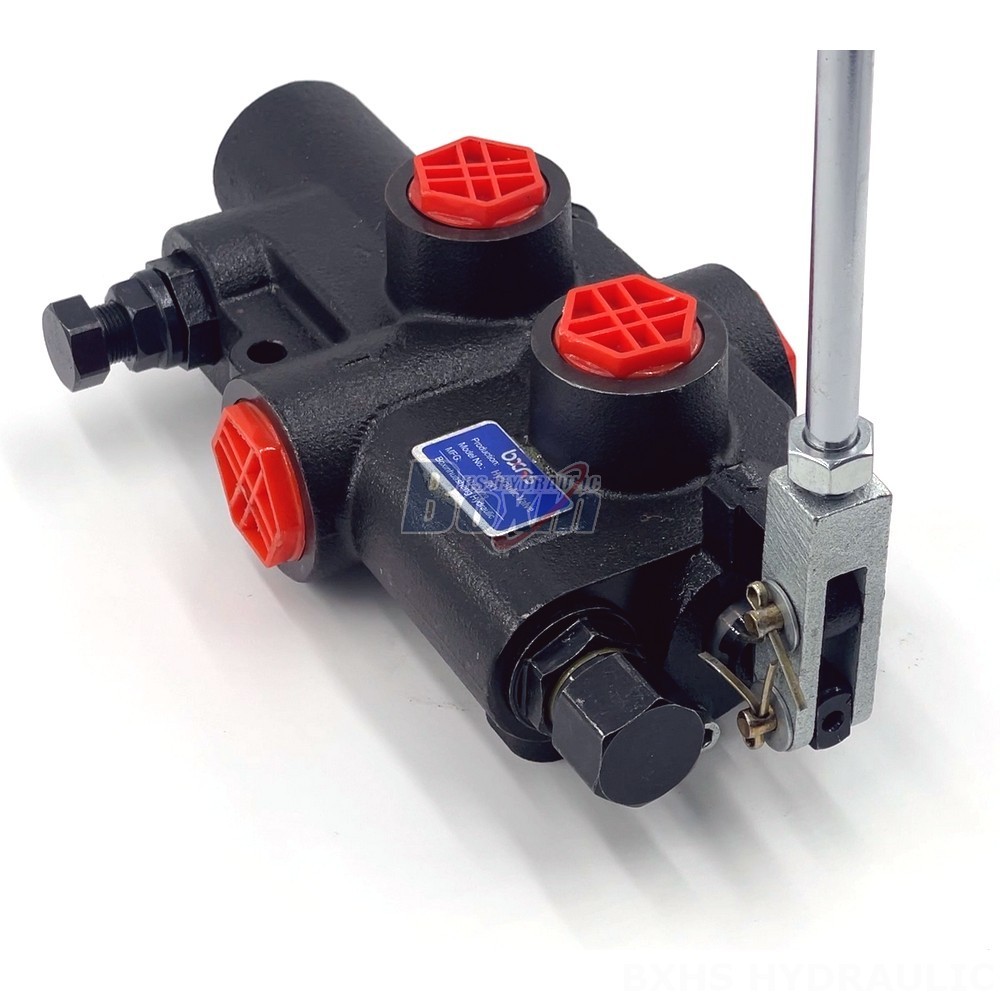

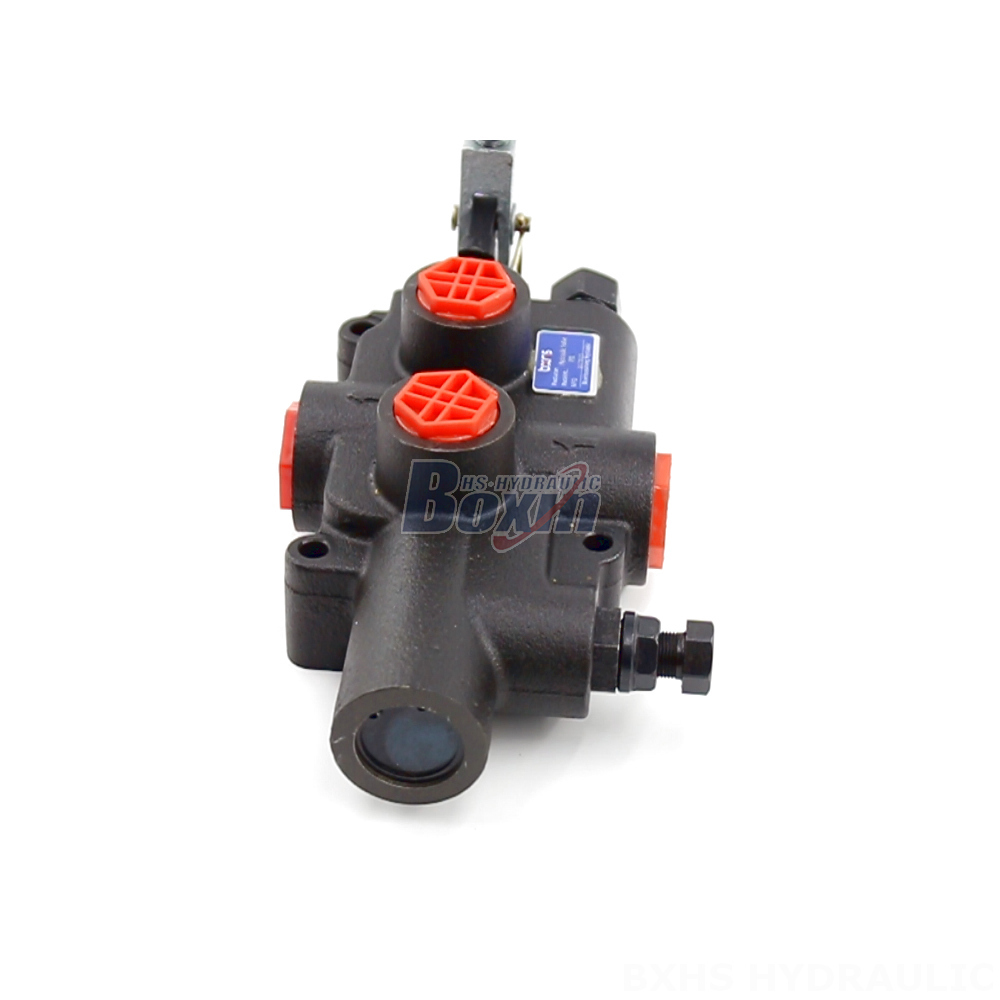

This P81 Series Hydraulic 2 Way Valve is a manual, 1-spool, monoblock valve designed for log splitter applications. It features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is suitable for industrial vehicles and offers a kick-out setting pressure range of 70~140bar (1015-2030psi).
| P81 Serisi Kütük Ayırma Valfi Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 80 L/dk (21,2 ABD galon/dak), 95 L/dk (25,1 ABD galon/dak) |
| Maksimum Basınç | 19 MPa (2735 psi) |
| Giriş Portu | G1/2 |
| Çıkış Portu | G1/2 |
| Port Boyutu | G3/4 |
The Hydraulic 2 Way Valve P81 Manual 1 Spool Log Splitter Valve is a high-performance valve designed for use in log splitting equipment. It is a manual, 1-spool, monoblock valve that offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve features a kick-out setting pressure range of 70~140bar (1015-2030psi), providing reliable and efficient control of hydraulic fluid flow. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This robust valve is ideal for industrial vehicle applications where durability and performance are critical. The P81 Series valve is designed specifically for wood splitting equipment, offering optimal performance and reliability for this demanding task.
