Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi
Innovation drives development Technology forges future
1074 Görünümler Bu Ürünü Arıyor
Partner with us and distribute the P80 Solenoid 5 Spool Monoblock Directional Valve, engineered for demanding hydraulic applications. This robust valve offers precise control, high flow capacity (80 L/min), and durability under extreme conditions (-40°C to +80°C). Ideal for material handling, construction, agriculture, and industrial vehicles, it seamlessly integrates into various systems, including telehandlers, forklifts, and excavators.
| P80 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 80 L/dk (21,2 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Çıkış Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Boyutu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

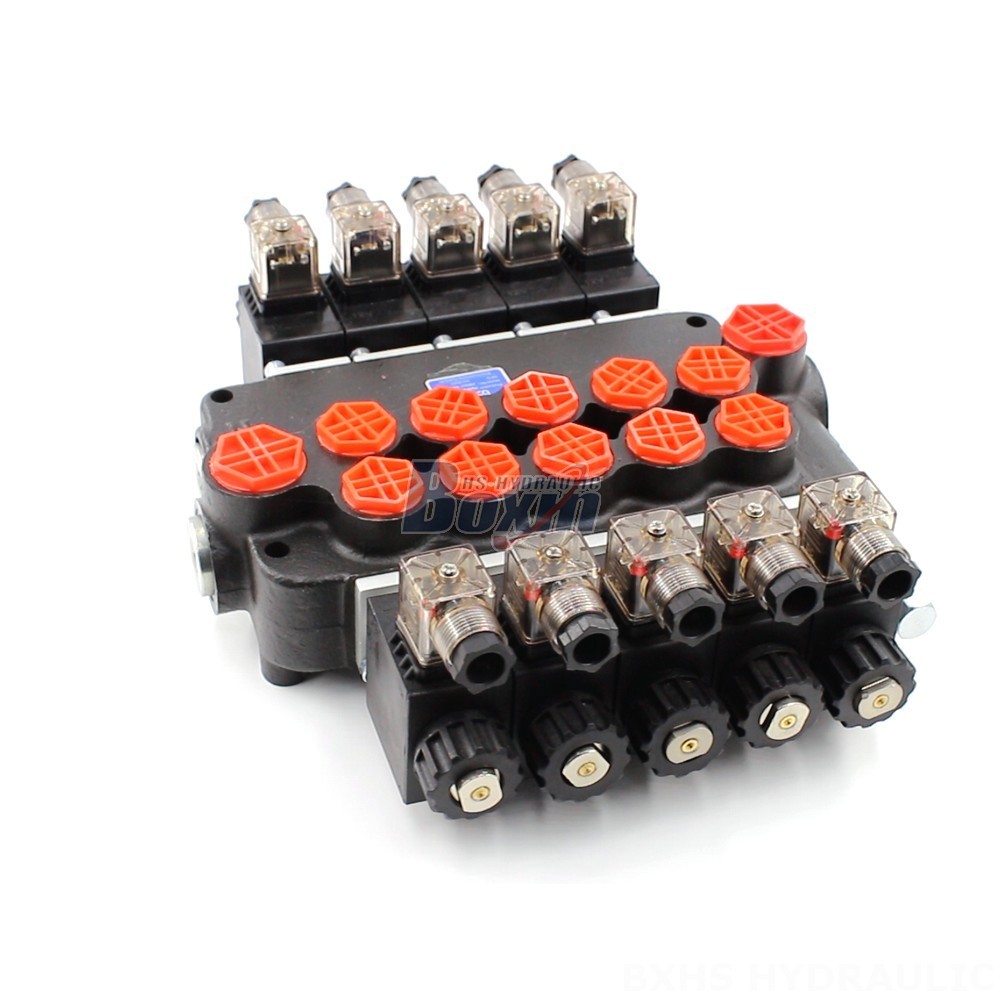

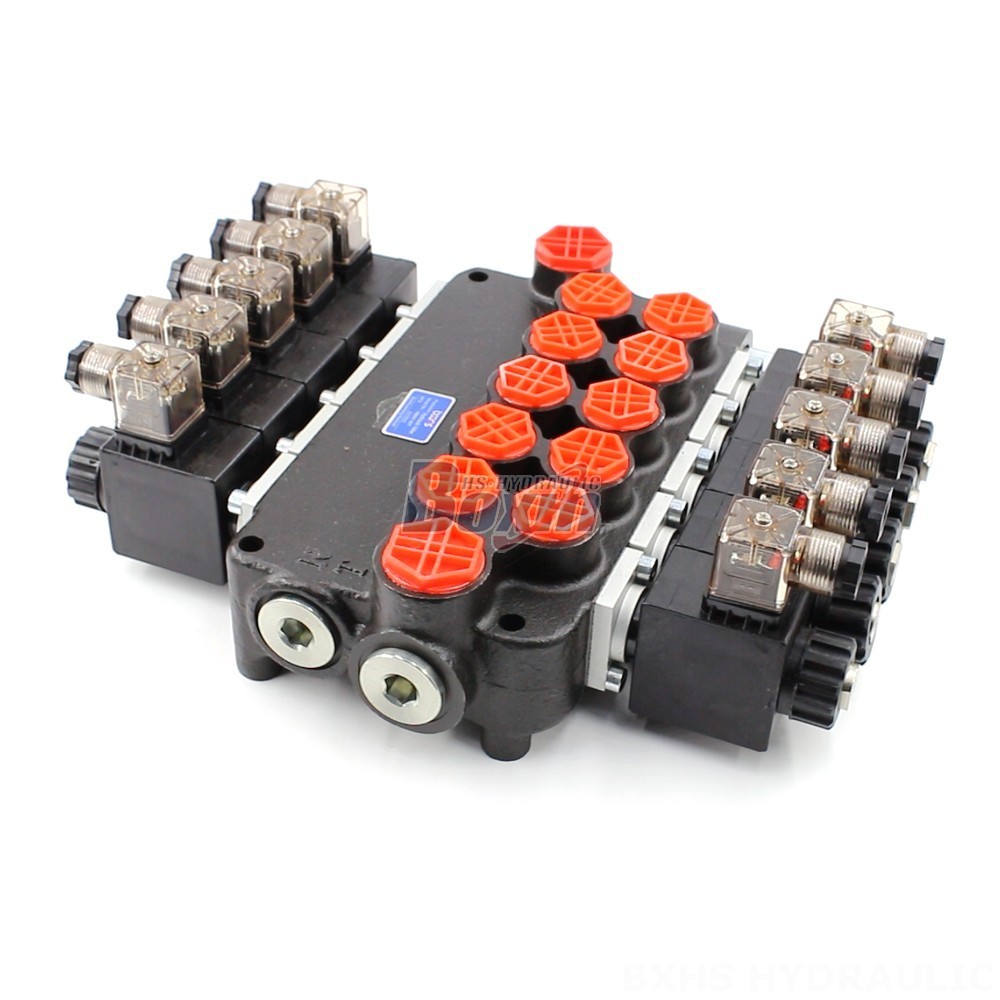

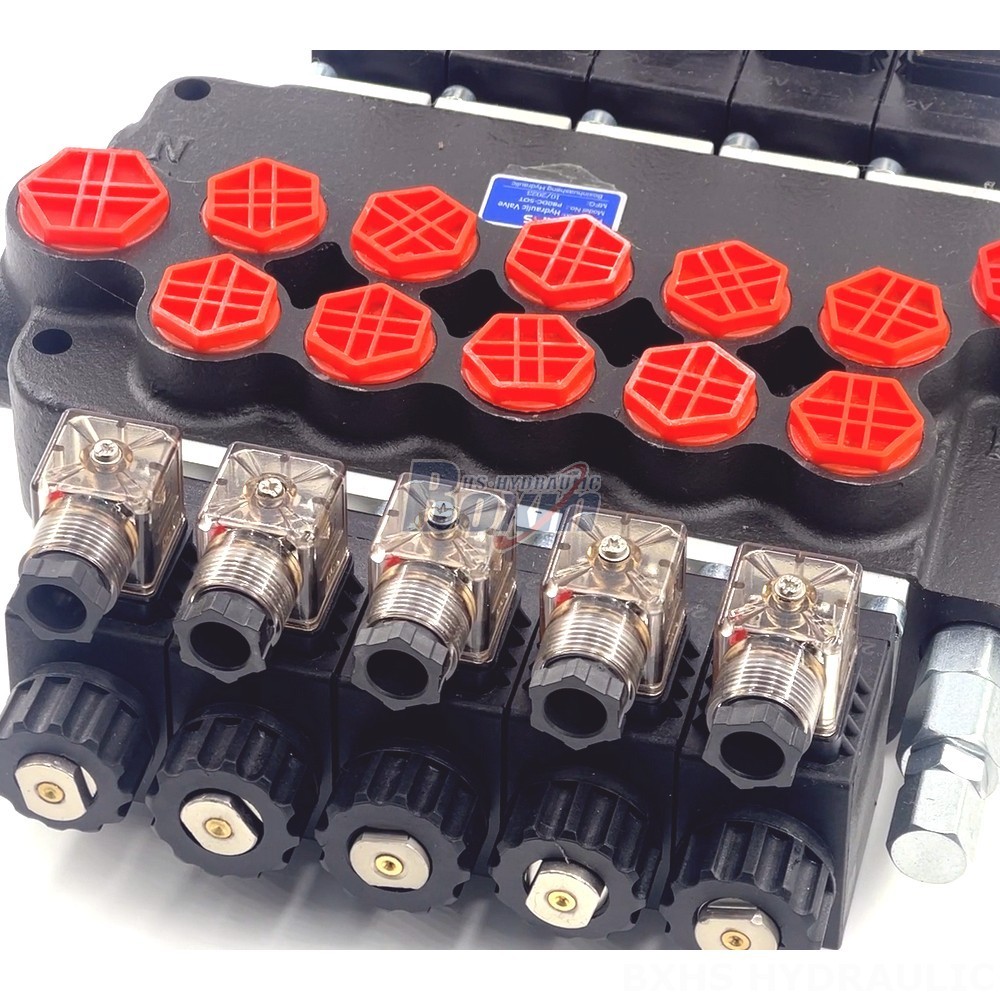

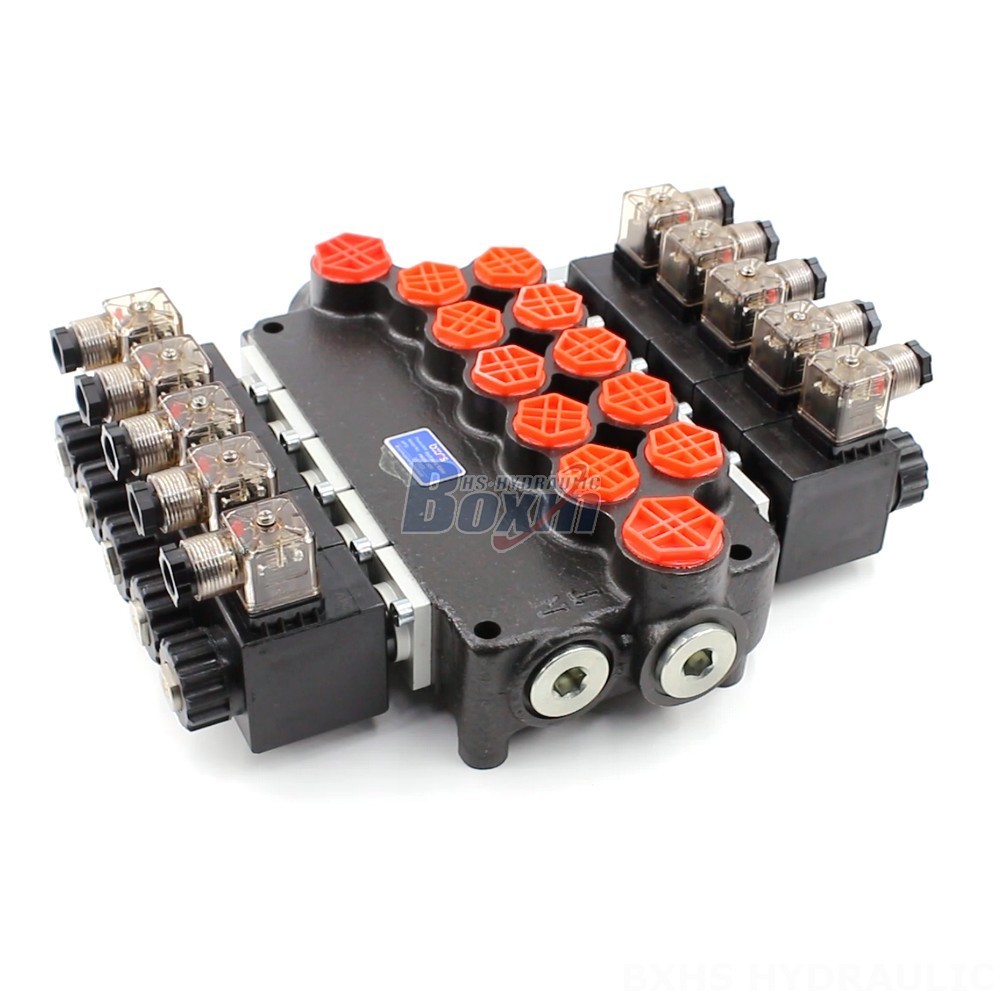

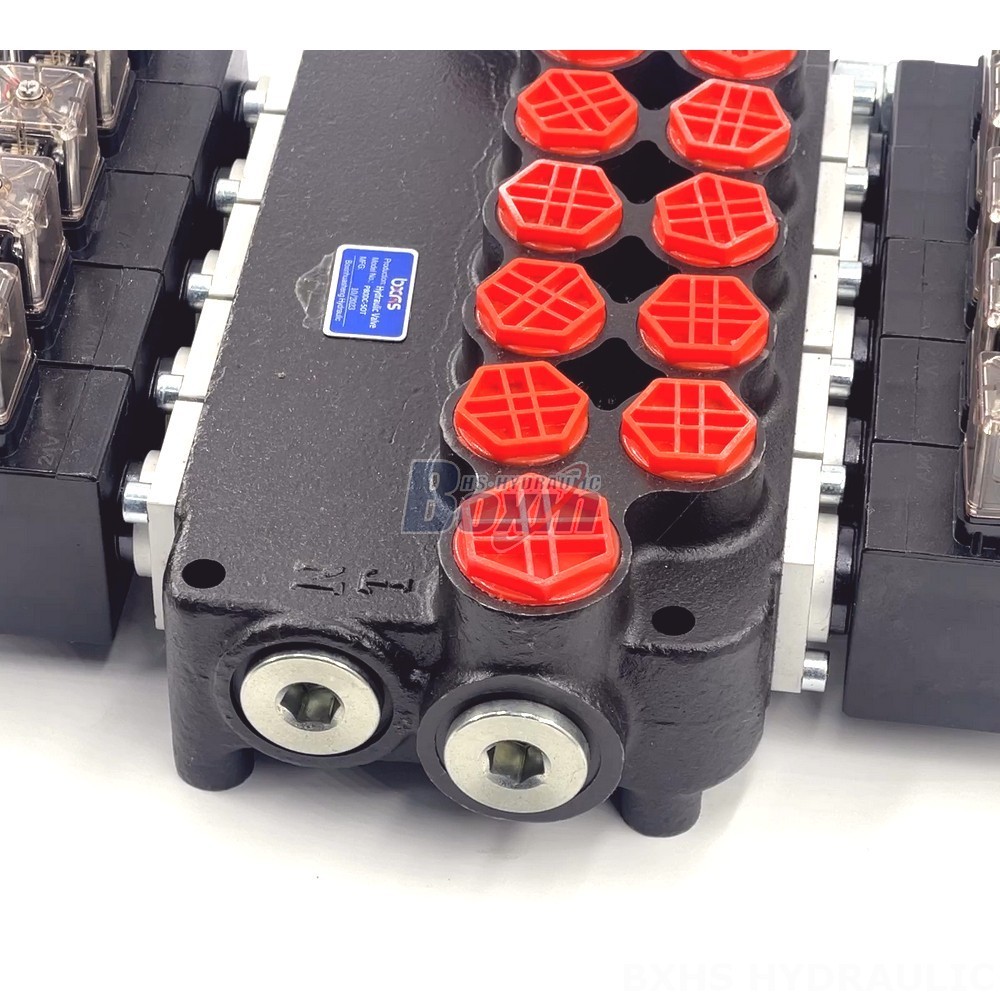

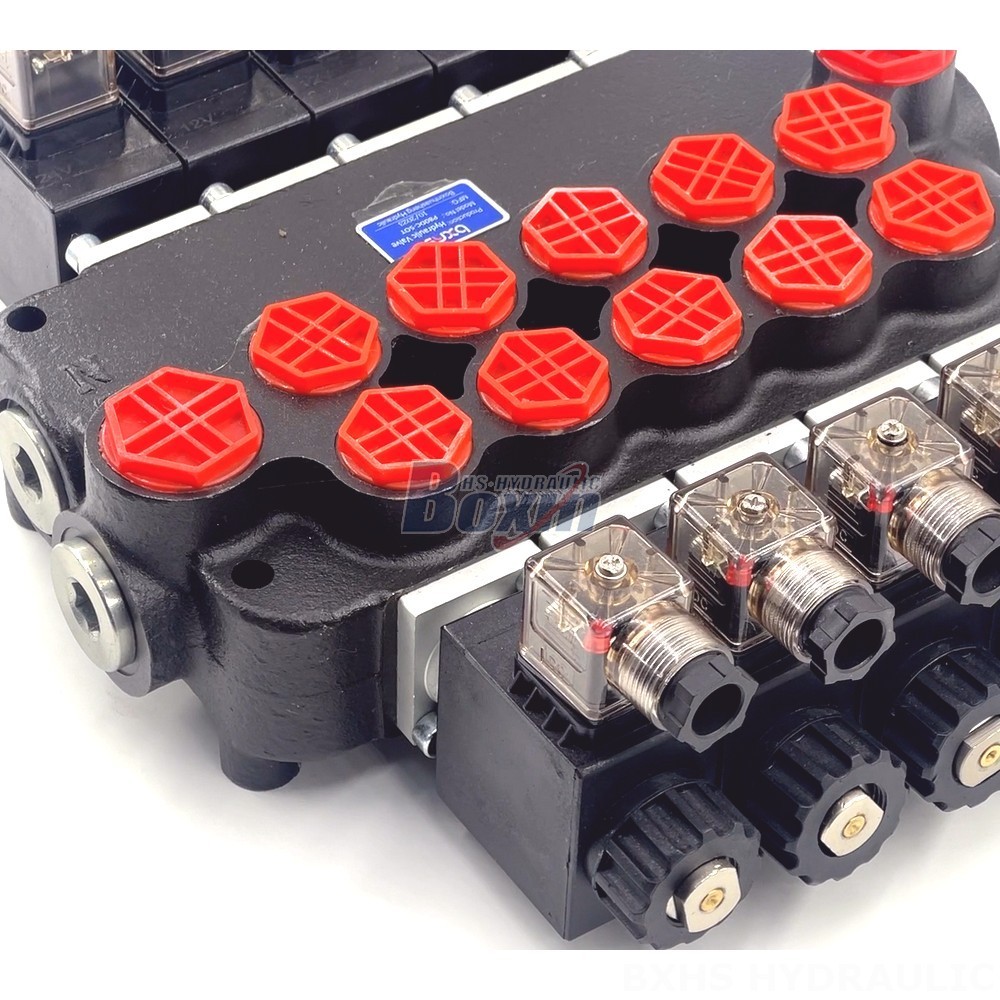

**P80 Solenoid 5 Spool Monoblock Directional Valve**
**Key Features:**
* Solenoid control for precise operation
* 5 spool design for versatile flow management
* Monoblock construction for compact and reliable performance
* Rated flow of 80 L/min (21.2 US gpm) for efficient hydraulic systems
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments
**Application Areas:**
* Material Handling: Telehandlers, forklifts, stackers
* Construction and Earth Moving: All-terrain cranes, motor graders, excavators
* Agriculture: Tractors, harvesters, sprayers
* Industrial Vehicles: Sweepers, scrubbers, aerial platforms
**Partnership Opportunities:**
We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach. Our flexible partnership models include:
* Distribution agreements
* Private label (OEM) manufacturing
* Custom engineering solutions
* Technical support and training
Contact us today to explore the opportunities and collaborate in delivering cutting-edge hydraulic solutions to your customers.
