Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi
Yenilik gelişimi yönlendirir Teknoloji geleceği şekillendirir
1120 Görünümler Bu Ürünü Arıyor

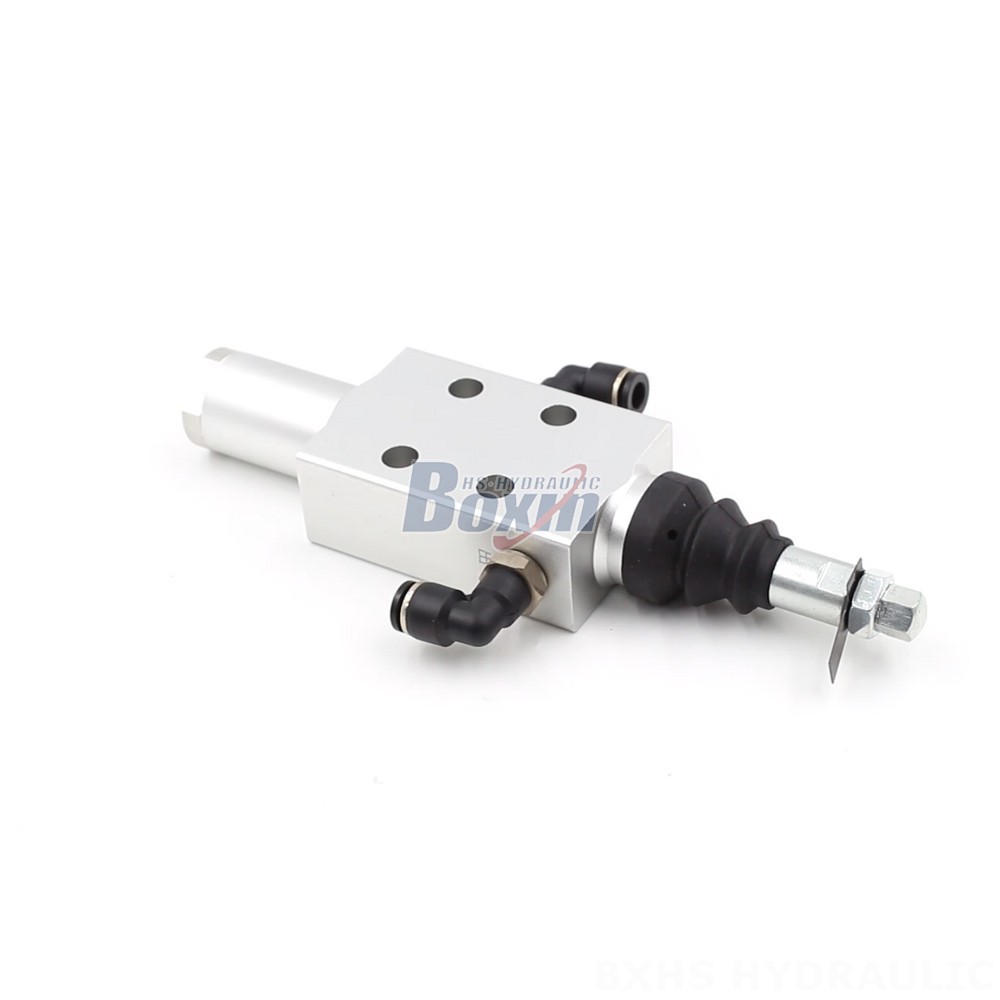

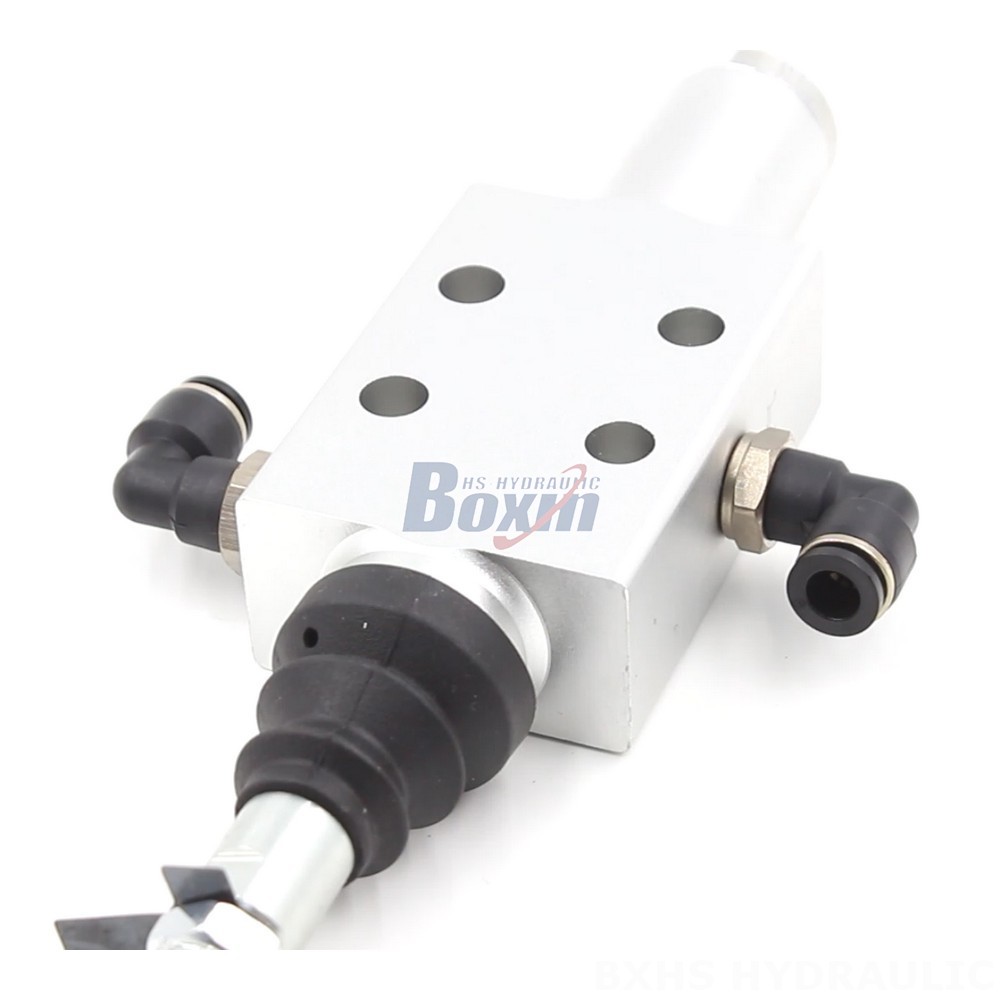

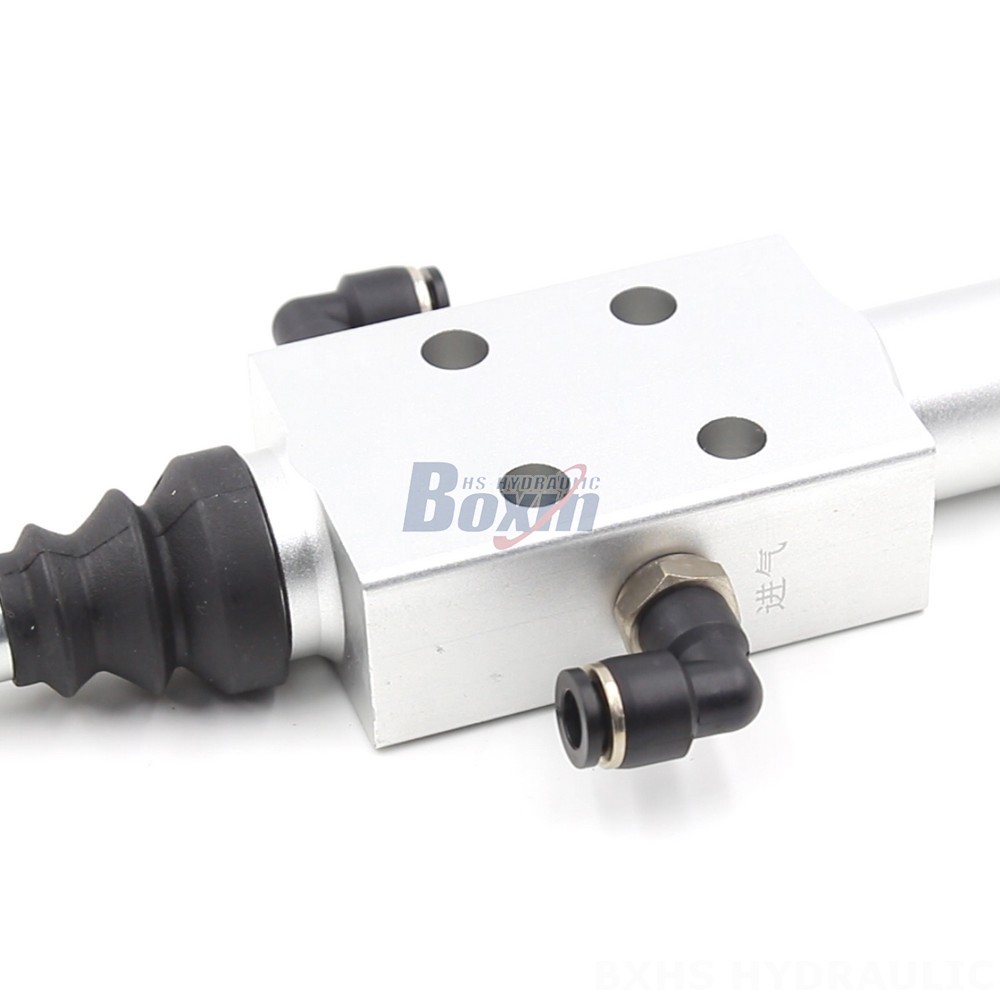

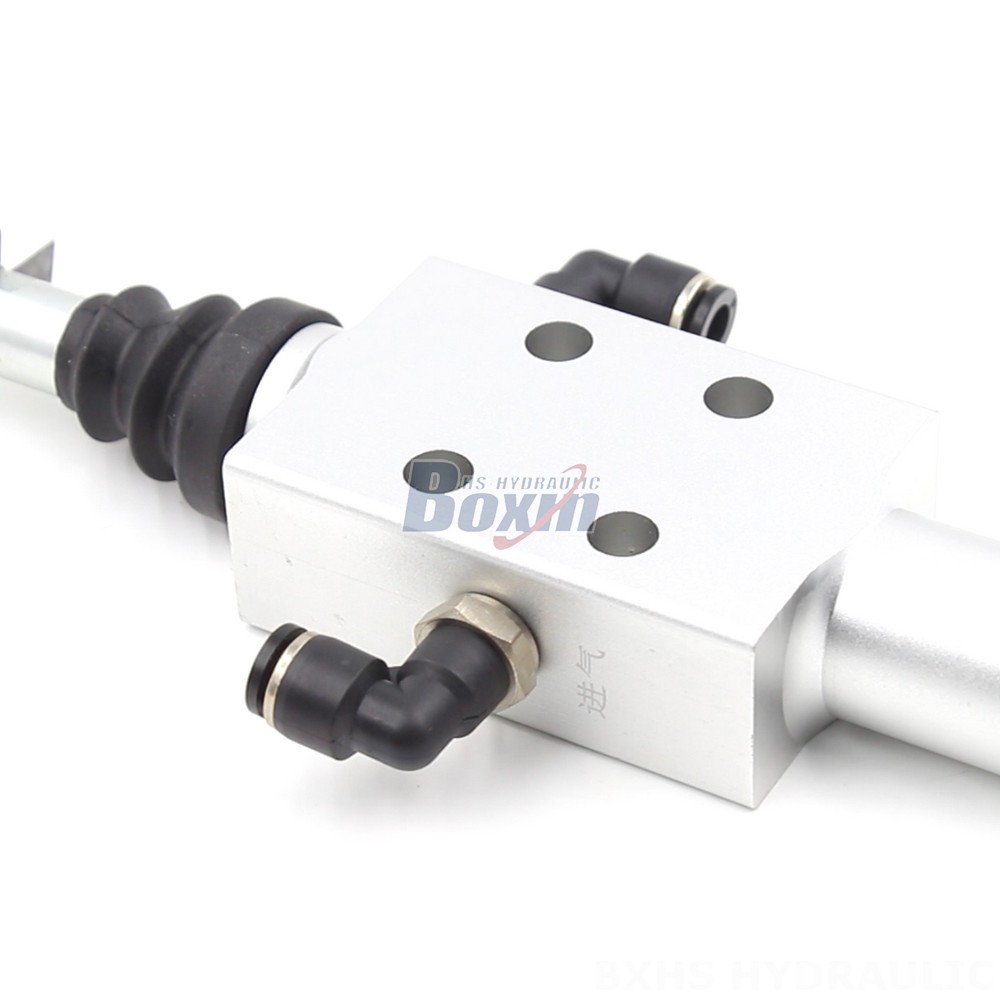

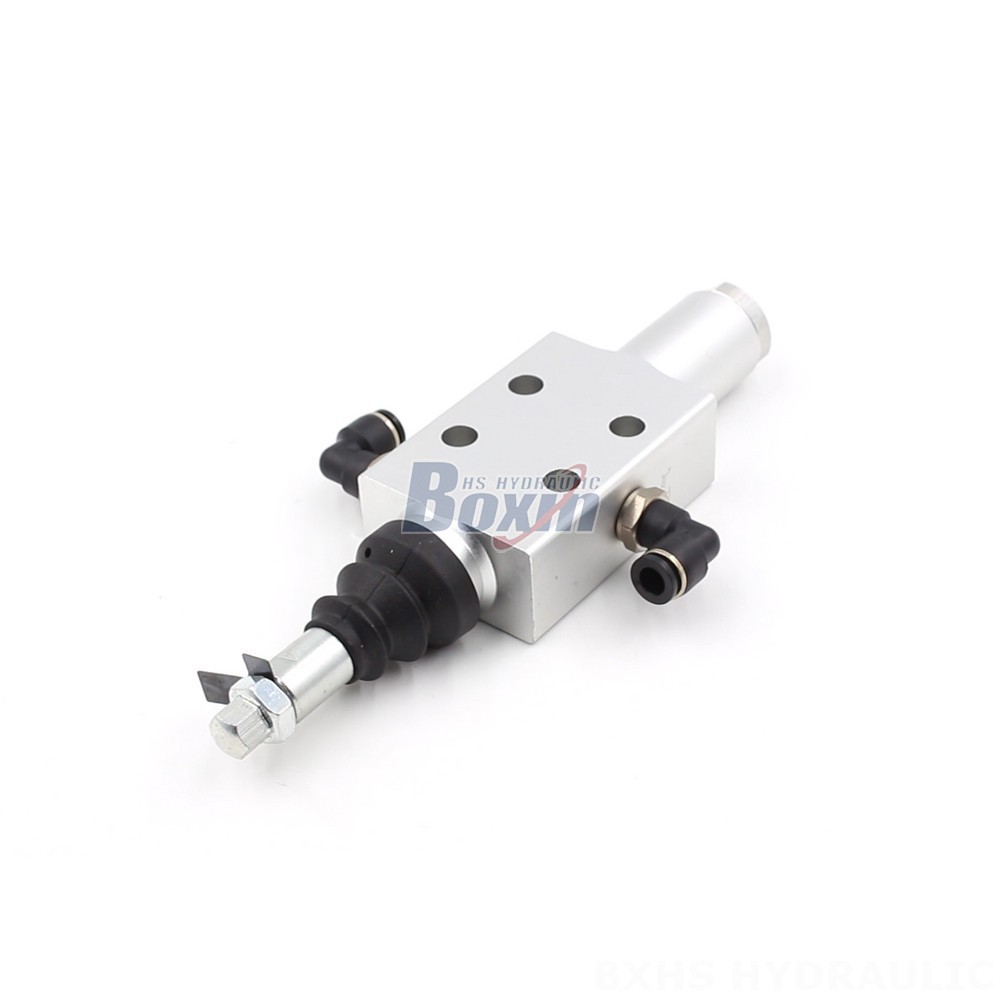

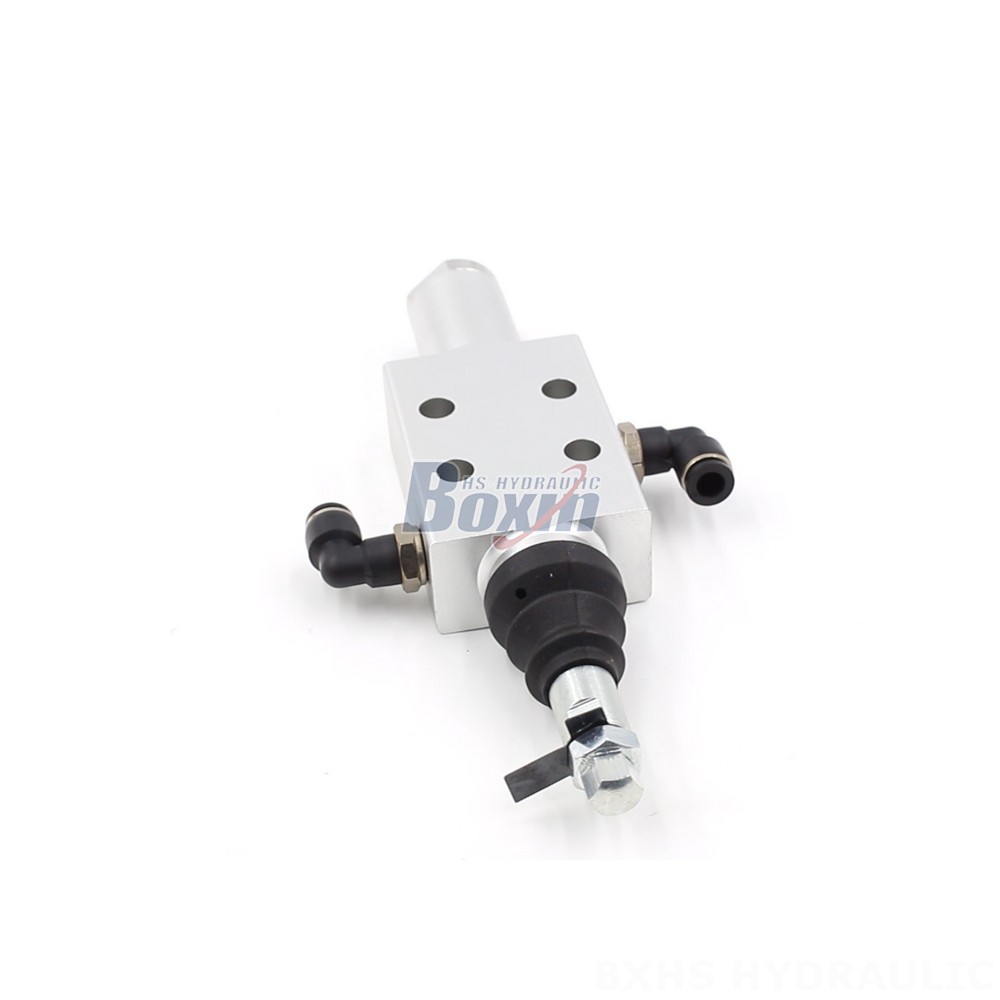

This XQF Series 24v pneumatic solenoid valve is a heavy-duty, monoblock directional valve designed for use in material handling, construction and earthmoving, agriculture, and industrial vehicles. It features a 1 spool design and operates at pressures up to 200 bar (2900 psi) with an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt).
| XQF Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Pnömatik |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +60°C (-40°F ila +140°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 50 L/dk (13,2 ABD galon/dak) |
| Maksimum Basınç | 200 bar (2900 psi) |
| Giriş Portu | G1/4 |
| Çıkış Portu | G1/4 |
| Port Boyutu | G1/4 |
The XQF Series 24v pneumatic solenoid valve is a reliable and durable option for a wide range of applications. It is constructed with a monoblock structure, offering a robust and compact design. The valve features a single spool, providing precise directional control. With a maximum pressure rating of 200 bar (2900 psi) and an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt), this valve is suitable for heavy-duty applications. The valve is designed to withstand ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in a variety of environments. This 24v pneumatic solenoid valve is ideal for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
