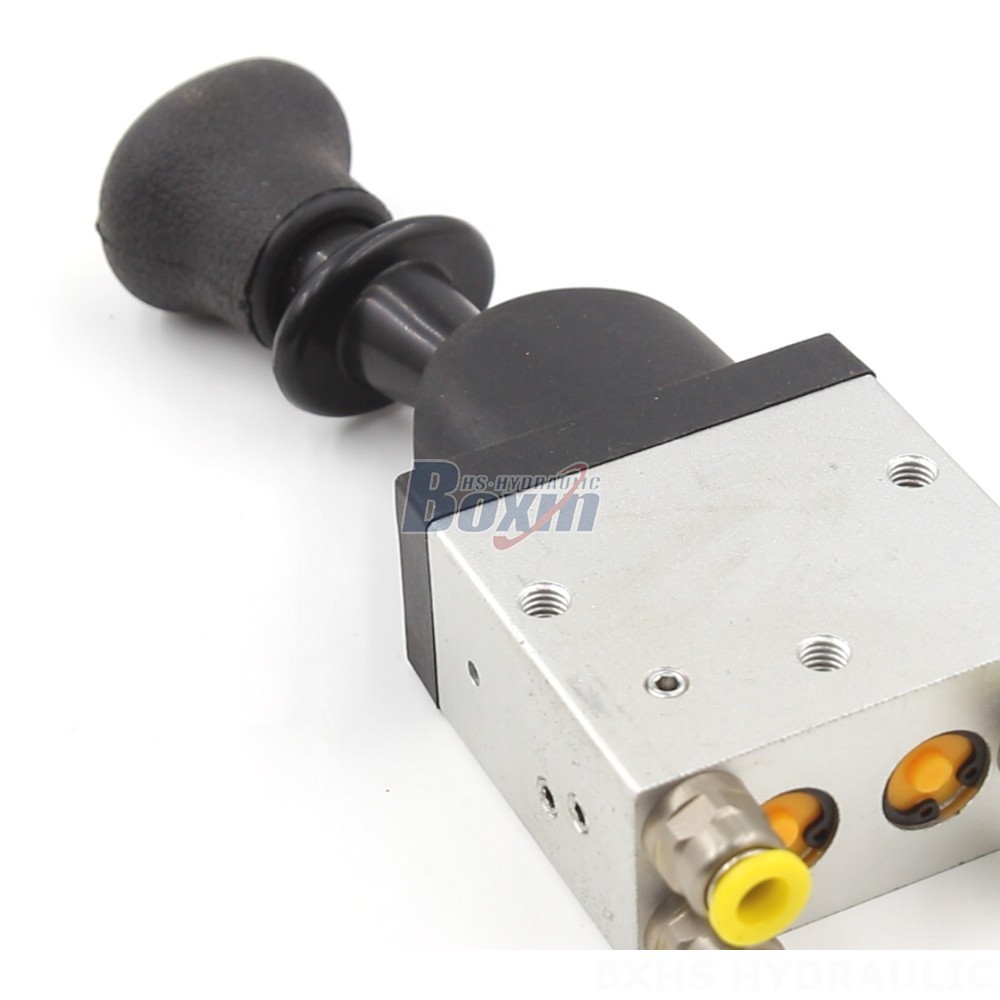

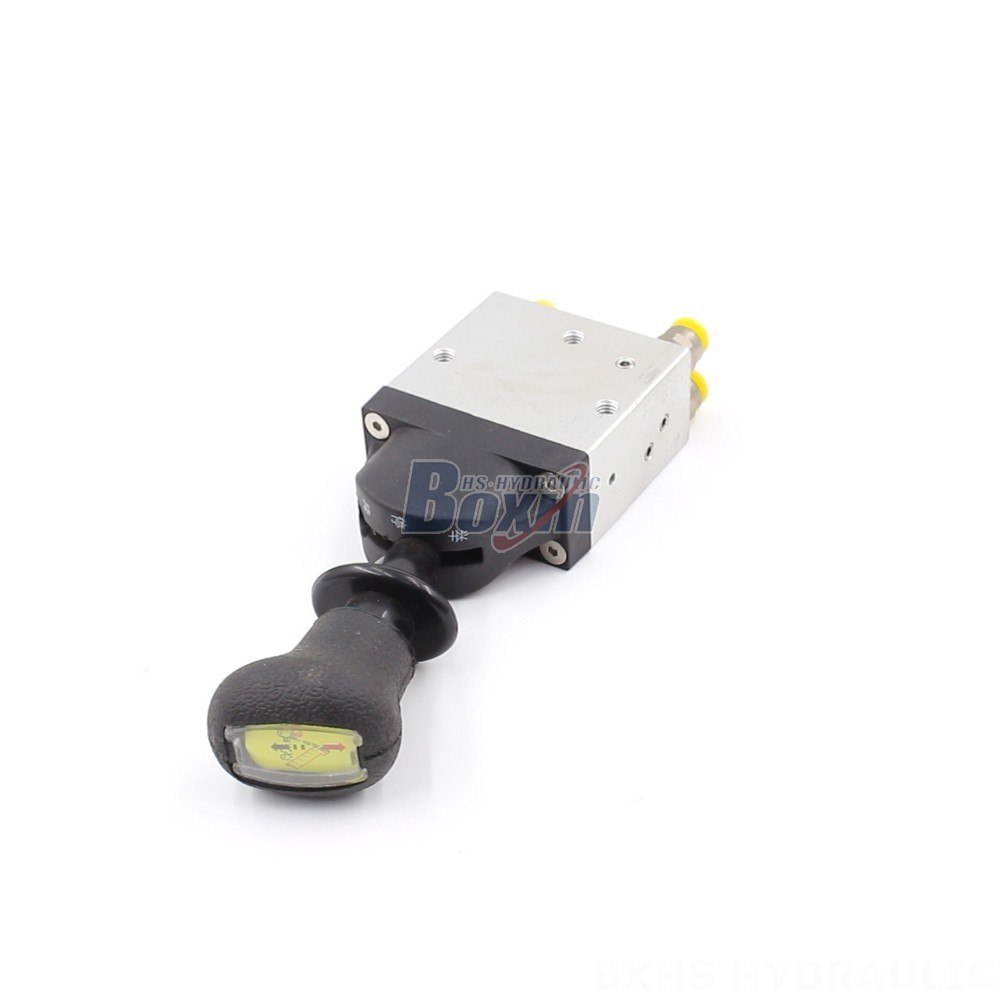

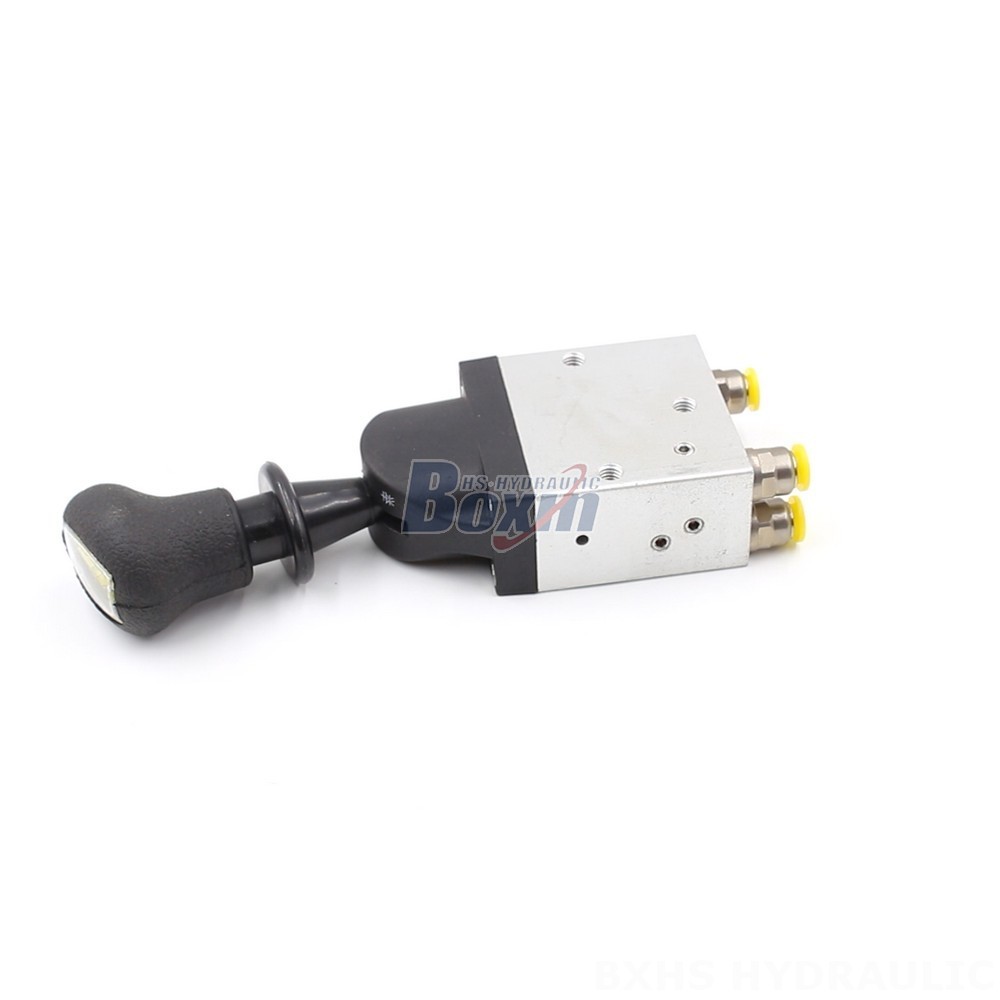

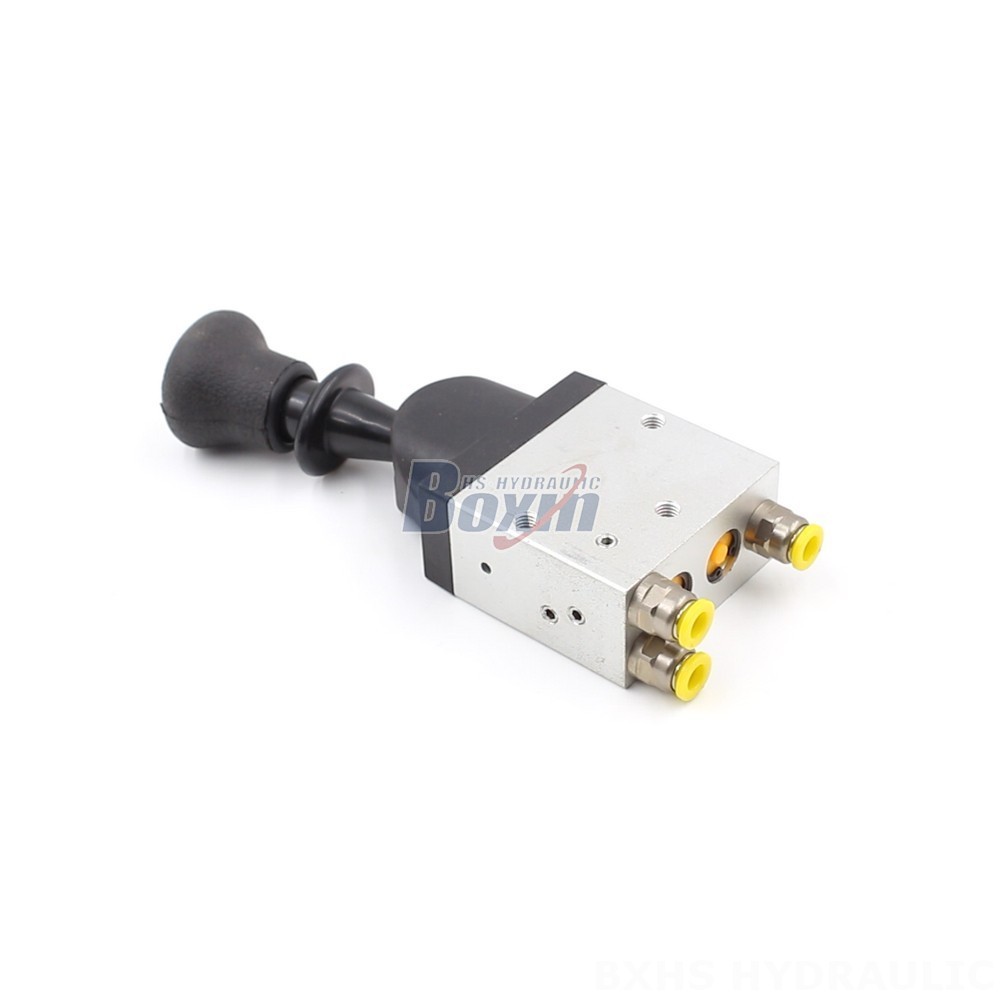

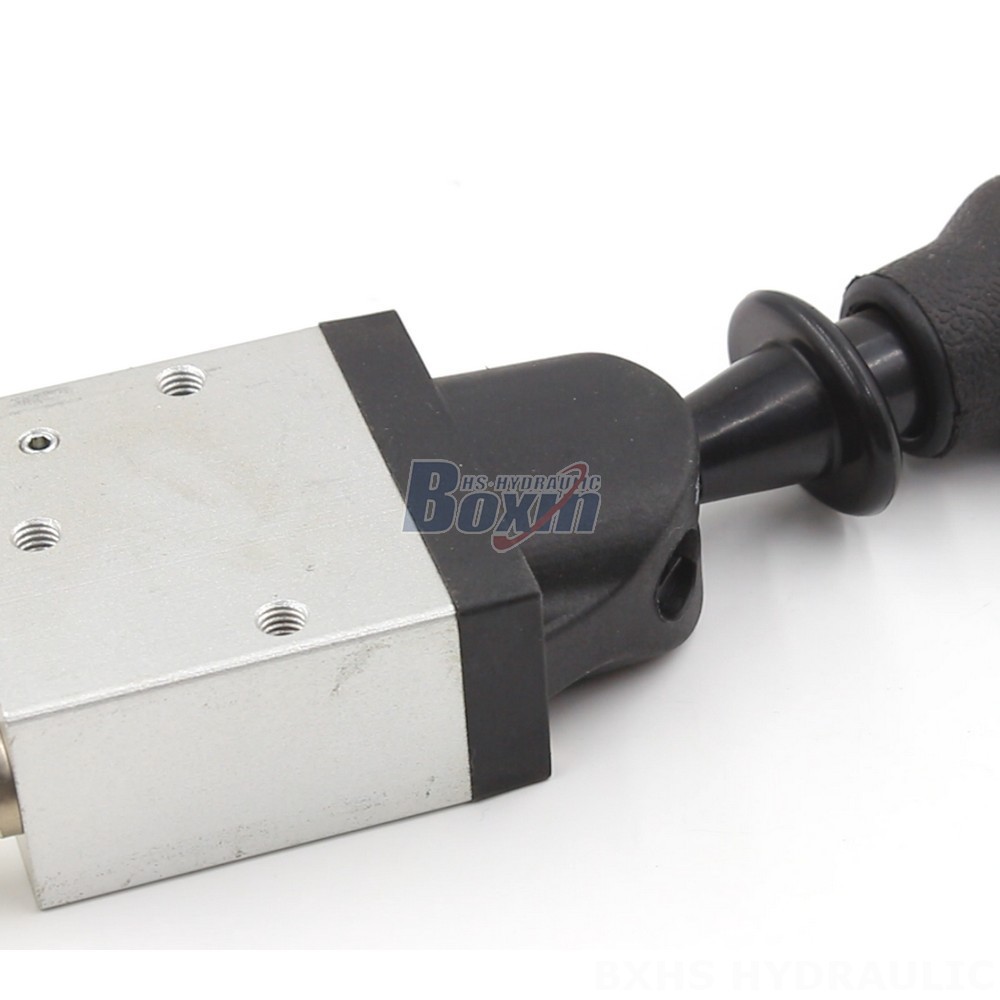

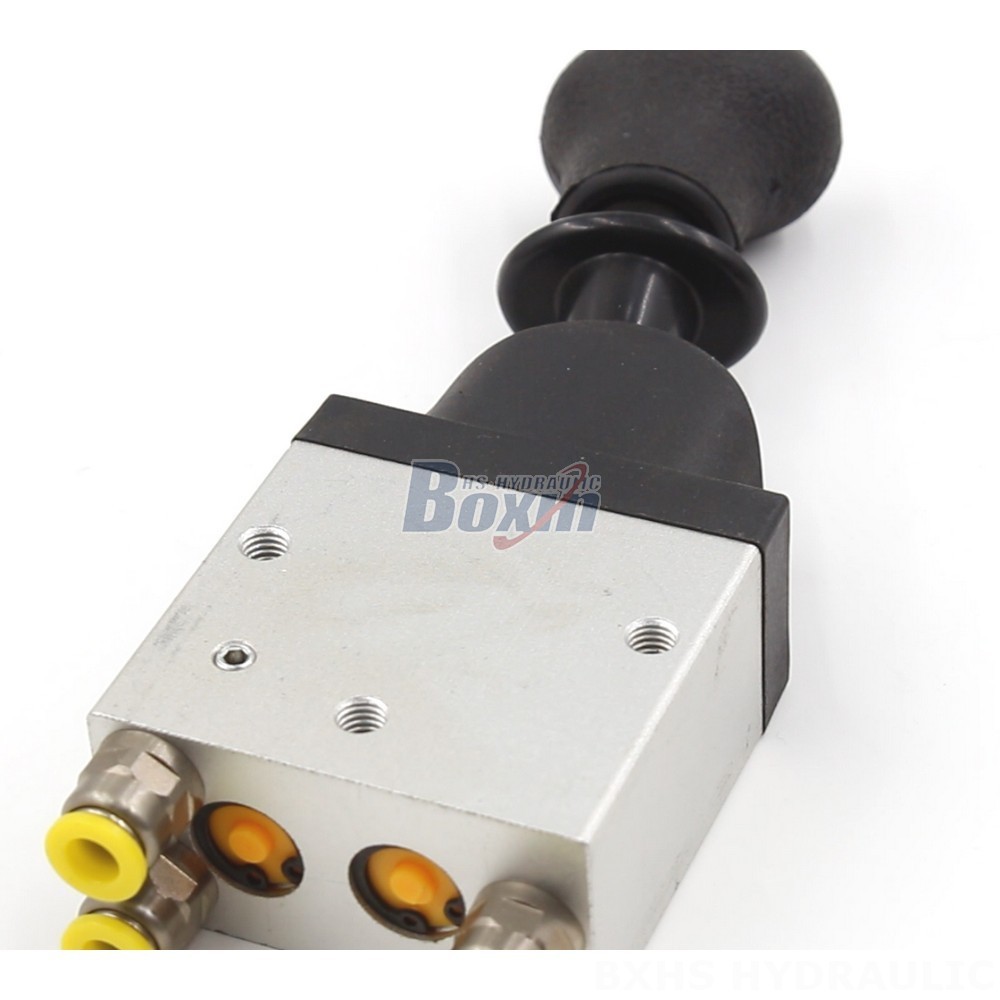

The BKQF34 Series multi-channel directional valve is a high-performance pneumatic control valve designed for a variety of construction and industrial applications. It offers a rated flow of 40 L/min and a maximum pressure of 1 MPa, making it ideal for use in forklifts, telehandlers, skid steer loaders, and other heavy equipment.
| BKQF34 Serisi Pnömatik Kontrol Vanası Parametreler | |
|---|---|
| Kontrol Yöntemi | Pnömatik |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 1 MPa (145 psi) |
| Giriş Portu | G1/4 |
| Çıkış Portu | G1/4 |
| Port Boyutu | G1/4 |
This 1-section, monoblock valve features a single spool and is designed for use in harsh environments, with an operating temperature range of -40°C to +80°C. Its compact design and reliable performance make it a popular choice for manufacturers of construction, material handling, and agricultural equipment. The BKQF34 Series is available in a variety of configurations to meet specific application requirements. It is widely used in forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.
