Pneumatic Sectional Directional Valve SD8 2 Spool Design

Kontrol Yöntemi:Pnömatik

Makara:2 Makara

Anma Akışı:90 L/dk (23,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:SAE 10

Çıkış Portu:SAE 10

Port Boyutu:SAE 10

Marka:BXHS

Ürün Tipi:Kesitsel Yönsel Valf

Ürün Serisi:SD8 Serisi Kesitsel Yönsel Valf

Ambalaj boyutu:34*24*15.5

Brüt ağırlık:12.50 kg

Stok Durumu: Stokta Var

91 Görünümler Bu Ürünü Arıyor

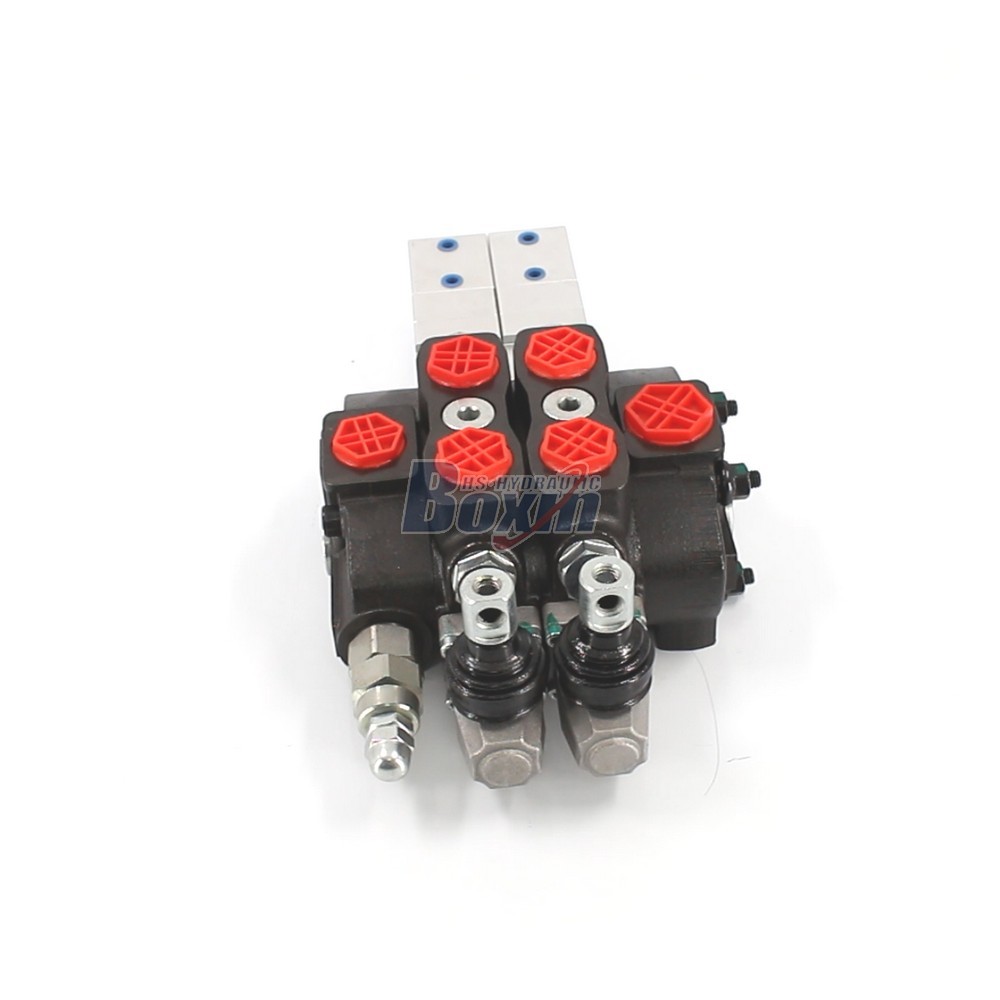

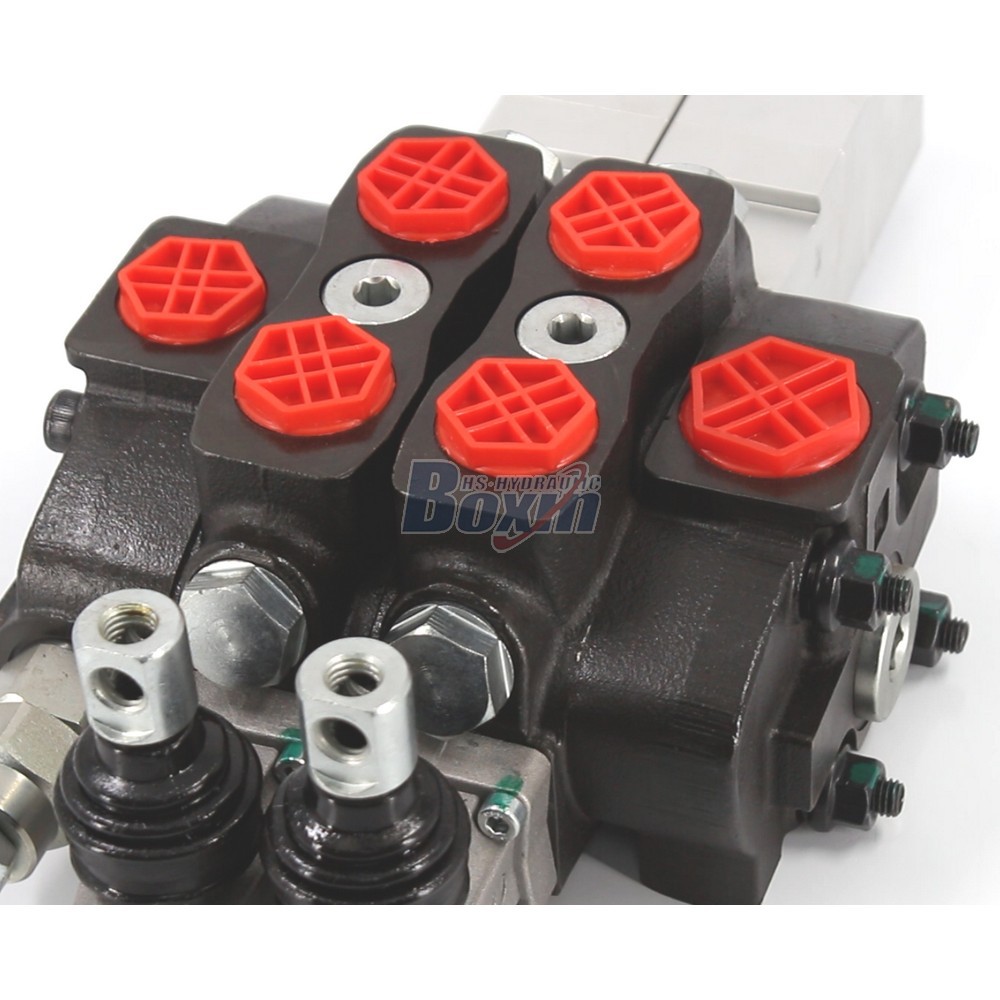

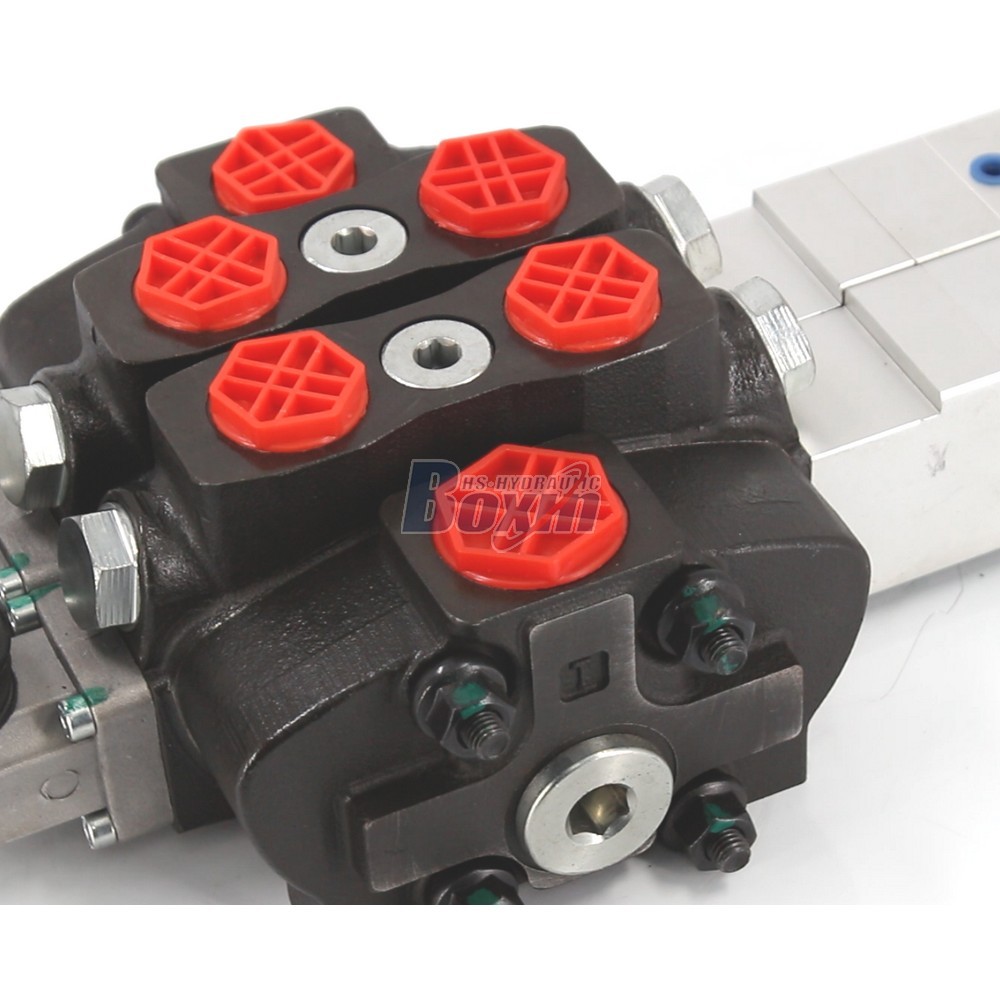

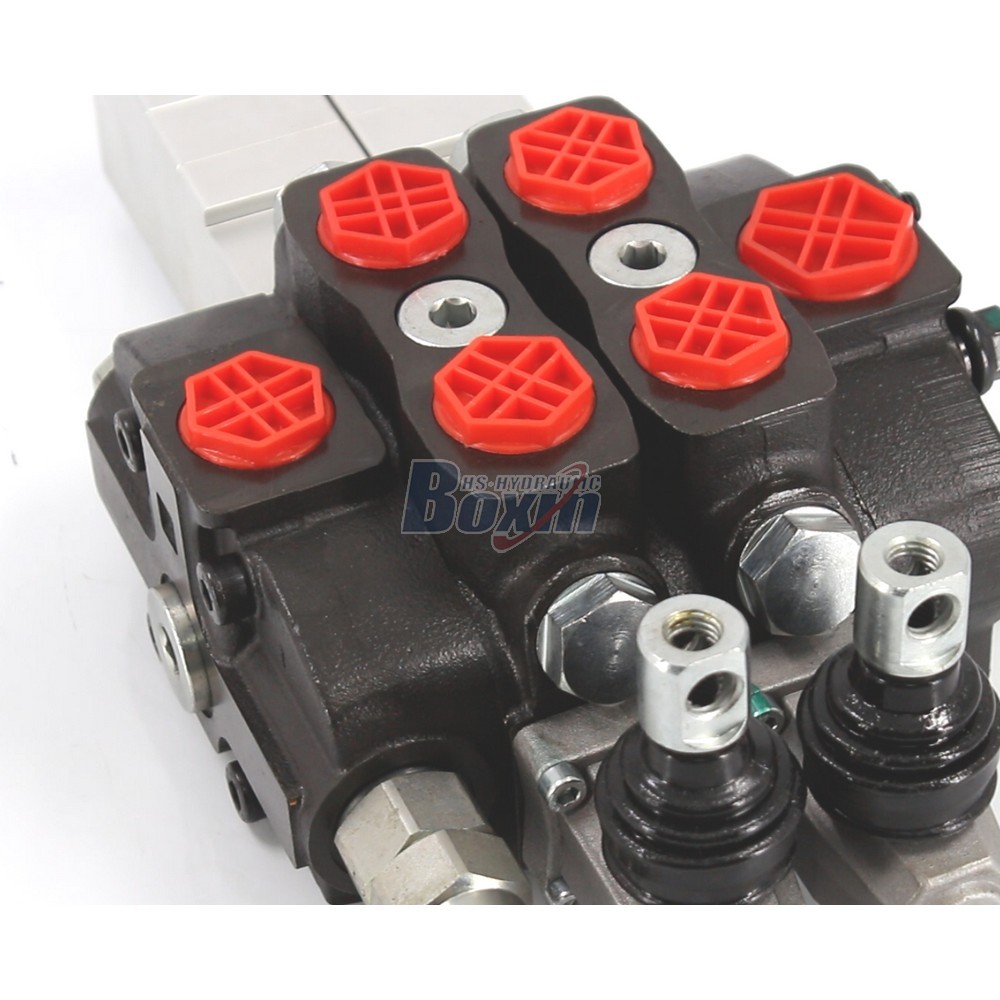

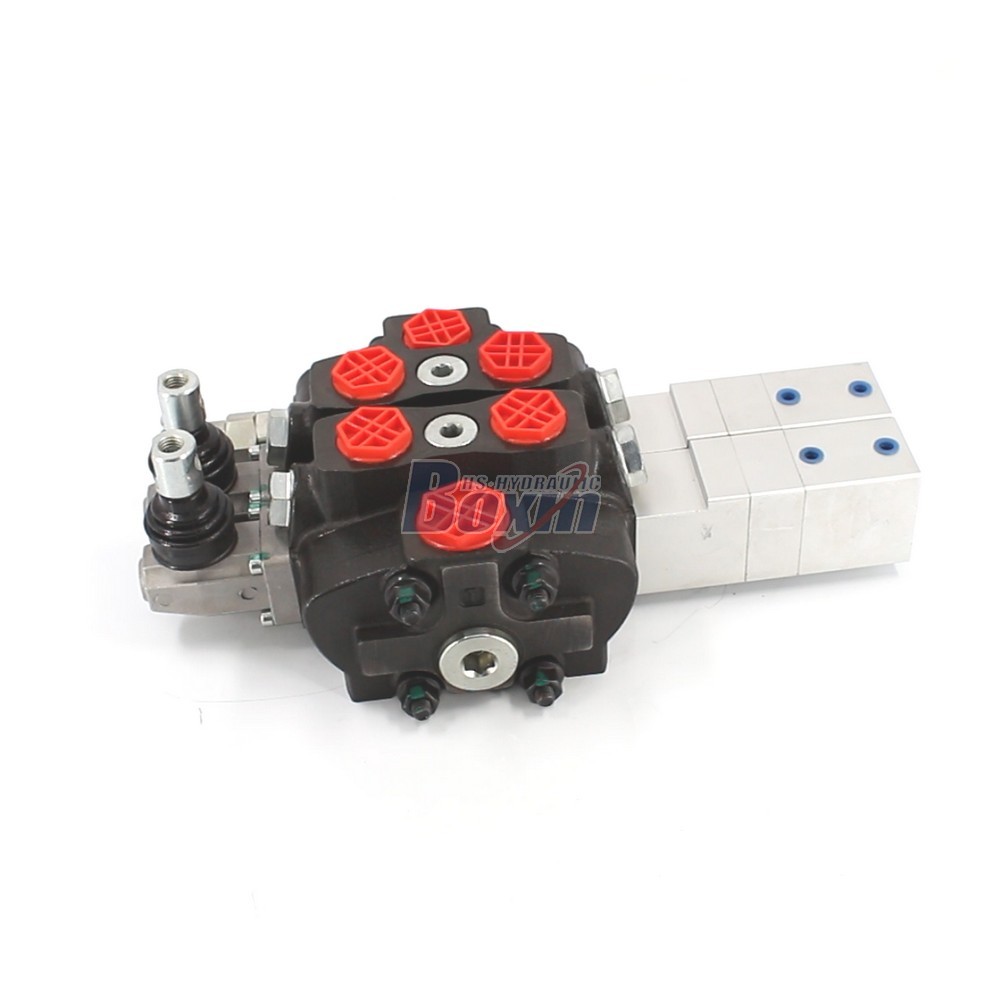

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Pneumatic Sectional Directional Valve SD8 2 Spool Design drawing image

As a leading hydraulic manufacturer, we offer the SD8 Series Pneumatic Sectional Directional Valve featuring a 2-spool design. Engineered for high-precision control in mobile and industrial machinery, this valve handles a rated flow of 80 L/min and operating pressures up to 350 bar. It is ideal for material handling, agriculture, and construction equipment.

SD8 Serisi Kesitsel Yönsel Valf Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Seksiyonel vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm
İşletme Viskozite Aralığı 12 - 400 mm²/sn (12 cSt ila 400 cSt)
Anma Akışı 90 L/dk (23,8 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, SAE 10
Çıkış Portu G1/2, G3/4, SAE 10, 3/4 NPT
Port Boyutu G1/2, SAE 10

Our factory specializes in high-performance hydraulic solutions, presenting the SD8 Series 2 Spool Pneumatic Sectional Directional Valve. Built for versatility and durability, this valve supports a rated flow of 80 L/min (21.2 US gpm) and reaches a maximum pressure of 350 bar. It features G1/2 inlet and G3/4 outlet ports, making it suitable for a wide range of applications including forklifts, mini-excavators, tractors, and waste compactors. As a large-scale manufacturer, we provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. We offer competitive wholesale pricing directly from our factory, ensuring cost-effective supply for large-scale projects. We are actively seeking global partners including distributors, wholesalers, agents, and traders to expand our international presence. Whether you need private labeling (white label) services or bulk wholesale supply, our facility is equipped to deliver reliable hydraulic components for construction, forestry, and agricultural machinery.
