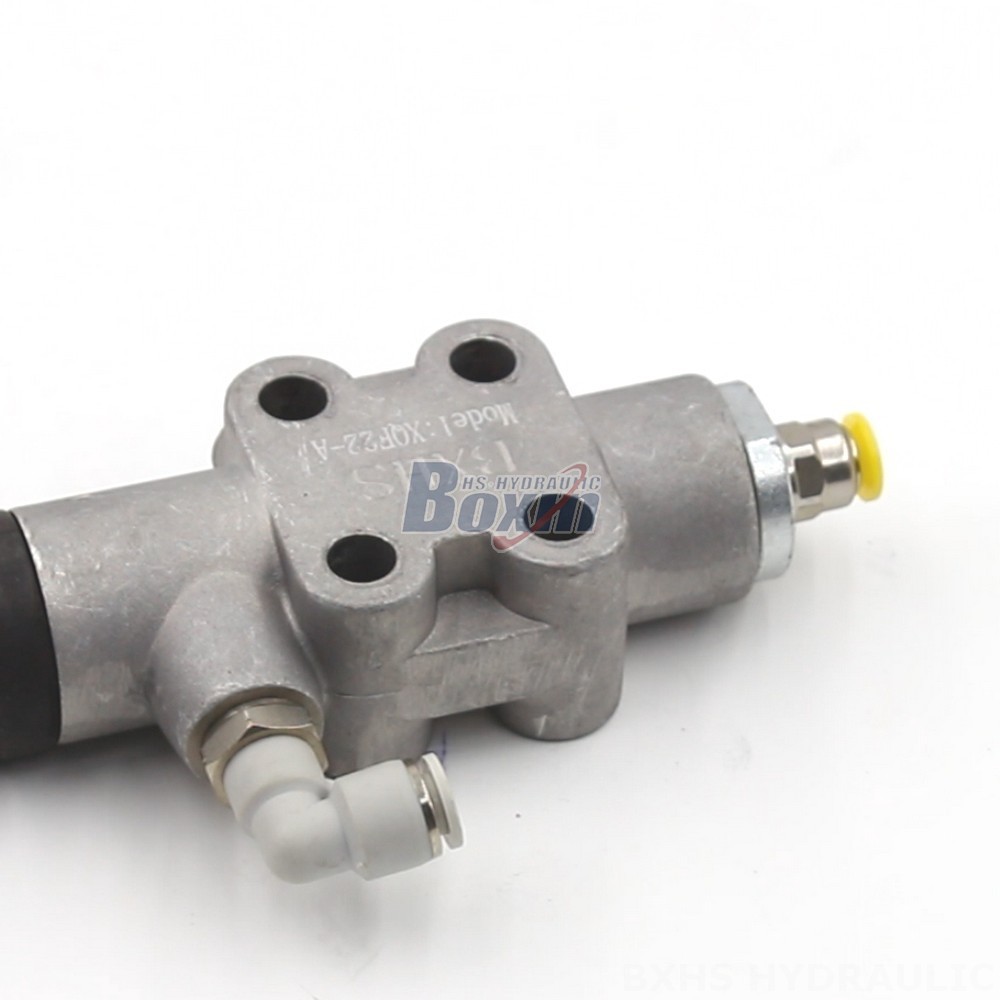

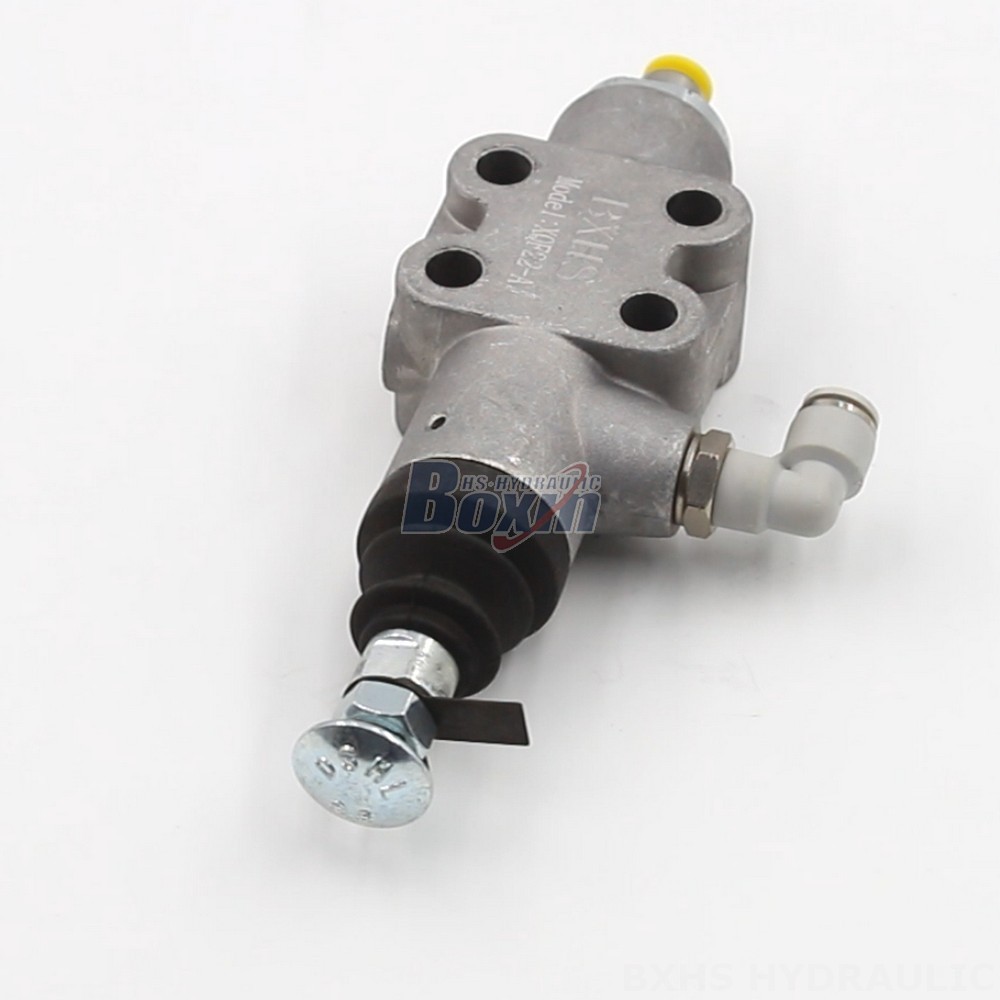

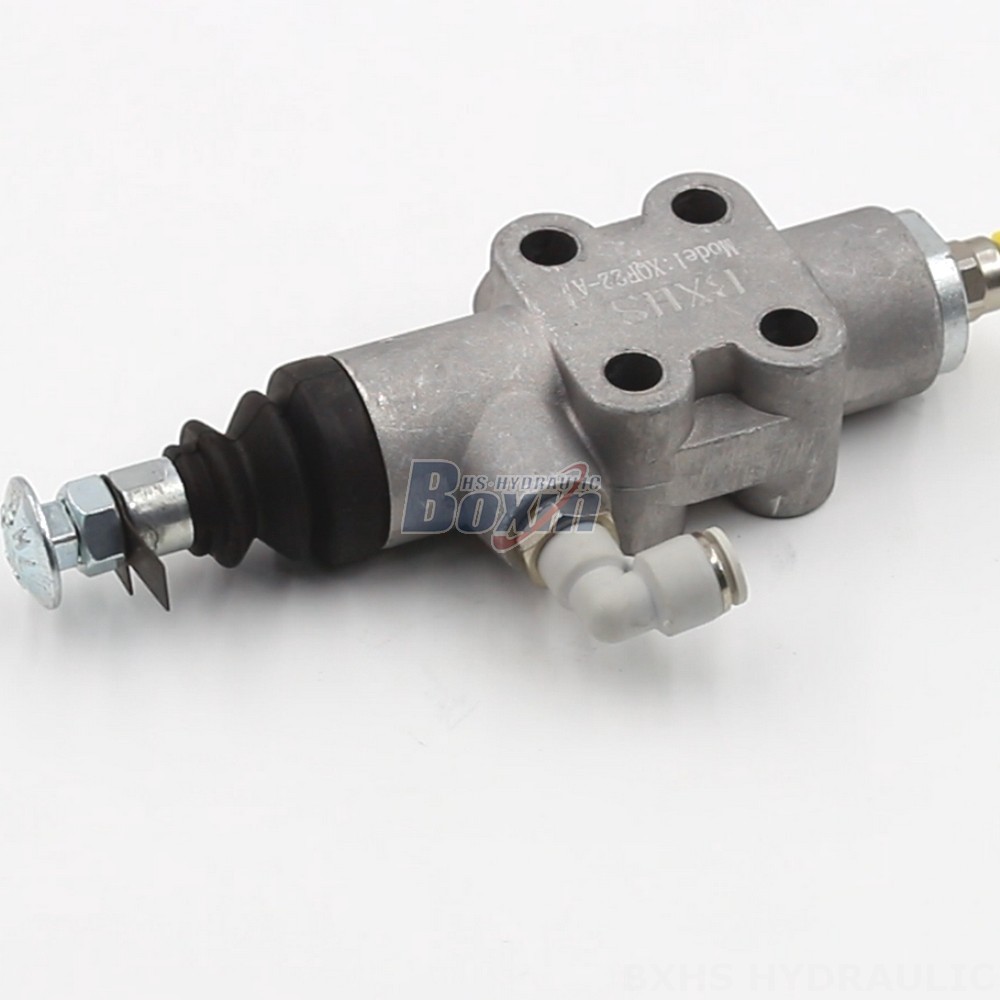

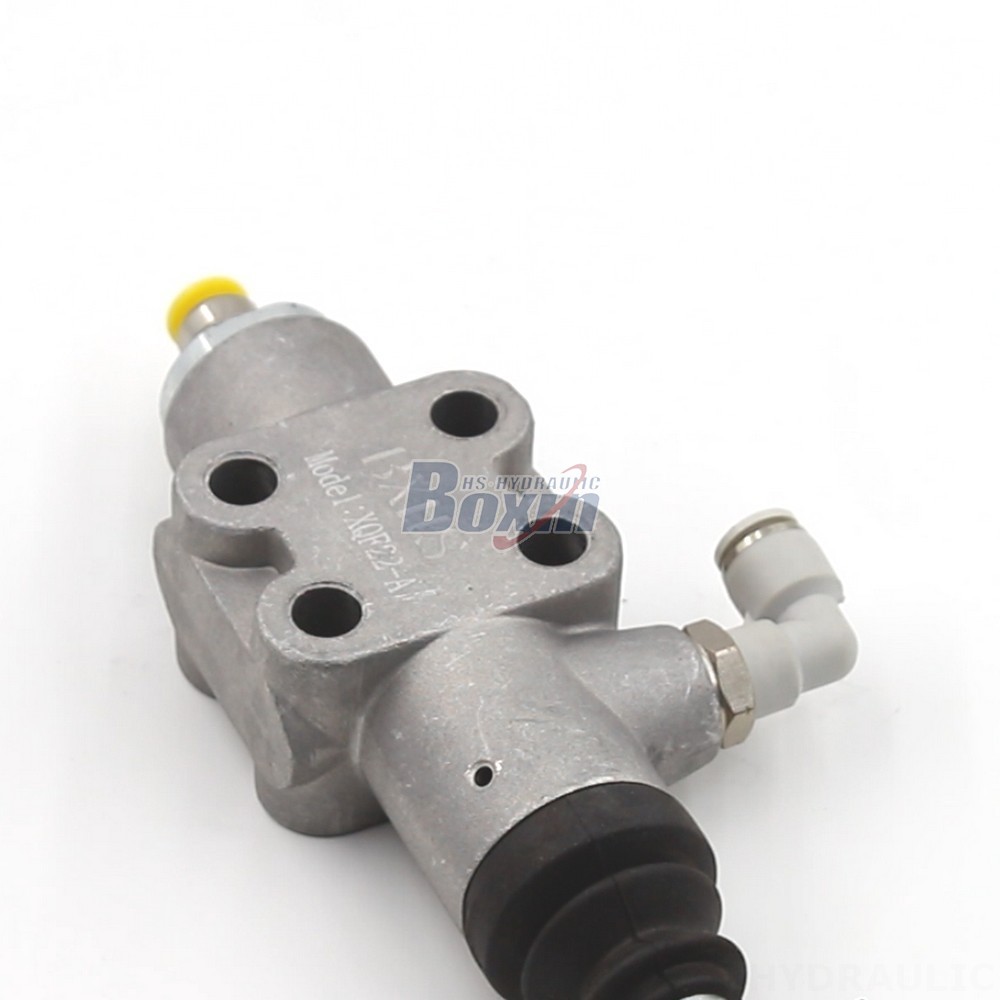

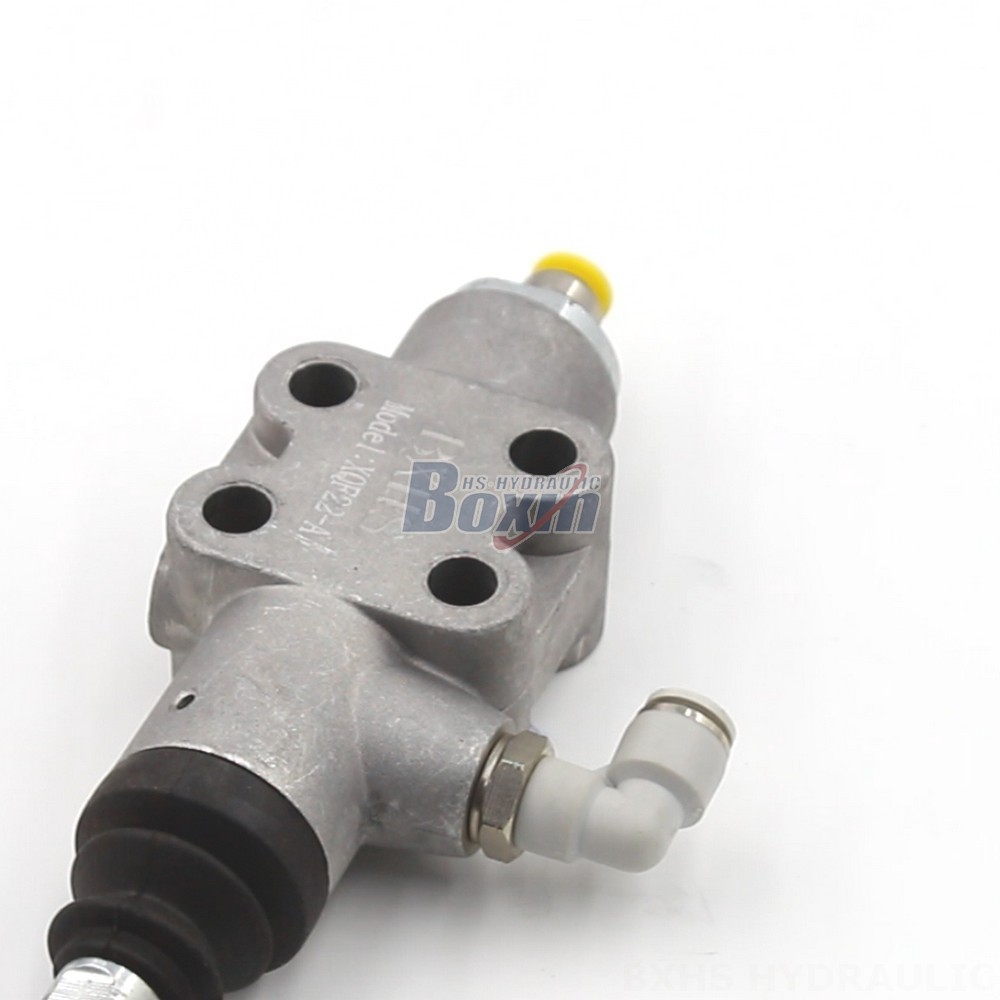

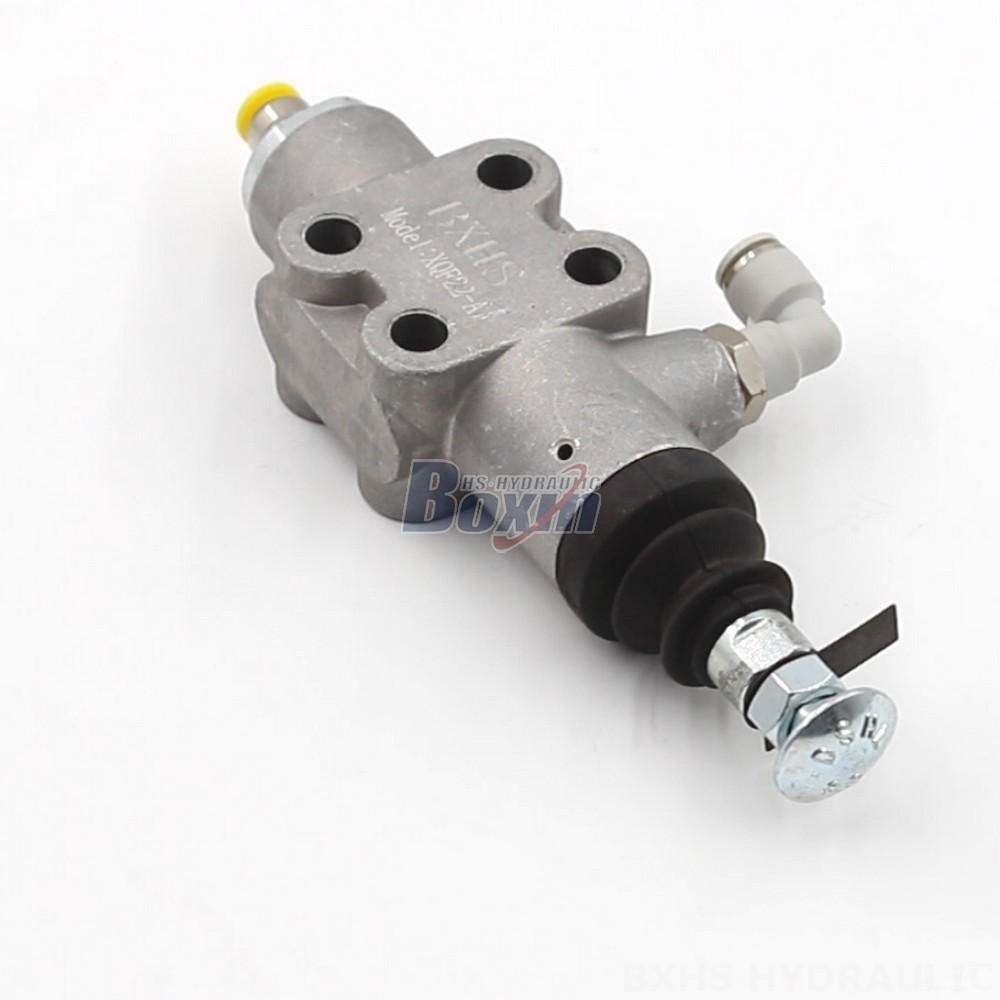

The XQF22-A Pneumatic Valve is a high-performance valve designed for use in material handling, construction, agriculture, and industrial vehicle applications. With a rated flow of 60 L/min, a maximum pressure of 200 bar, and an operating viscosity range of 12 - 400 mm²/s, this valve is suitable for a wide range of applications.
| XQF Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Pnömatik |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +60°C (-40°F ila +140°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 50 L/dk (13,2 ABD galon/dak) |
| Maksimum Basınç | 200 bar (2900 psi) |
| Giriş Portu | G1/4 |
| Çıkış Portu | G1/4 |
| Port Boyutu | G1/4 |
The XQF22-A Pneumatic Valve features a monoblock design for increased durability and reliability. The valve is also equipped with a 1 spool for precise control of fluid flow. The valve's wide operating temperature range of -40°C to +60°C makes it suitable for use in a variety of environments.
Key features of the XQF22-A Pneumatic Valve include:
* Pneumatic control
* 1 section
* 60 L/min rated flow
* 200 bar max pressure
* 12 - 400 mm²/s operating viscosity range
* -40°C to +60°C ambient temperature range
* 1 spool
* Monoblock design
* Material handling, construction, agriculture, and industrial vehicle applications
