The SD11 Manual Valve is a compact and reliable directional control valve designed for precision hydraulic control applications in various industries, including material handling, construction, agriculture, and industrial vehicles.
| SD11 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Elektrikli, Pnömatik ve Manuel |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +60°C (-40°F ila +140°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 70 L/dk (18,5 ABD galon/dak) |
| Maksimum Basınç | 305 bar (4400 psi), 315 bar (4600 psi) |
| Giriş Portu | G3/4, SAE 12 |
| Çıkış Portu | G3/4, SAE 12 |
| Port Boyutu | G3/4, SAE 12 |

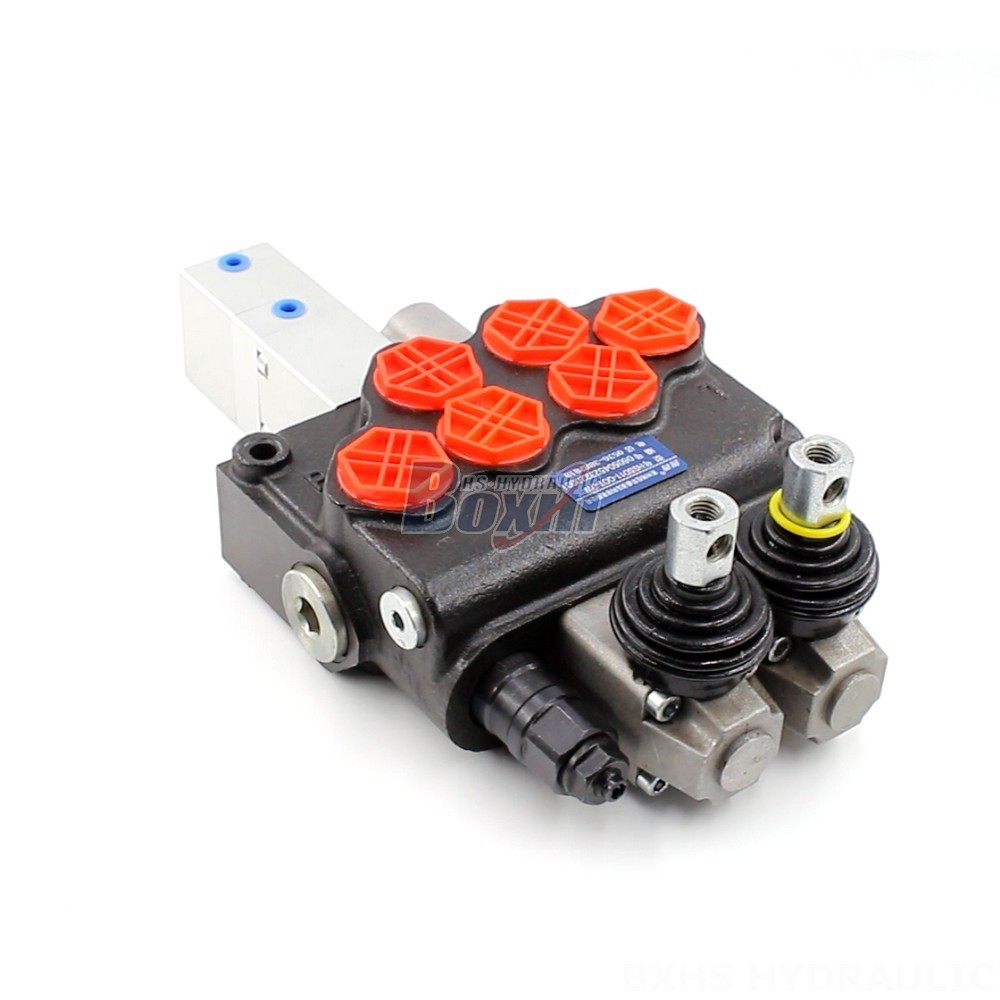

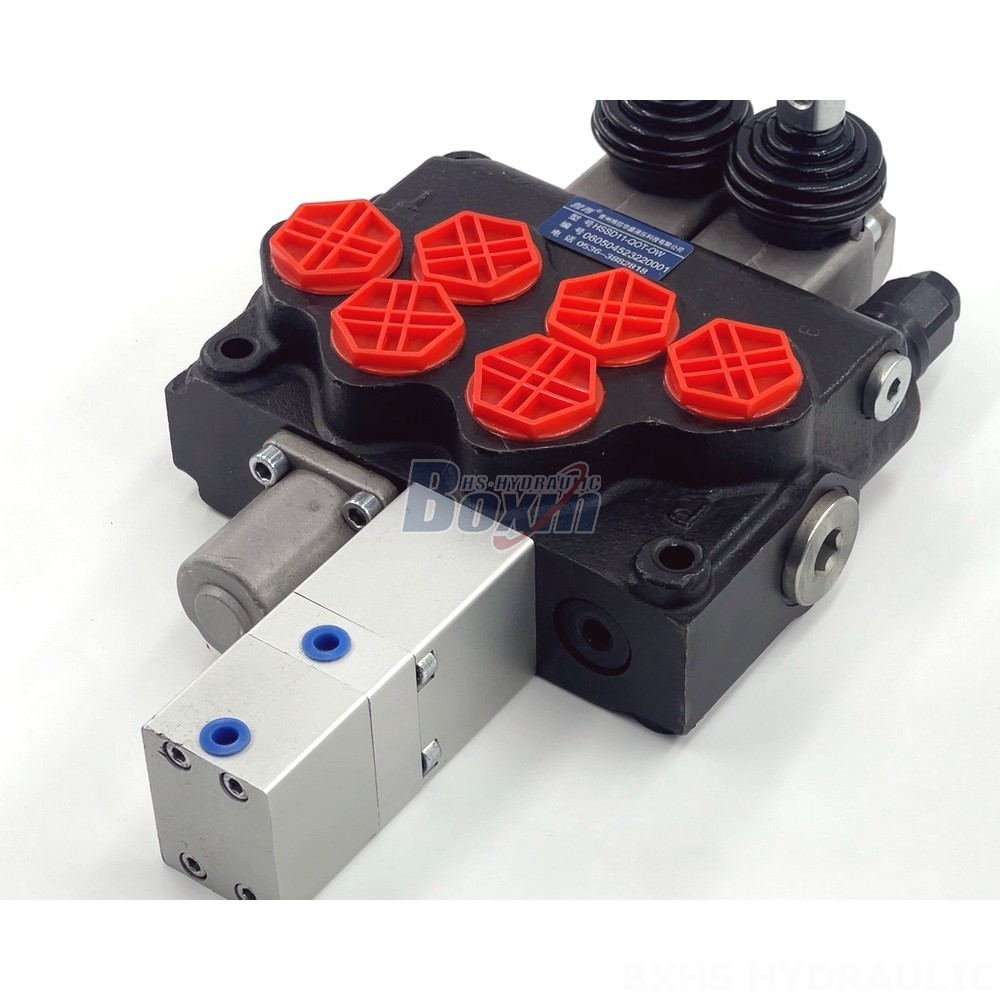

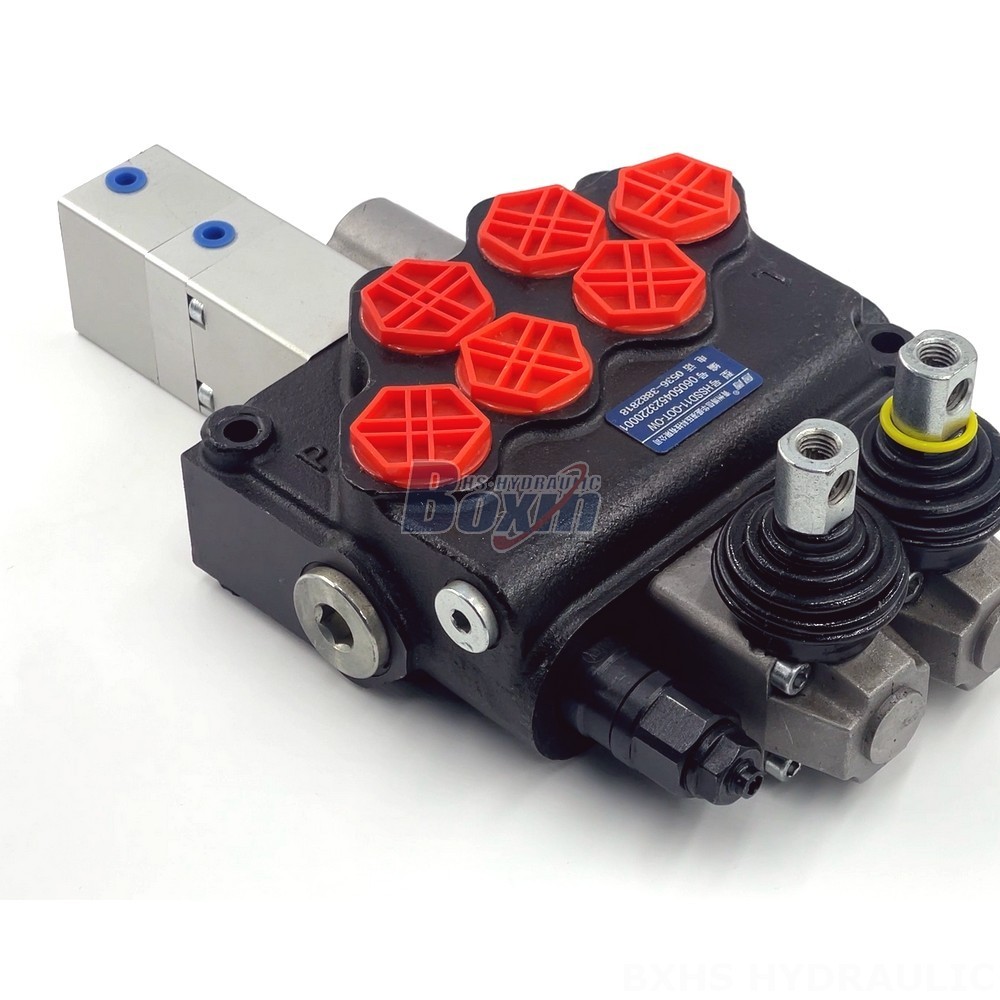

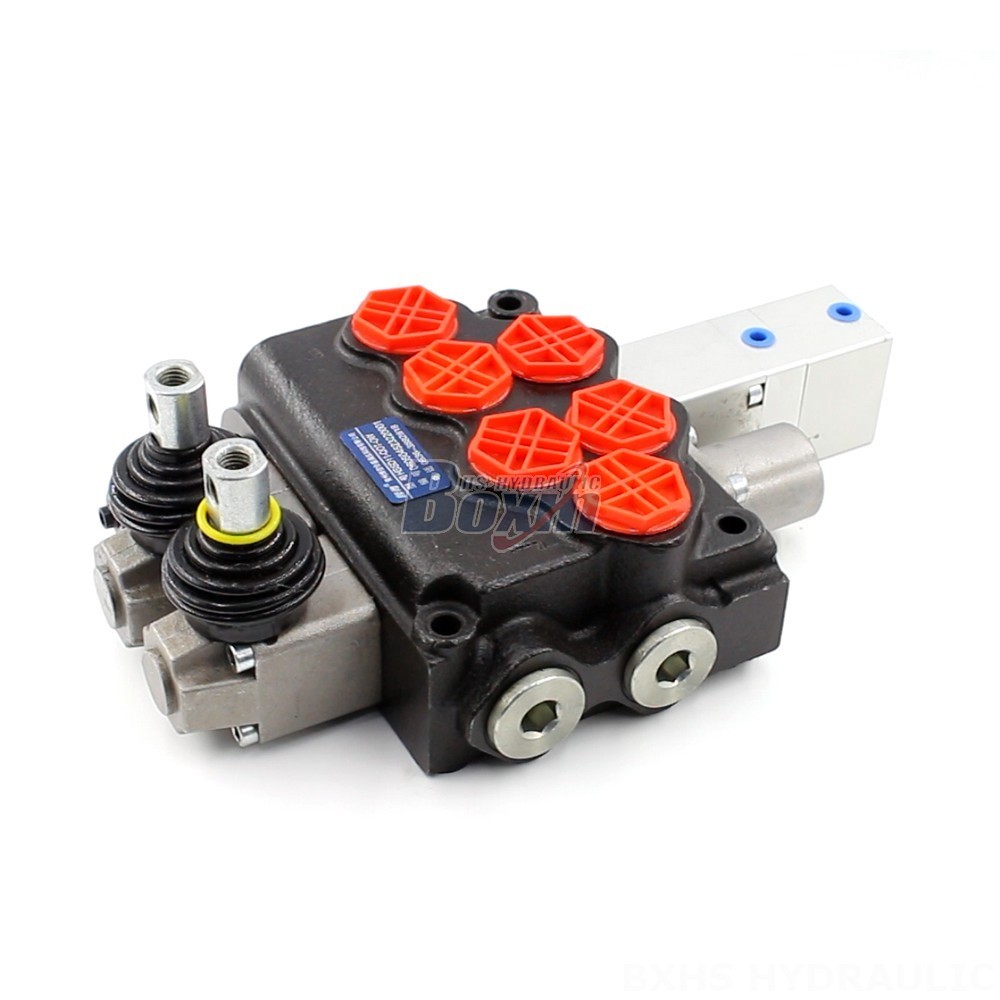

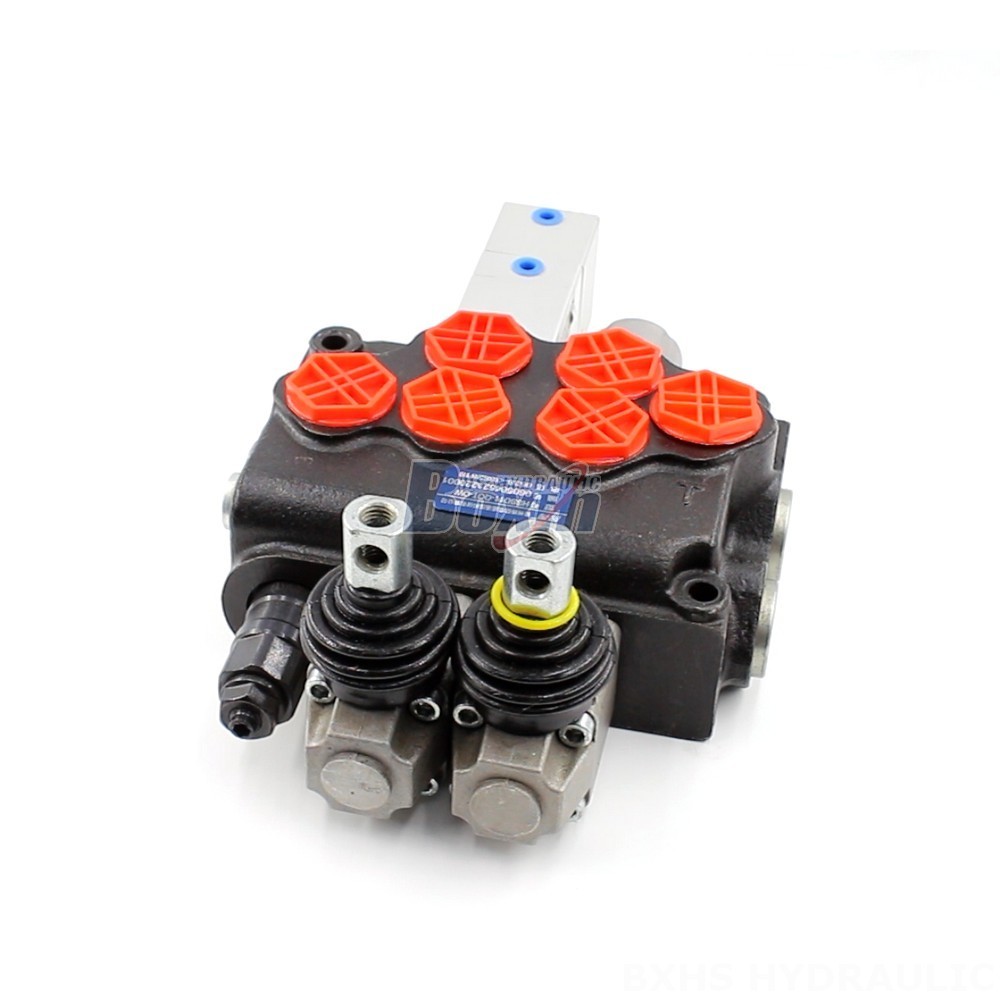

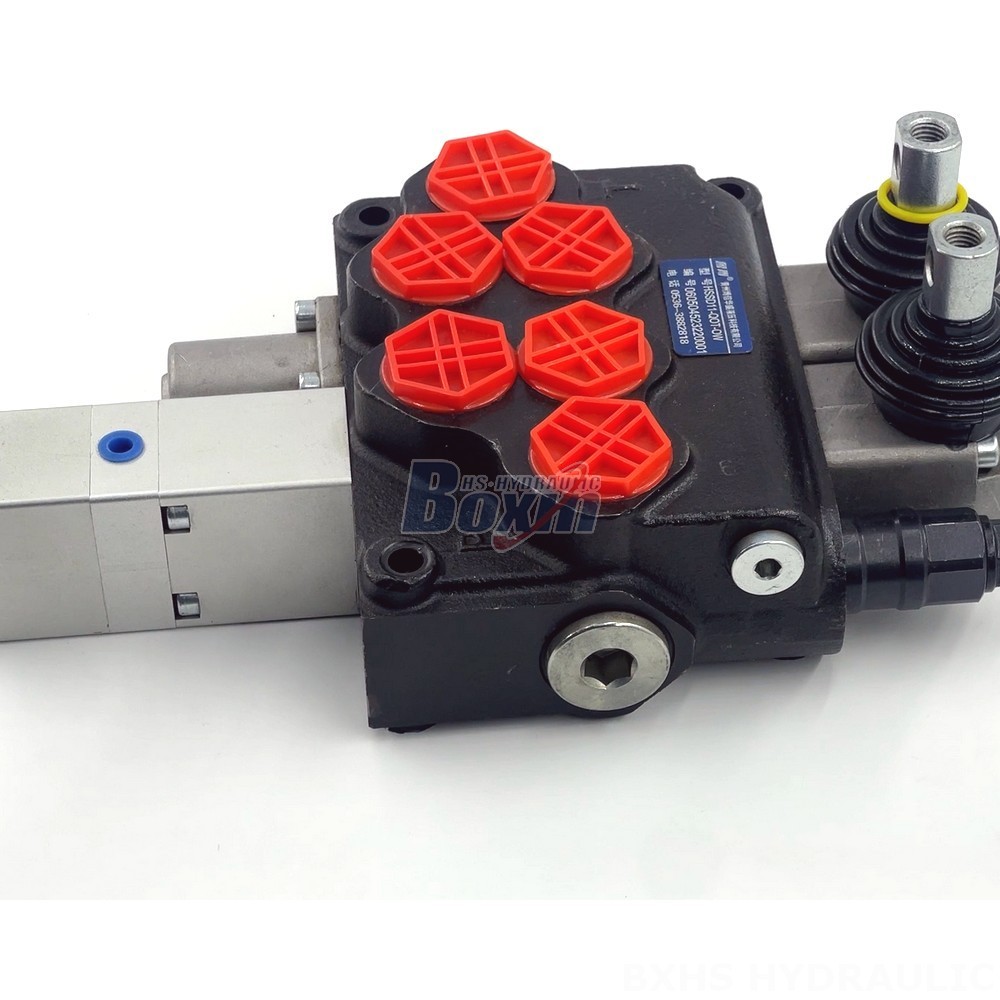

**Precision Hydraulic Control: Explore the Features of Our SD11 Manual Valve**
The SD11 Manual Valve is a monoblock valve with a manual control method and a single section. It offers a rated flow of 70 L/min (18.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of hydraulic systems.
With an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F), the SD11 Manual Valve can operate in various environmental conditions.
The valve features a single spool and is available in the SD11 Series. It finds applications in various machines, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dump trucks, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, crushers, stone cutters, screeners, tractors, and front-end loaders.
The SD11 Manual Valve is designed to provide precise control over hydraulic systems, ensuring smooth and efficient operation of machinery in various industries.
