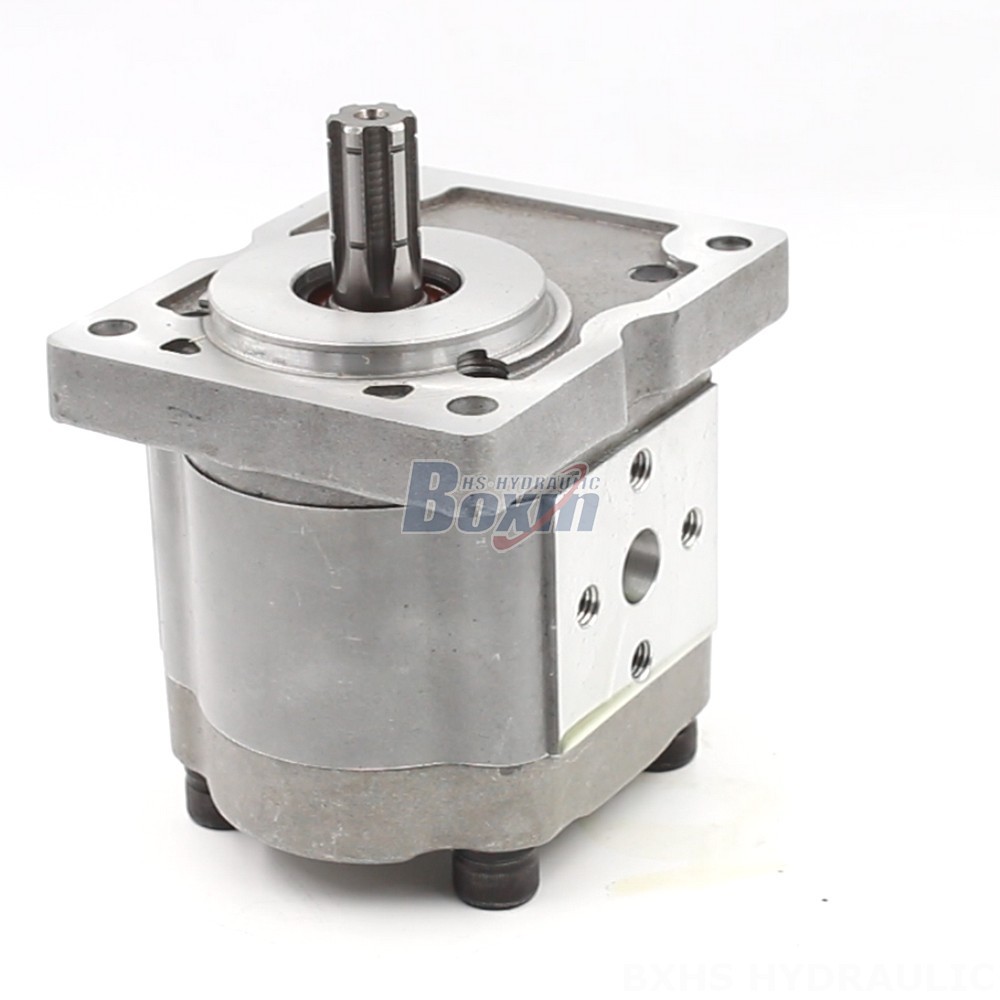

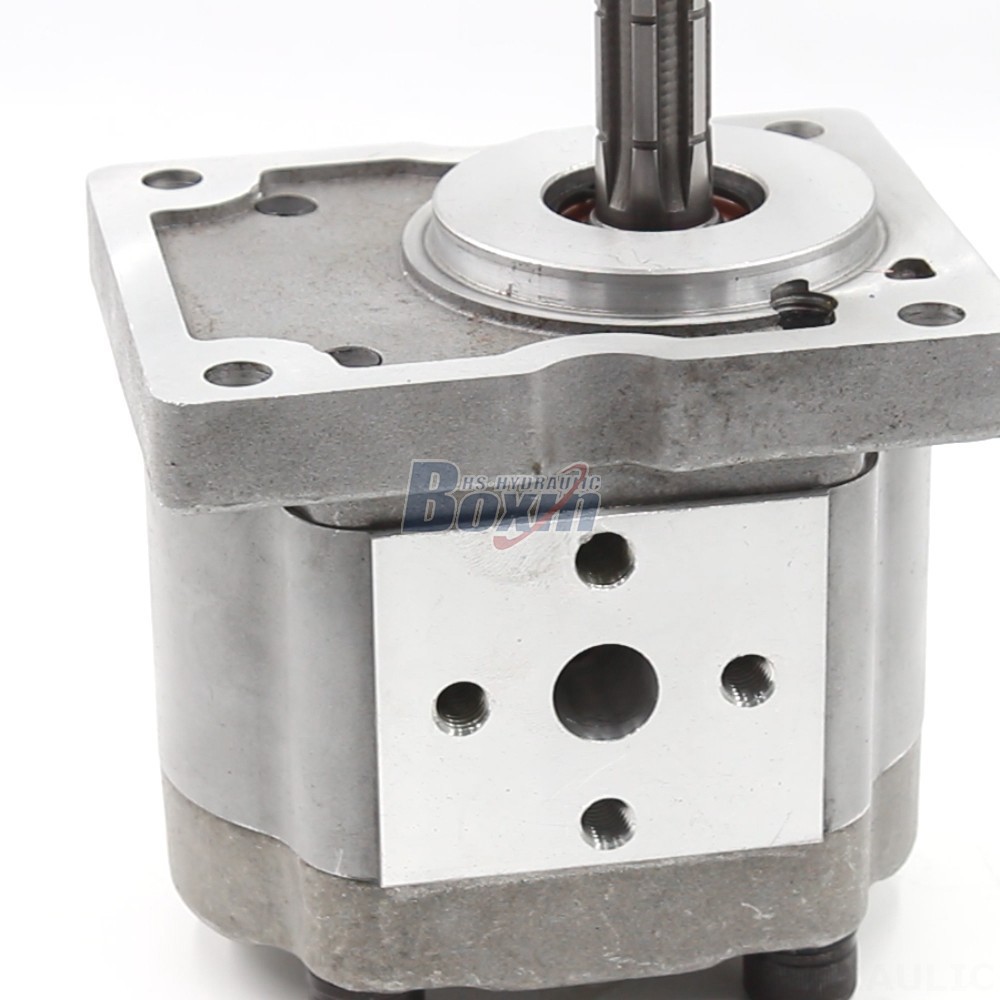

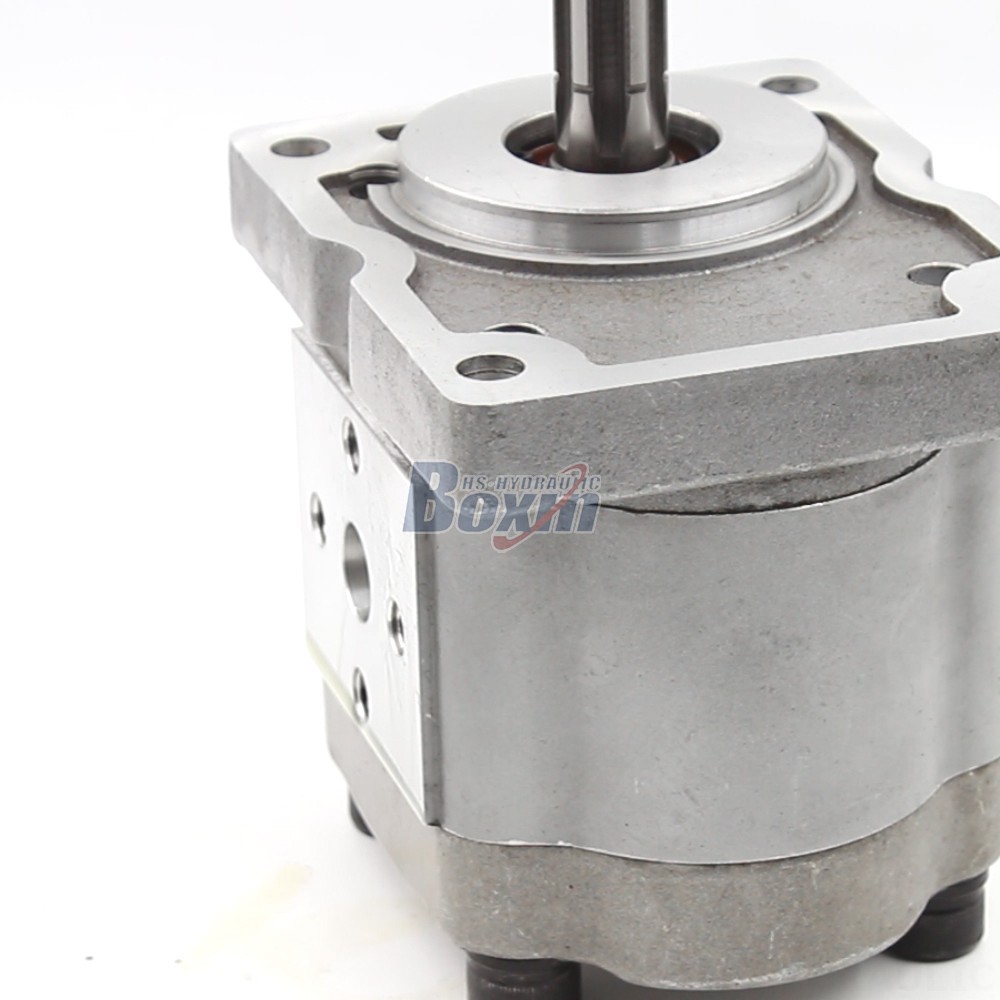

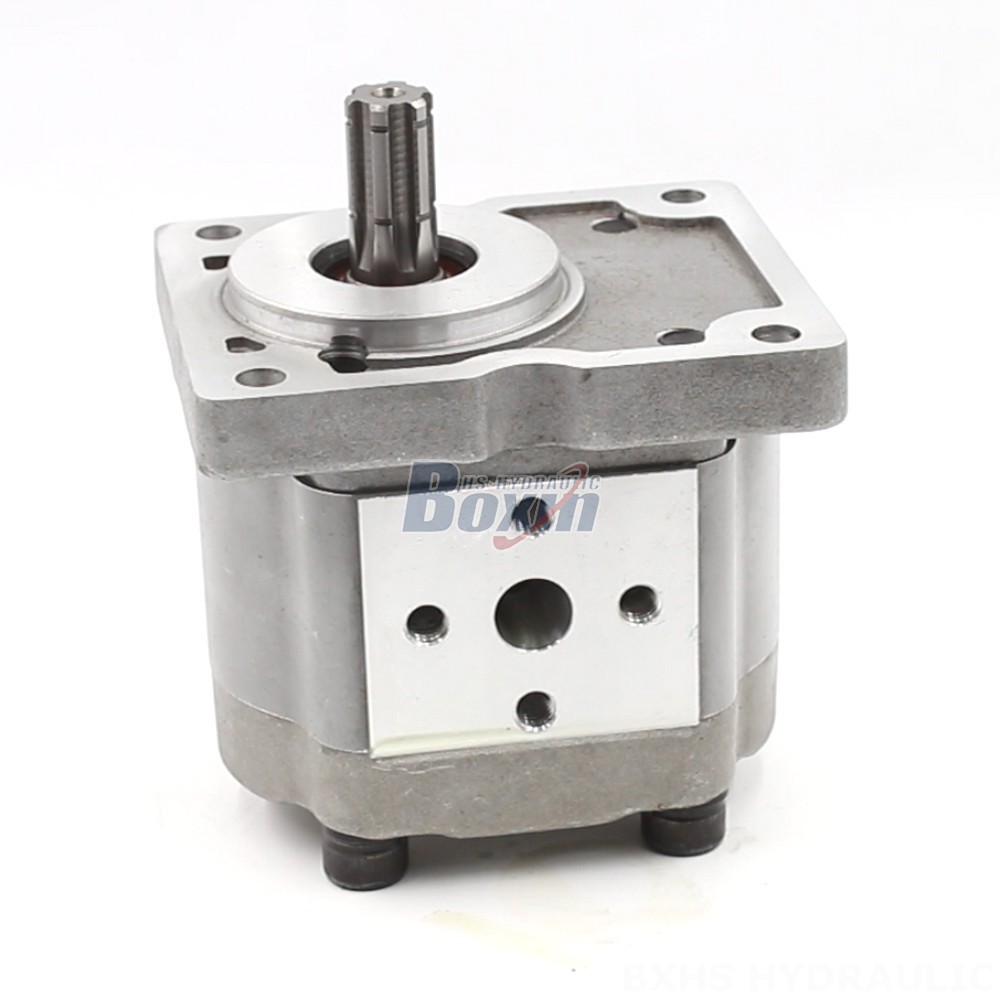

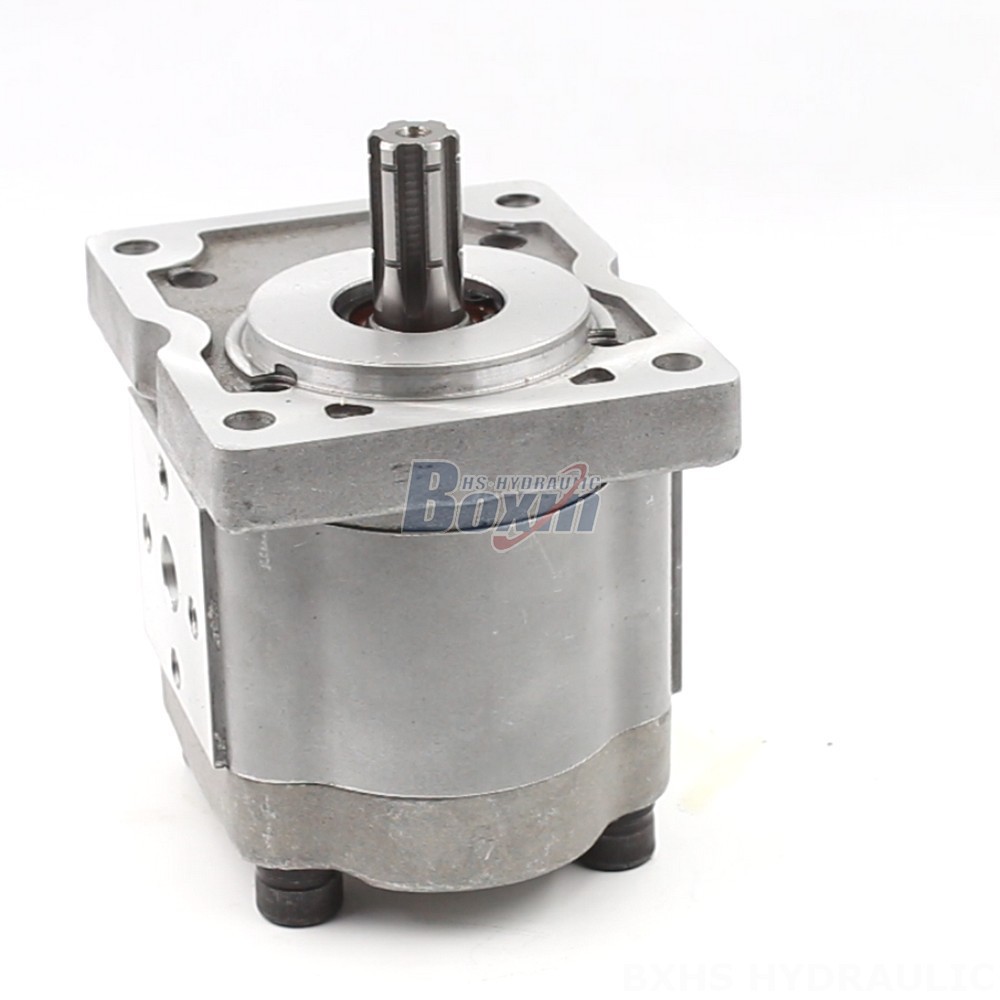

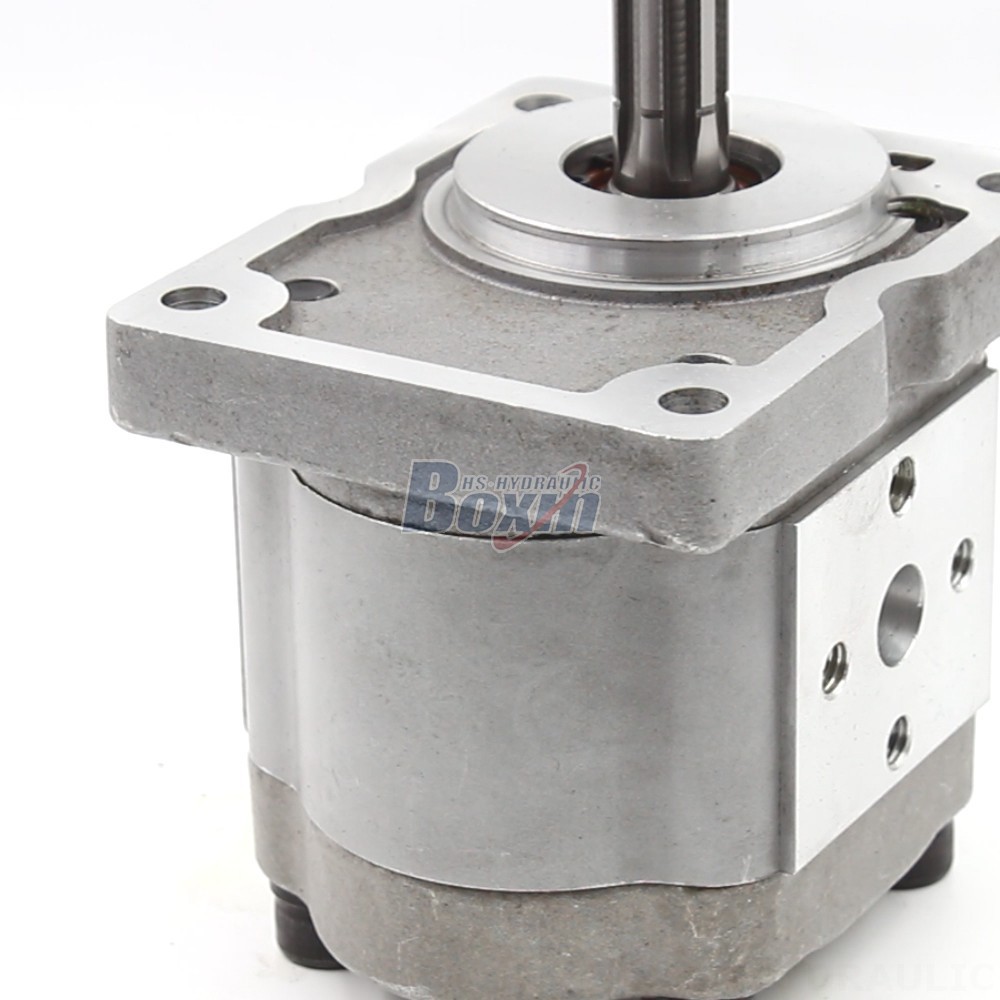

Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name. These hydraulic gear pumps are manufactured with high-quality materials and components, and they are designed to meet the demanding requirements of a wide range of applications. With displacement options of 100 cc/rev, 10 cc/rev, 40 cc/rev, and 50 cc/rev, and a rated pressure of 18 MPa (2610 psi), these pumps are ideal for use in a variety of industrial and mobile applications.
| NSH Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 10 cc/devir, 32 cc/devir, 40 cc/devir, 50 cc/devir, 100 cc/devir |
| Anma Basıncı | 18 MPa (2610 psi) |
| Maksimum Basınç | 20 MPa (2900 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 4200 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine) |
| Malzeme | Alüminyum |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | B-Kare Flanş |
| Mil Tipi | X: Evolute Kayar Eksen |
**Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name**
**OEM, ODM, and customization services are available.**
**Product Parameters:**
* Displacement: 100 cc/rev, 10 cc/rev, 40 cc/rev, 50 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: L: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminum
* Flange Version: B-Square Flange
* Shaft Type: X: Involute Spline
* Series: NSH Series
**Application Areas:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
