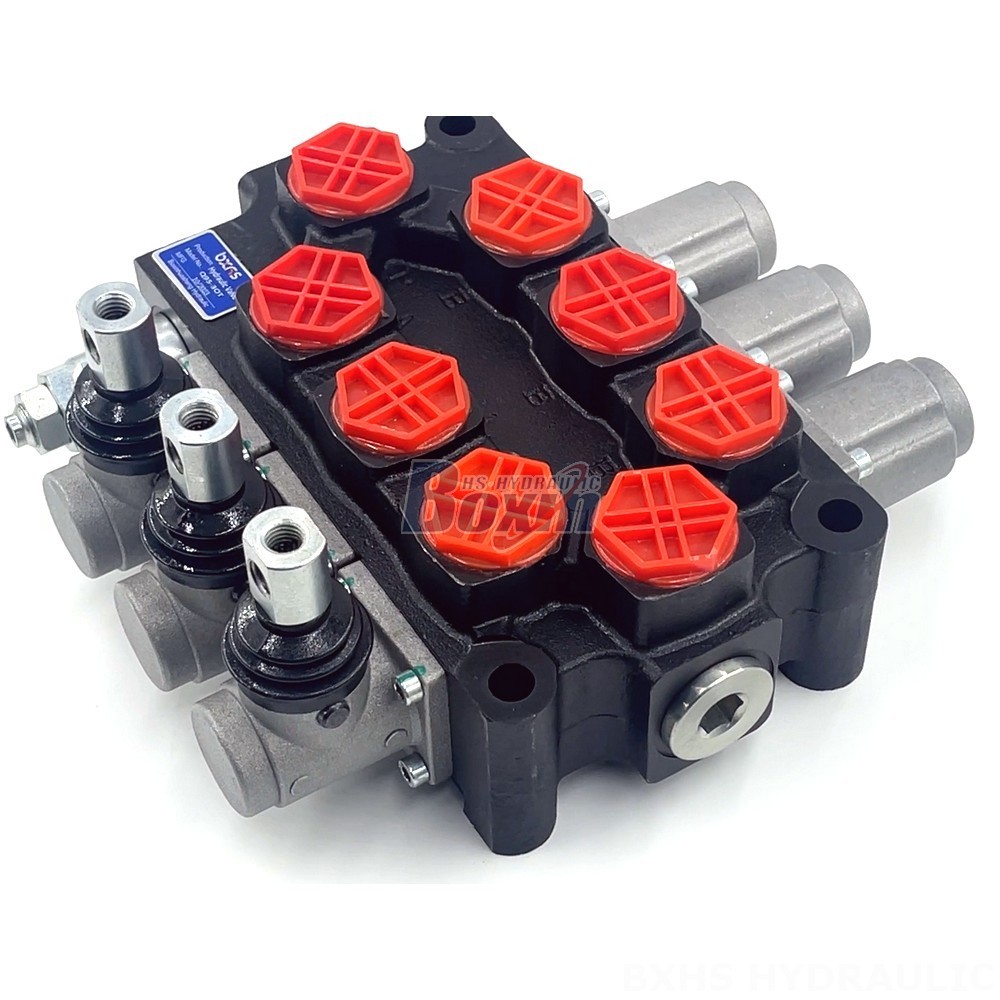

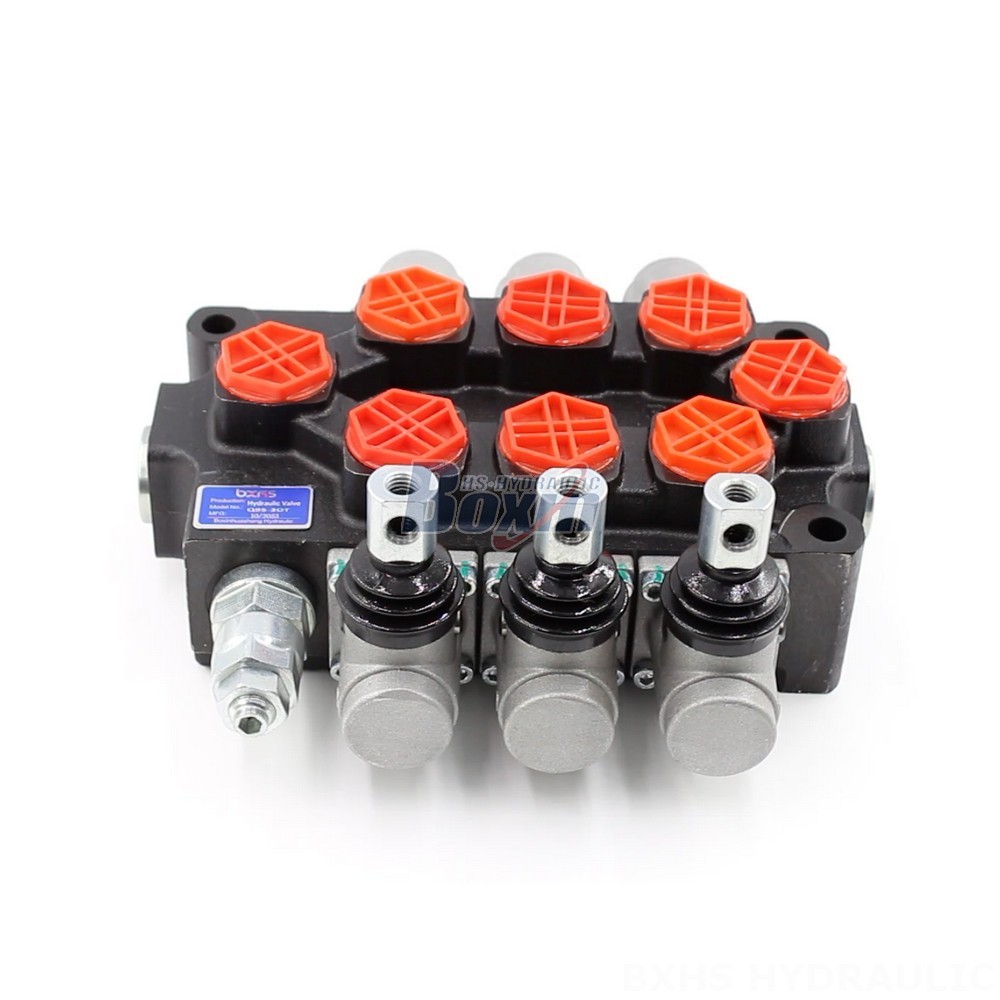

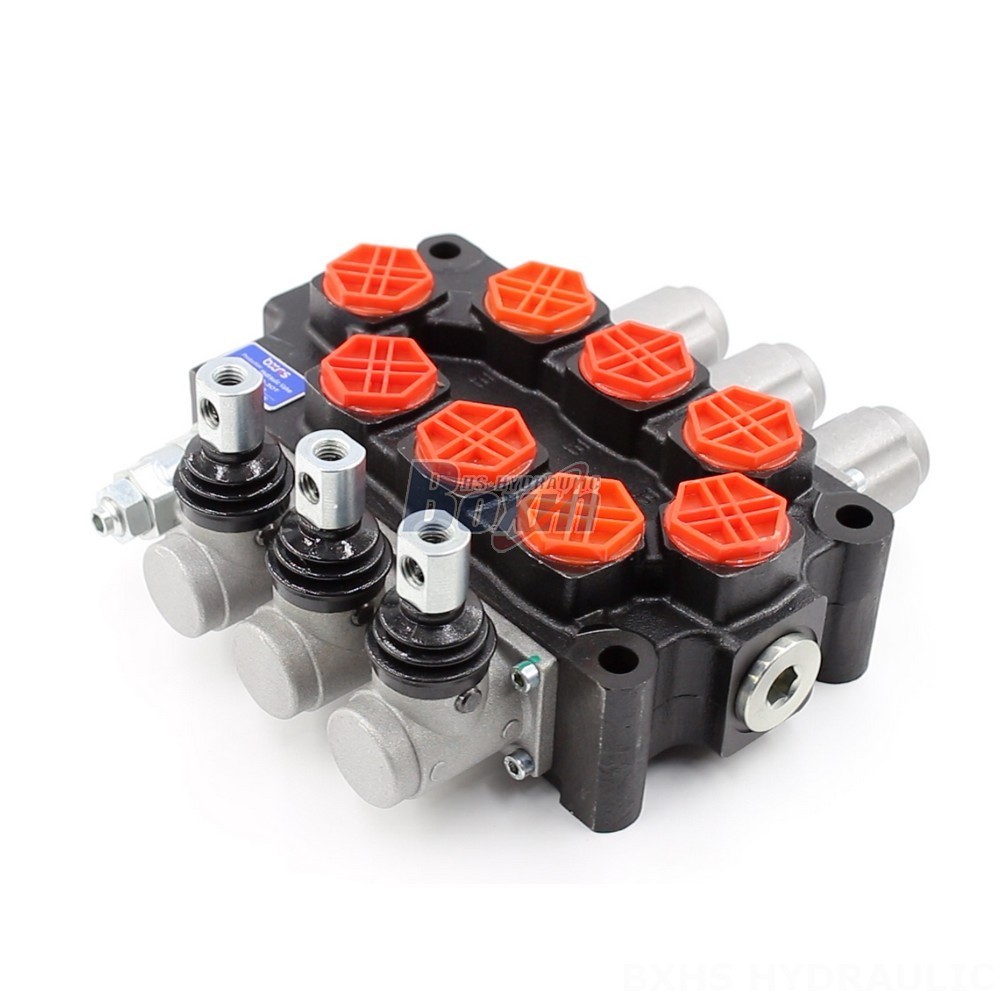

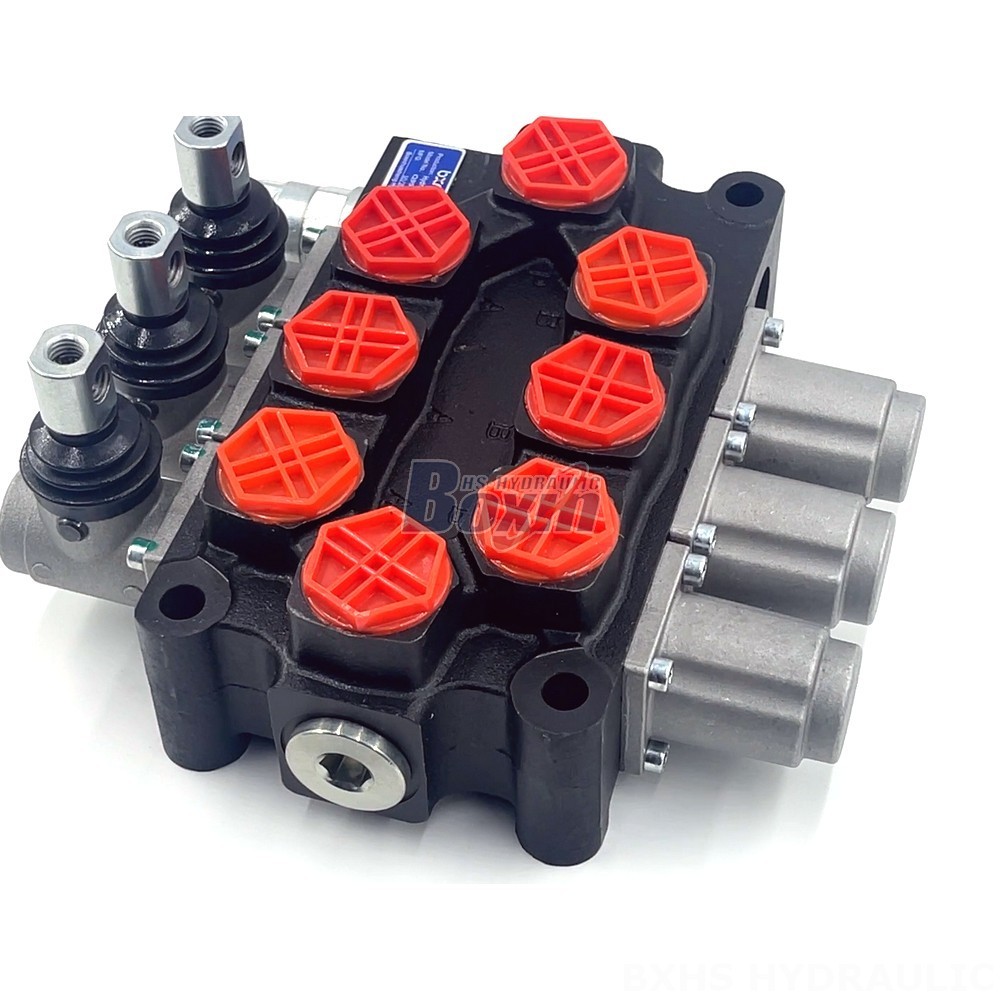

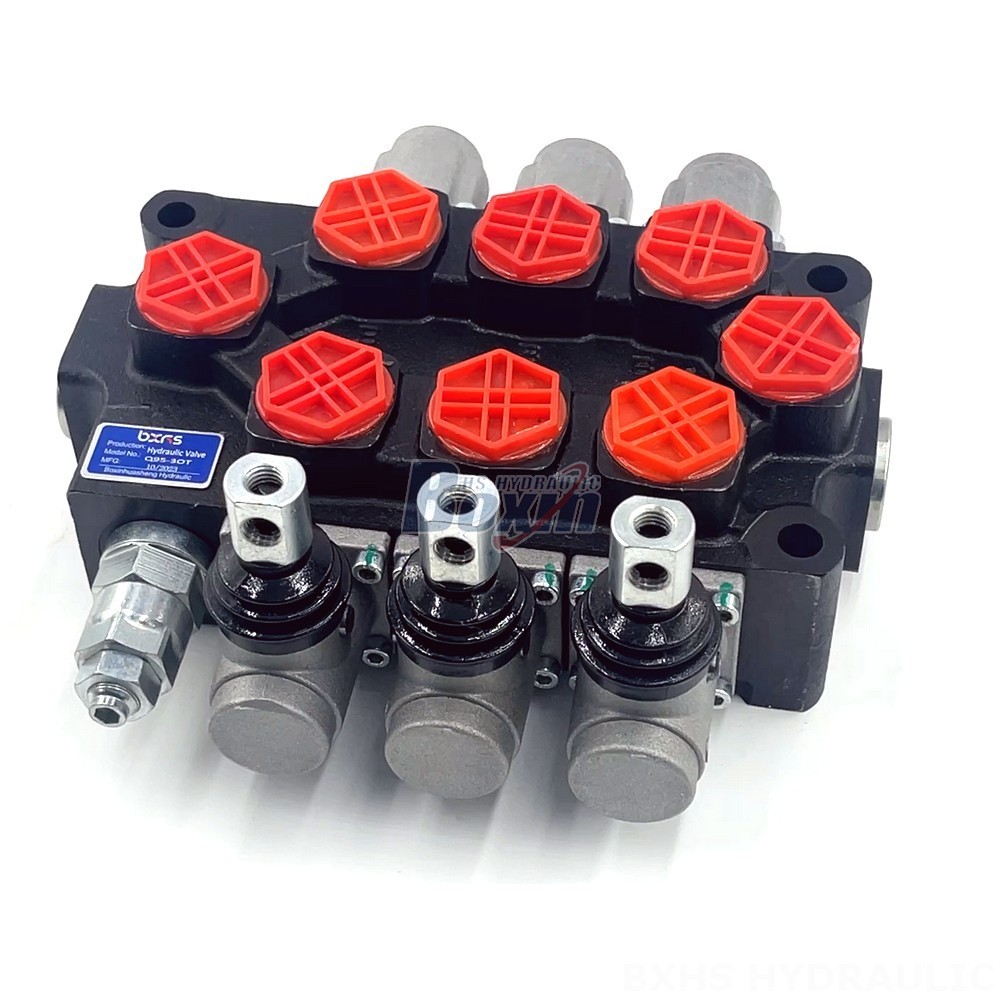

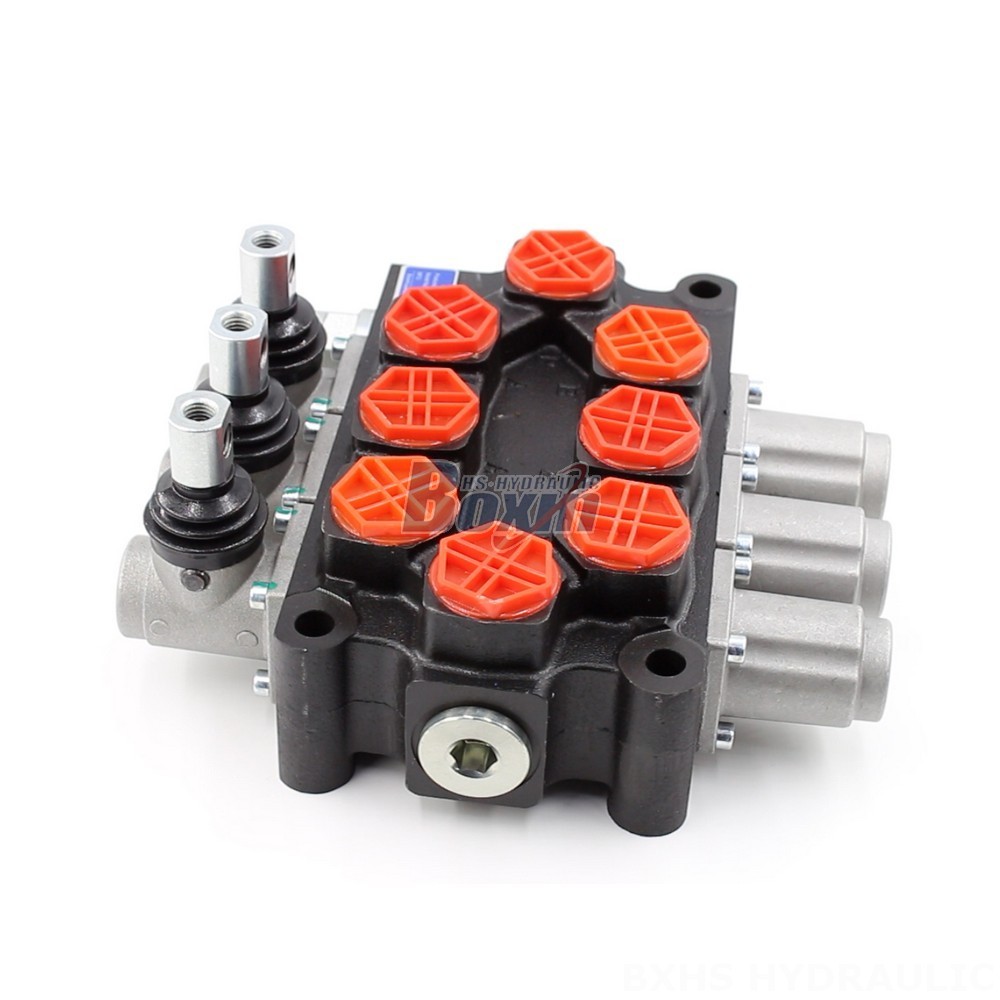

The Q95 Manual 3 Spool Monoblock Directional Valve is a precision-engineered hydraulic component designed for optimal fluid control in demanding applications. Its robust monoblock construction and high-quality materials ensure durability and reliability.
| Q95 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Anma Akışı | 95 L/dk (25,1 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G3/4 |
| Çıkış Portu | G3/4 |
| Port Boyutu | G3/4 |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| Yapı Türü | Monoblock vana |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
**Key Features of the Q95 Manual 3 Spool Monoblock Directional Valve:**
* Manual control for precise fluid flow regulation
* Monoblock design for compact and leak-proof operation
* 3-spool configuration for versatility and control of multiple fluid paths
* Rated flow of 95 L/min (25.1 US gpm) for efficient fluid transfer
* Max pressure of 315 bar (4600 psi) for handling high-pressure hydraulic systems
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in diverse environments
* Wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
