Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi

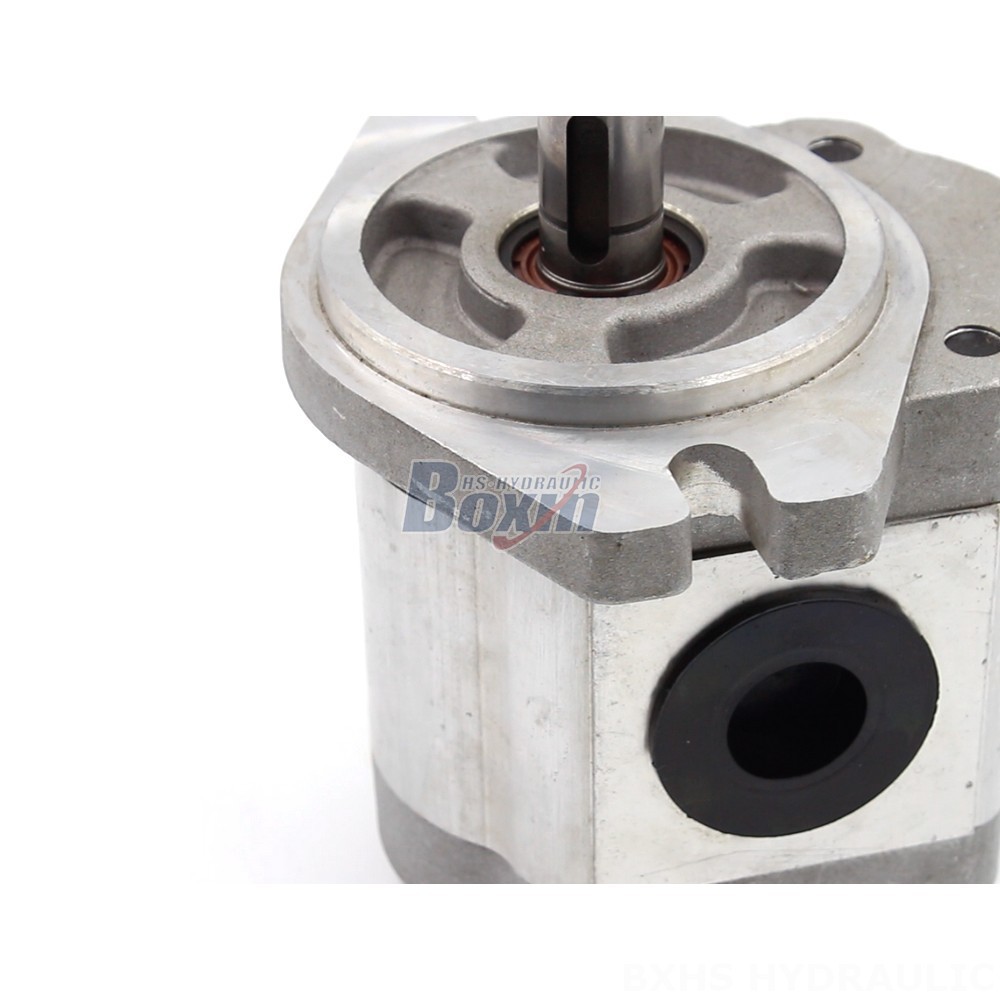

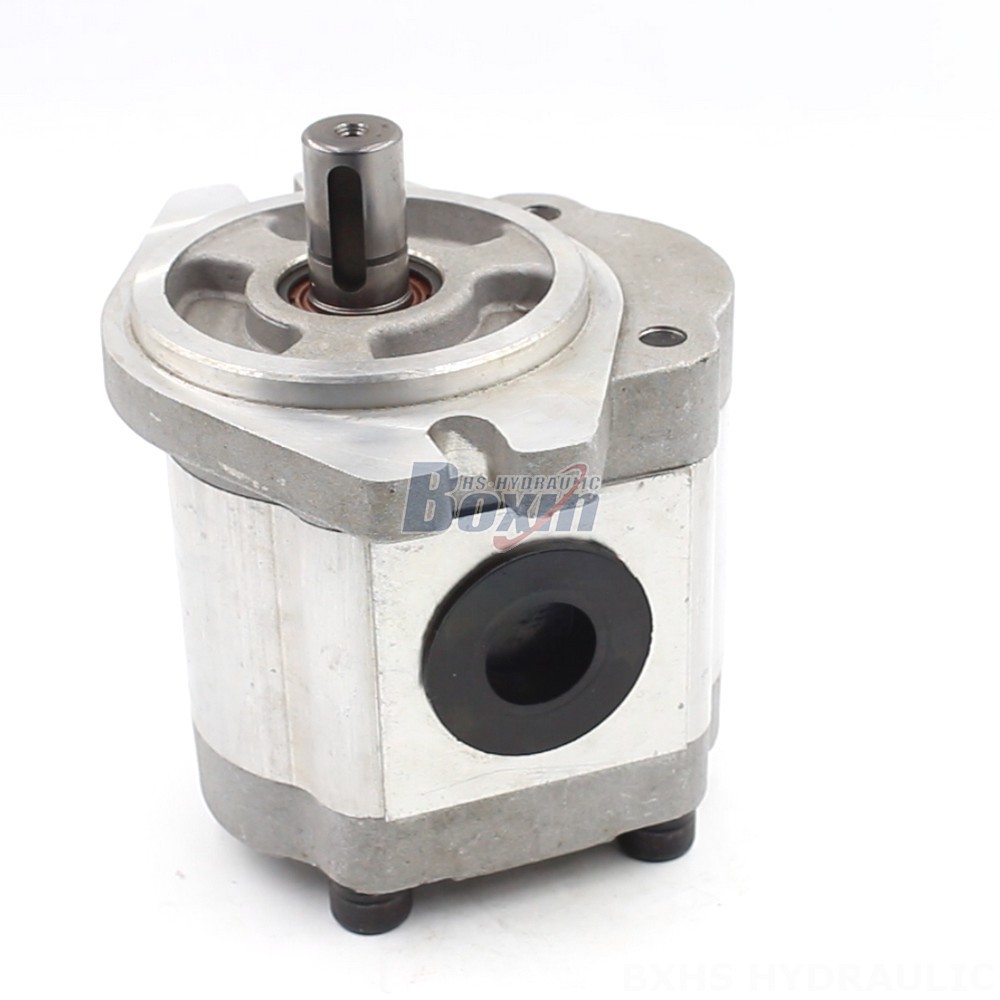

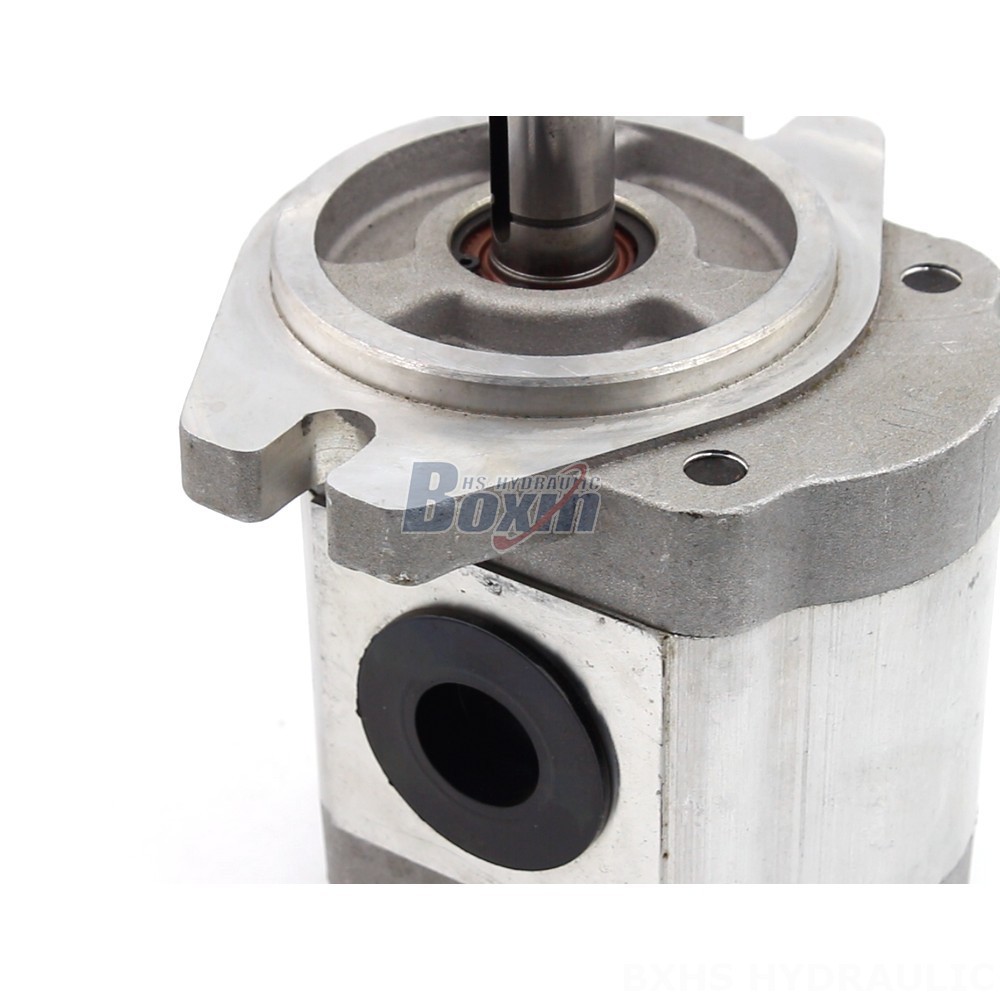

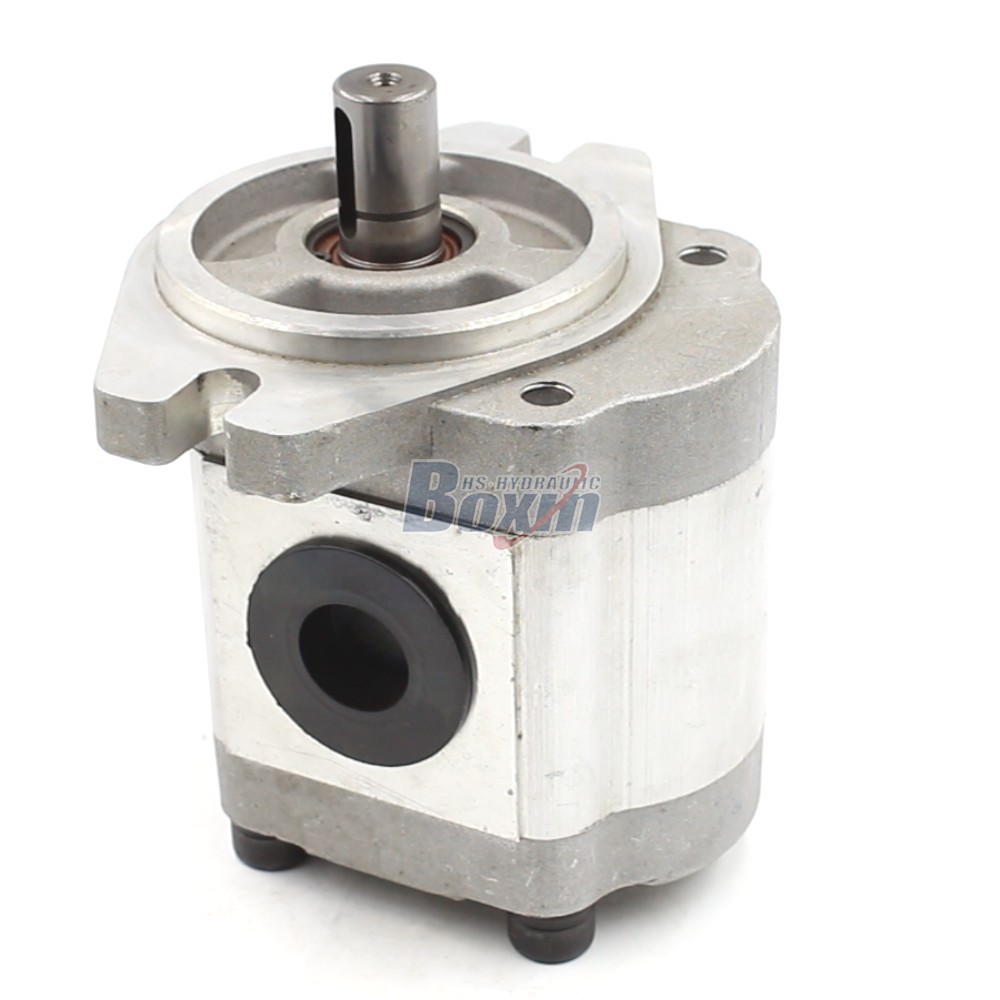

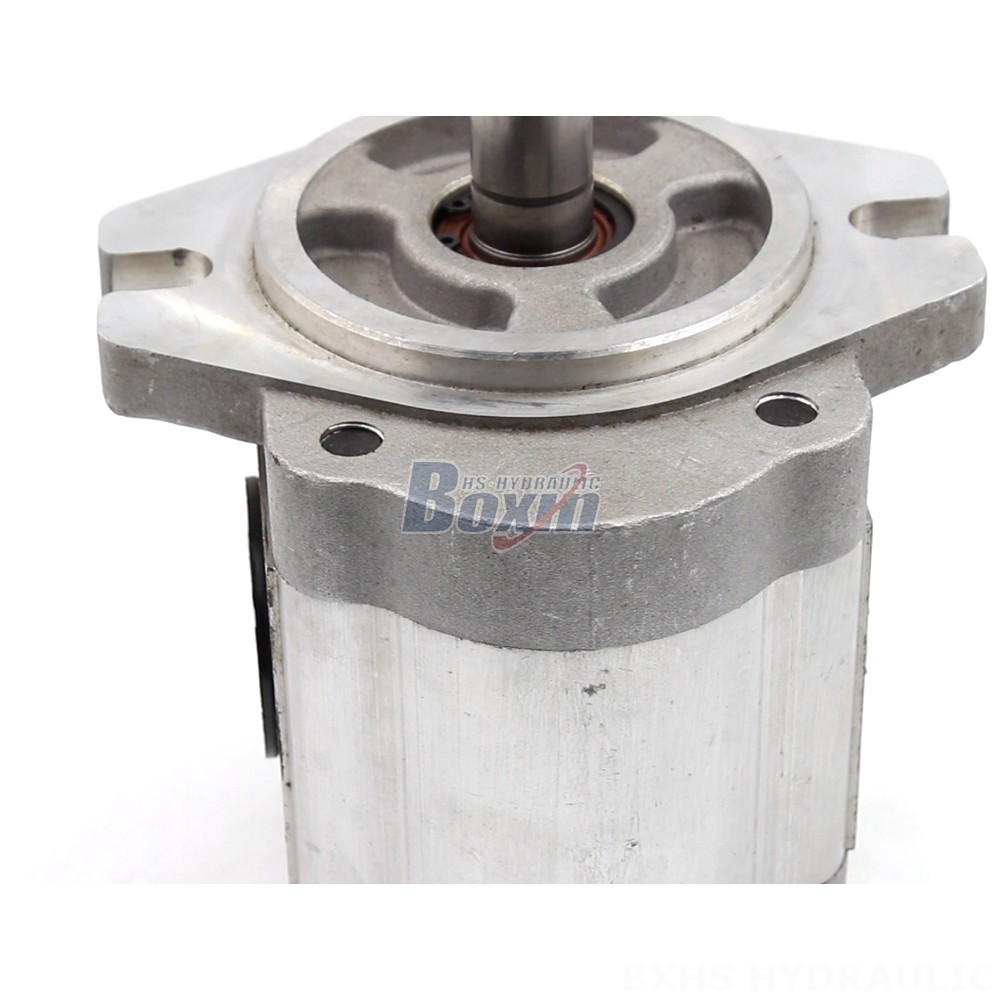

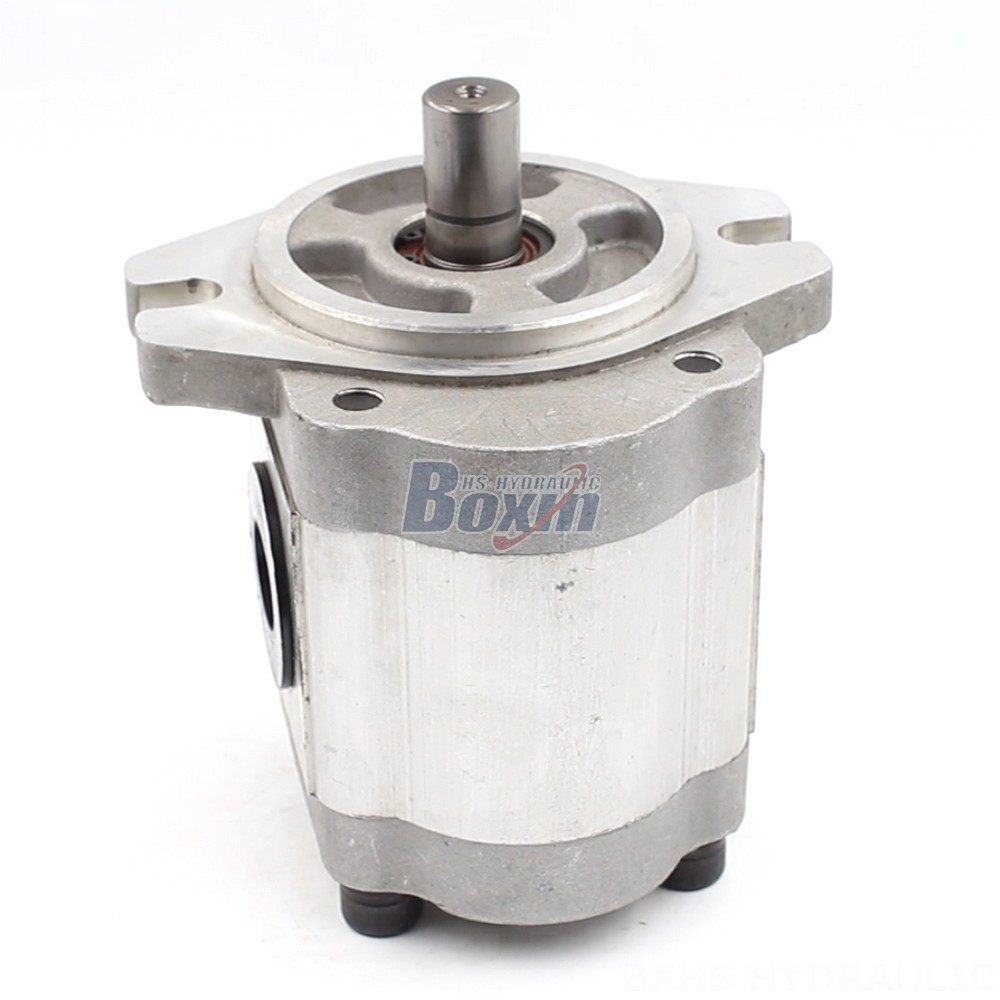

This reliable 14 cc/rev hydraulic gear pump is a high-performance, durable solution for various applications in material handling, construction, agriculture, and industrial vehicles. It features a robust design, high pressure capacity, and versatile mounting options, making it ideal for a wide range of equipment, including forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors.
| CBHS-FL3 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 10 cc/devir, 4 cc/devir, 20 cc/devir, 16 cc/devir, 14 cc/devir, 6 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 3000 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Alüminyum |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | A-Oval Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |
Our 14 cc/rev hydraulic gear pump is engineered for reliability and efficiency. It offers a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. With a maximum speed of 3000 r/min, it delivers exceptional performance under demanding conditions. The pump is available in both left (counter-clockwise) and right (clockwise) rotation options, allowing for flexible installation. Featuring an internal gear pump structure, it is built with high-quality aluminum for durability and longevity. This pump comes with an A-Oval flange version and a plain key shaft type. It belongs to the CBHS-FL3 series, designed specifically for material handling, construction and earth moving, agriculture, and industrial vehicles. It is ideal for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors. We offer this pump as an OEM, ODM, or private label product, enabling customization to meet your specific needs. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
