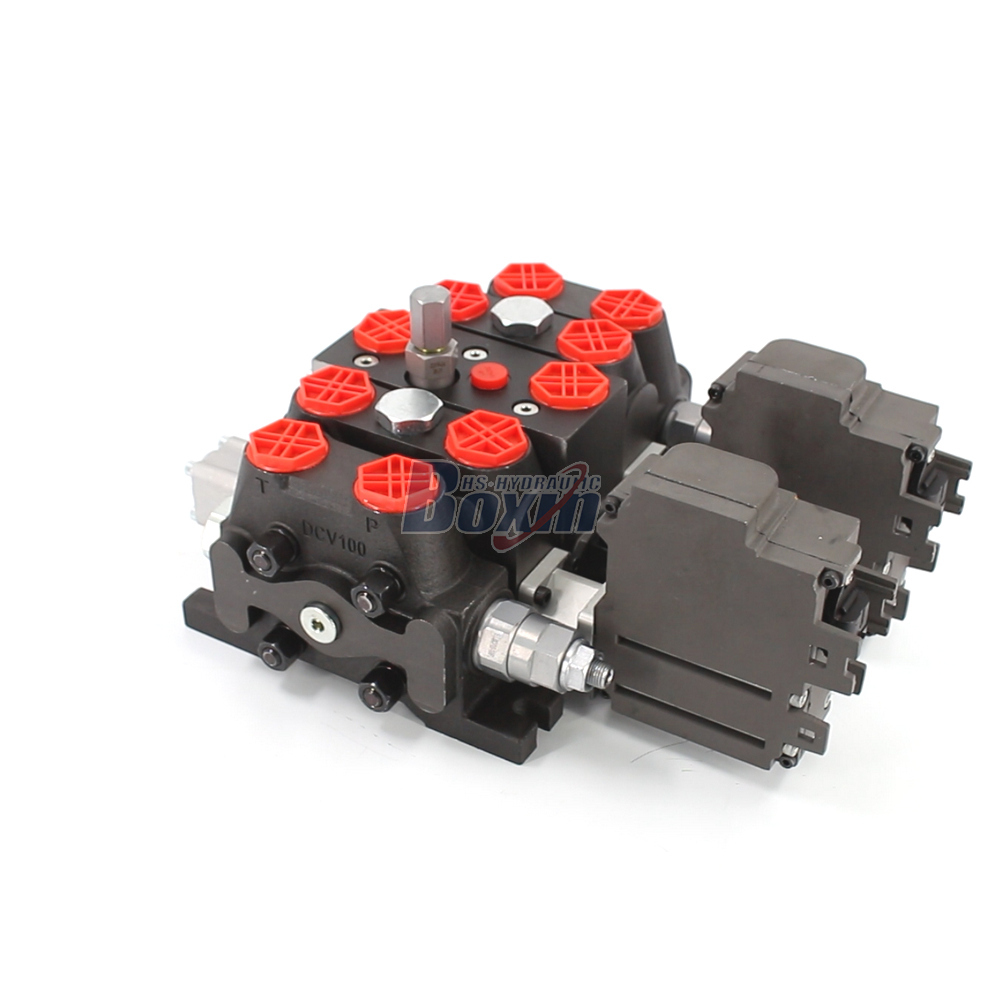

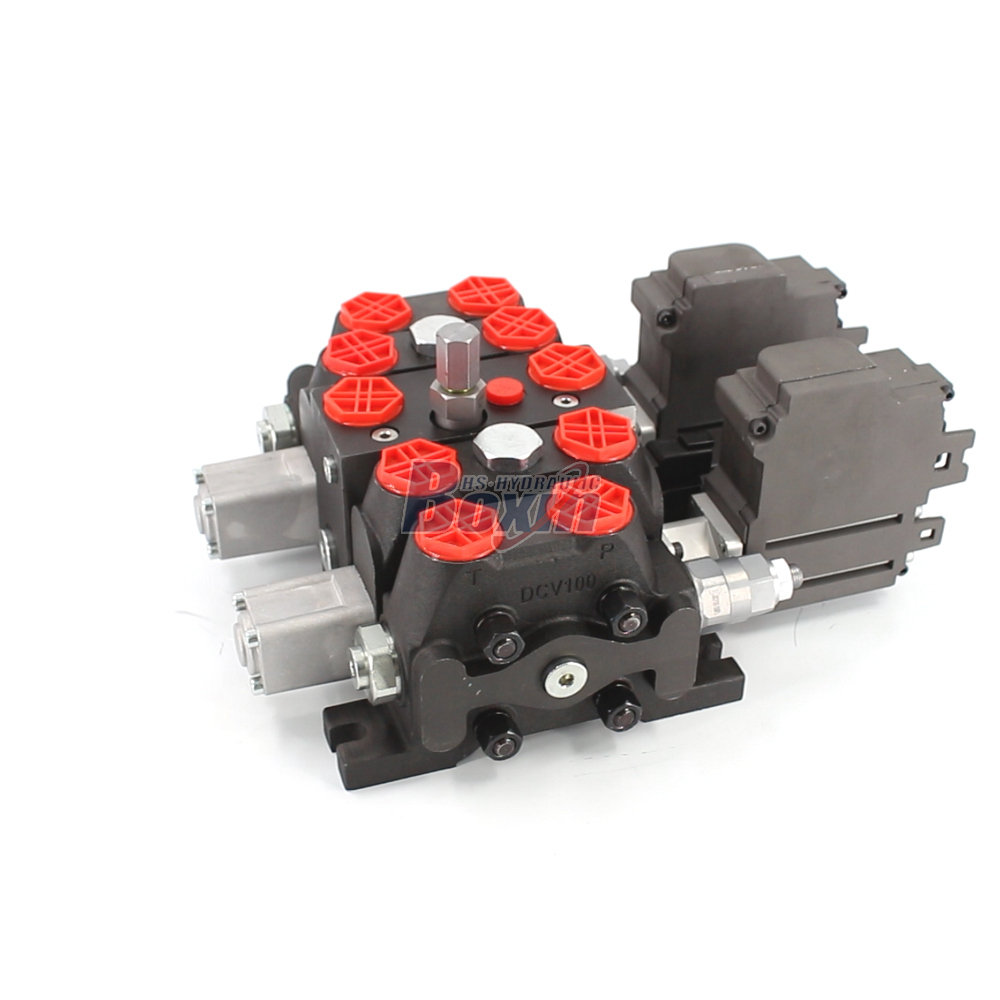

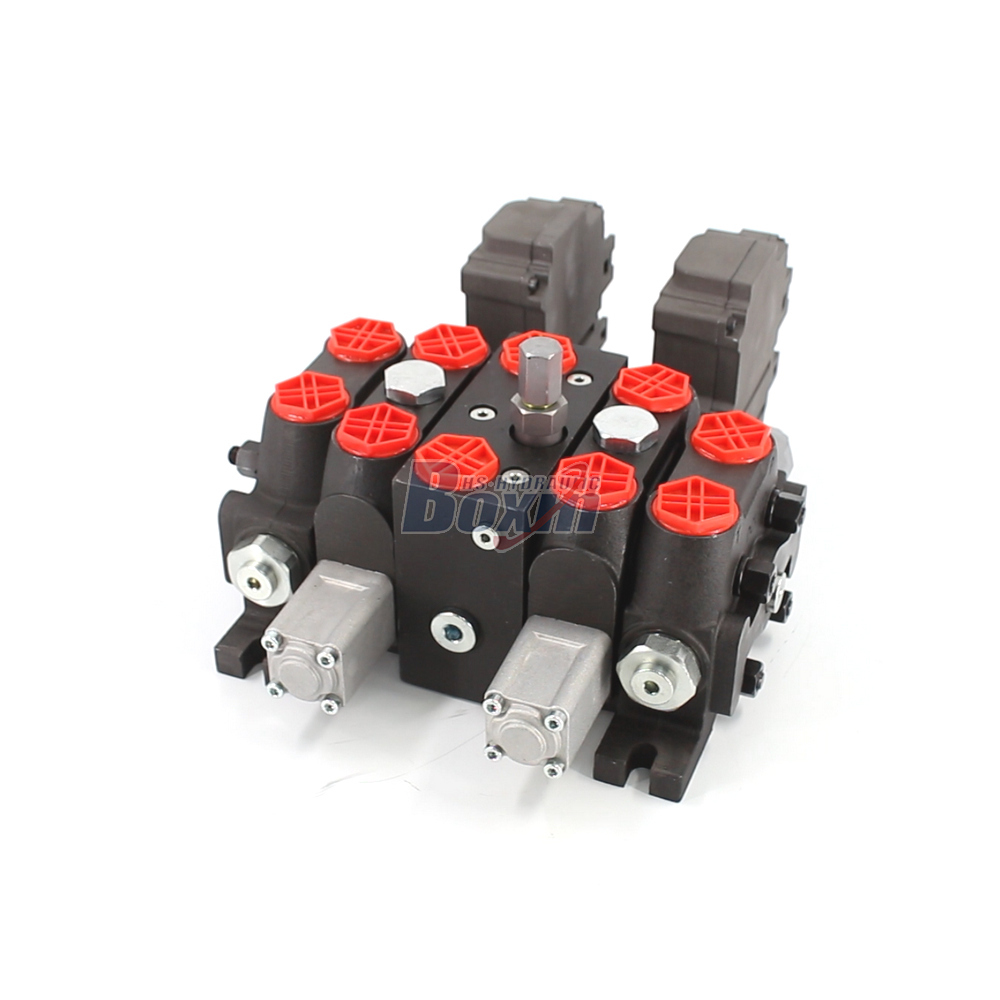

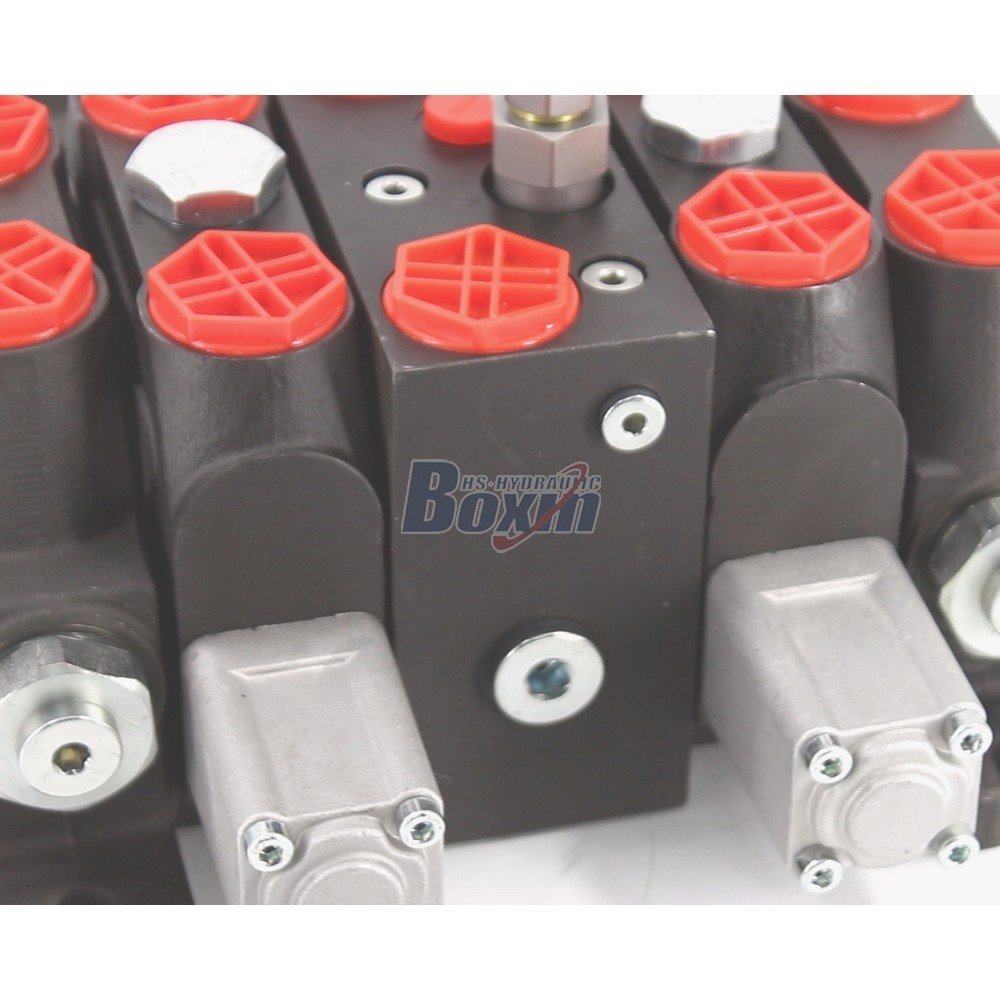

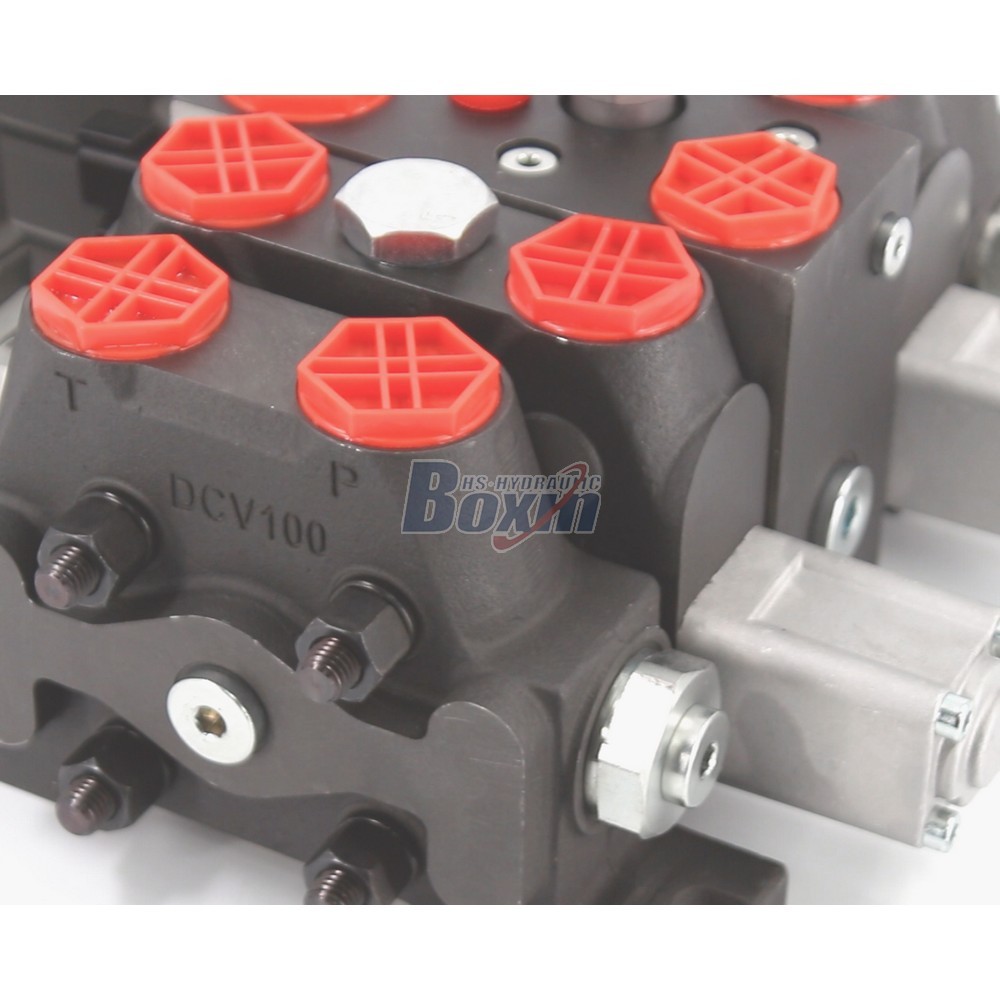

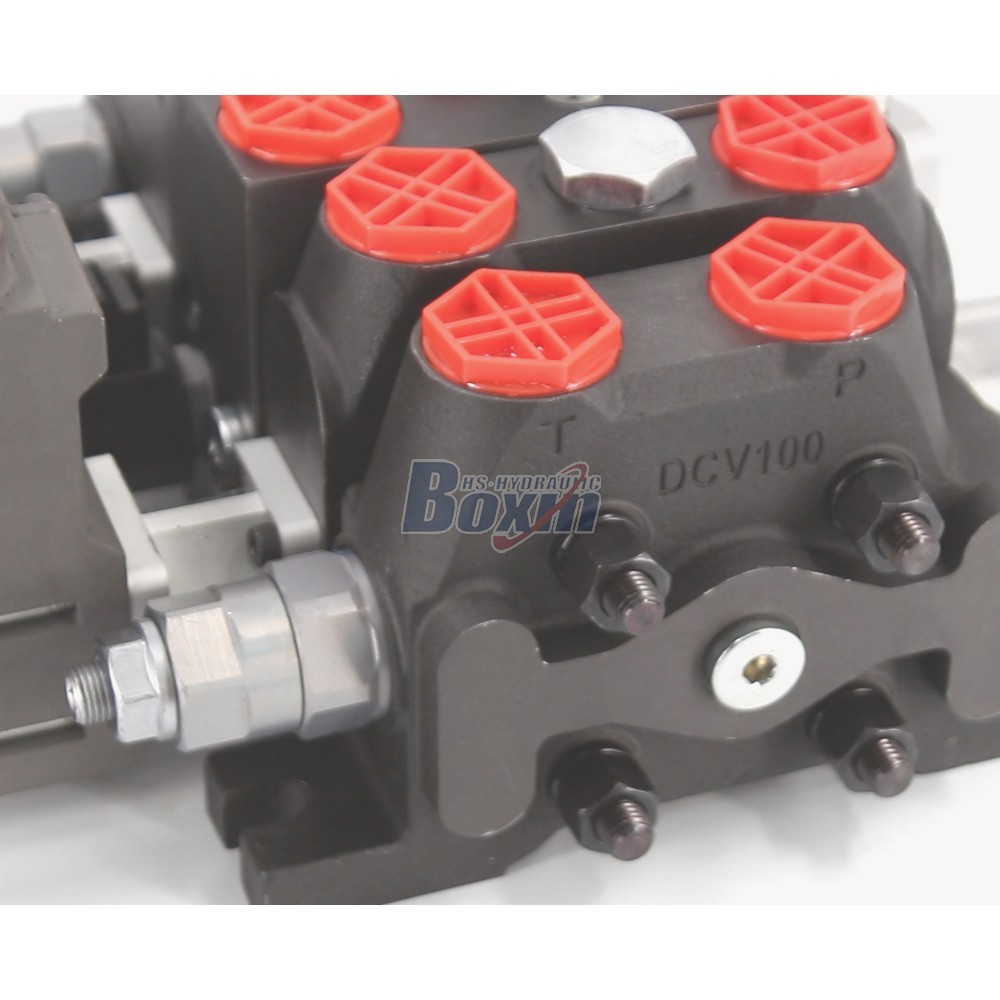

This DCV100 Series Sectional Directional Valve features a 2-spool electric motor control design, handling 100 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for forklifts, telehandlers, and construction machinery with full OEM/ODM support.
| DCV100 Serisi Kesitsel Yönsel Valf Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Kablo, Joystick, Manuel ve Joystick, Manuel ve Elektro-hidrolik, Elektrik motoru, Elektro-hidrolik ve Selenoid |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara, 11 Makara, 12 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Seksiyonel vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm, 11 Bölüm, 12 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 100 L/dk (26,5 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Çıkış Portu | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Boyutu | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. Factory Direct Sales of Sectional Directional Valve**
- Sourced directly from our 68,000 sqm manufacturing base with 25+ years of expertise, ensuring competitive wholesale pricing.
- Annual capacity of 1,500,000 units guarantees stable supply for large-scale distributors and OEM projects.
**2. Reliable Electric Hydraulic Control Valve Performance**
- Engineered for precise operation with electric motor control, supporting rated flow of 100 L/min (26.5 US gpm).
- Withstands max pressure of 315 bar (4600 psi), ideal for demanding applications in material handling and agriculture.
**3. Durable 2 Spool Directional Valve Construction**
- Features G3/4 inlet and outlet ports, designed for seamless integration into compact hydraulic systems.
- Rigorously tested via 100% bench pressure, flow, and sealing checks to prevent leaks and ensure longevity.
**4. OEM/ODM Available for DCV100 Series Valve**
- Supported by 35+ senior engineers, we offer custom casting, logo laser marking, and private label services.
- Fully compatible with international mainstream brands, providing a cost-effective alternative without compromising quality.
**5. Certified Quality for Global Export**
- Holds IATF 16949, CE, and SGS certifications, backed by 25+ autonomous patents for technical reliability.
- Packaged in heavy-duty wooden crates with anti-rust treatment, ensuring safe delivery for worldwide wholesale clients.
