SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

Kontrol Yöntemi:Selenoid

Makara:6 Makara

Anma Akışı:45 L/dk (11,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:SD5 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:31*29*10

Brüt ağırlık:14.00 kg

Stok Durumu: Stokta Var

94 Görünümler Bu Ürünü Arıyor

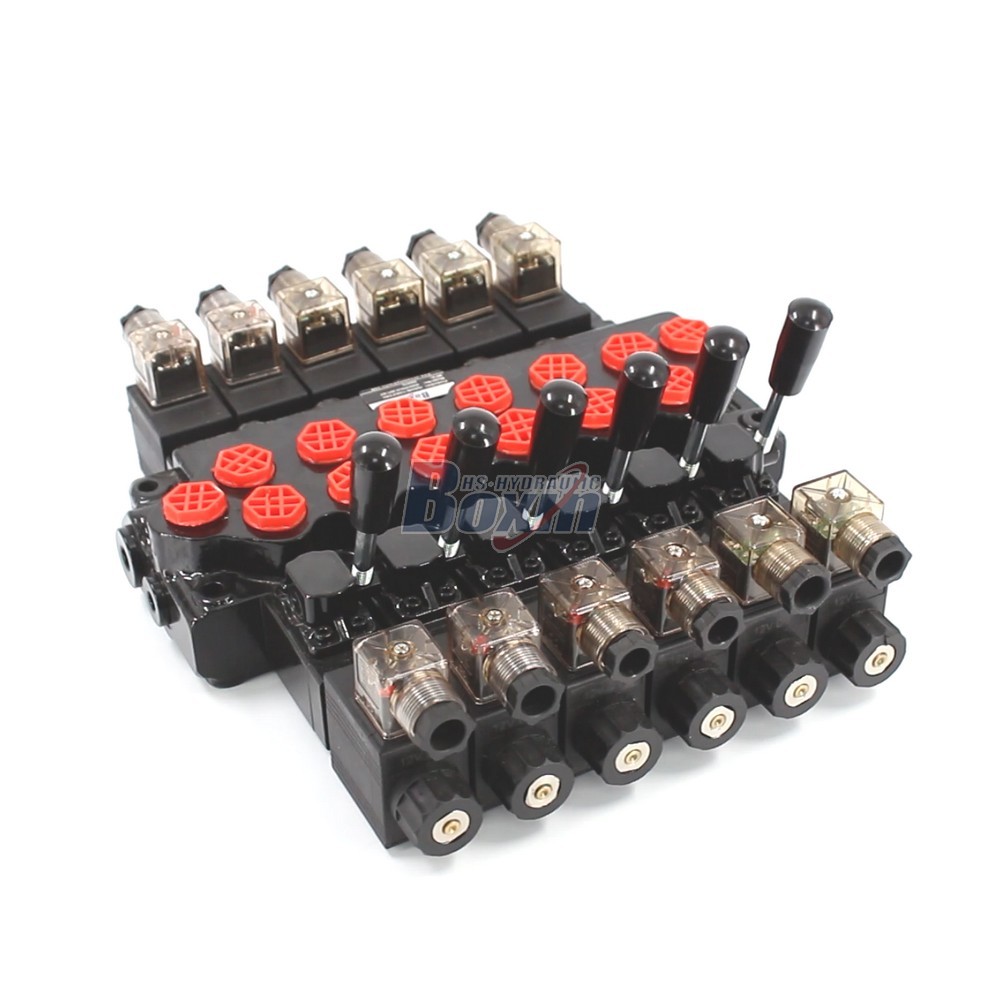

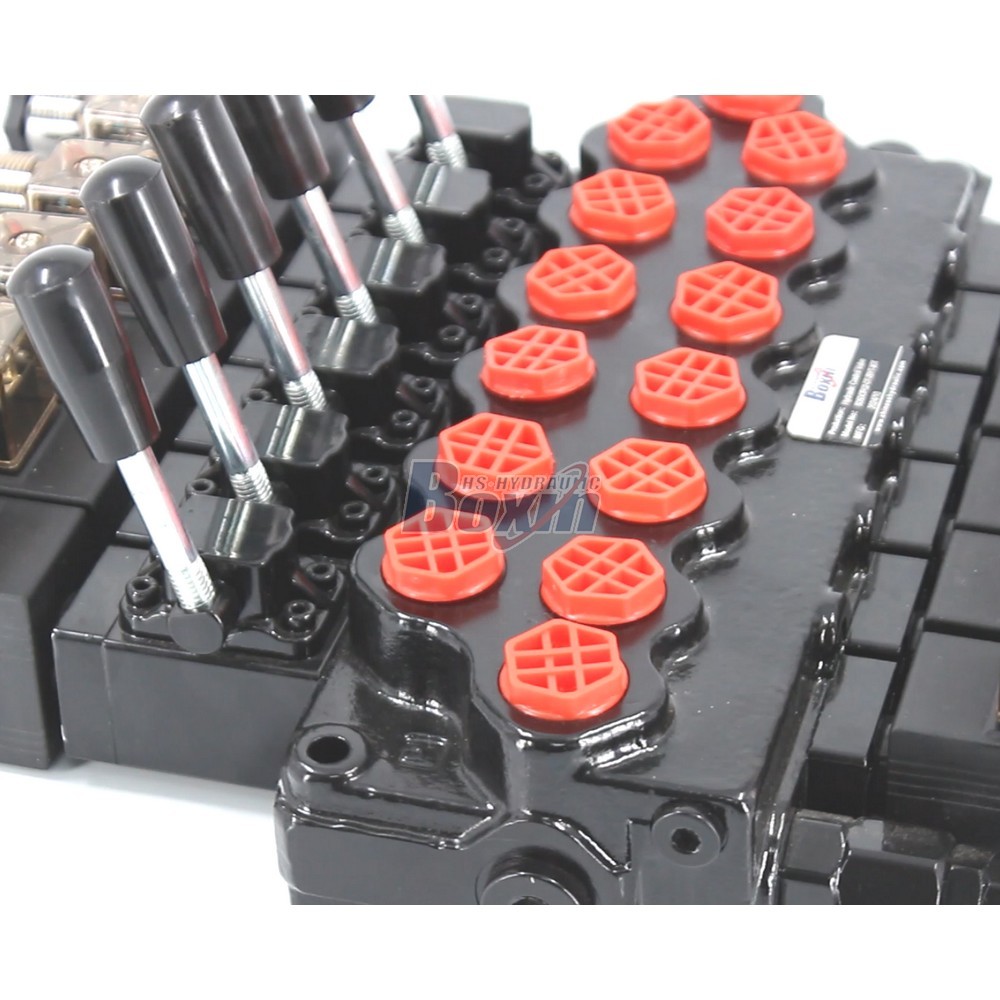

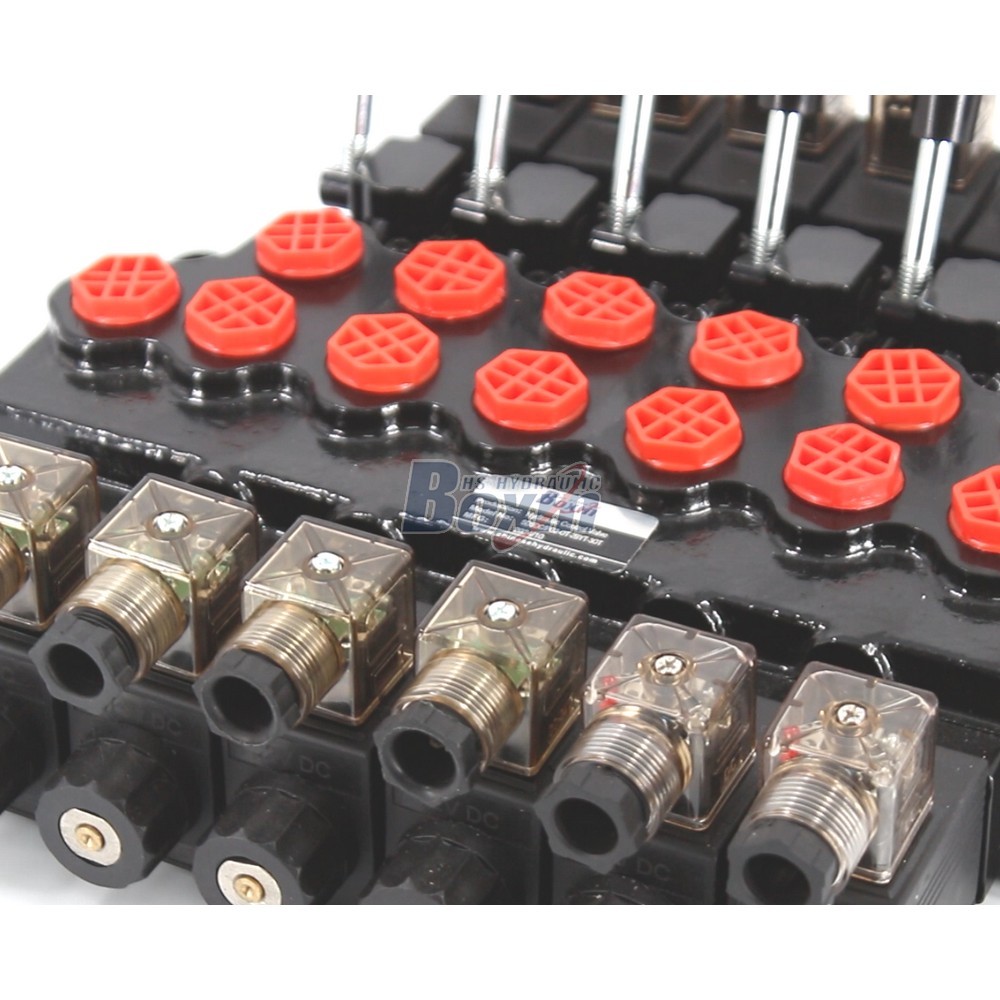

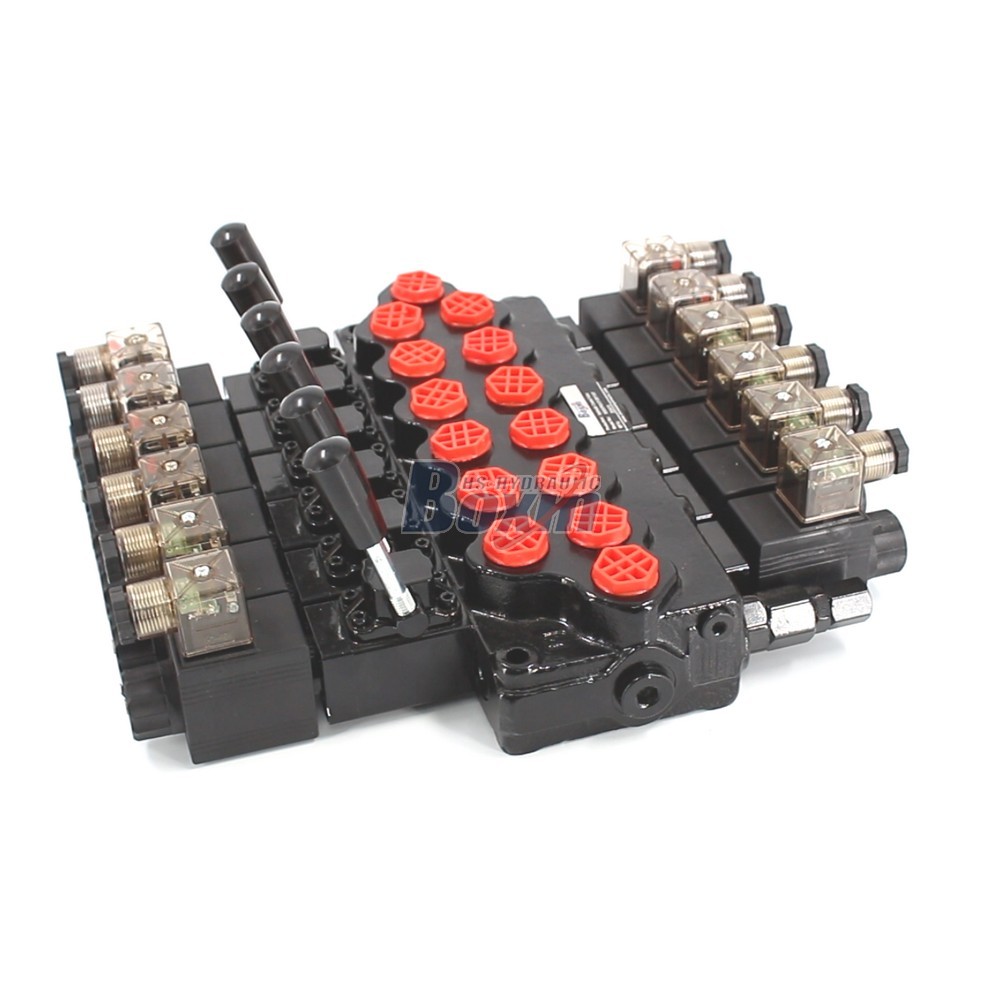

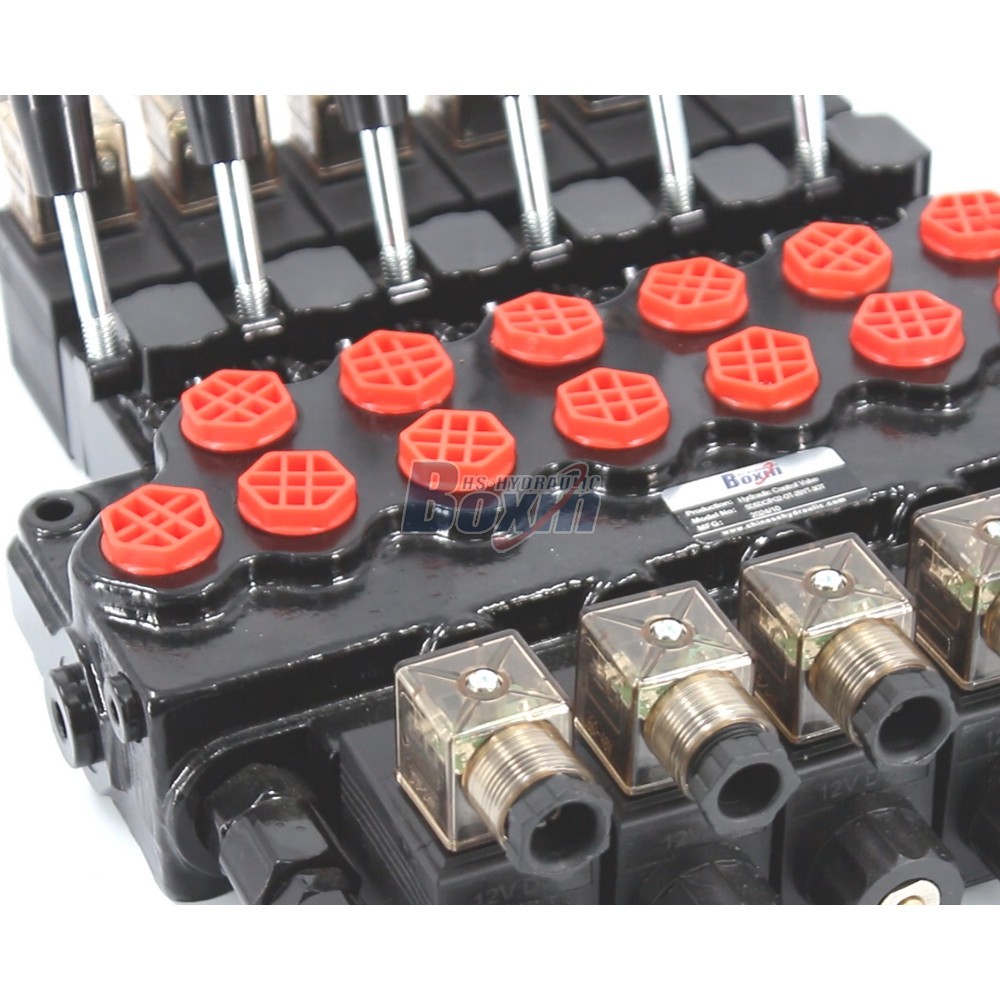

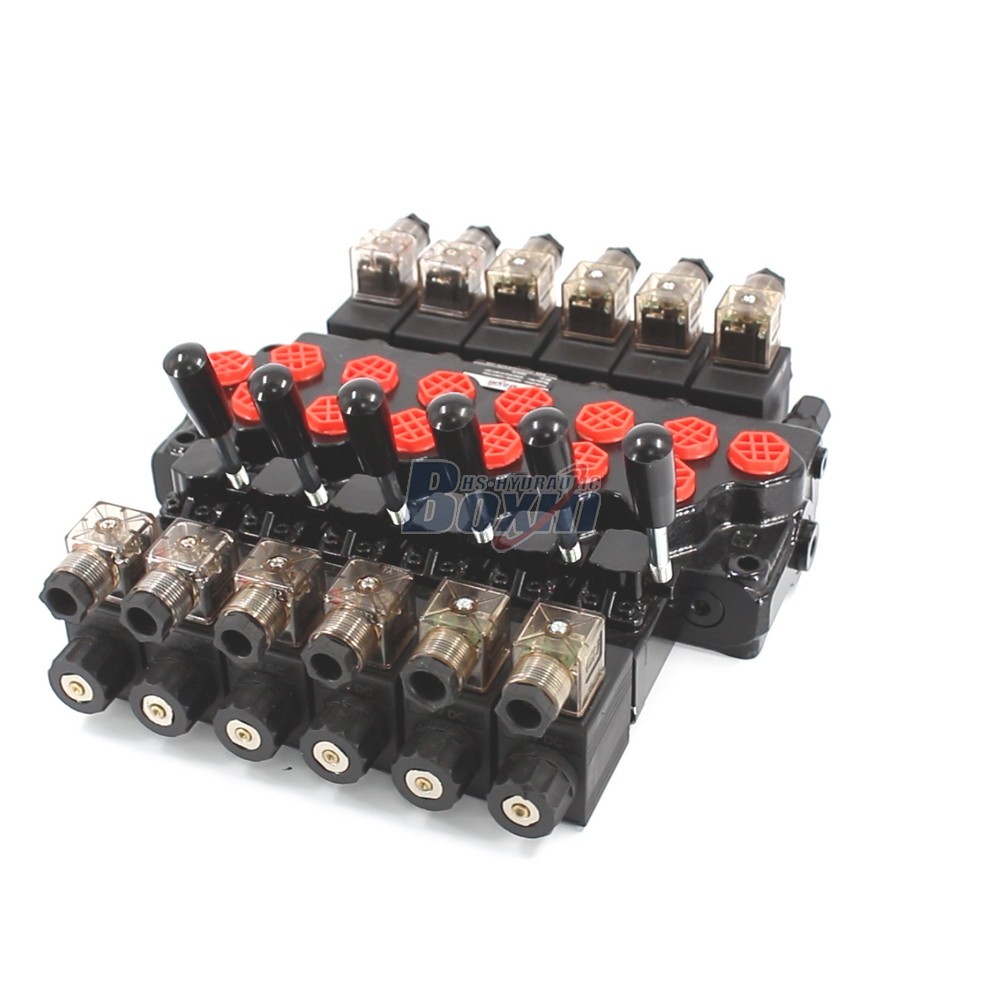

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation drawing image

The SD5-PG2 Series is a high-performance 6-spool solenoid directional control valve designed for precision flow management. With a 45 L/min flow rate and 315 bar pressure capacity, it serves diverse heavy-duty applications including construction, agriculture, and material handling machinery.

SD5 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +60°C (-40°F ila +140°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 305 bar (4400 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Çıkış Portu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Port Boyutu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

As a prominent manufacturer specializing in advanced fluid power solutions, we provide the SD5-PG2 Series 6 Spool Solenoid Directional Control Valve to global markets. Our facility excels in precision engineering, offering comprehensive services in manufacturing, OEM, private labeling, and custom design to meet specific project requirements. We support large-scale factory wholesale and are actively seeking long-term partnerships with distributors, wholesalers, agents, and international traders. Our valves are engineered for reliability in demanding environments such as tractors, forklifts, mini-excavators, and harvesters. By choosing our factory direct supply, partners gain access to competitive pricing, robust logistical support, and consistent manufacturing quality. We welcome inquiries for tailored hydraulic solutions and invite industry professionals to discuss partnership opportunities to expand our reach in the global construction and industrial vehicle sectors.
