Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

Kontrol Yöntemi:Manuel

Makara:4 Makara

Anma Akışı:90 L/dk (23,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:G1/2

Çıkış Portu:G3/4

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Kesitsel Yönsel Valf

Ürün Serisi:SD8 Serisi Kesitsel Yönsel Valf

Ambalaj boyutu:34*34*15.5

Brüt ağırlık:18.50 kg

Stok Durumu: Stokta Var

87 Görünümler Bu Ürünü Arıyor

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

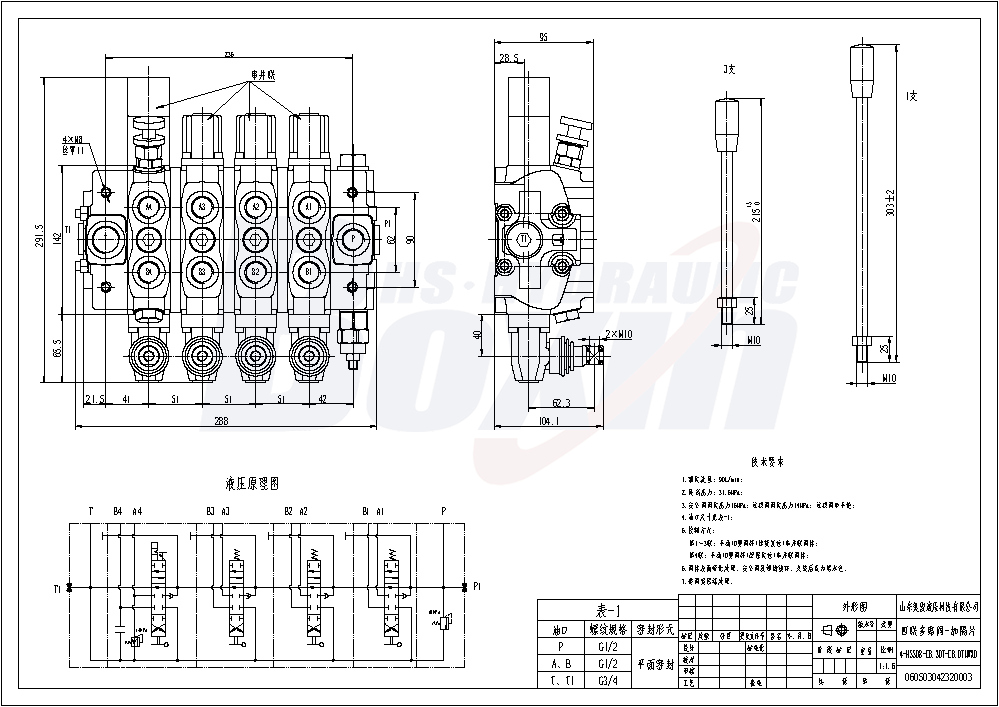

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation drawing image

The SD8-OTAMW is a high-performance 4-spool manual sectional directional control valve designed for demanding mobile applications. Featuring a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, this SD8 series valve offers precise manual control for various machinery including excavators, loaders, and agricultural equipment.

SD8 Serisi Kesitsel Yönsel Valf Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Seksiyonel vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm
İşletme Viskozite Aralığı 12 - 400 mm²/sn (12 cSt ila 400 cSt)
Anma Akışı 90 L/dk (23,8 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, SAE 10
Çıkış Portu G1/2, G3/4, SAE 10, 3/4 NPT
Port Boyutu G1/2, SAE 10

As a leading manufacturer of hydraulic components, we provide the SD8-OTAMW 4-spool sectional directional control valve for the global market. This manual valve is engineered for heavy-duty performance in material handling, construction, and agriculture, supporting machinery like skid steer loaders, telehandlers, and forklifts. With a flow rate of 80 L/min (21.2 US gpm) and G1/2 inlet/outlet ports, it ensures reliability under high-pressure conditions up to 315 bar. We specialize in factory supply, wholesale, and professional OEM/ODM services, offering customized solutions and private labeling to meet specific technical requirements. We are actively seeking long-term cooperation with global distributors, wholesalers, agents, and traders. Our factory provides competitive wholesale pricing and consistent quality for international trade, ensuring your fleet or retail business benefits from robust hydraulic power and precise spool operation.
