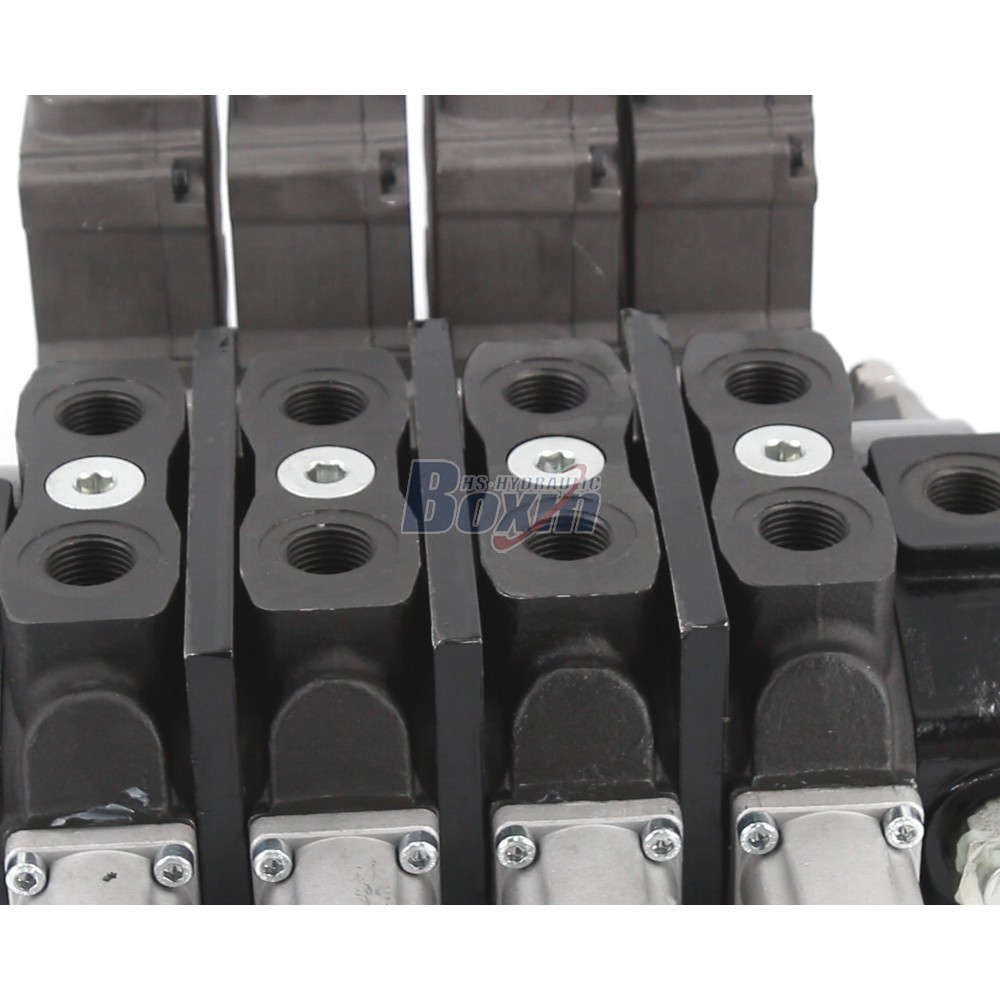

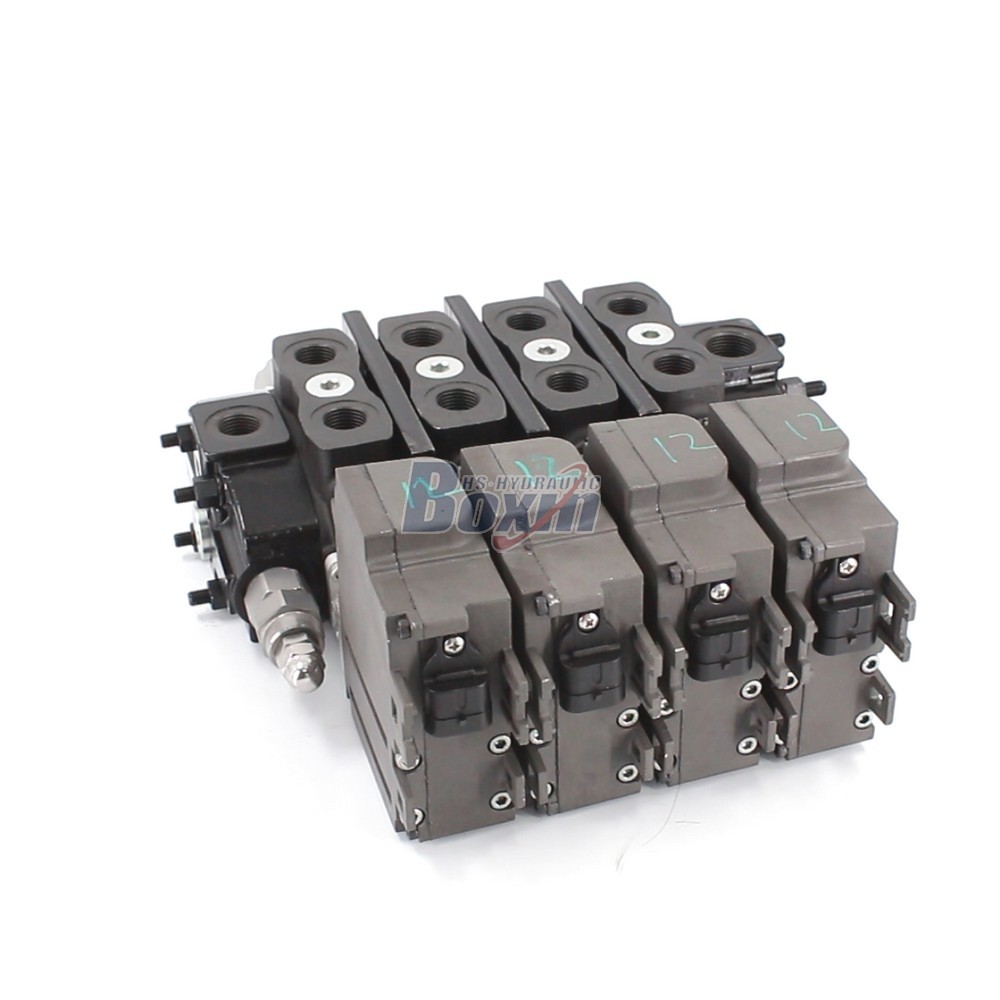

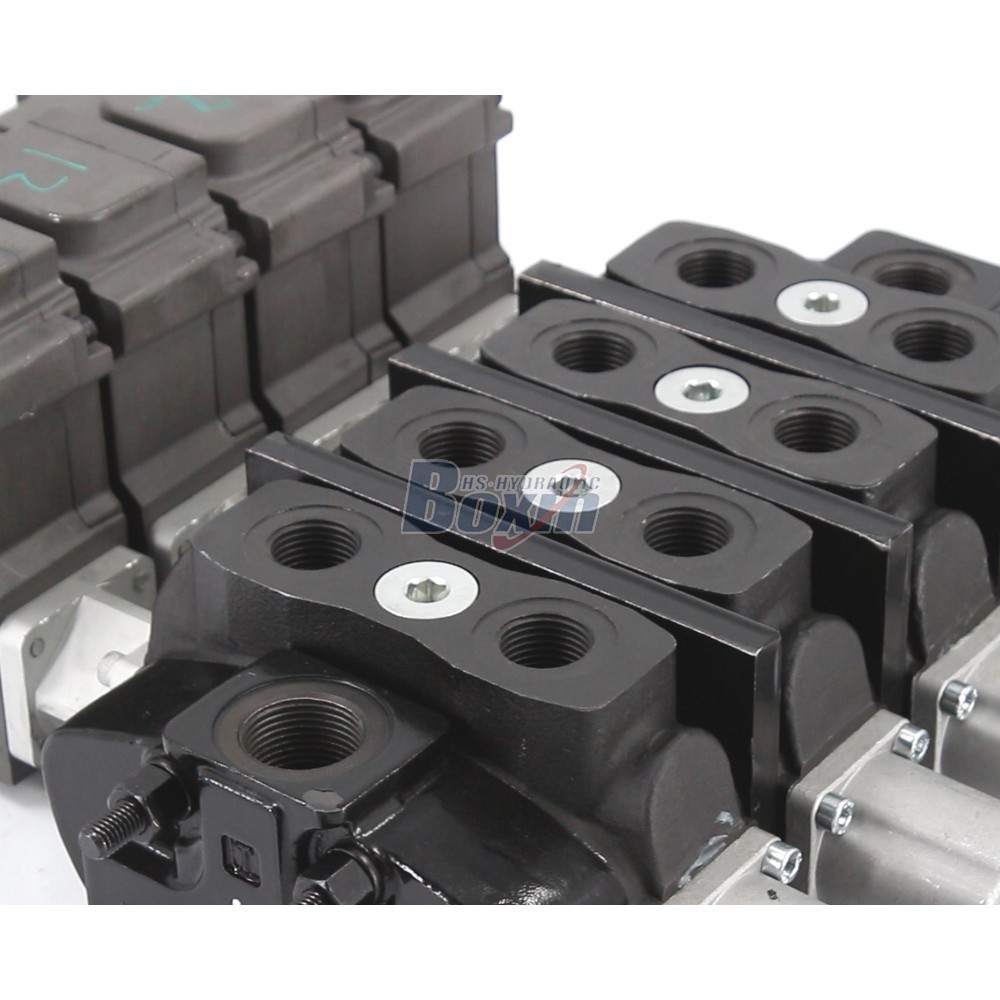

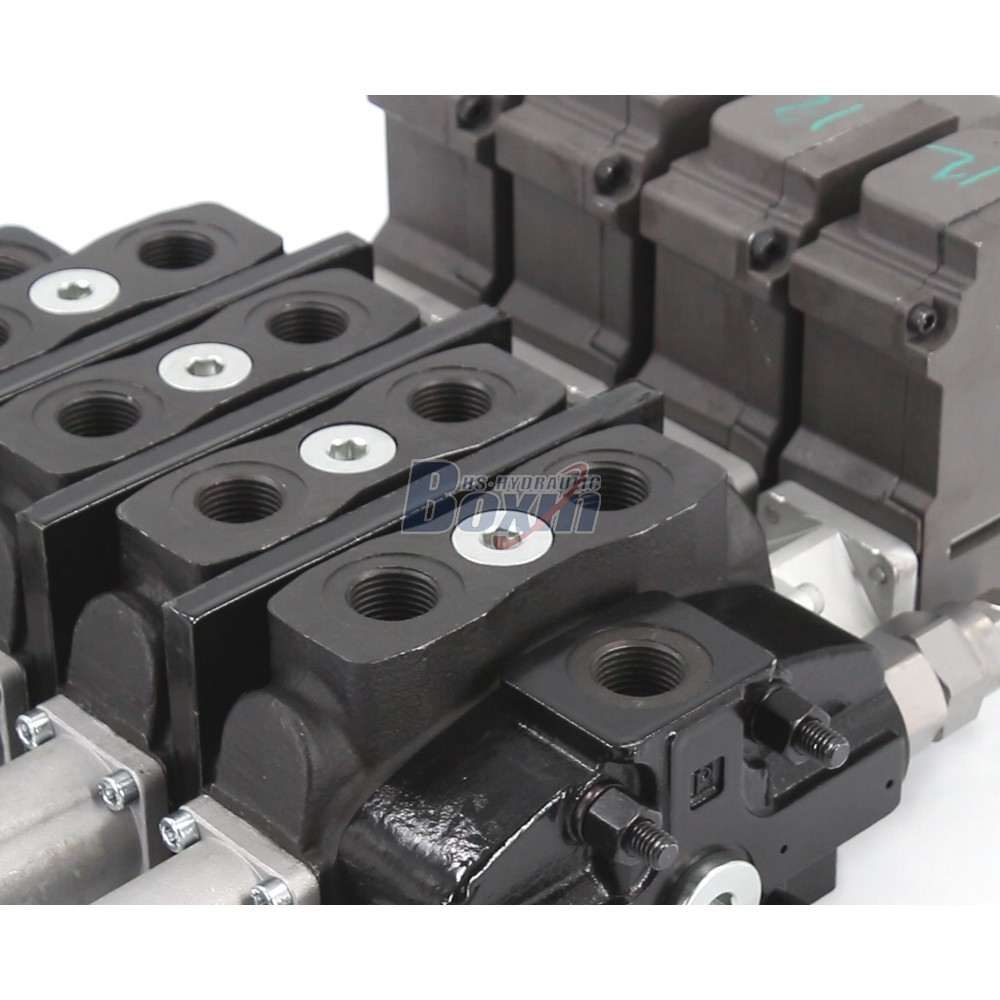

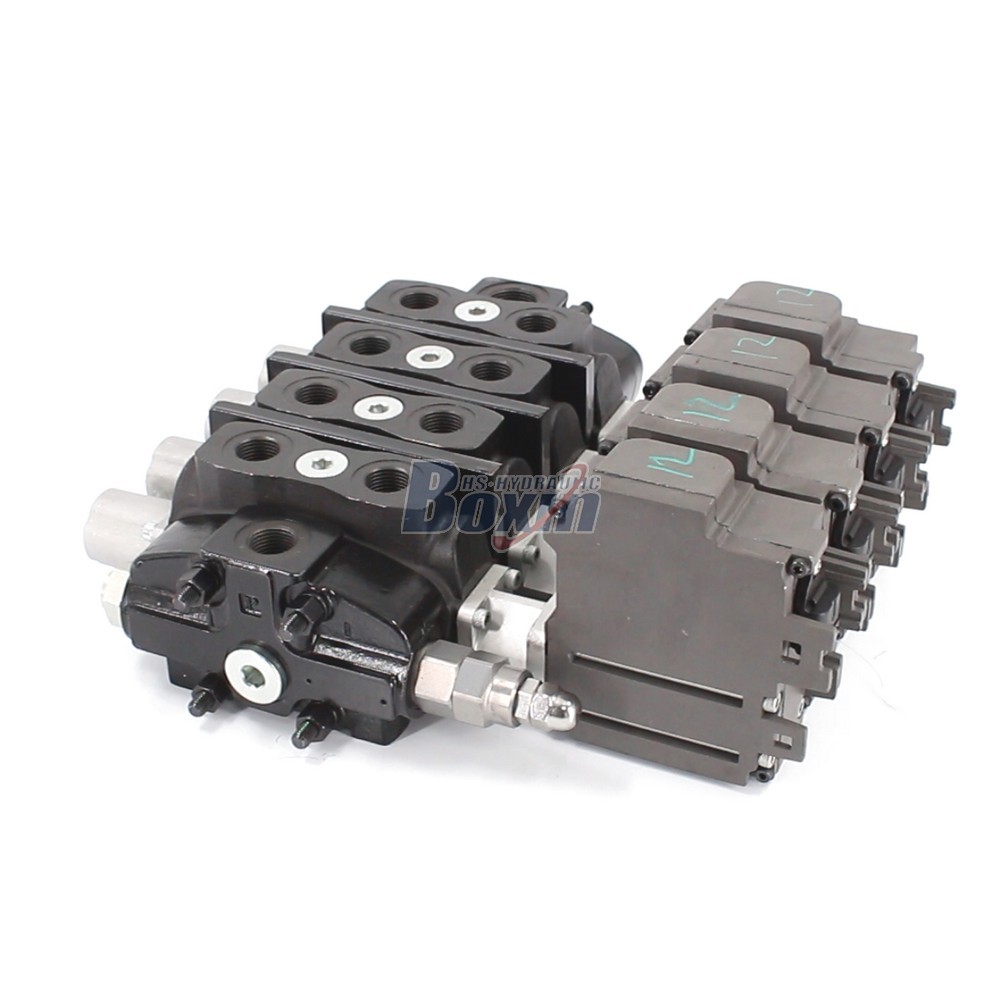

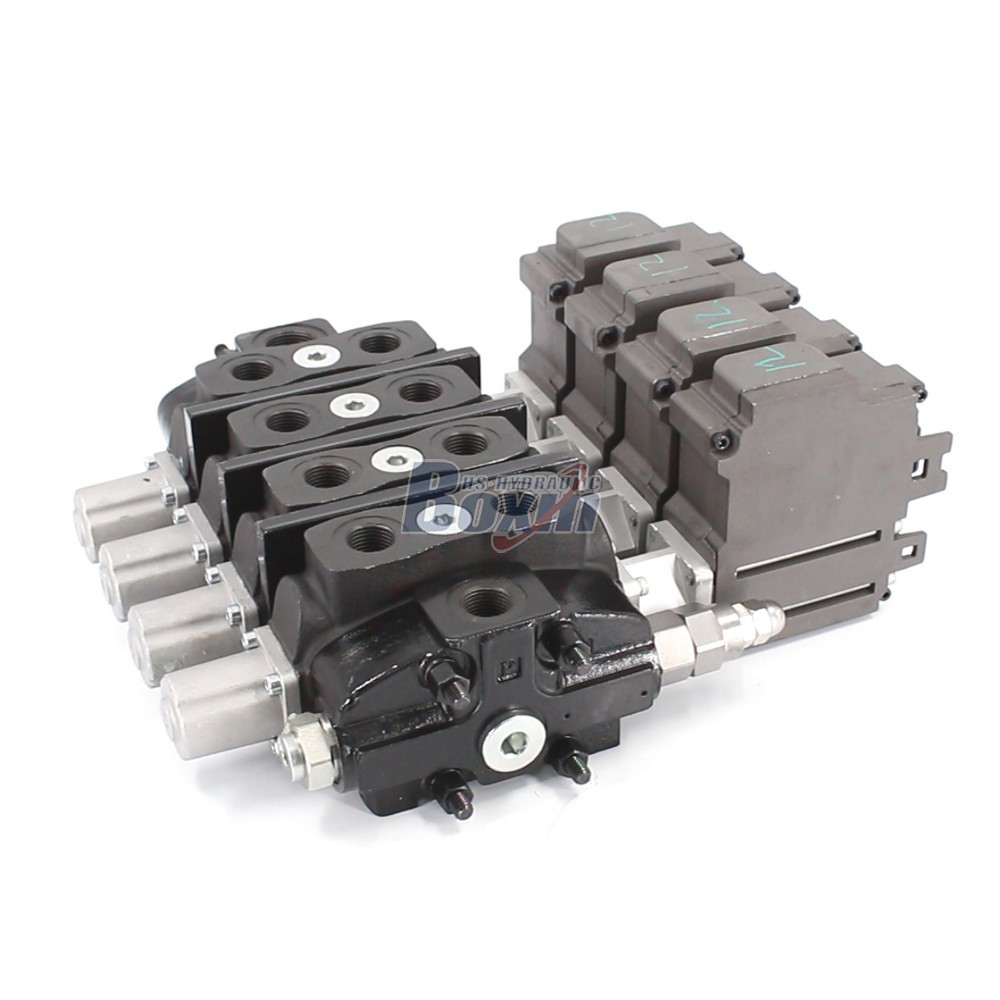

This SD8 Series Sectional Directional Valve features a 4-spool electric motor control design, handling 90 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| SD8 Serisi Kesitsel Yönsel Valf Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Elektrik motoru |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Seksiyonel vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 90 L/dk (23,8 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G1/2, G3/4, M22×1.5, SAE 10 |
| Çıkış Portu | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Port Boyutu | G1/2, M22×1.5, SAE 10 |
**1. High-Flow Sectional Directional Valve Specifications**
- Engineered for demanding applications with a rated flow of 90 L/min (23.8 US gpm) and a maximum working pressure of 315 bar (4600 psi).
- Features M22×1.5 inlet and M27×2.0 outlet ports, ensuring seamless integration into high-pressure hydraulic circuits for construction and industrial vehicles.
**2. Reliable Electric Hydraulic Valve Operation**
- Equipped with a precise electric motor control method for the 4-spool configuration, offering accurate and responsive directional control.
- Ideal for automation in material handling equipment like aerial platforms and wood splitters, reducing manual effort while enhancing operational safety.
**3. Versatile 4 Spool Directional Control Valve Applications**
- Specifically designed to fit mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
- The modular SD8 series structure allows for easy expansion or replacement, providing a cost-effective solution for maintaining diverse fleets of earth-moving machinery.
**4. Factory Direct Sales Quality Assurance**
- Produced in our 68,000 sqm facility with 260+ vertical machining centers, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Backed by IATF 16949 certification and CE compliance, our Wholesale China Factory ensures consistent quality with 25+ patents and SGS verified standards.
**5. OEM/ODM Available Customization Services**
- Leverage our 35+ senior engineers for tailored solutions, including custom castings, appearance modifications, and laser logo marking for your Private Label.
- As a leading Wholesale Hot Sale supplier since 2001, we offer robust packaging and global logistics support, making us the preferred partner for distributors seeking stable supply chains.
