Solenoid Directional Valve | P40-DKL | Factory Direct & Customizable

Kontrol Yöntemi:Selenoid

Makara:3 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40-DKL Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:31*21*17

Brüt ağırlık:9.00 kg

Stok Durumu: Stokta Var

1072 Görünümler Bu Ürünü Arıyor

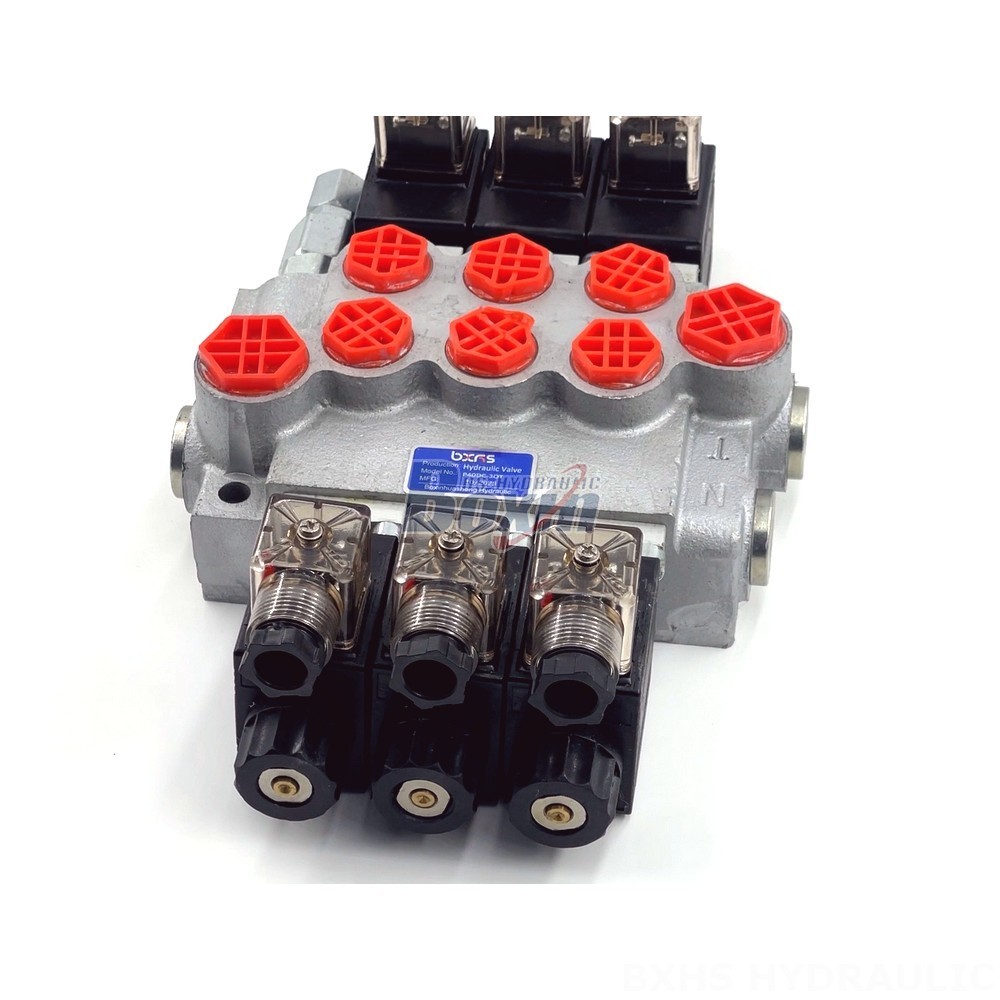

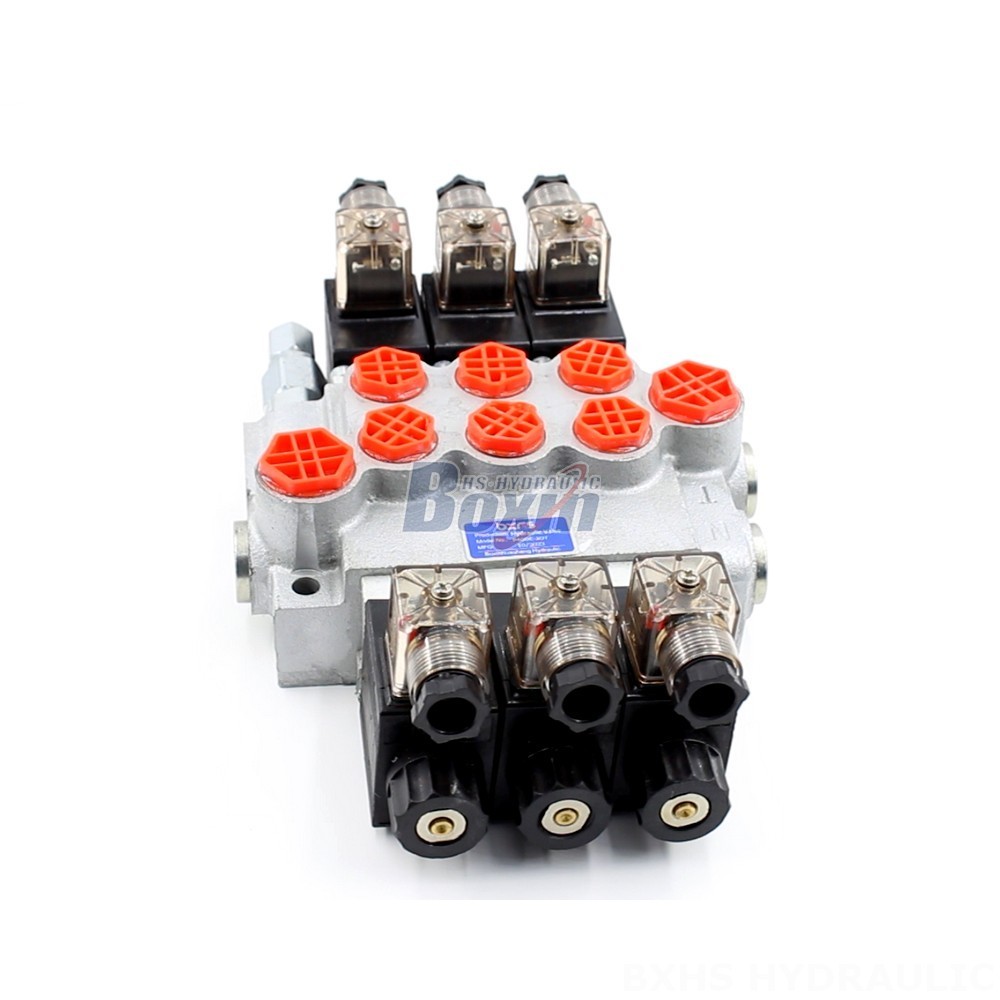

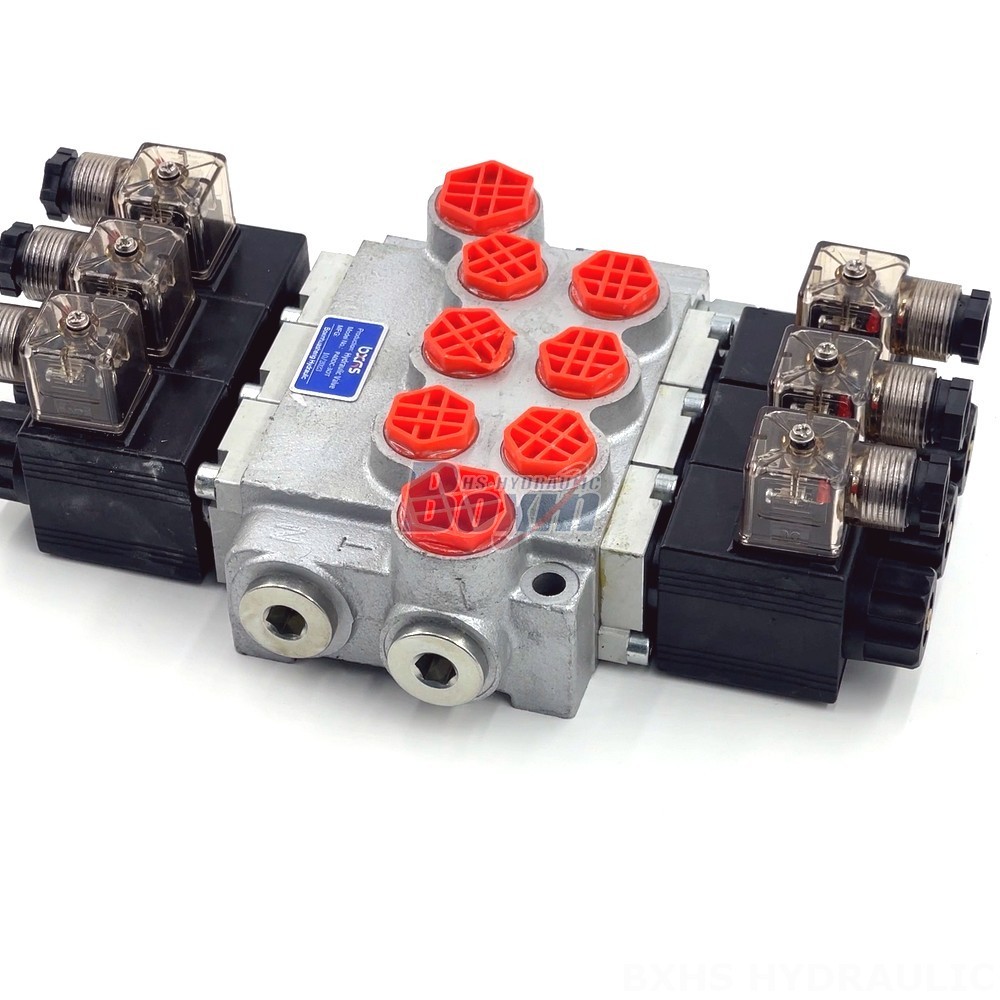

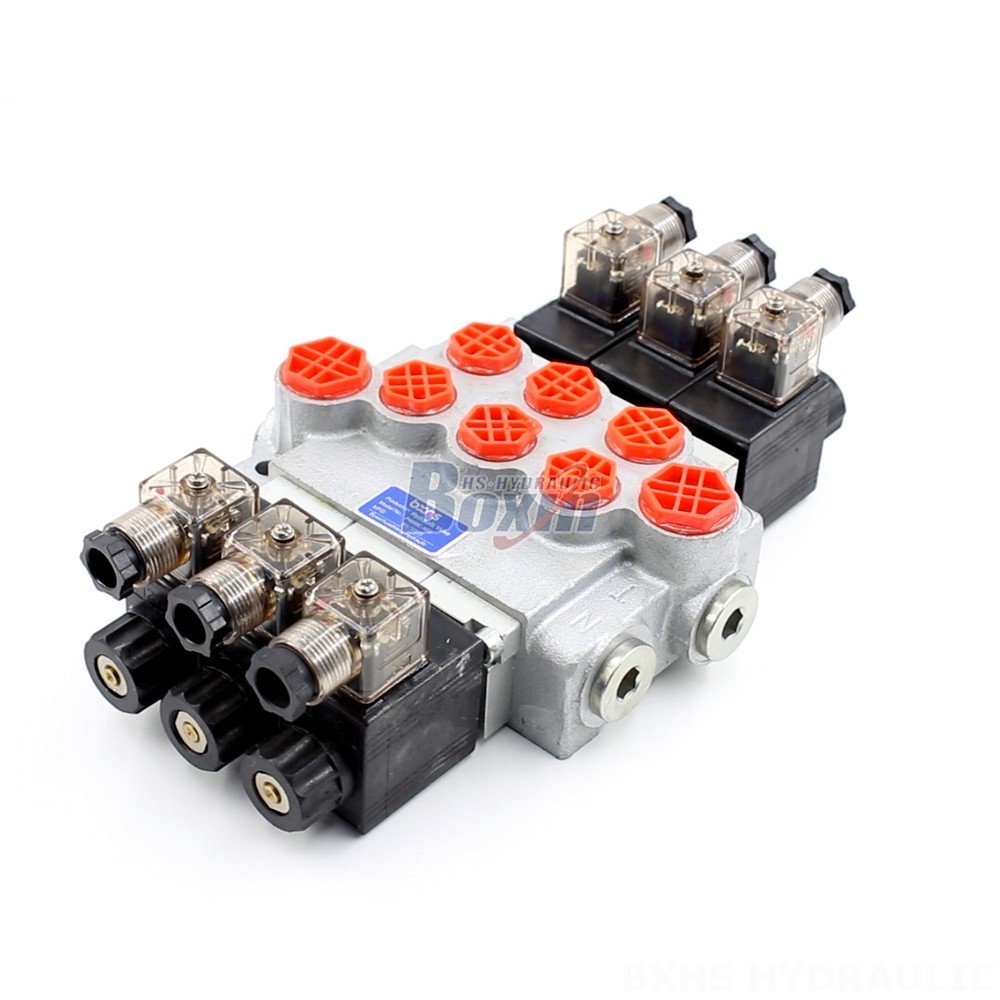

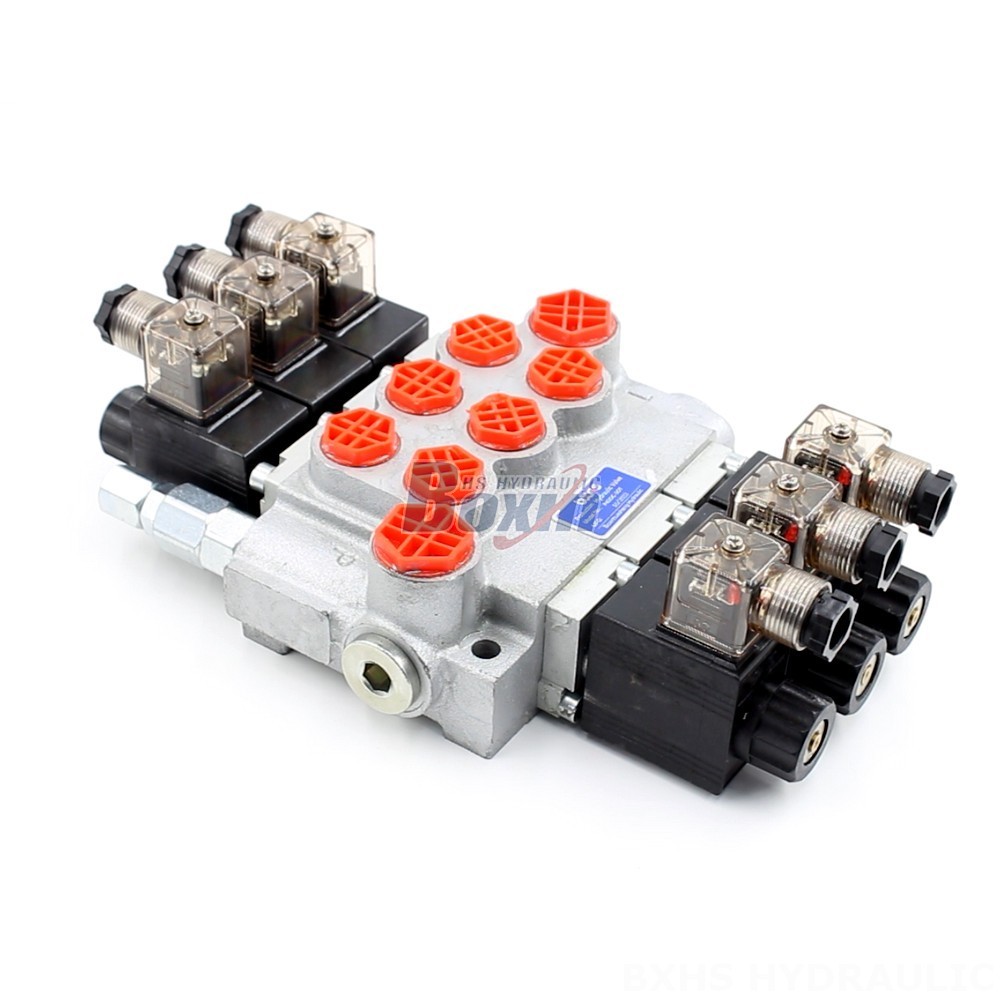

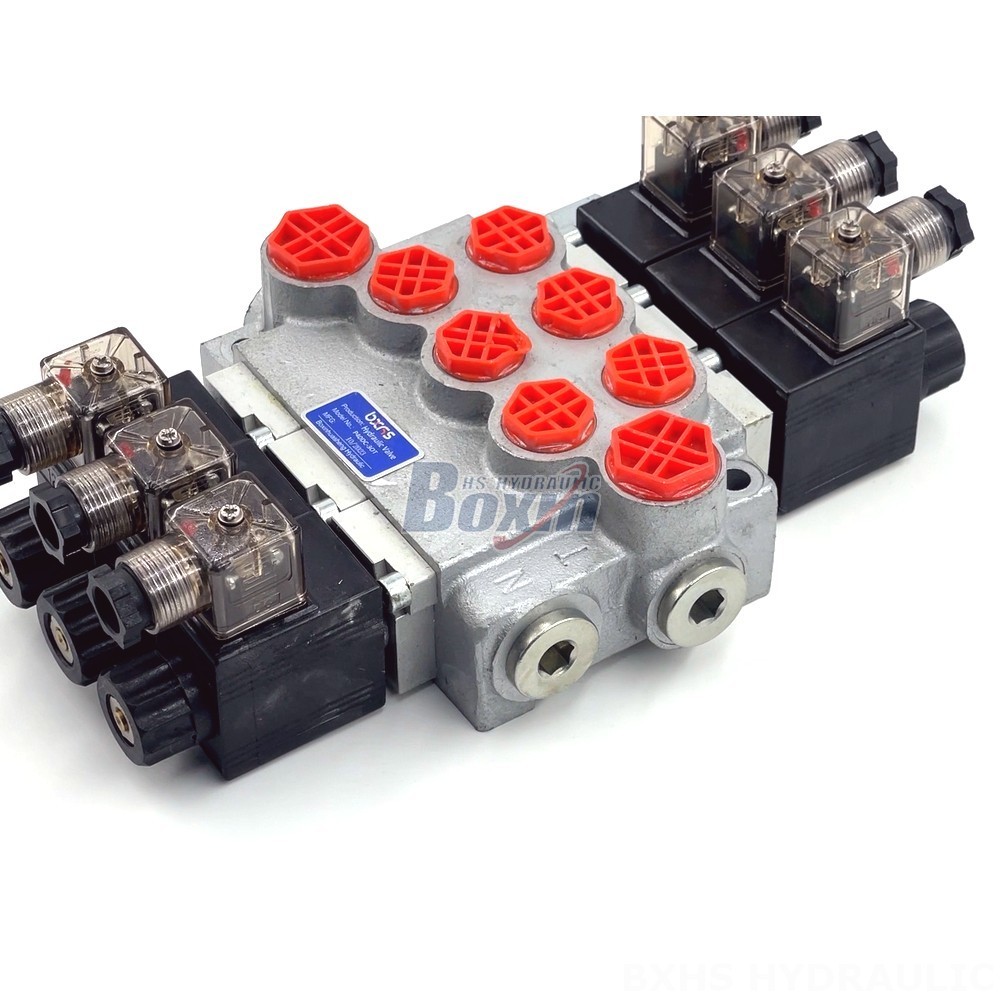

Solenoid Directional Valve | P40-DKL | Factory Direct & Customizable

Solenoid Directional Valve | P40-DKL | Factory Direct & Customizable

Solenoid Directional Valve | P40-DKL | Factory Direct & Customizable drawing image

The P40-DKL hydraulic directional valve is a high-performance, solenoid-controlled valve designed for a variety of applications, including material handling, construction, and agriculture. This 3-section, monoblock valve features a 40 L/min flow rate and a 250 bar pressure rating. Available in customizable configurations, the P40-DKL is a versatile and reliable solution for your hydraulic needs.

P40-DKL Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
Yapı Türü Monoblock vana
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)

The P40-DKL is a robust and reliable hydraulic directional valve ideal for a wide range of applications. This solenoid-controlled valve features a 3-section, monoblock design for efficiency and durability. Its 40 L/min flow rate and 250 bar pressure rating make it suitable for demanding tasks in material handling, construction, agriculture, and other industrial sectors. The P40-DKL is compatible with various equipment models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- and mini- excavators, skid steer loaders, and compact wheel loaders. This versatile valve can be customized to meet your specific needs, ensuring optimal performance for your hydraulic systems. We offer factory-direct pricing and customizable options to meet your unique requirements. Contact us today to discuss your hydraulic valve needs and explore the possibilities of the P40-DKL.
