Source Your P120 Directional Control Valves from a Trusted Manufacturer

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:120 L/dak (31.7 US gpm)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1

Çıkış Portu:G1

Port Boyutu:G1

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P120 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:30*39*17

Brüt ağırlık:19.00 kg

Stok Durumu: Stokta Var

1114 Görünümler Bu Ürünü Arıyor

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer drawing image

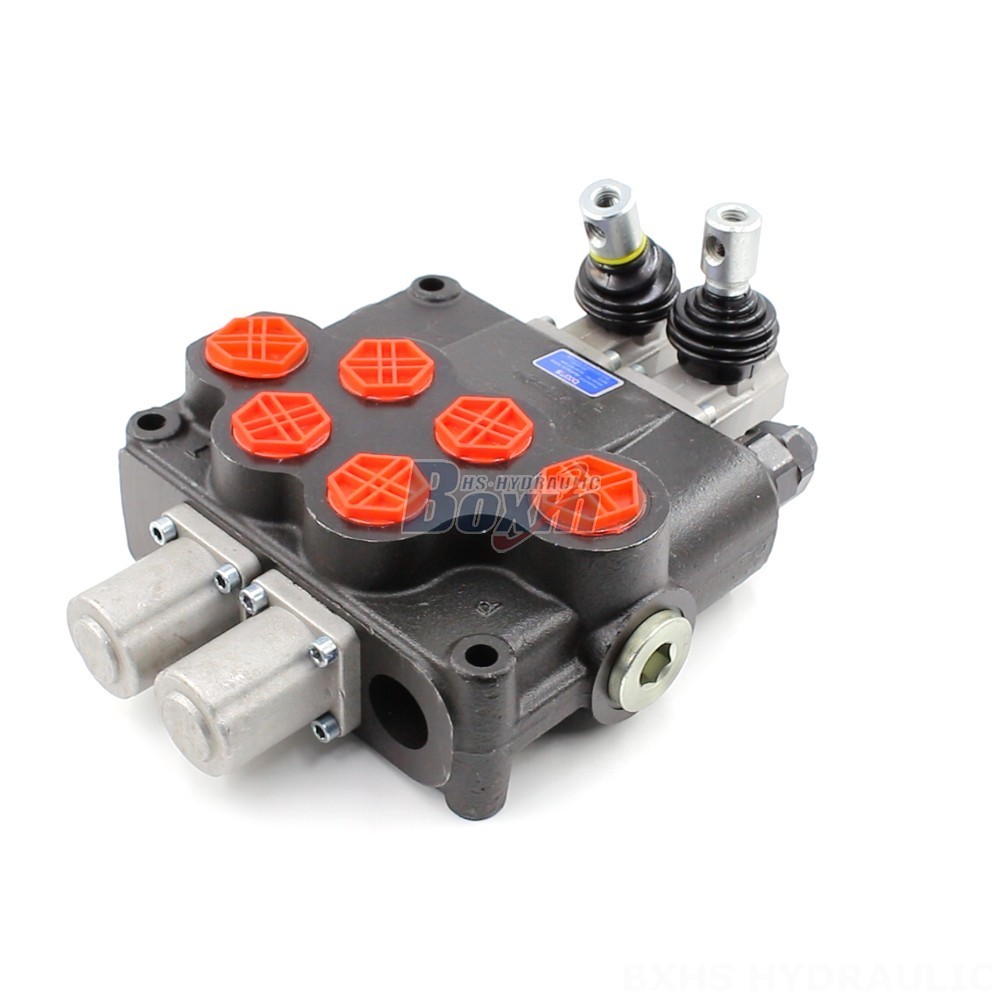

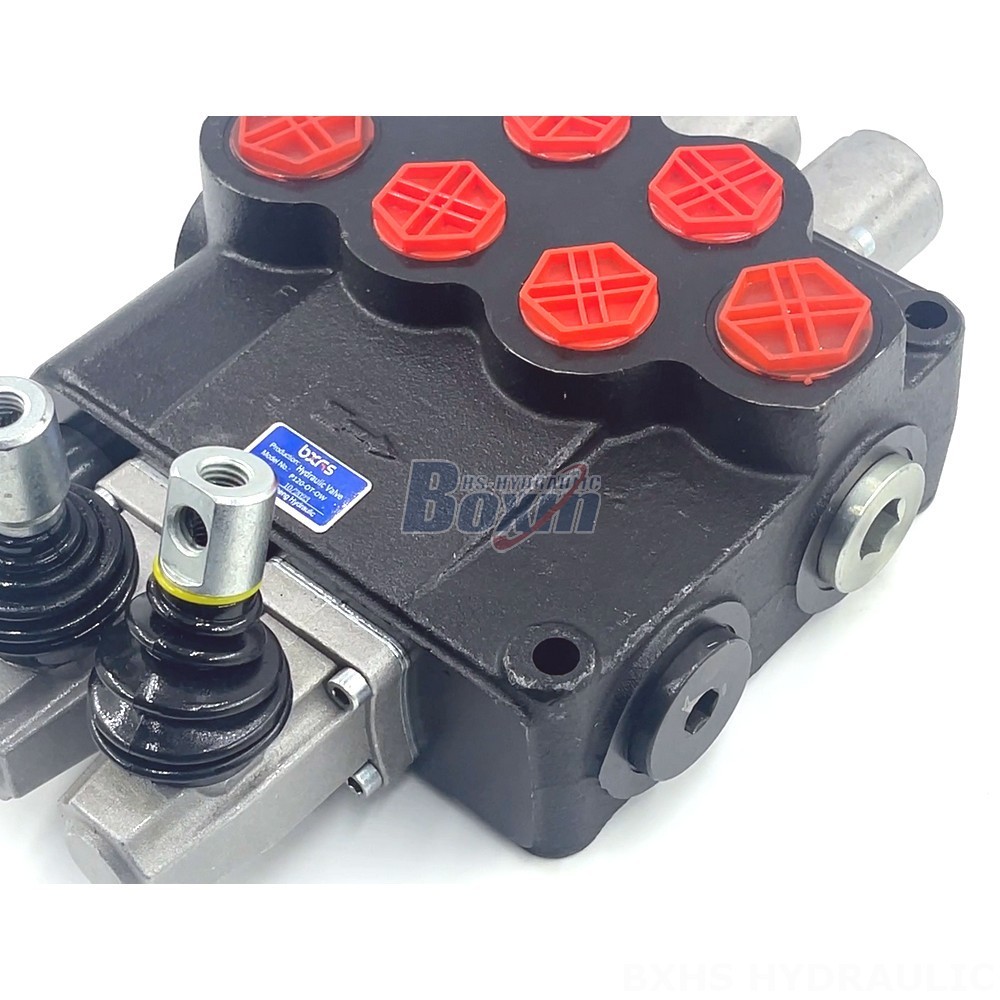

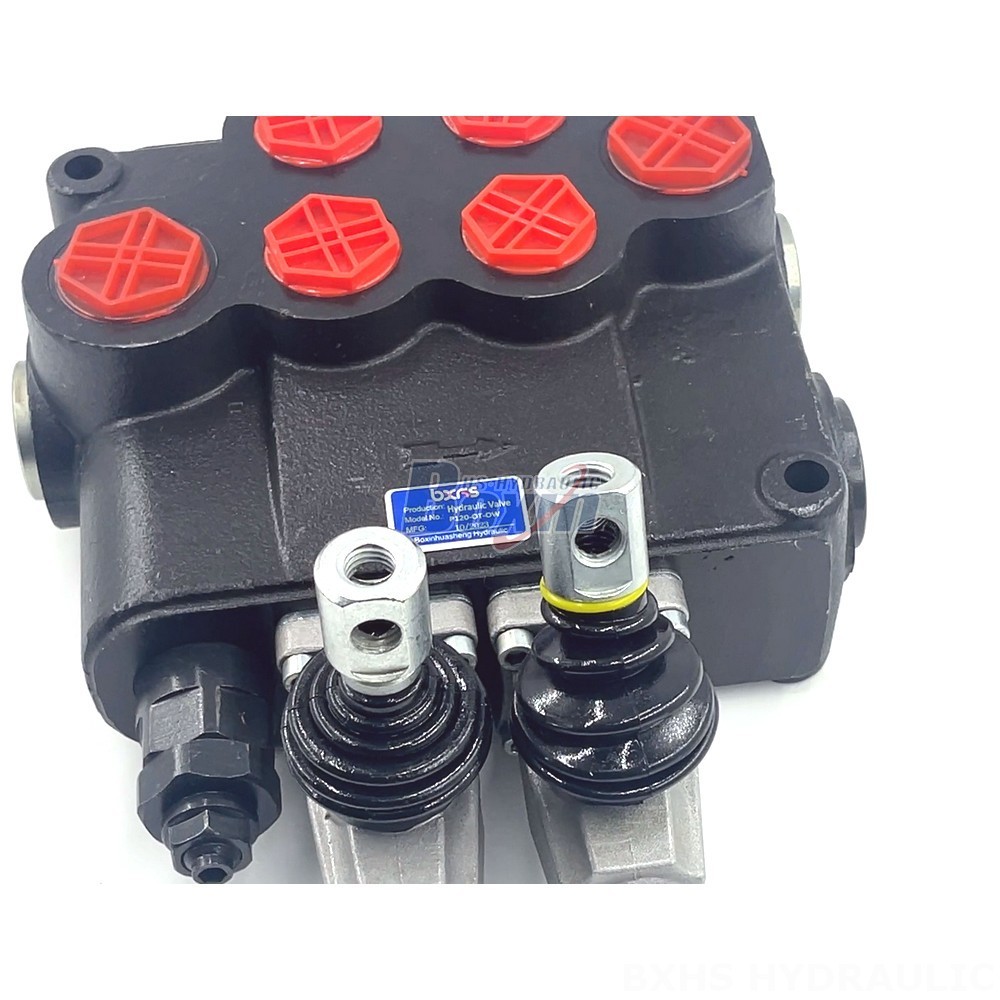

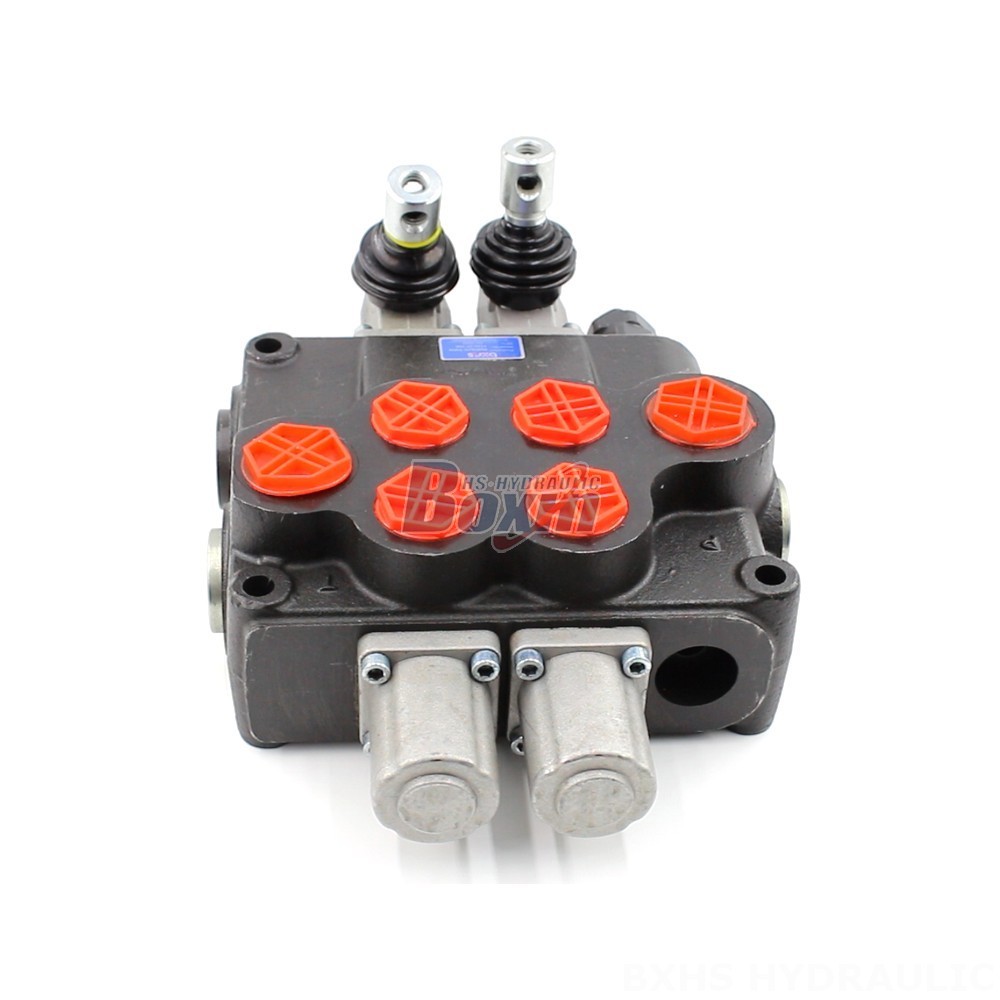

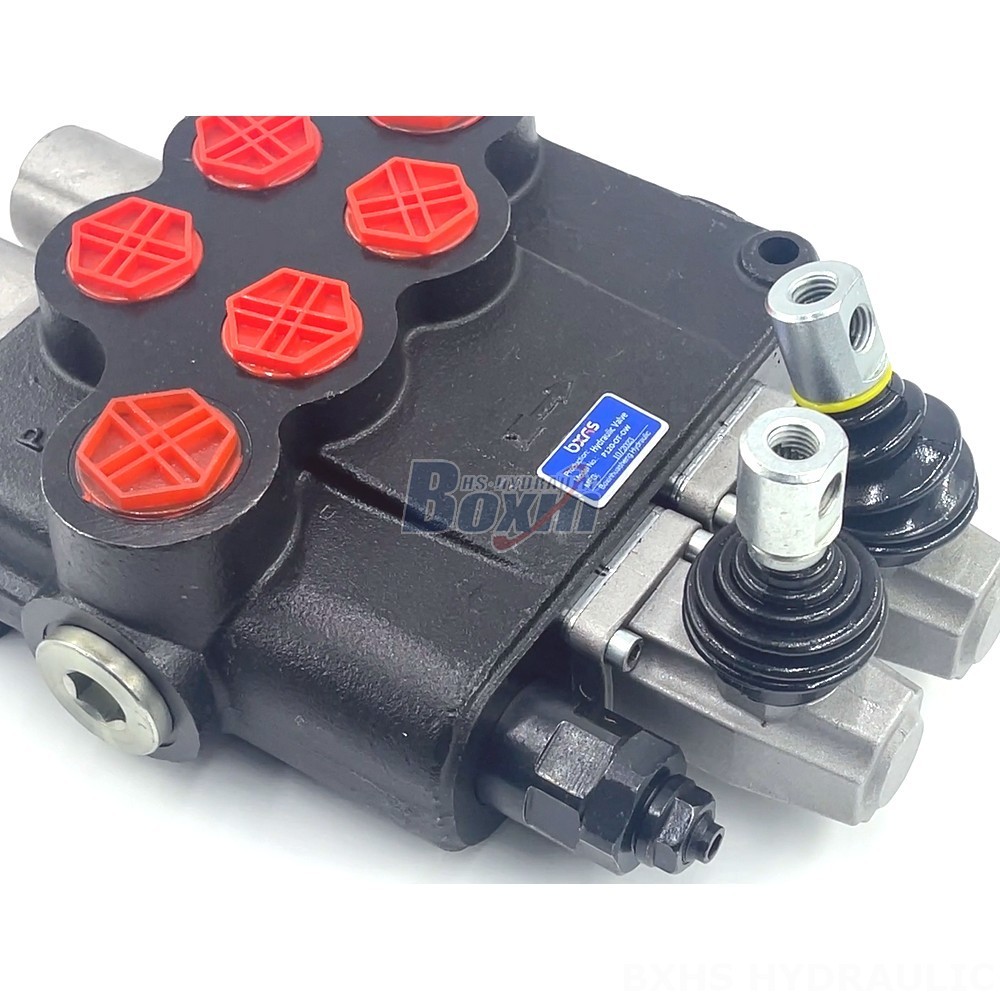

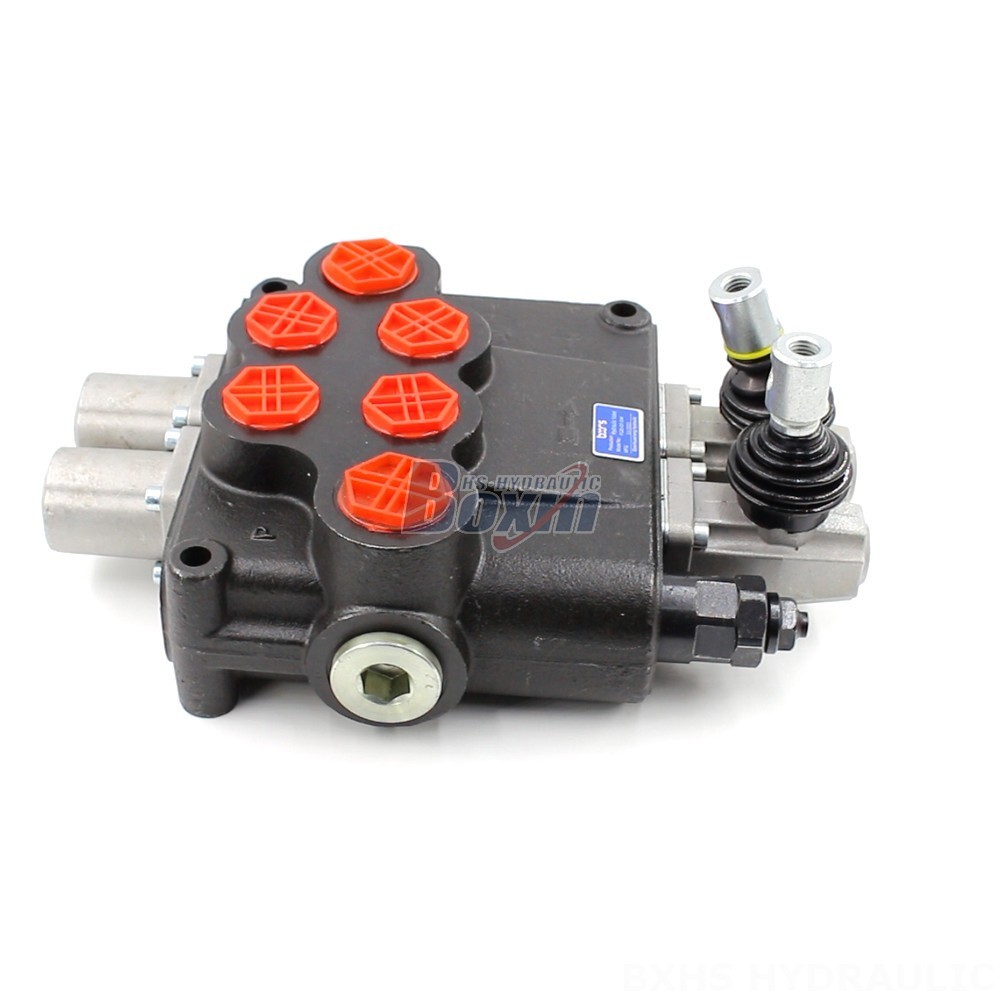

This P120 Series 12V Hydraulic Spool Valve is a 2-section, monoblock valve designed for directional control applications. It offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of machinery, including material handling, construction, agriculture, and industrial vehicles.

P120 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara
Anma Akışı 120 L/dak (31.7 US gpm)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Çıkış Portu G1, SAE 16, 1 NPT, M36×2
Port Boyutu G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm
Yapı Türü Monoblock vana
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)

The P120 Series 12V Hydraulic Spool Valve is a reliable and durable solution for your directional control needs. This manual control valve features a 2-section, monoblock design with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosities from 15 to 75 mm²/s and can operate in ambient temperatures ranging from -40°C to +80°C. This valve is ideal for a variety of applications, including material handling equipment like telehandlers and forklifts, construction machinery such as all-terrain cranes and excavators, agricultural equipment, and industrial vehicles. With its robust construction and high performance, this P120 Series valve ensures reliable operation in demanding environments.
