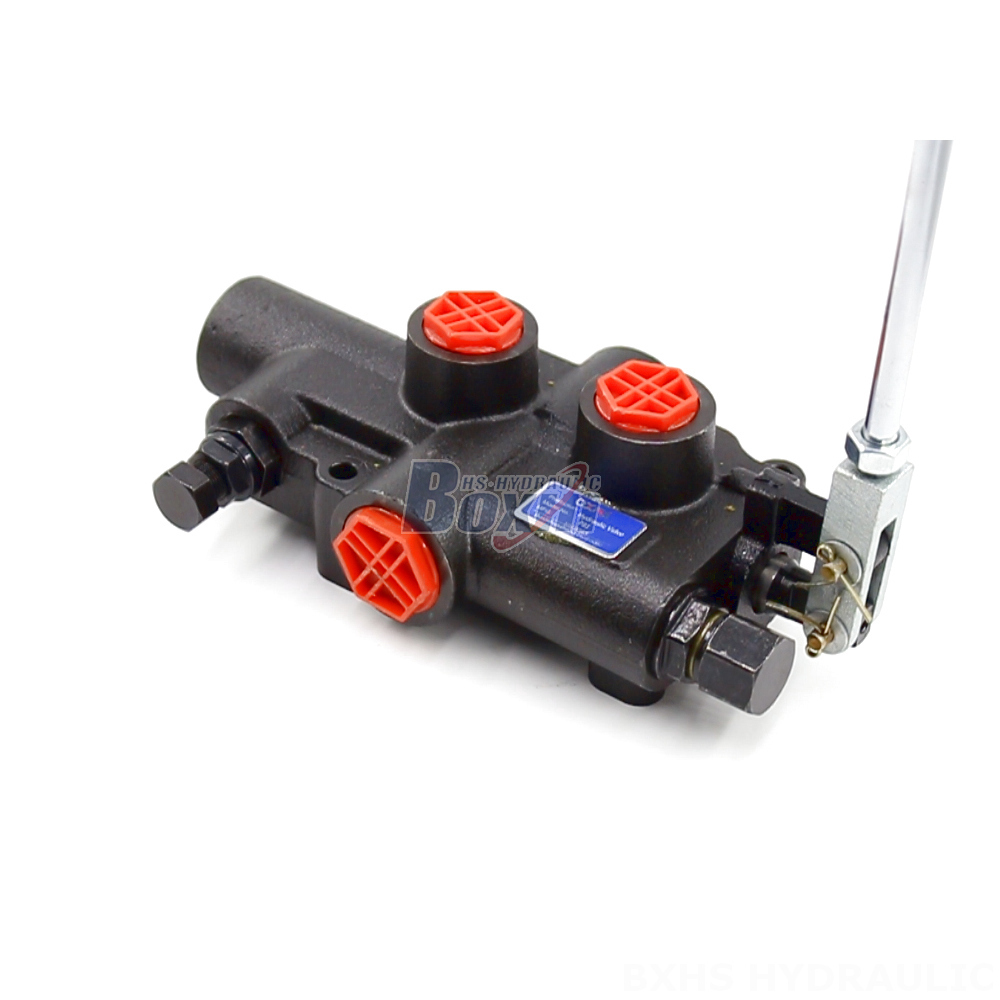

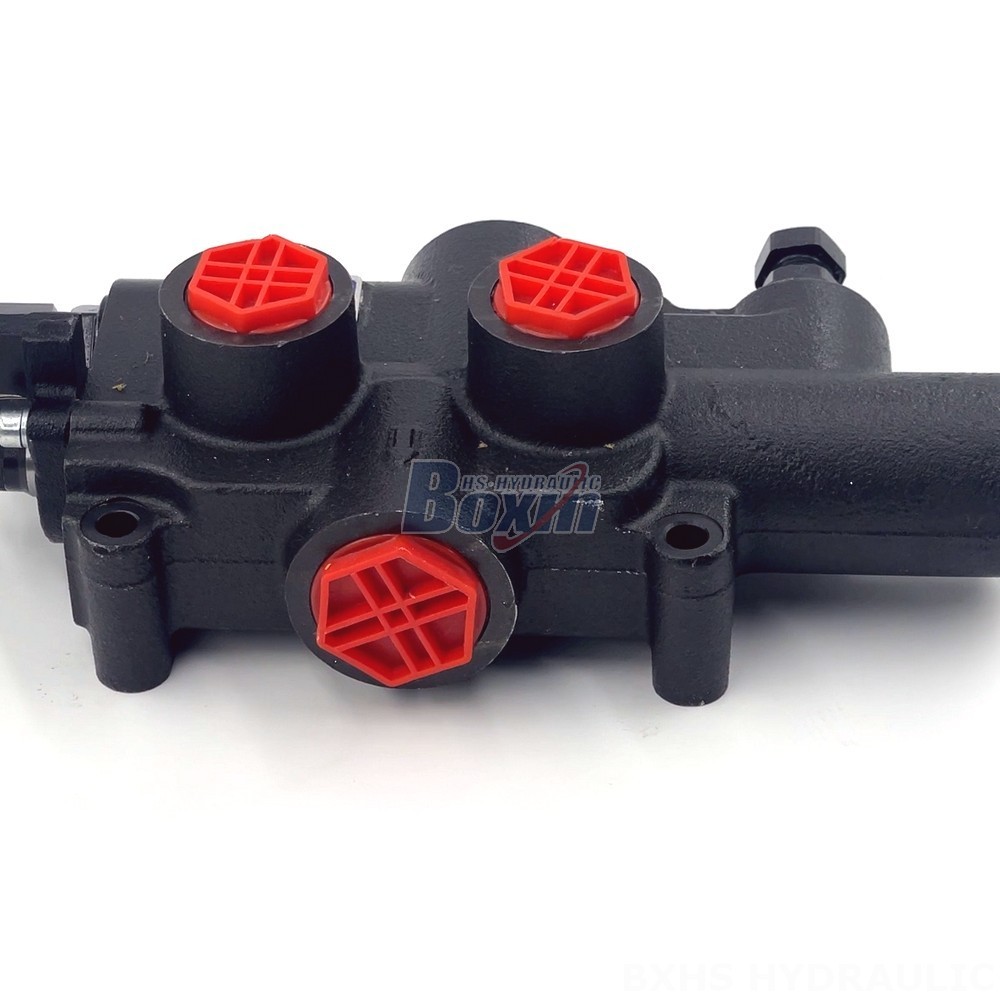

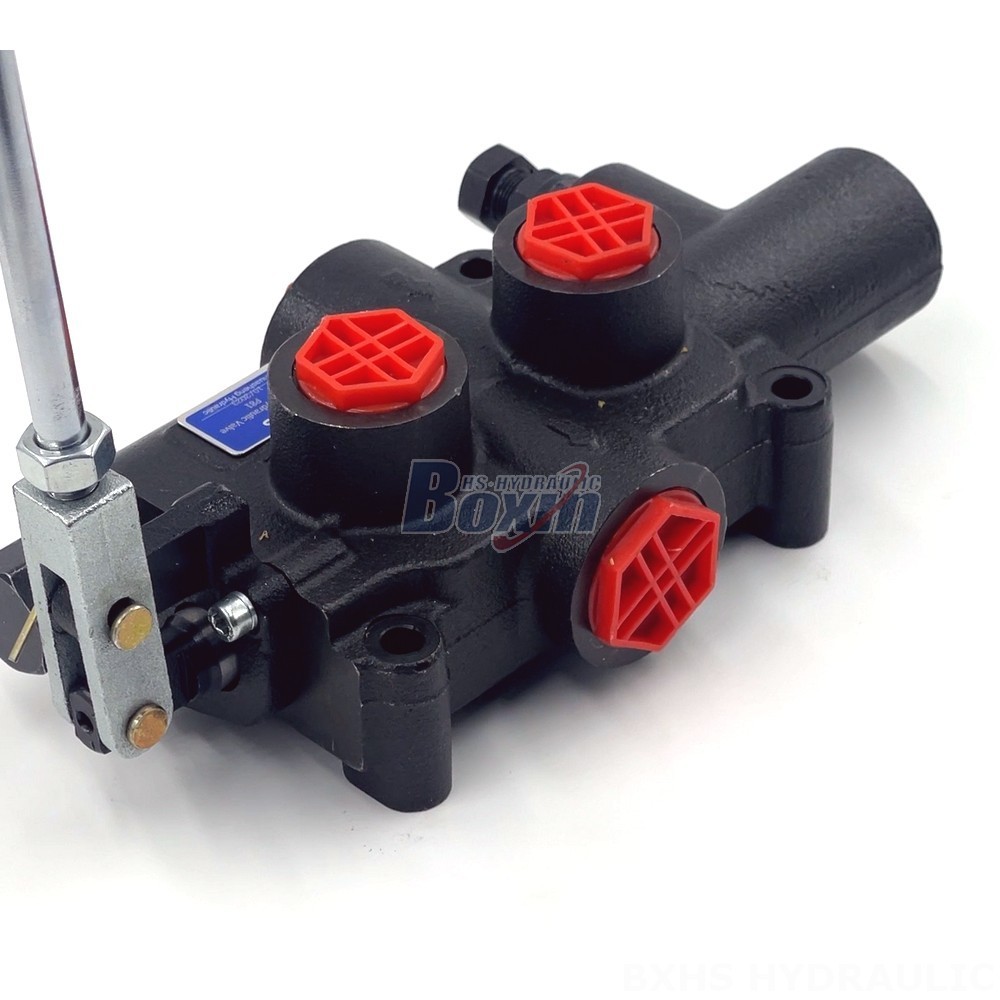

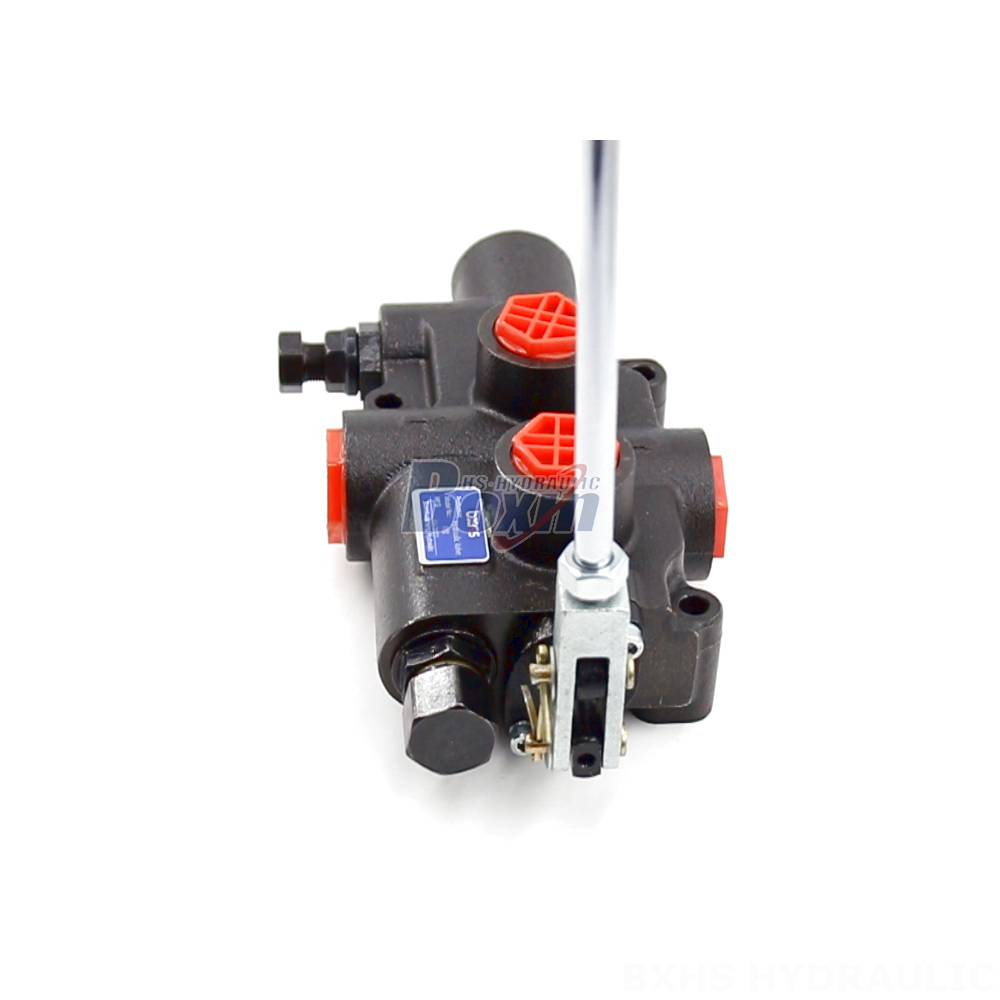

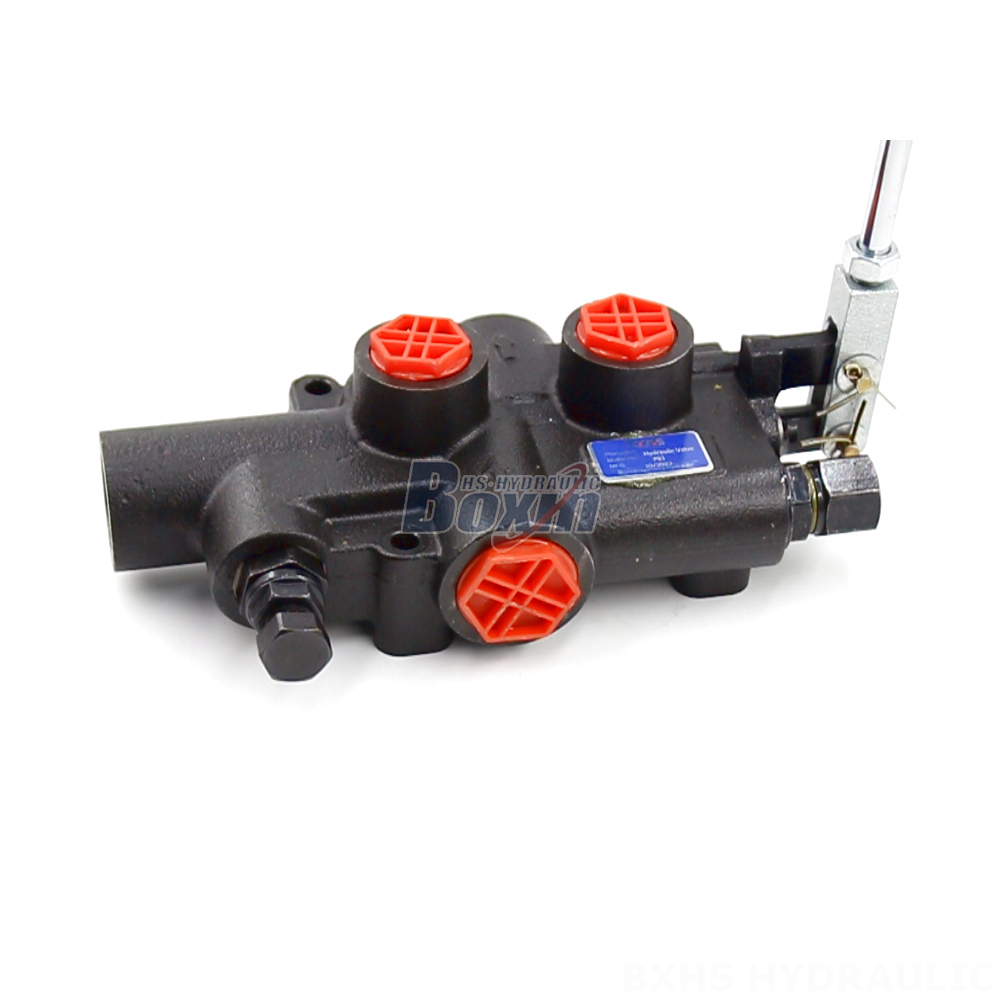

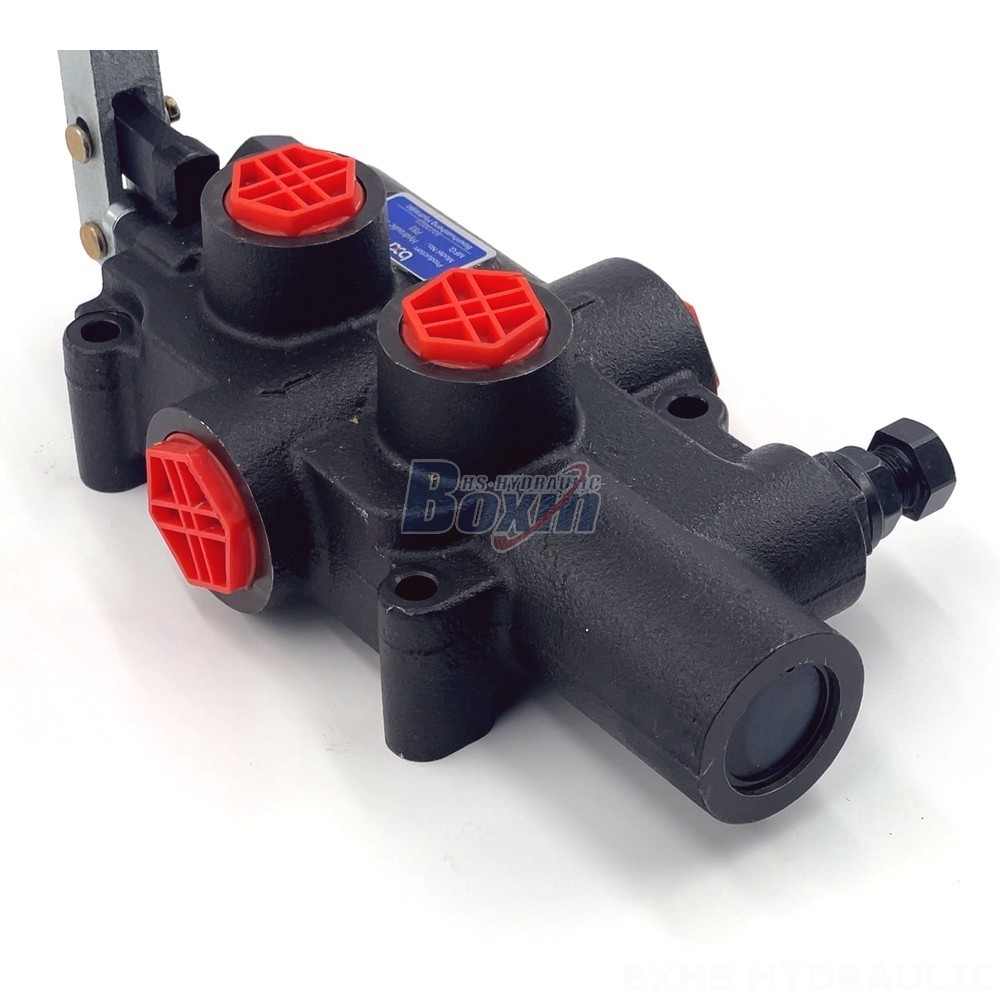

The P81 Series Hydraulic Control Valve is a high-performance, manual joystick-controlled valve designed specifically for log splitter applications. It features a monoblock construction for durability, high flow rate (80 L/min), and high pressure rating (250 bar), making it suitable for demanding industrial applications.
| P81 Serisi Kütük Ayırma Valfi Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 80 L/dk (21,2 ABD galon/dak), 95 L/dk (25,1 ABD galon/dak) |
| Maksimum Basınç | 19 MPa (2735 psi) |
| Giriş Portu | G1/2 |
| Çıkış Portu | G1/2 |
| Port Boyutu | G3/4 |
The P81 Series Hydraulic Control Valve is a robust and reliable solution for controlling hydraulic log splitters. It is a single-section, monoblock valve with a single spool and manual joystick control. The valve offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). Its kick-out setting pressure is adjustable between 70 and 140 bar (1015-2030 psi) for precise operation. The valve is designed for demanding industrial applications and operates reliably within a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F). It is compatible with a wide range of hydraulic fluids with operating viscosity ranging from 15 to 75 mm²/s (15 cSt to 75 cSt). The P81 Series Hydraulic Control Valve is a high-quality, durable, and easy-to-operate solution that provides reliable control for log splitting operations.
