Source ZT20 Directional Control Valves from a Trusted Manufacturer

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:90 L/dk (23,8 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G3/4

Marka:BXHS

Ürün Tipi:Hidrolik Kontrol Vanası

Ürün Serisi:ZT20 Serisi Hidrolik Kontrol Vanası

Ambalaj boyutu:23*18*11

Brüt ağırlık:7.91 kg

Stok Durumu: Stokta Var

1153 Görünümler Bu Ürünü Arıyor

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer drawing image

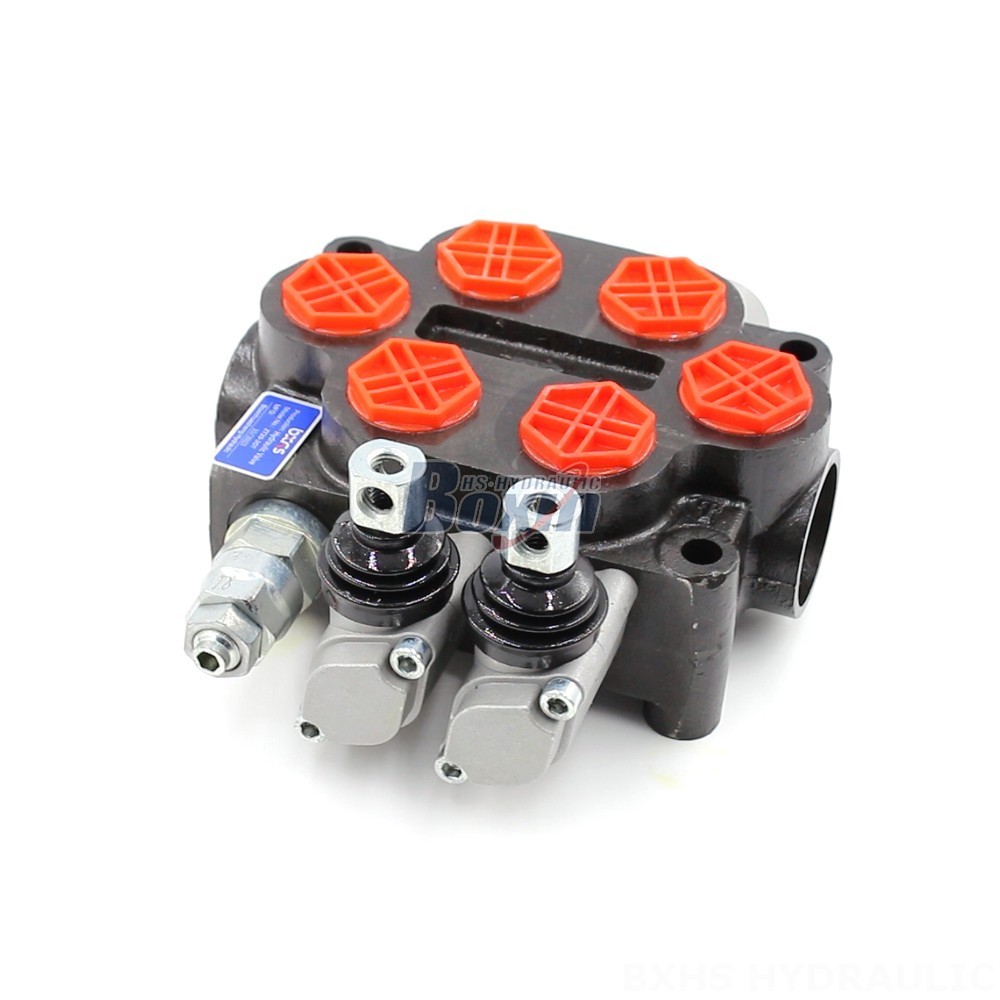

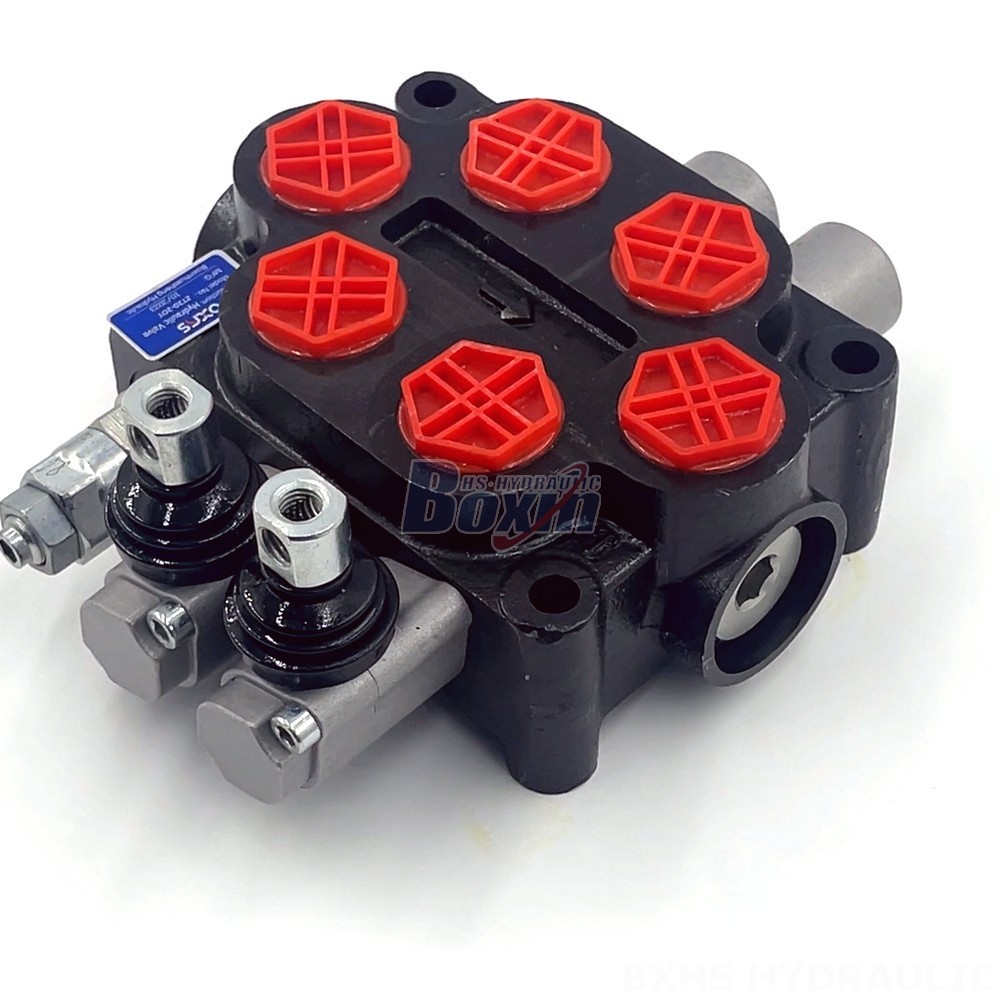

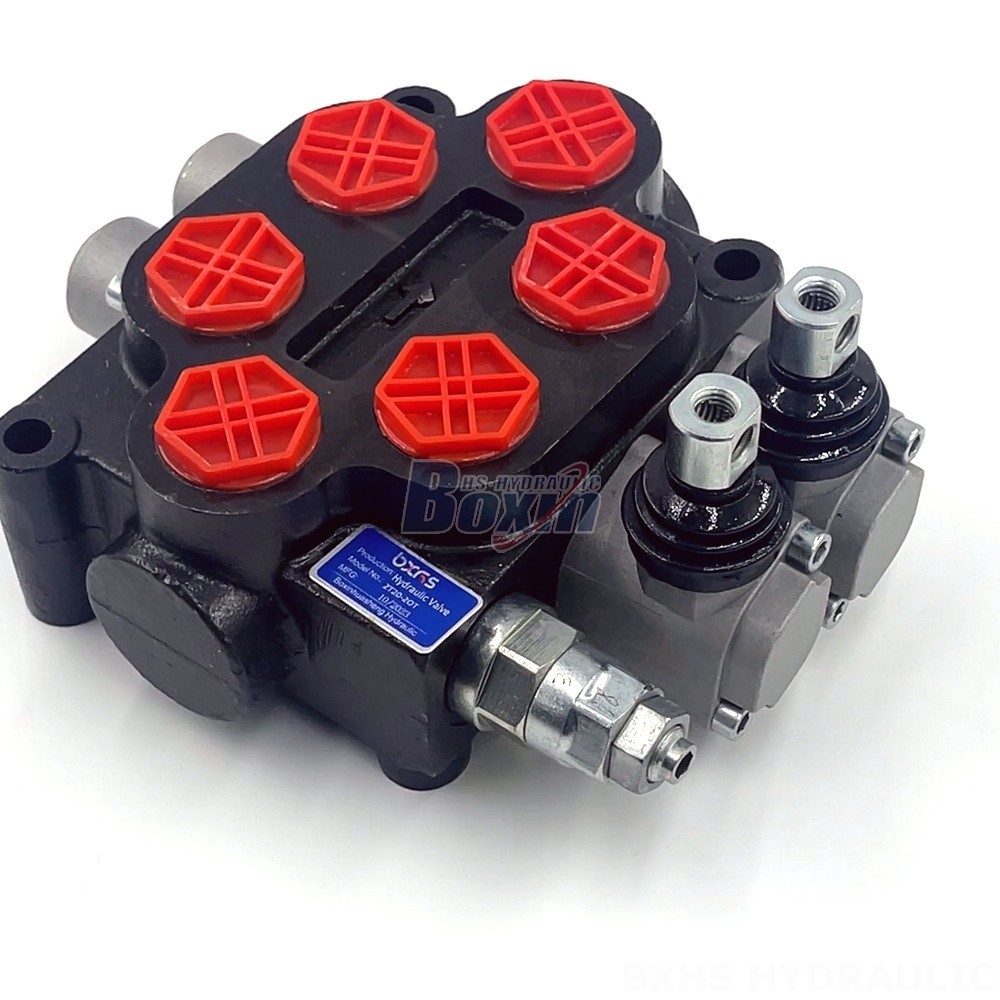

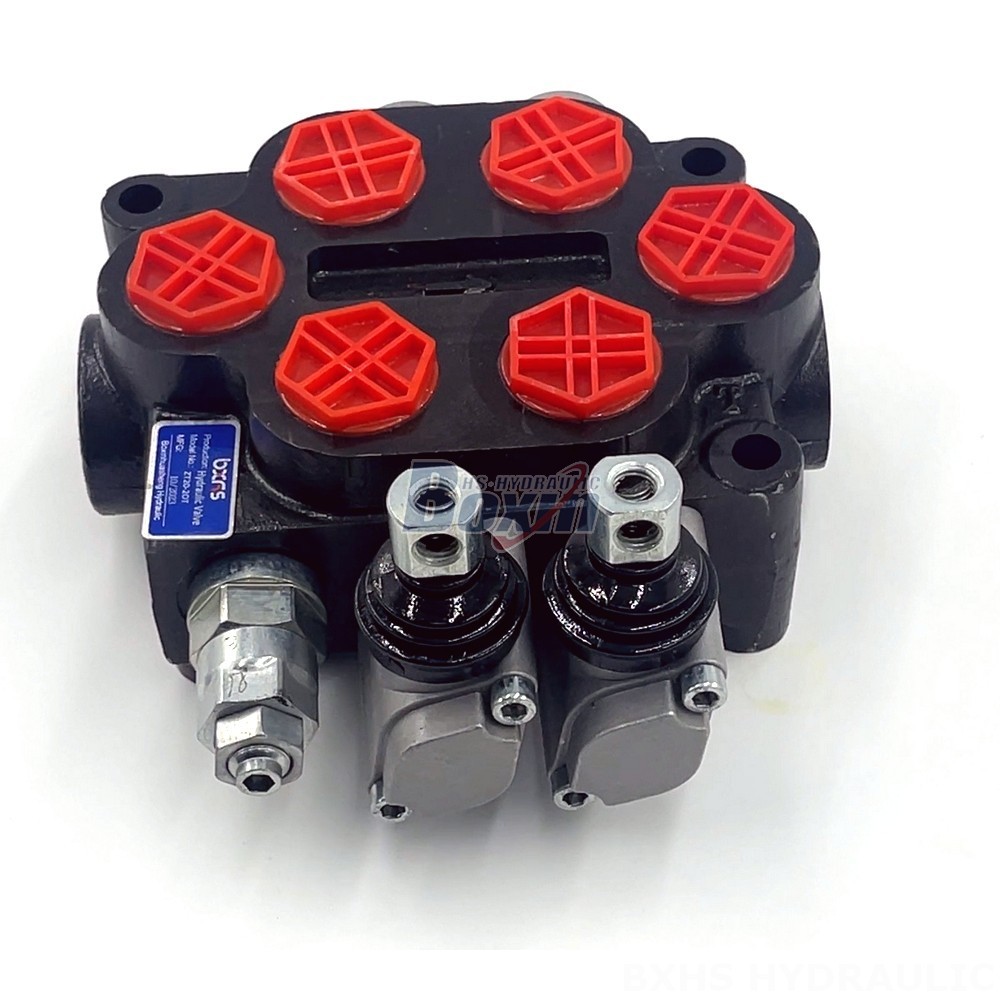

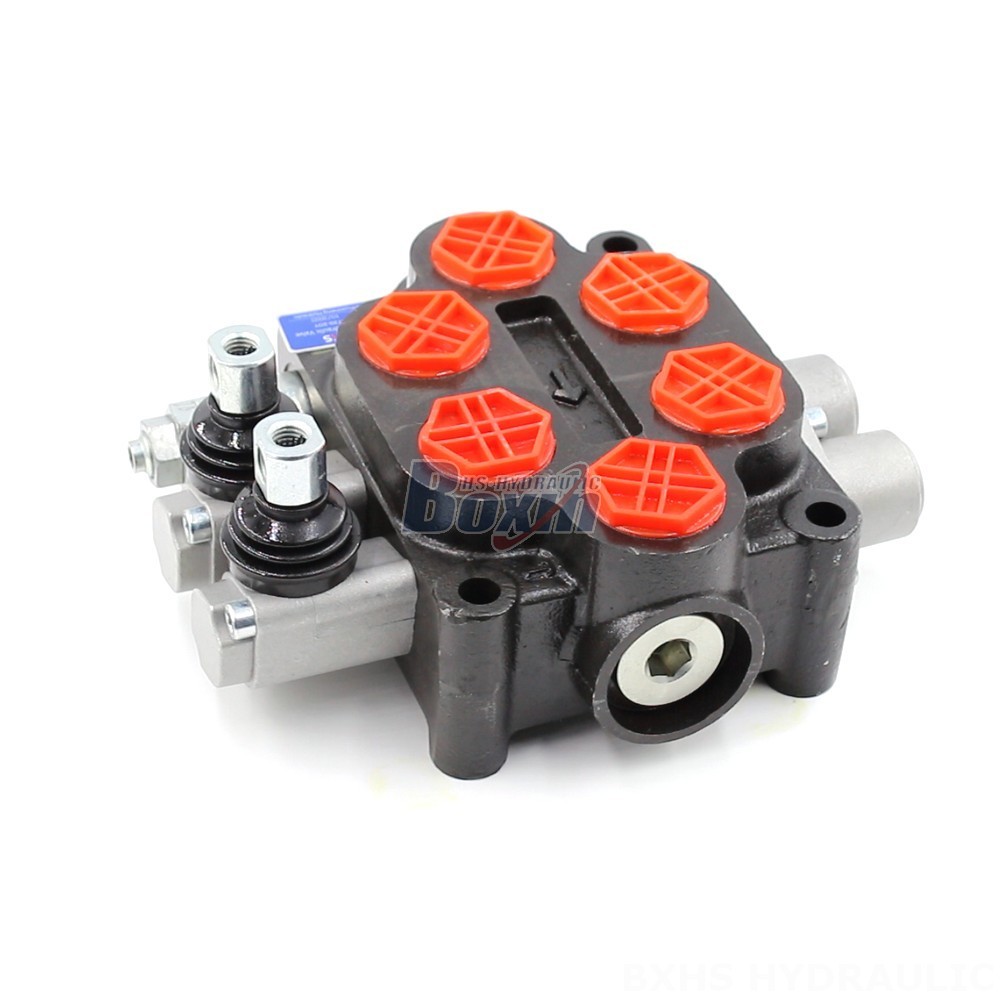

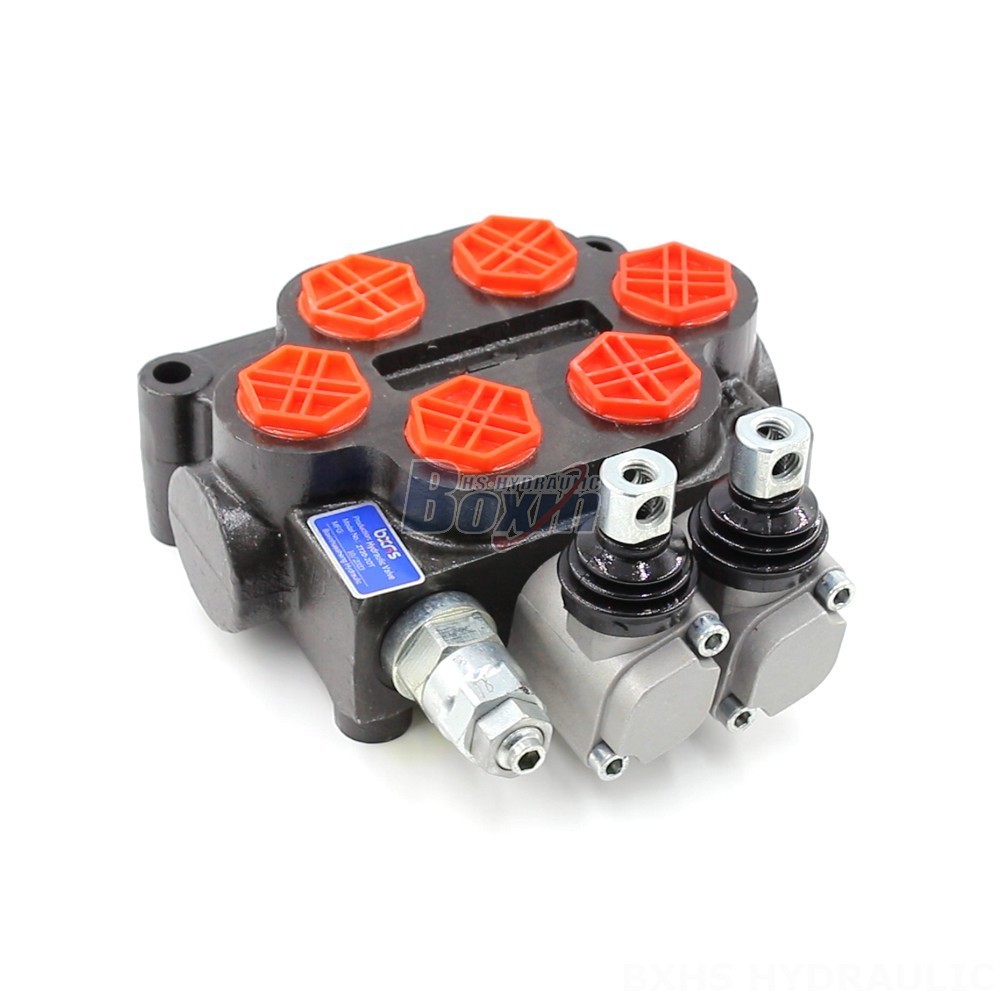

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.

ZT20 Serisi Hidrolik Kontrol Vanası Parametreler
Kontrol Yöntemi Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara
Anma Akışı 100 L/dk (26,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm
Yapı Türü Monoblock vana
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)

This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
