Spool Type Valve | G34 Series | 4 Spools

Kontrol Yöntemi:Manuel

Makara:4 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:26*27*11

Brüt ağırlık:13.40 kg

Stok Durumu: Stokta Var

1224 Görünümler Bu Ürünü Arıyor

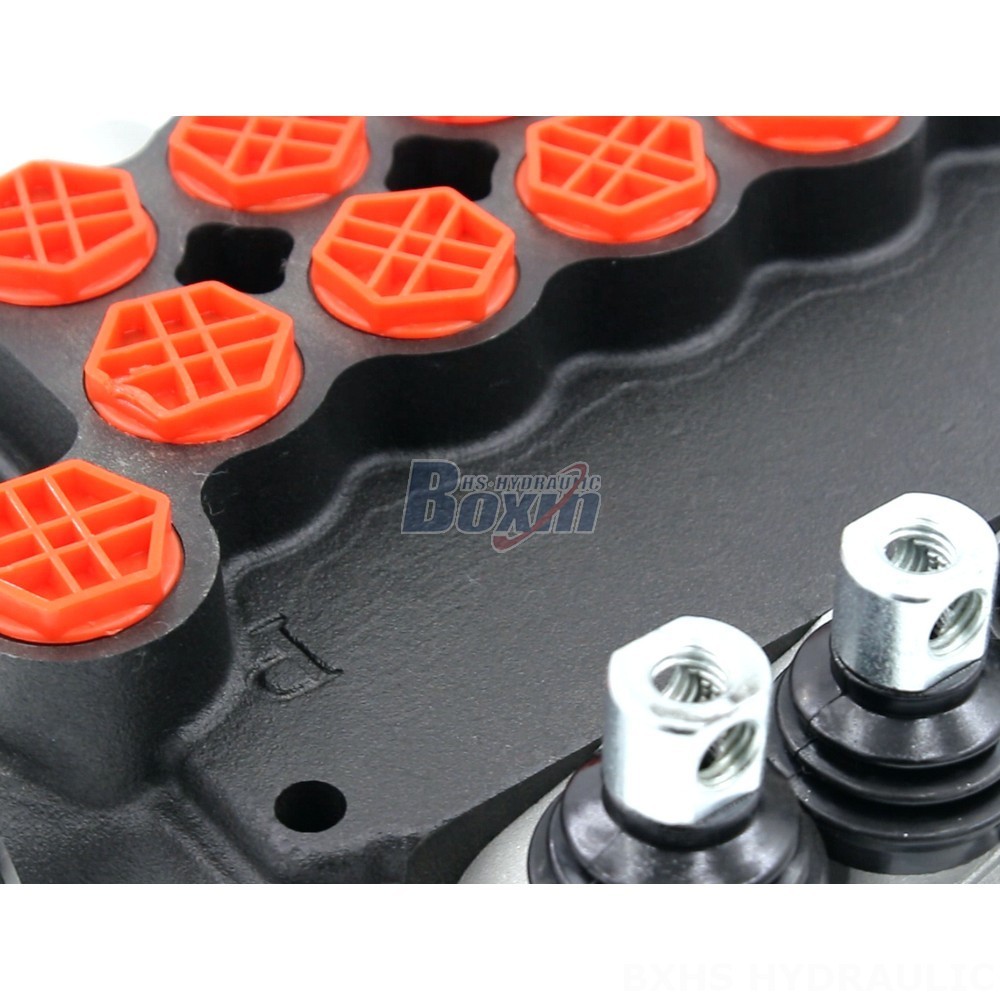

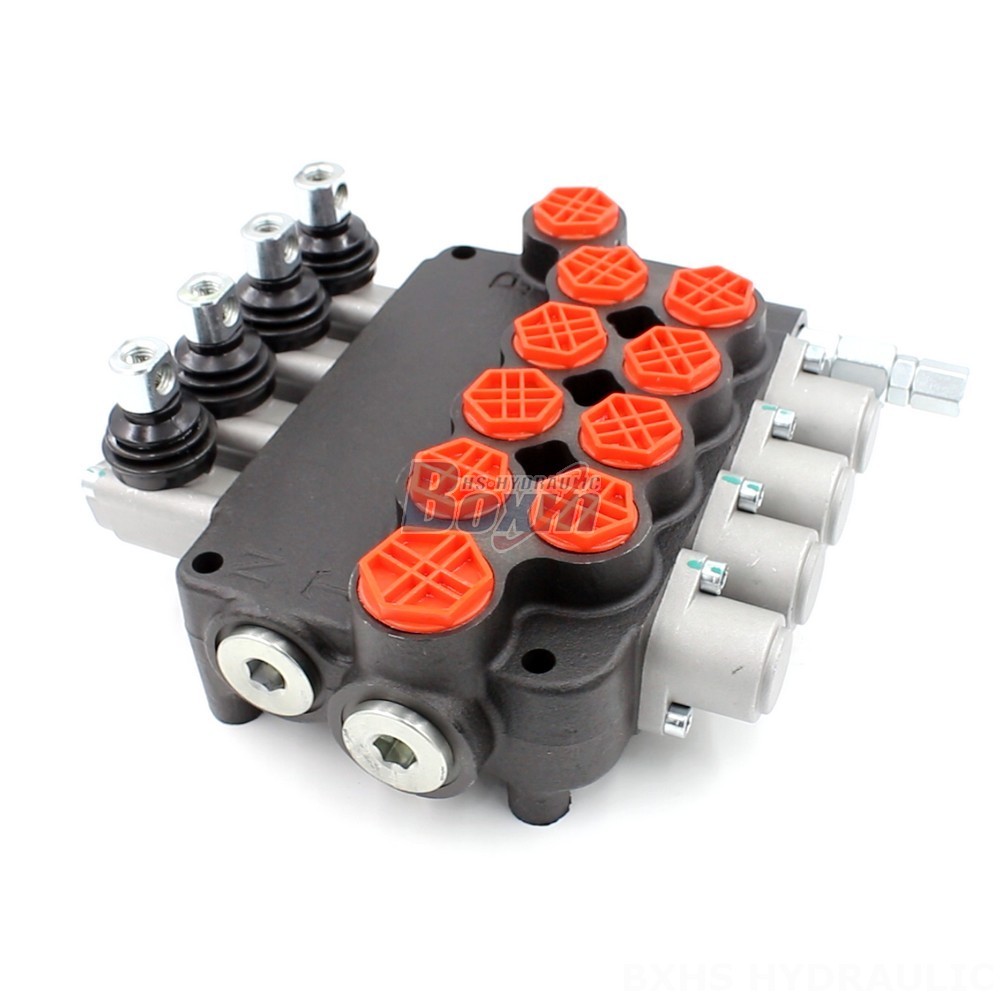

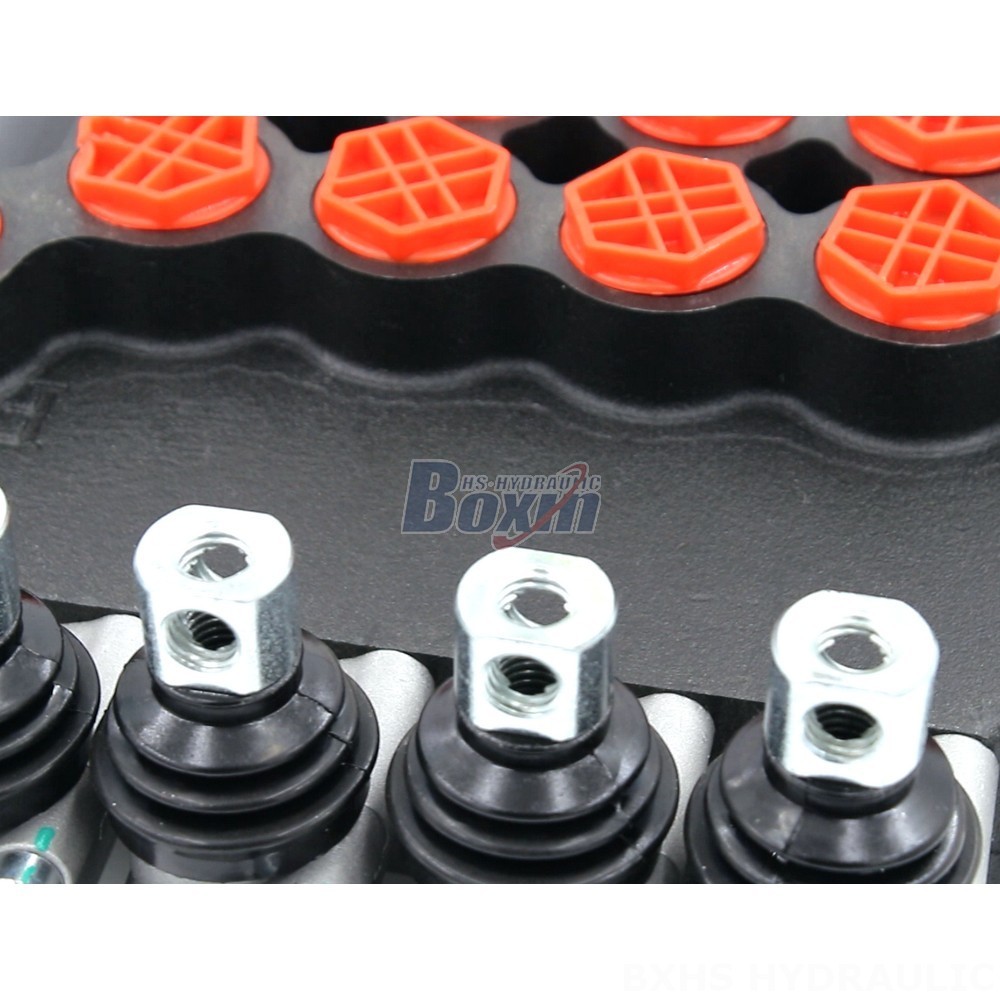

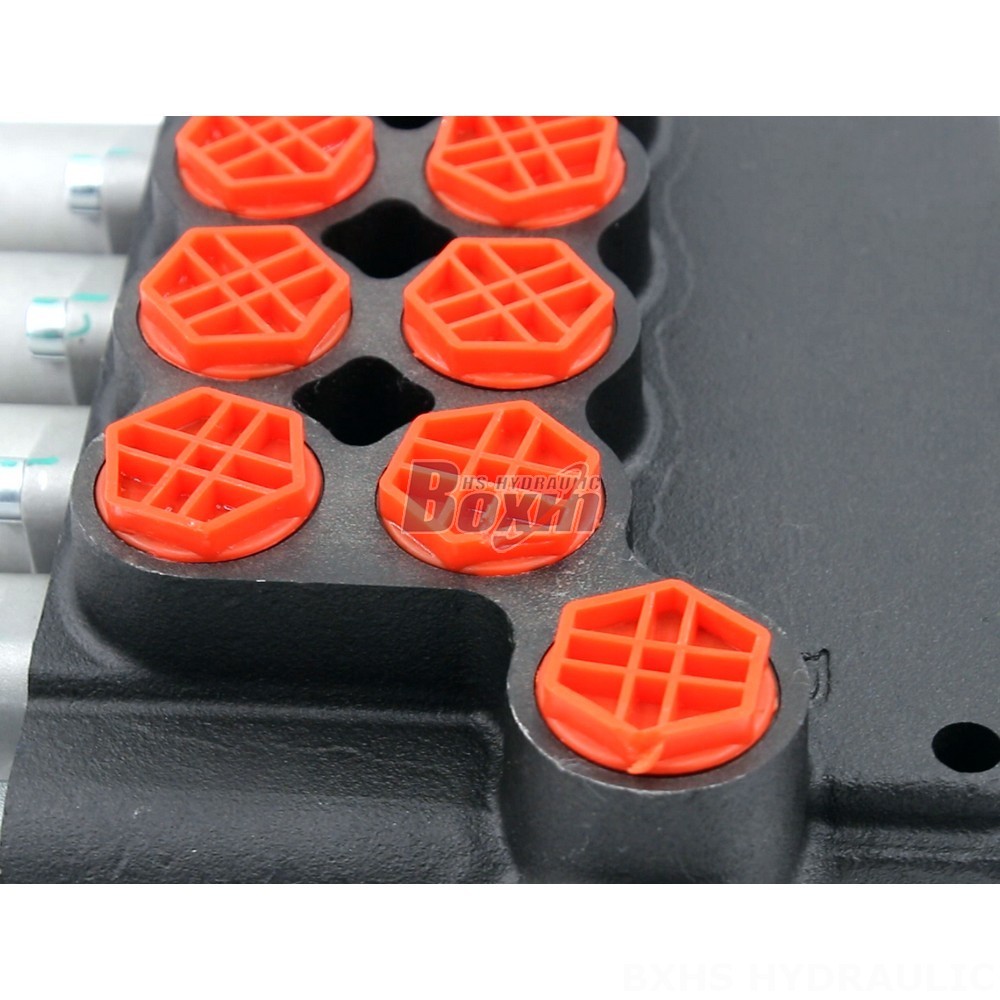

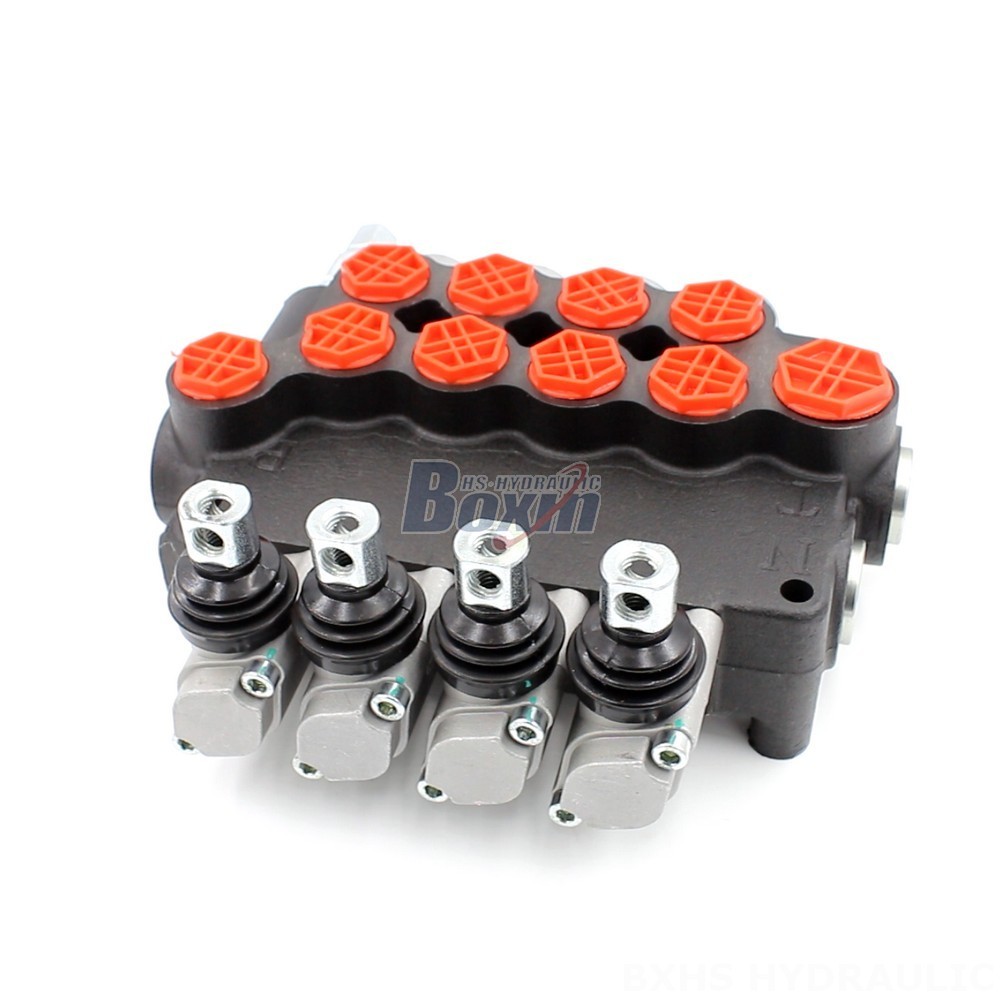

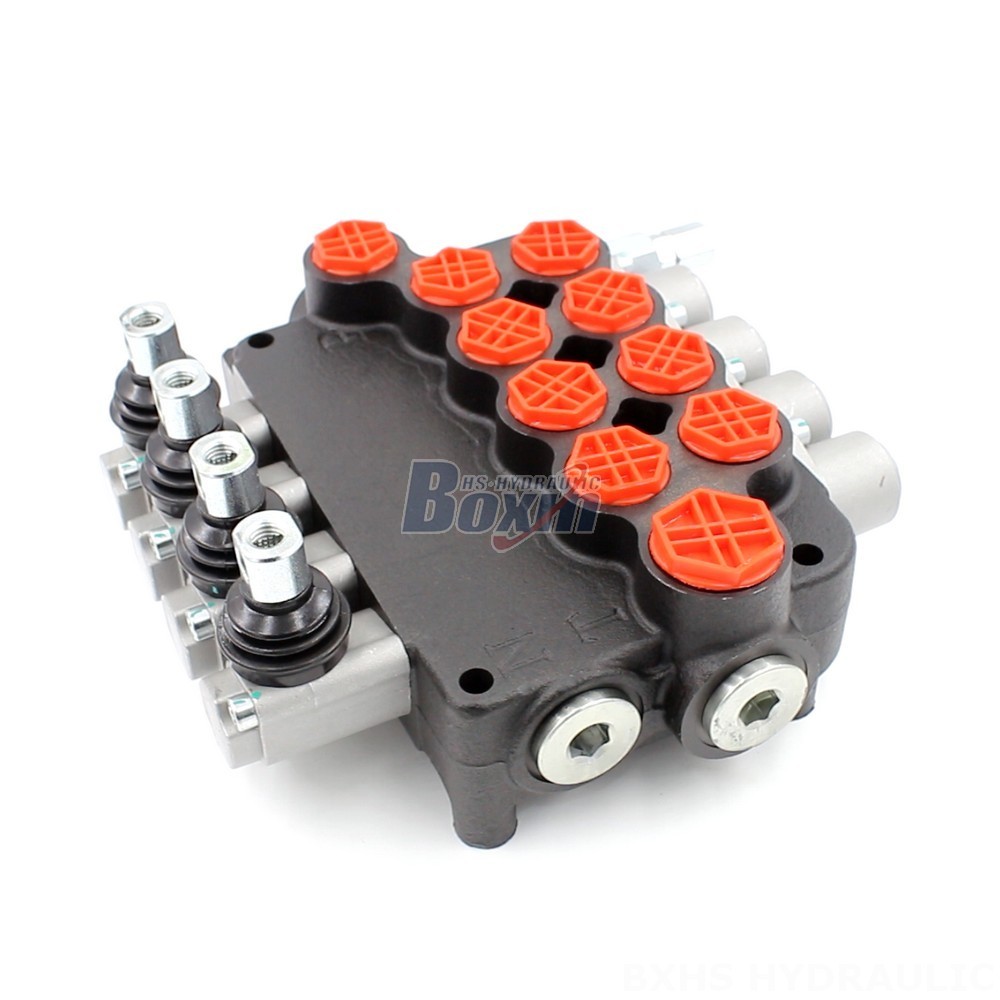

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools drawing image

The G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a robust and reliable solution for various applications in construction, material handling, agriculture, and industrial vehicles. It features a monoblock valve design, manual control, and a rated flow of 80 L/min, making it suitable for demanding tasks.

P80 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a high-performance valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It boasts a robust monoblock valve structure with 4 spools, offering precise and efficient control of hydraulic systems. The valve is manually controlled and has a rated flow of 80 L/min, making it ideal for handling various tasks. It operates at a maximum pressure of 250 bar and is compatible with a wide viscosity range (15 - 75 mm²/s). Designed for durability and reliability, this valve can withstand ambient temperatures ranging from -40°C to +80°C. Its versatile design makes it suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
