The XQF22-A Pneumatic 1 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 60 L/min and a maximum pressure of 200 bar, this valve is well-suited for handling demanding hydraulic systems. Its compact design and monoblock construction make it ideal for applications where space is limited.
| XQF Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Pnömatik |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +60°C (-40°F ila +140°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 50 L/dk (13,2 ABD galon/dak) |
| Maksimum Basınç | 200 bar (2900 psi) |
| Giriş Portu | G1/4 |
| Çıkış Portu | G1/4 |
| Port Boyutu | G1/4 |

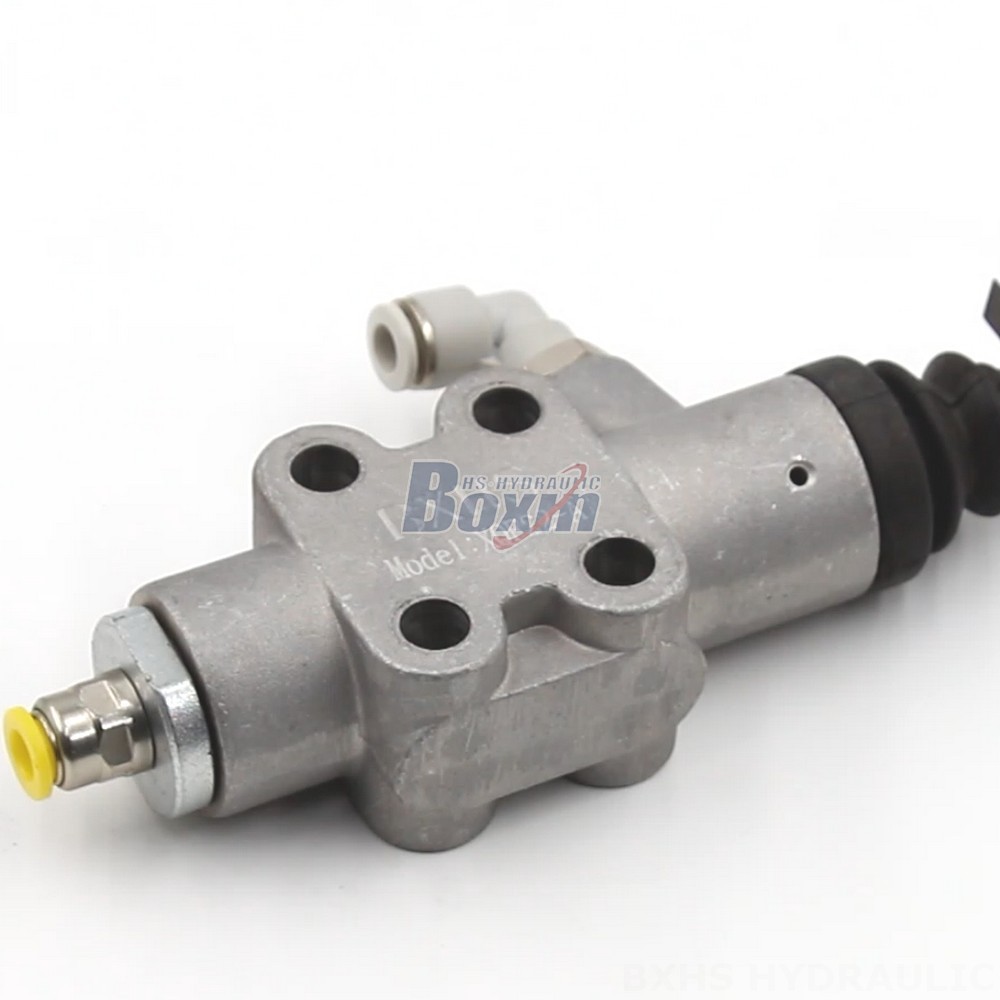

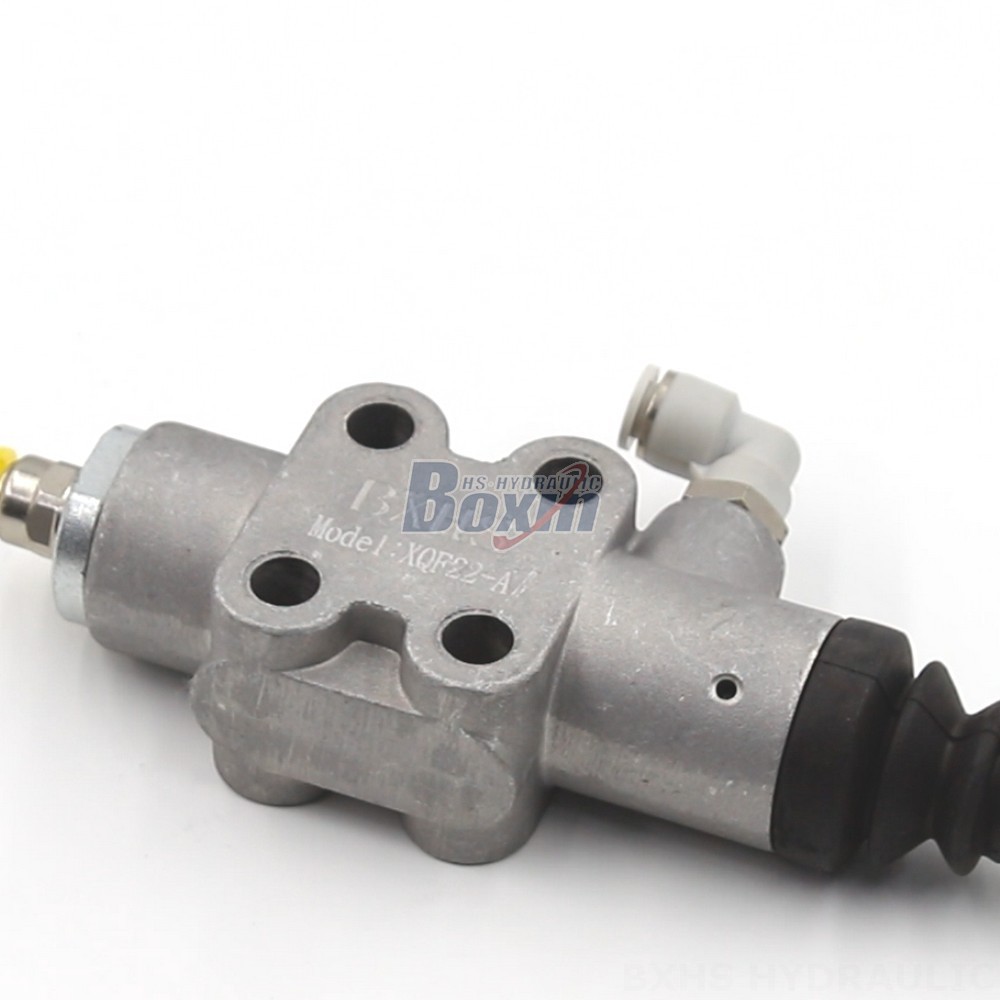

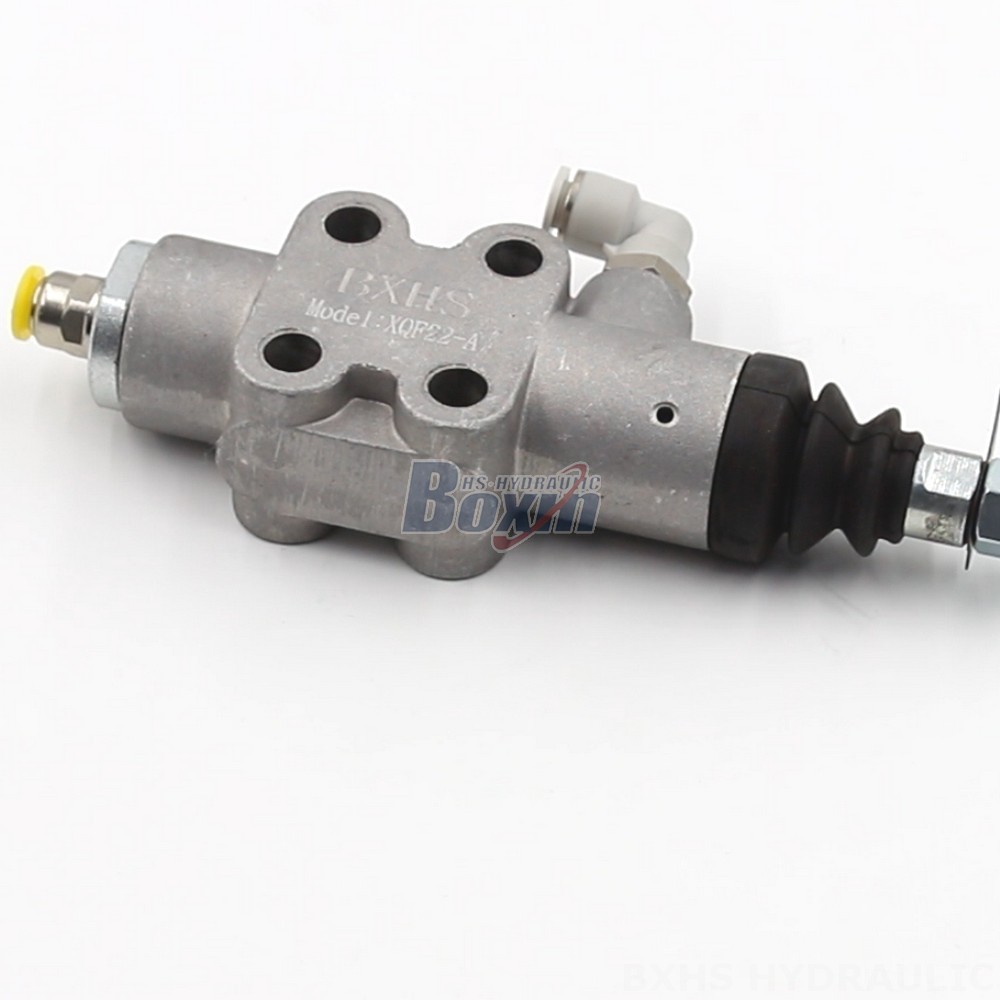

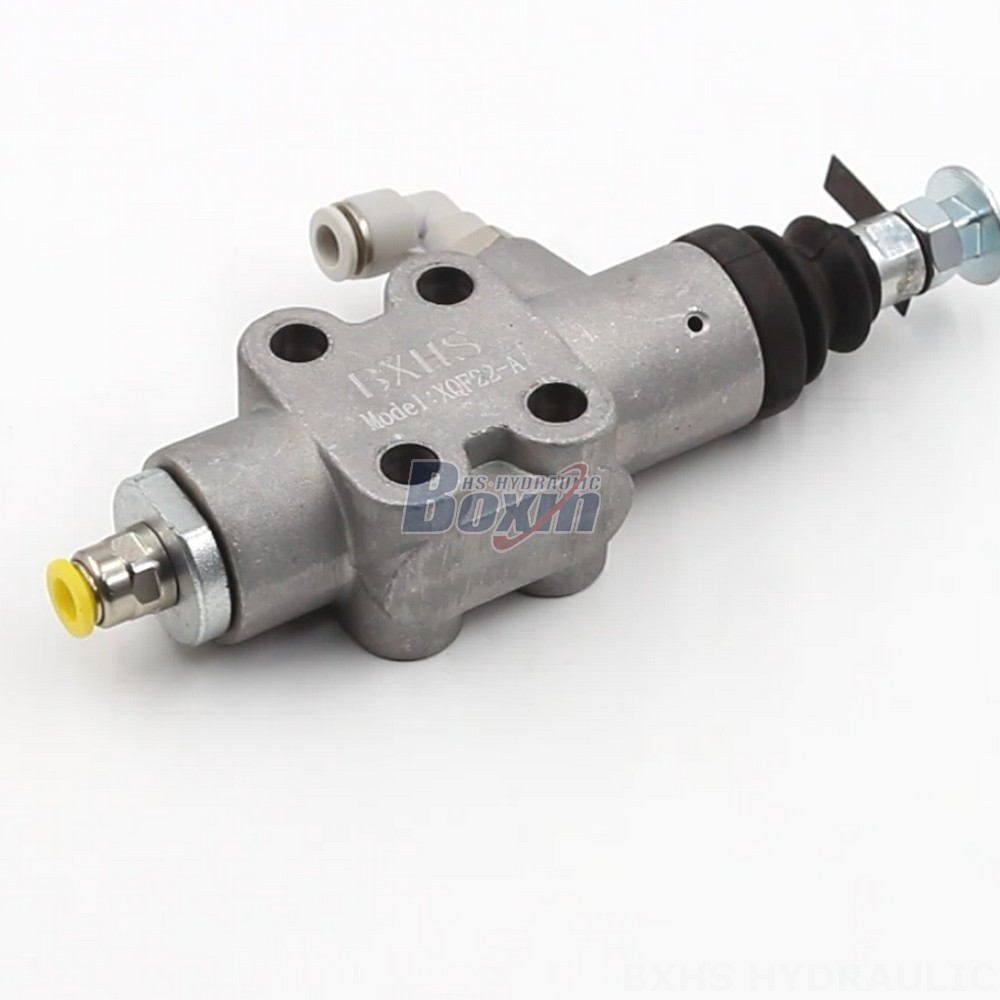

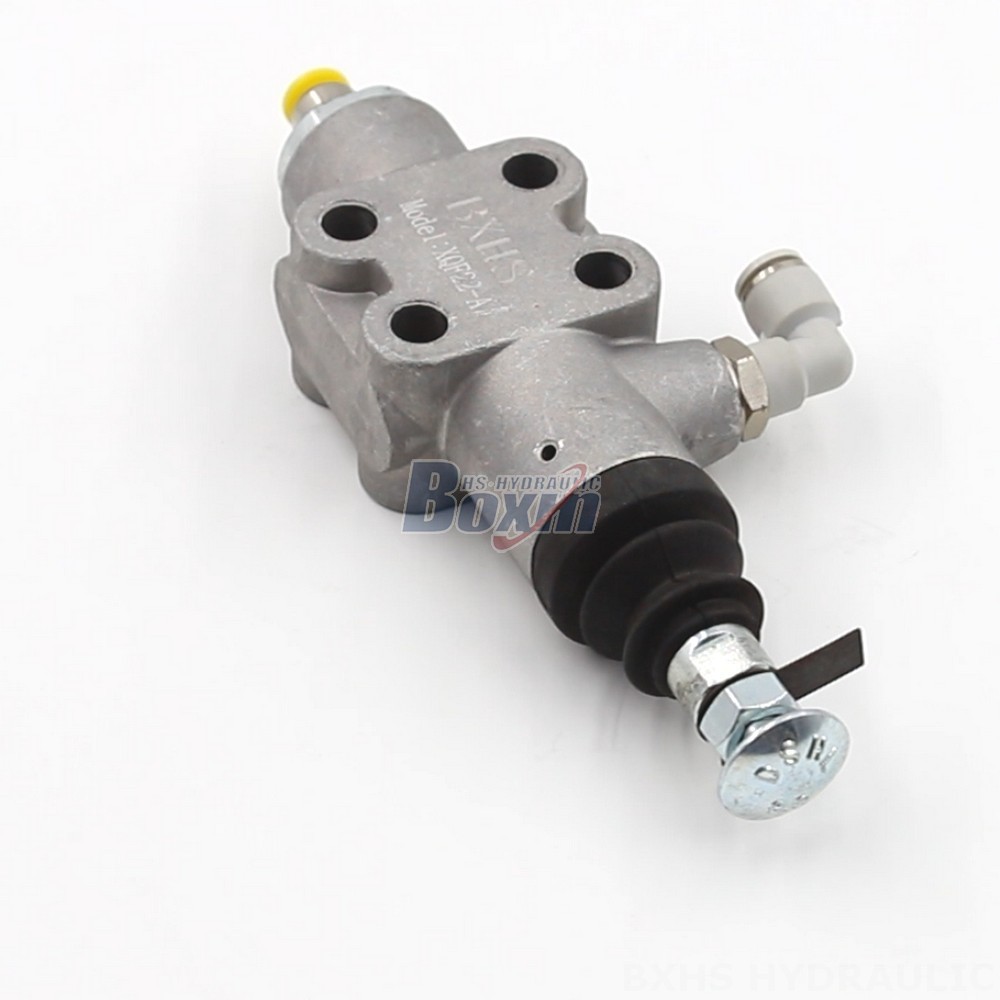

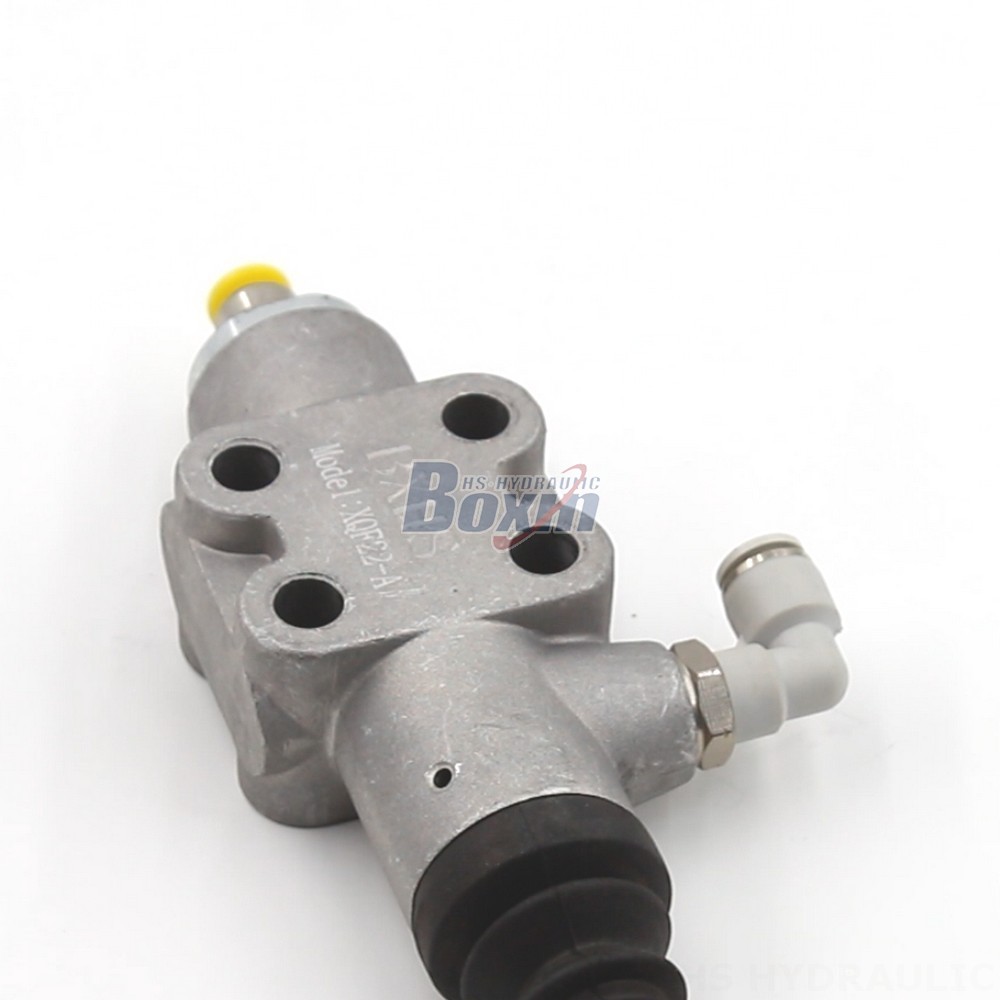

**XQF22-A Pneumatic 1 Spool Monoblock Directional Valve**
**Control Method:** Pneumatic
**Section:** 1 Section
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 200 bar (2900 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** XQF22-A Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,TRACTOR AND FRONT-END LOADER
The XQF22-A Pneumatic 1 Spool Monoblock Directional Valve is a versatile and reliable valve that is well-suited for a wide range of applications. Its compact design and high performance make it an ideal choice for demanding hydraulic systems.
