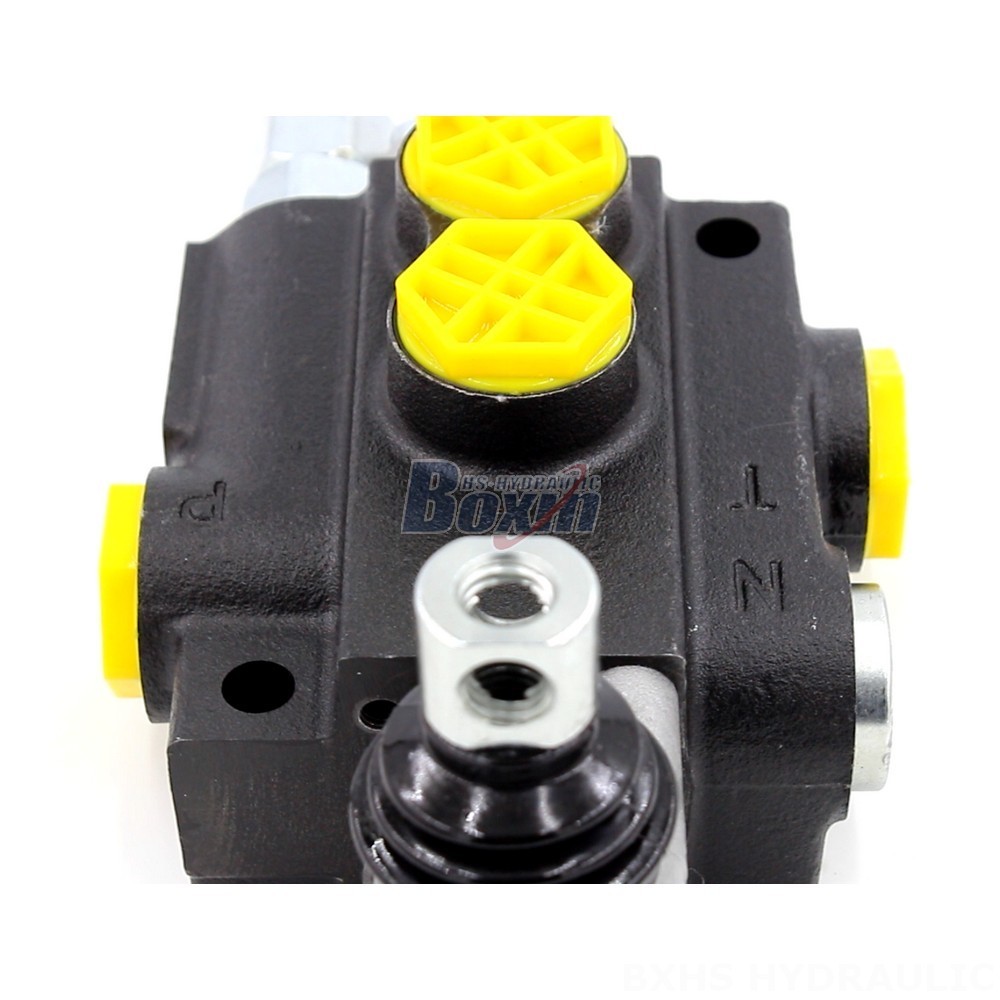

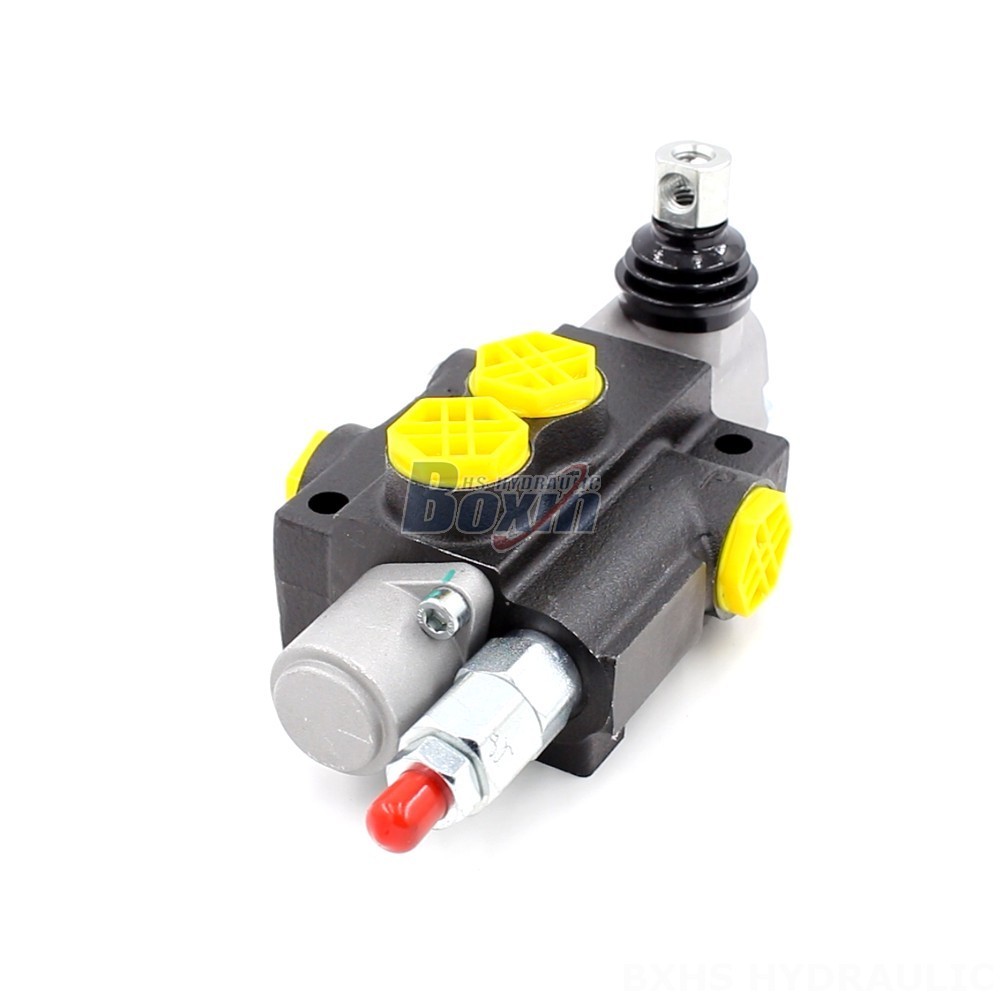

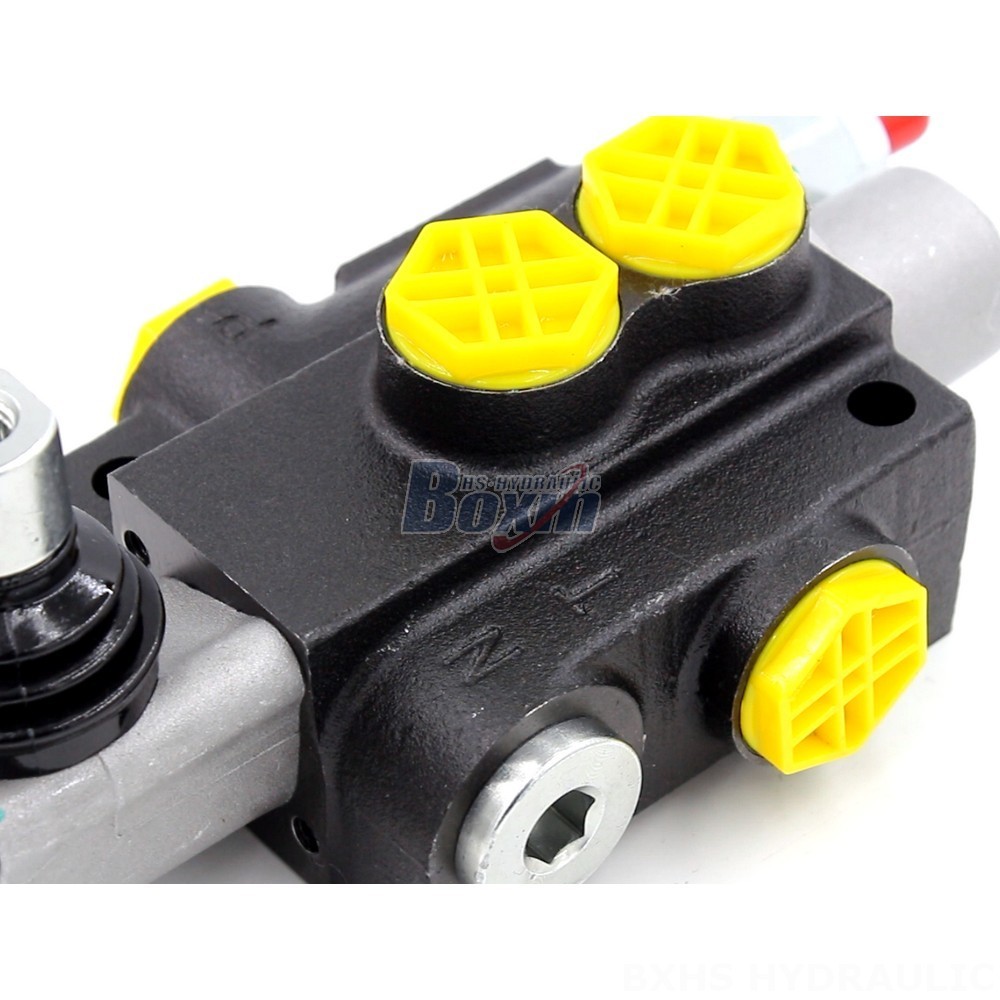

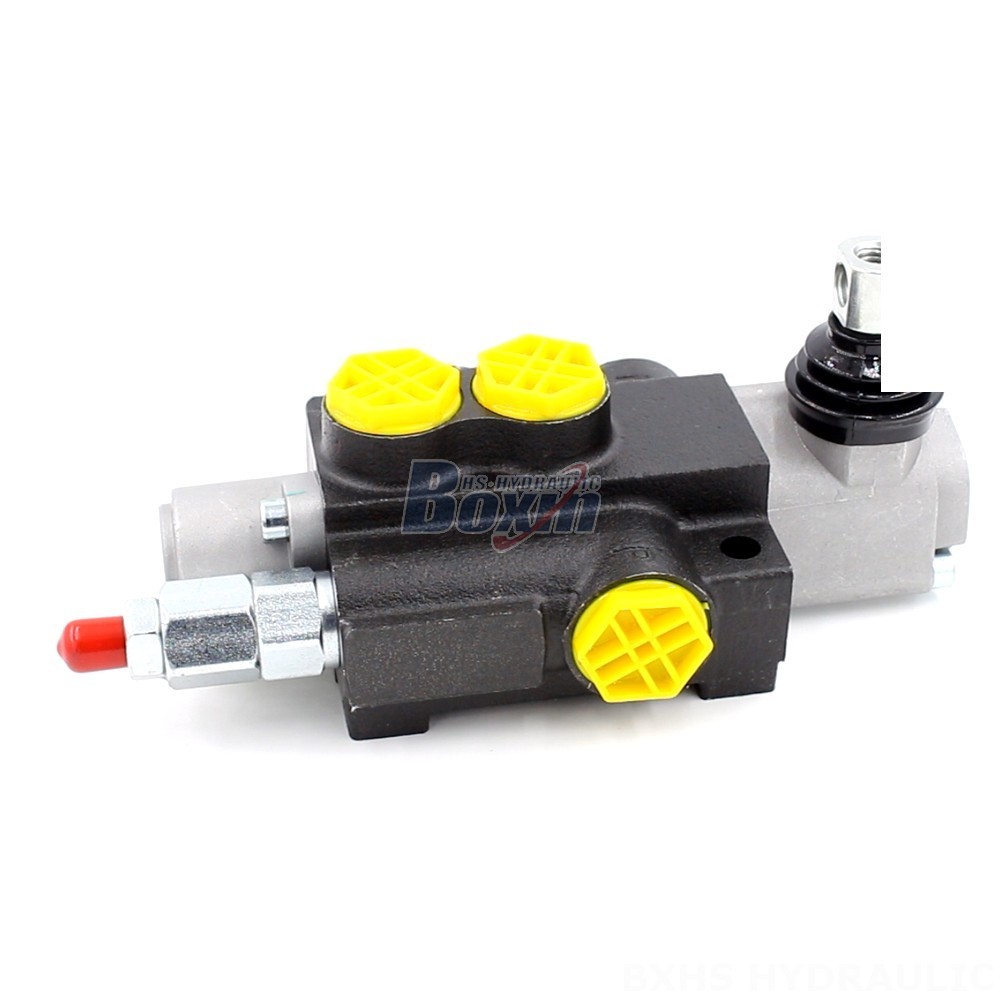

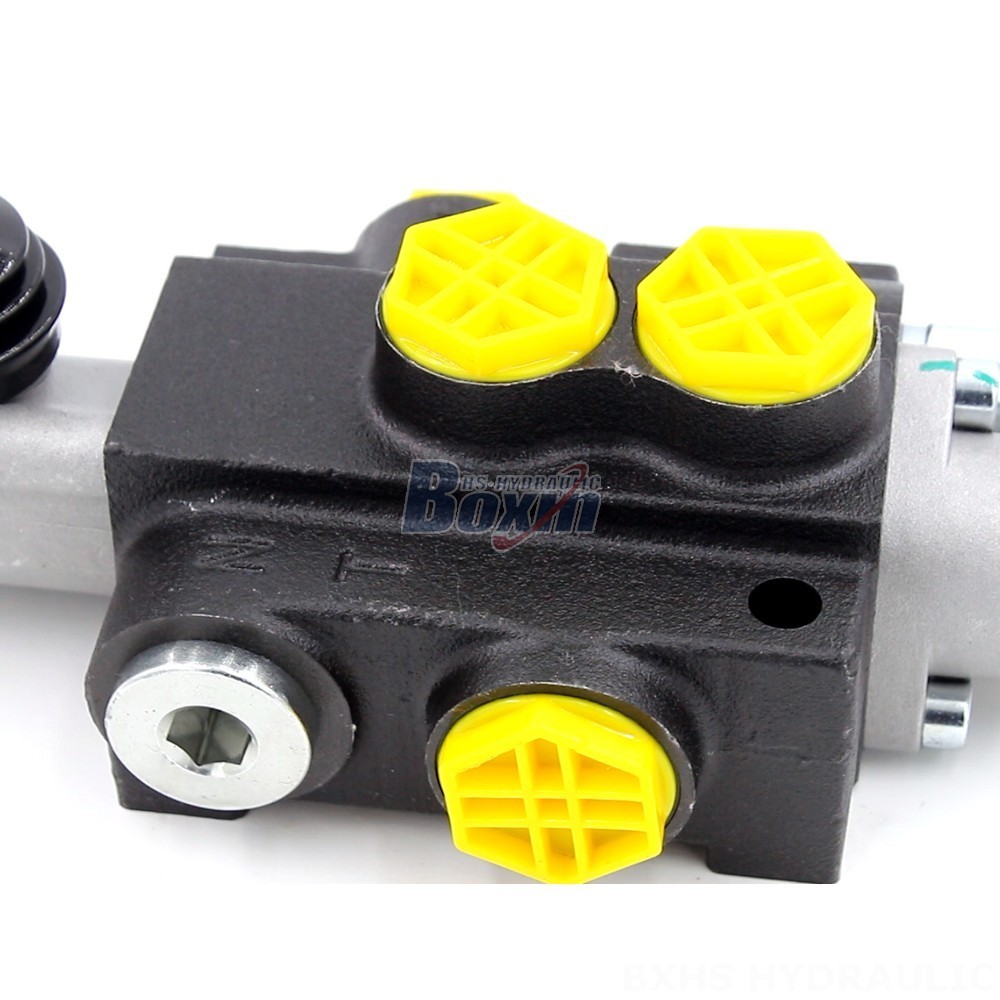

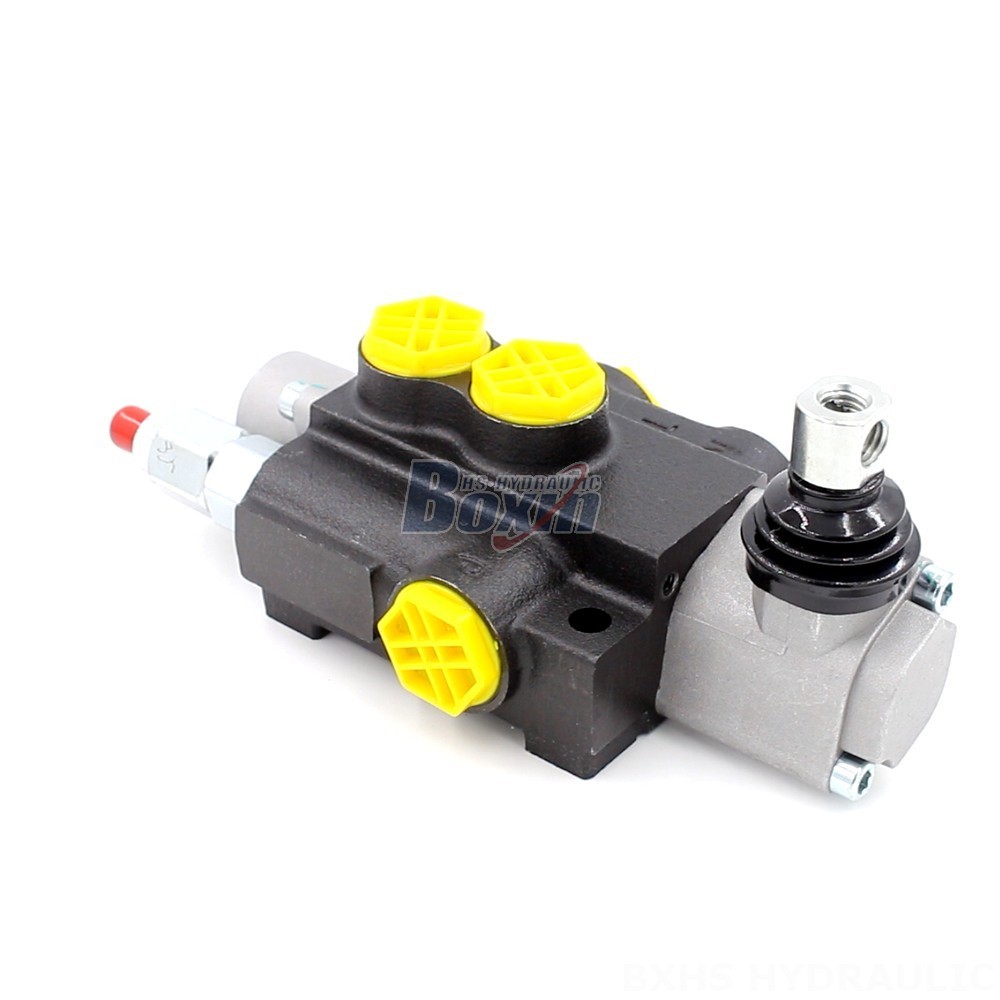

Hydraulic Valve Manufacturer | P40-G12-1OT Directional Valve

Kontrol Yöntemi:Manuel

Makara:1 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:23*16*11

Brüt ağırlık:3.00 kg

Stok Durumu: Stokta Var

1064 Görünümler Bu Ürünü Arıyor

Hydraulic Valve Manufacturer | P40-G12-1OT Directional Valve

Hydraulic Valve Manufacturer | P40-G12-1OT Directional Valve

Hydraulic Valve Manufacturer | P40-G12-1OT Directional Valve drawing image

The P40-G12-1OT Directional Valve is a high-performance, manual control, monoblock hydraulic valve designed for various applications in construction, agriculture, and industrial vehicles. It features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for telehandlers, forklifts, cranes, stackers, and more.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-1OT Directional Valve is a robust and reliable hydraulic valve designed for demanding applications. It features a single spool and a single section with manual control, providing precise flow control and directional switching. Its monoblock construction ensures high strength and durability. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle a wide range of hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s allows for use in various fluid conditions. The P40-G12-1OT is designed for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its rugged construction and wide operating temperature range of -40°C to +80°C make it suitable for use in challenging environments.
