Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi

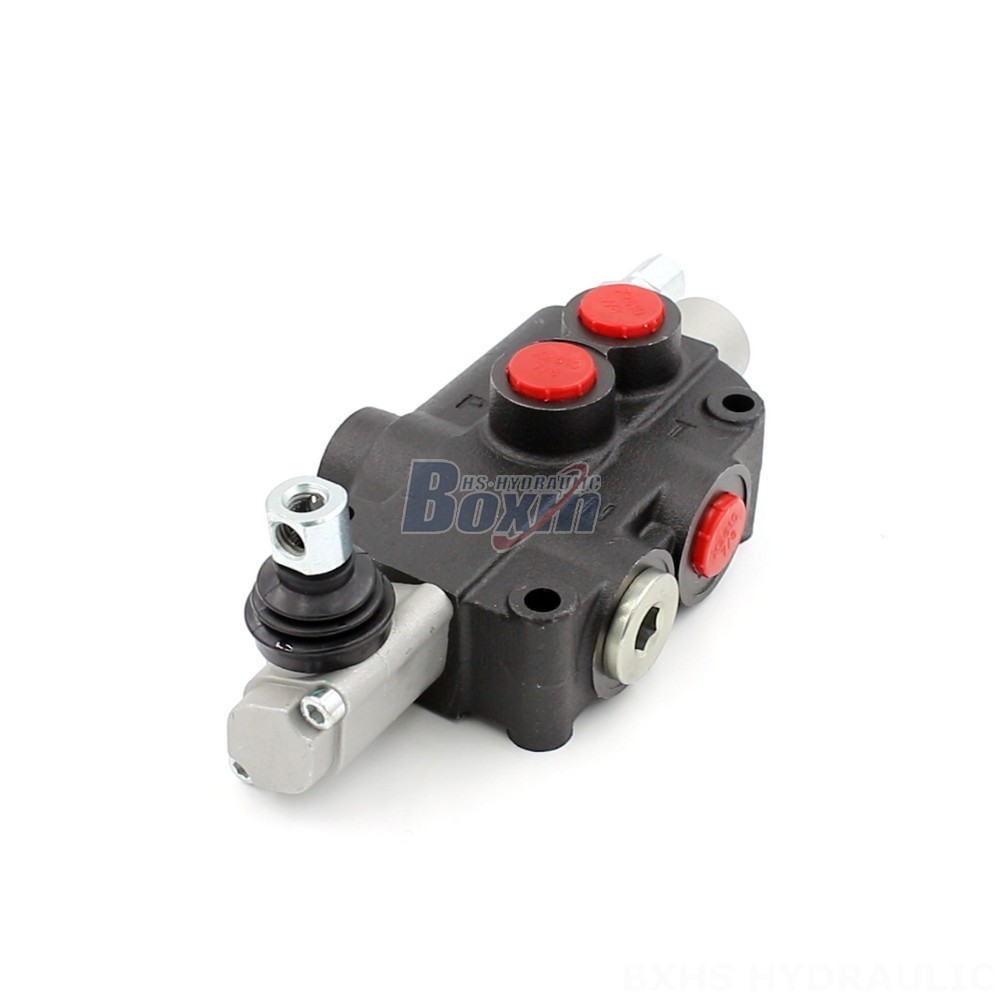

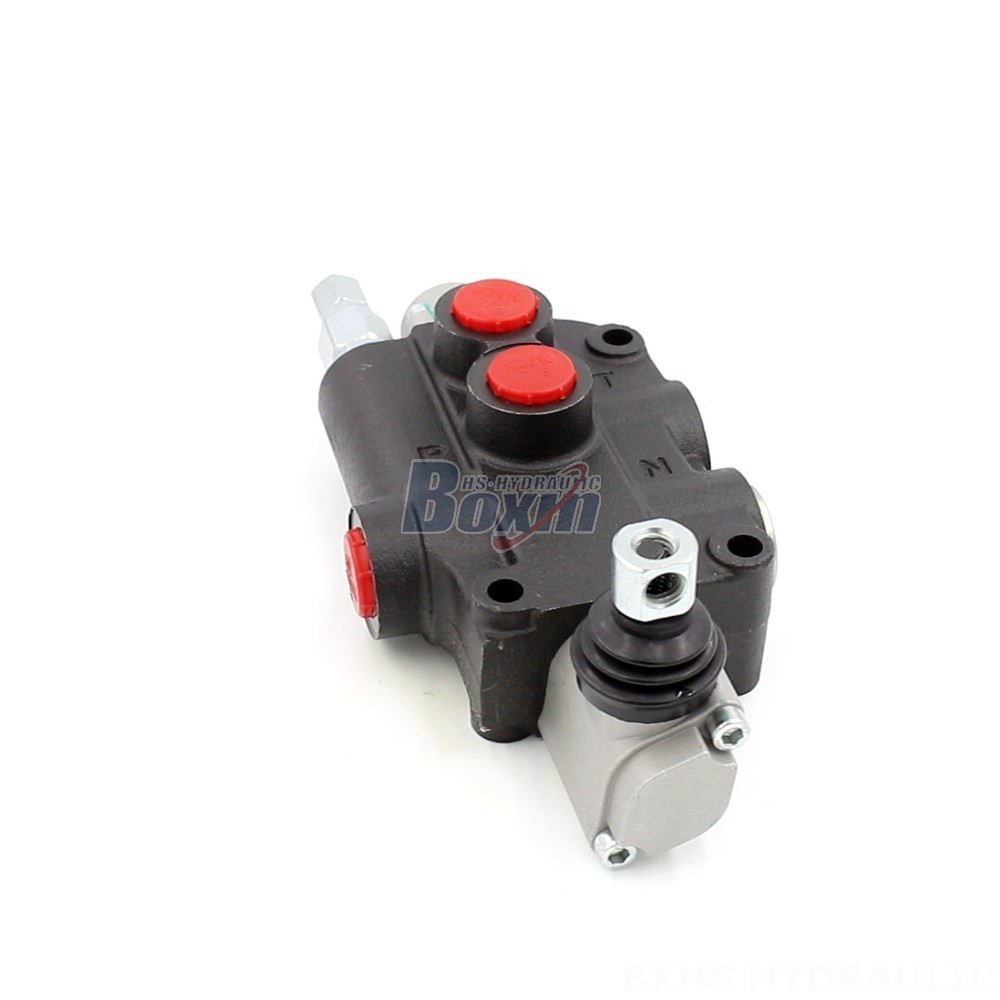

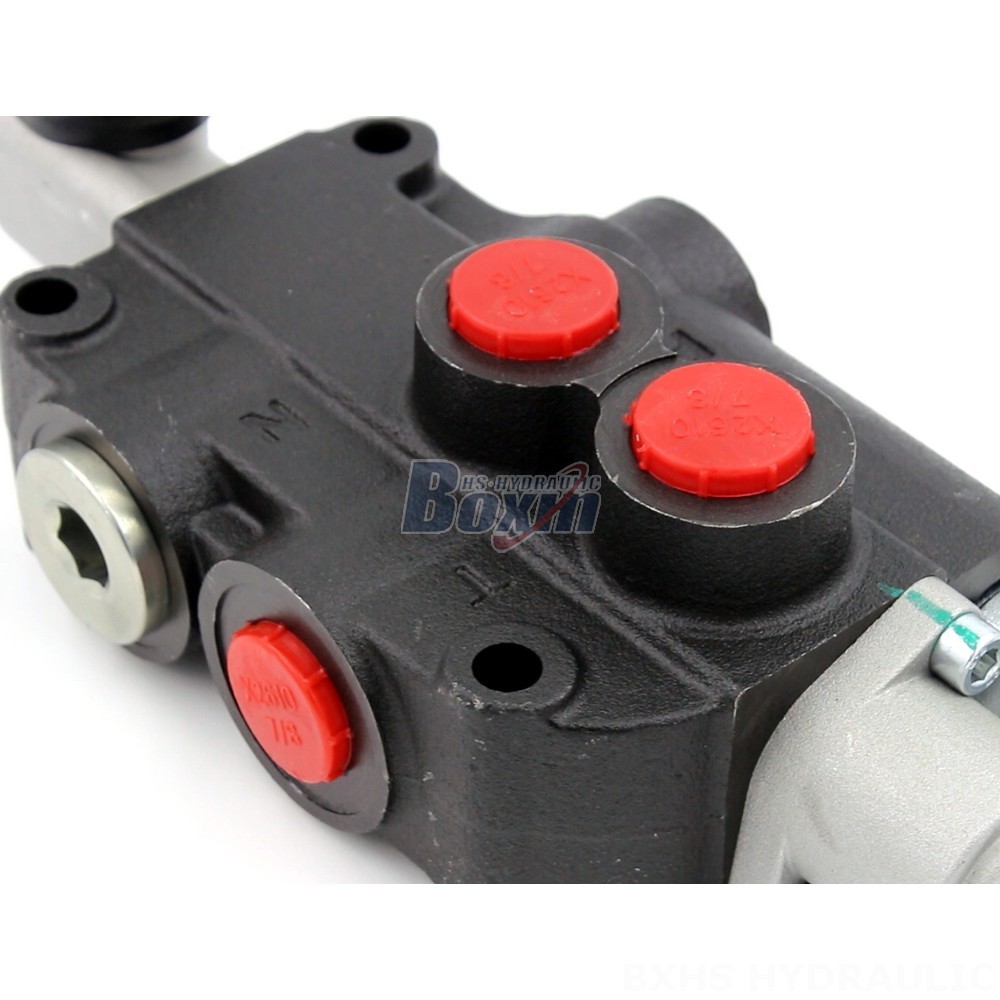

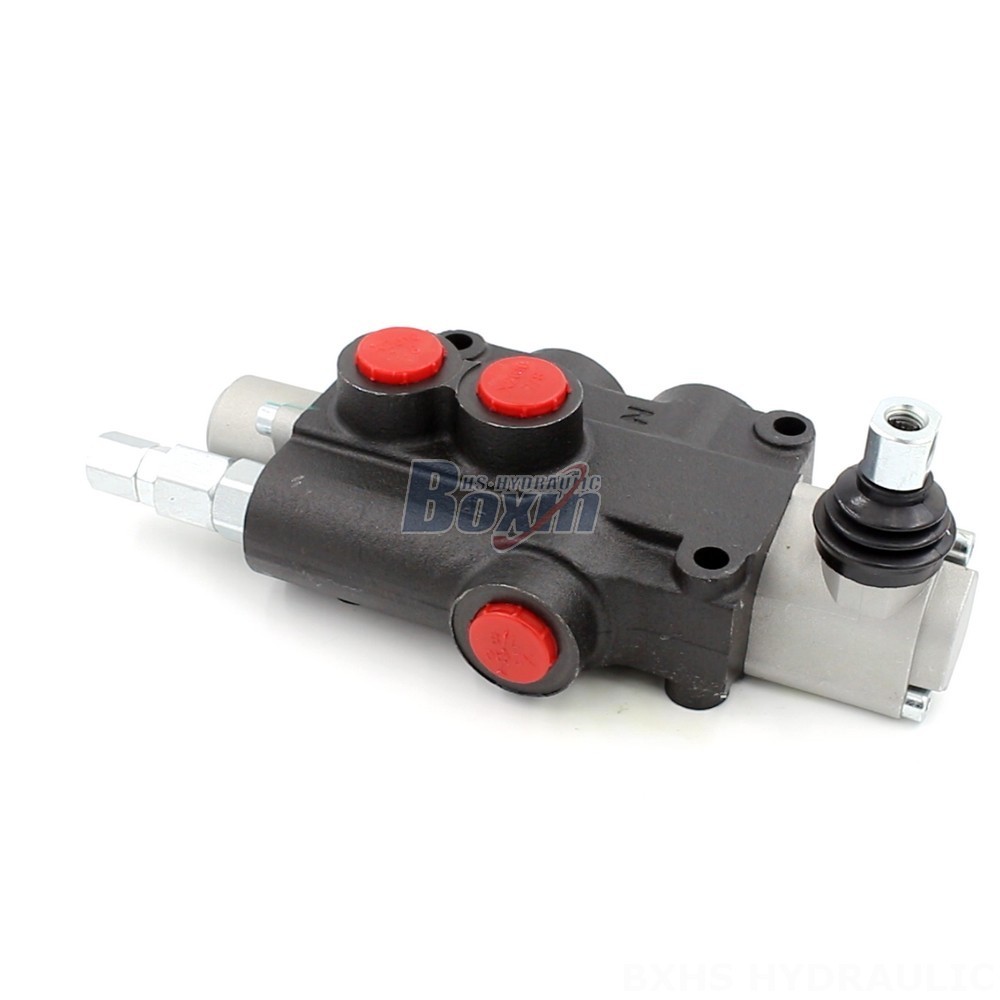

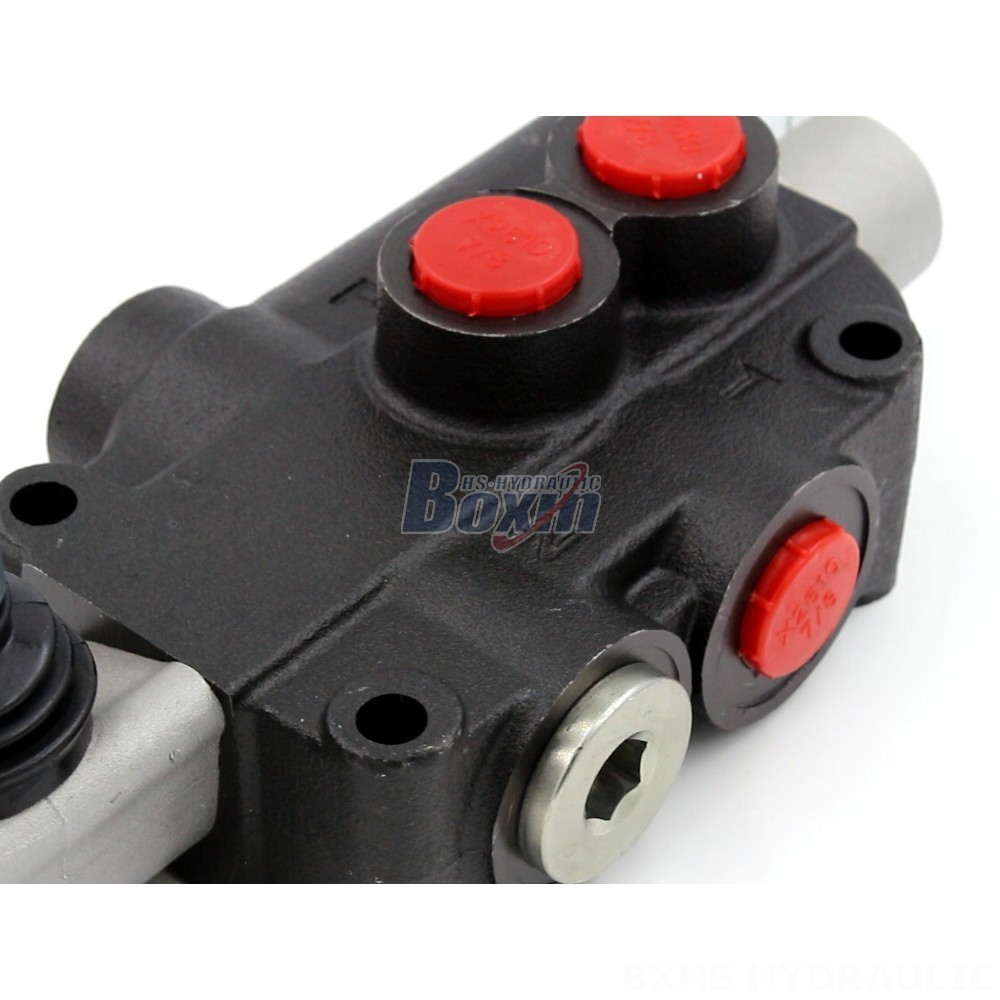

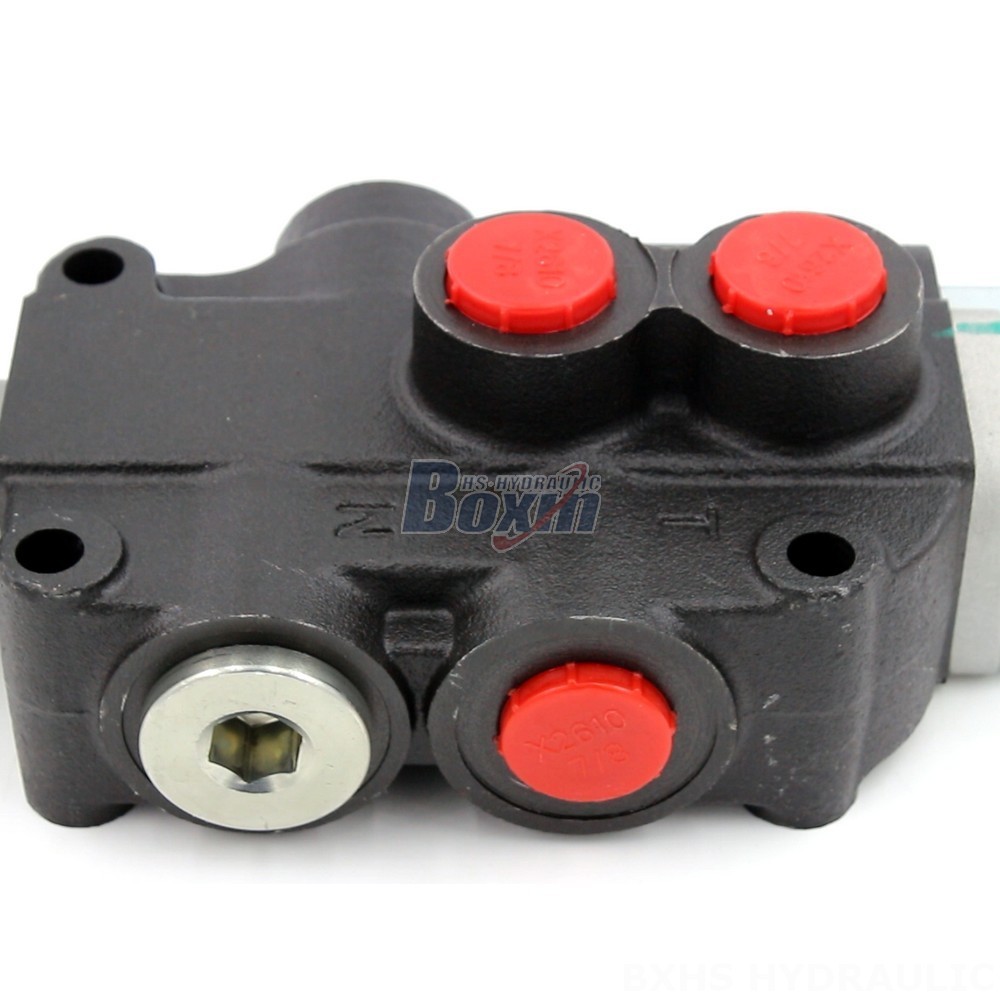

The SDS180 Hydraulic Valve P80-U78-OT is a high-quality, direct control monoblock valve designed for material handling applications, particularly in forklifts. It offers a rated flow of 80 L/min, a maximum pressure of 250 bar, and a robust construction for reliable performance.
| P80 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 80 L/dk (21,2 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Çıkış Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Boyutu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This premium quality SDS180 Hydraulic Valve P80-U78-OT is a direct control monoblock valve ideal for material handling applications, specifically for forklifts. With a manual control method, it features a single section and a rated flow of 80 L/min. Operating at a maximum pressure of 250 bar, this valve is designed for demanding environments. Its monoblock construction ensures durability and reliability. The valve is compatible with a wide range of operating viscosities (15-75 mm²/s) and can withstand ambient temperatures from -40°C to +80°C. This P80 series valve provides competitive pricing and is backed by our commitment to quality. It's an excellent choice for those seeking a reliable and high-performing hydraulic valve for their forklift applications.
