Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable

Kontrol Yöntemi:Selenoid

Makara:1 Makara

Anma Akışı:45 L/dk (11,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:G3/8

Çıkış Portu:G3/8

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:SD5 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:30*13*13

Brüt ağırlık:5.40 kg

Stok Durumu: Stokta Var

1130 Görünümler Bu Ürünü Arıyor

Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable

Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable

Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable drawing image

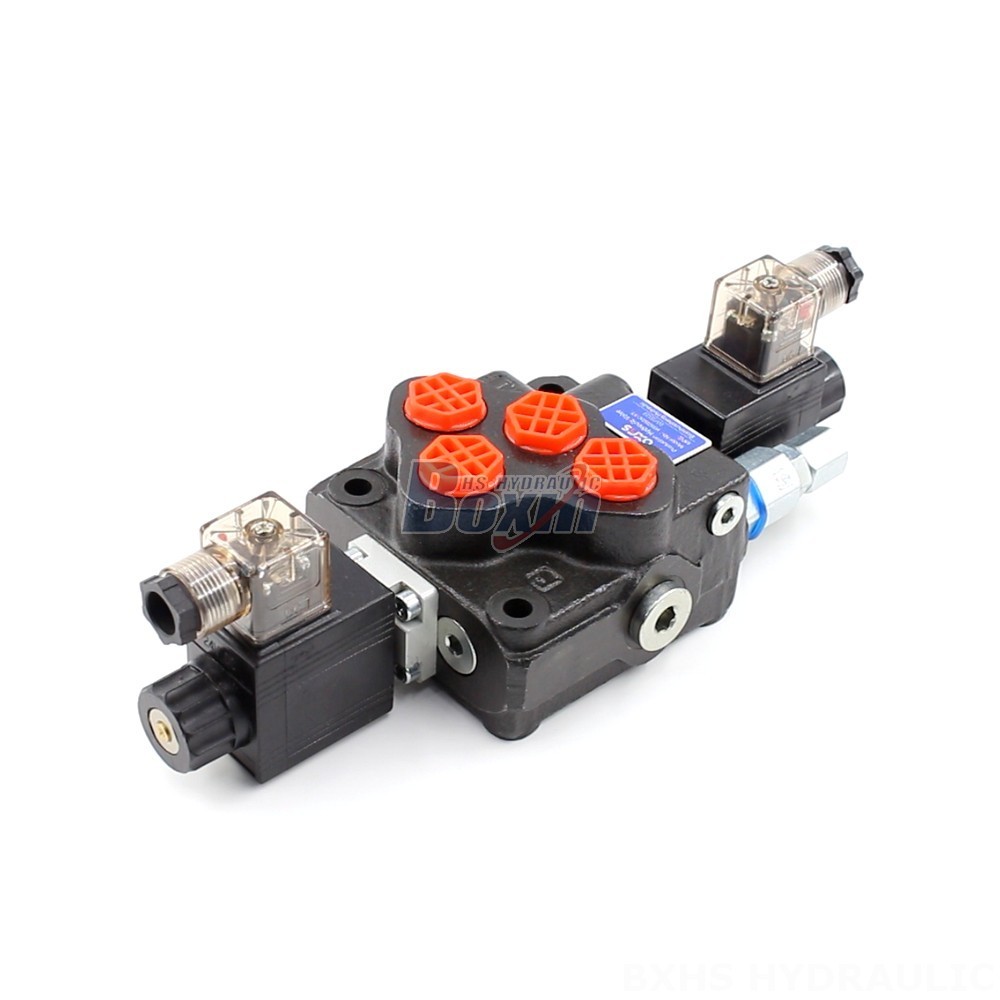

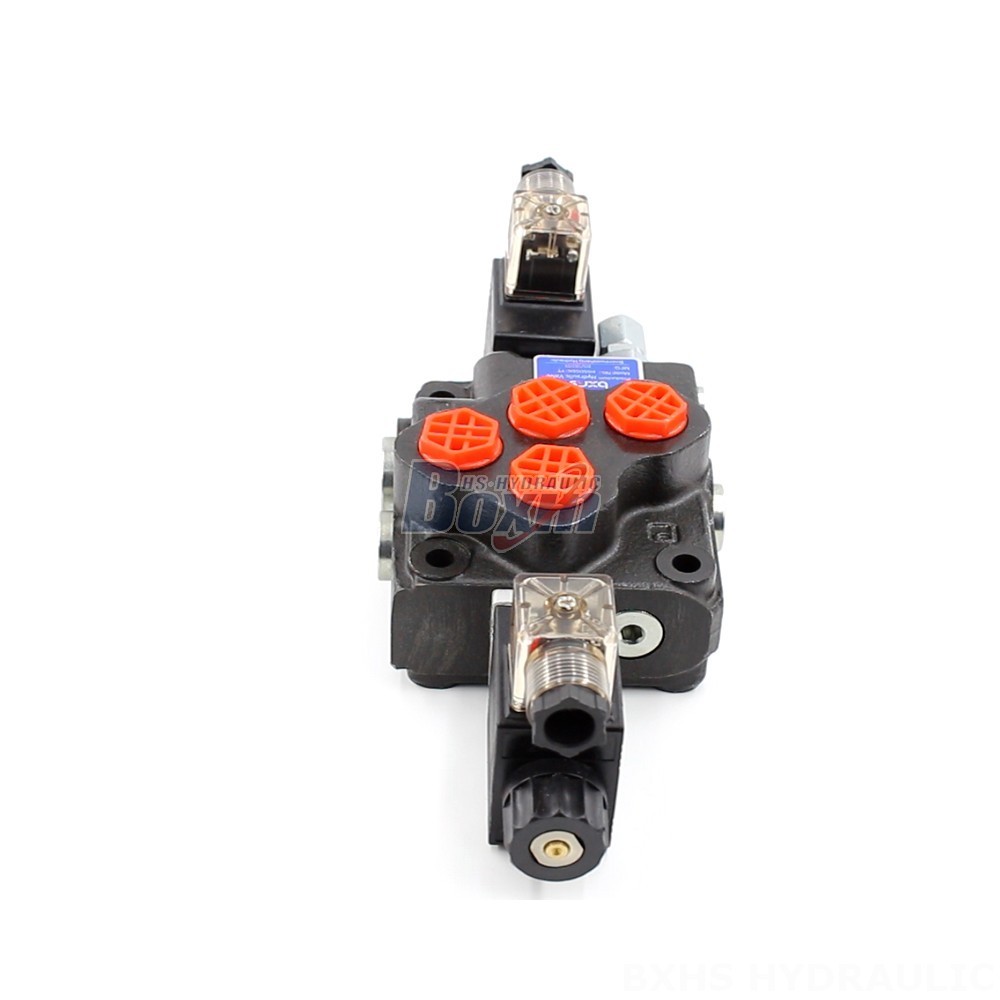

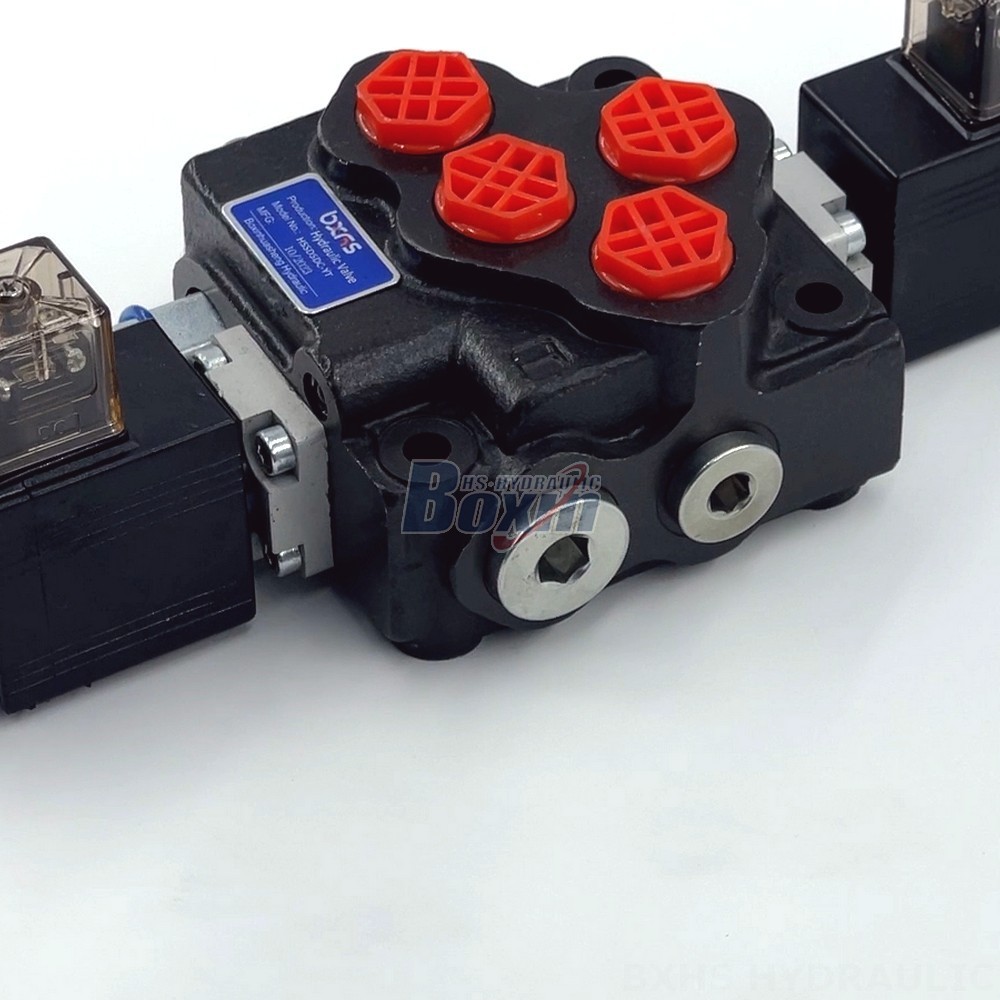

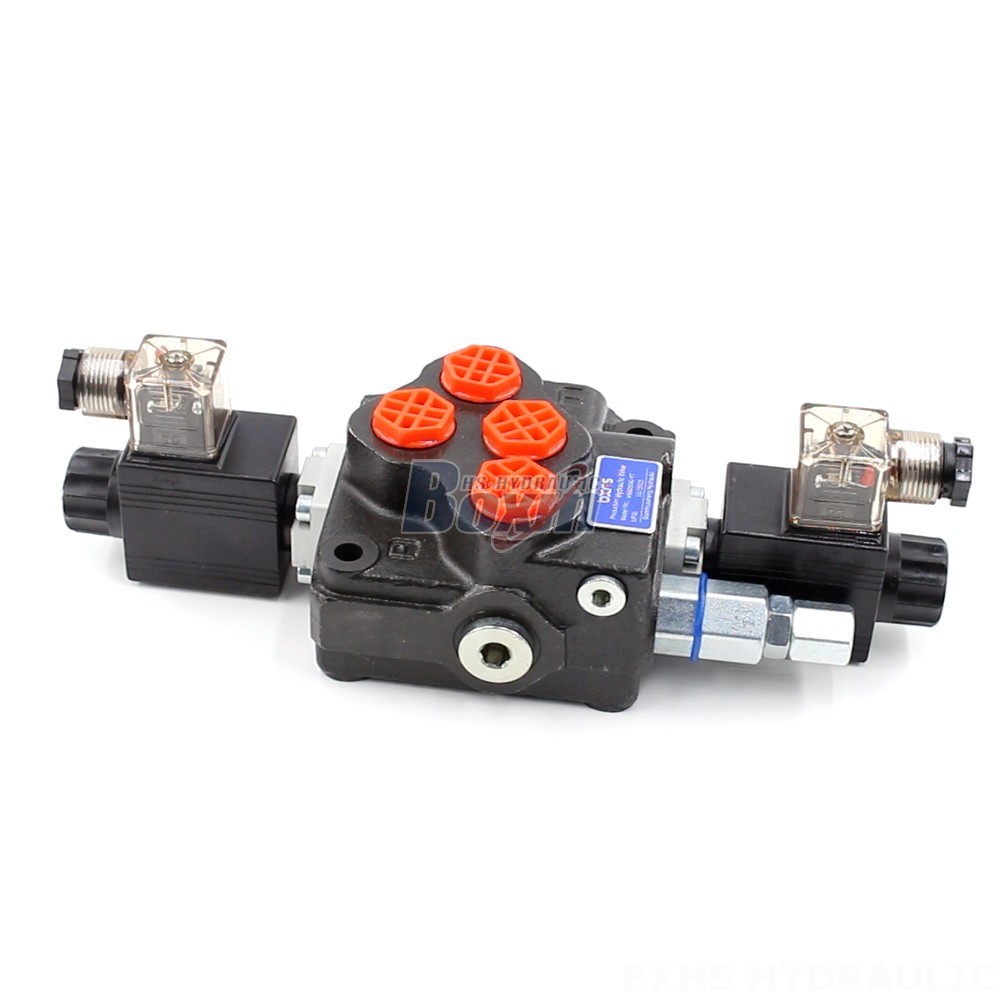

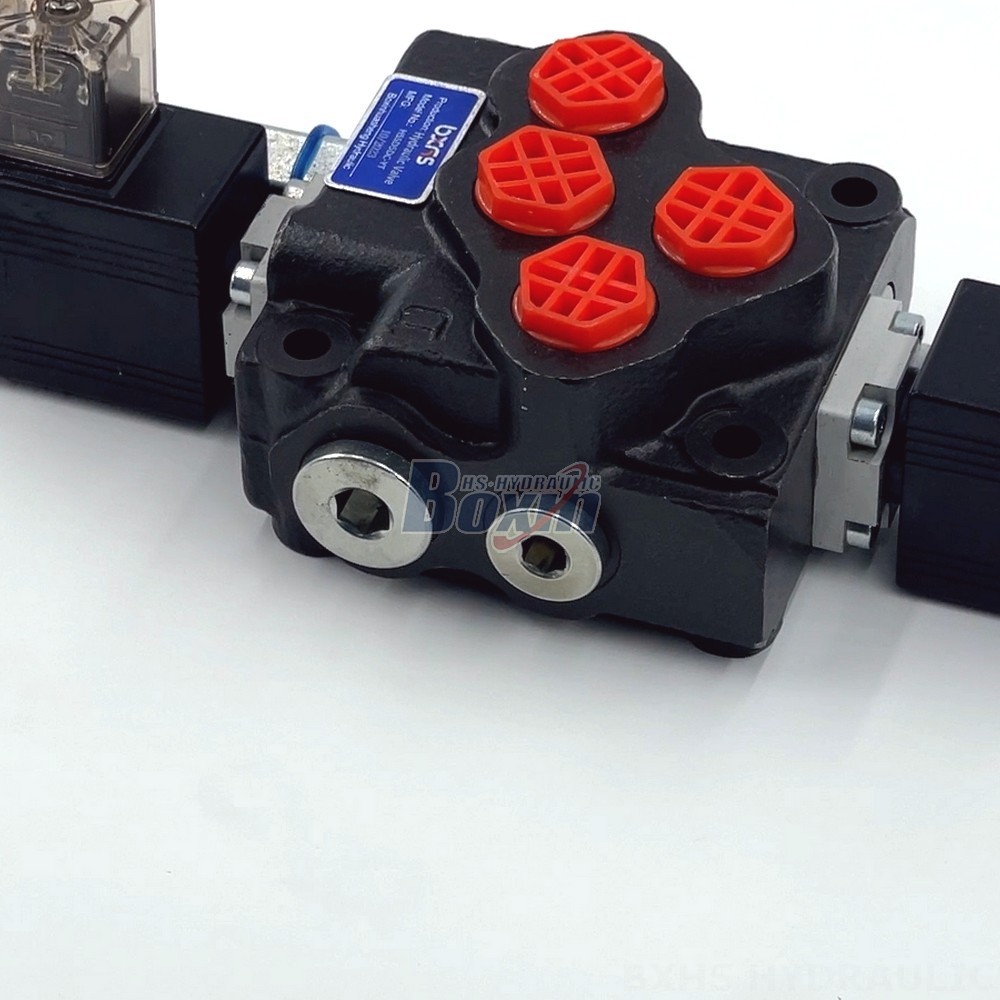

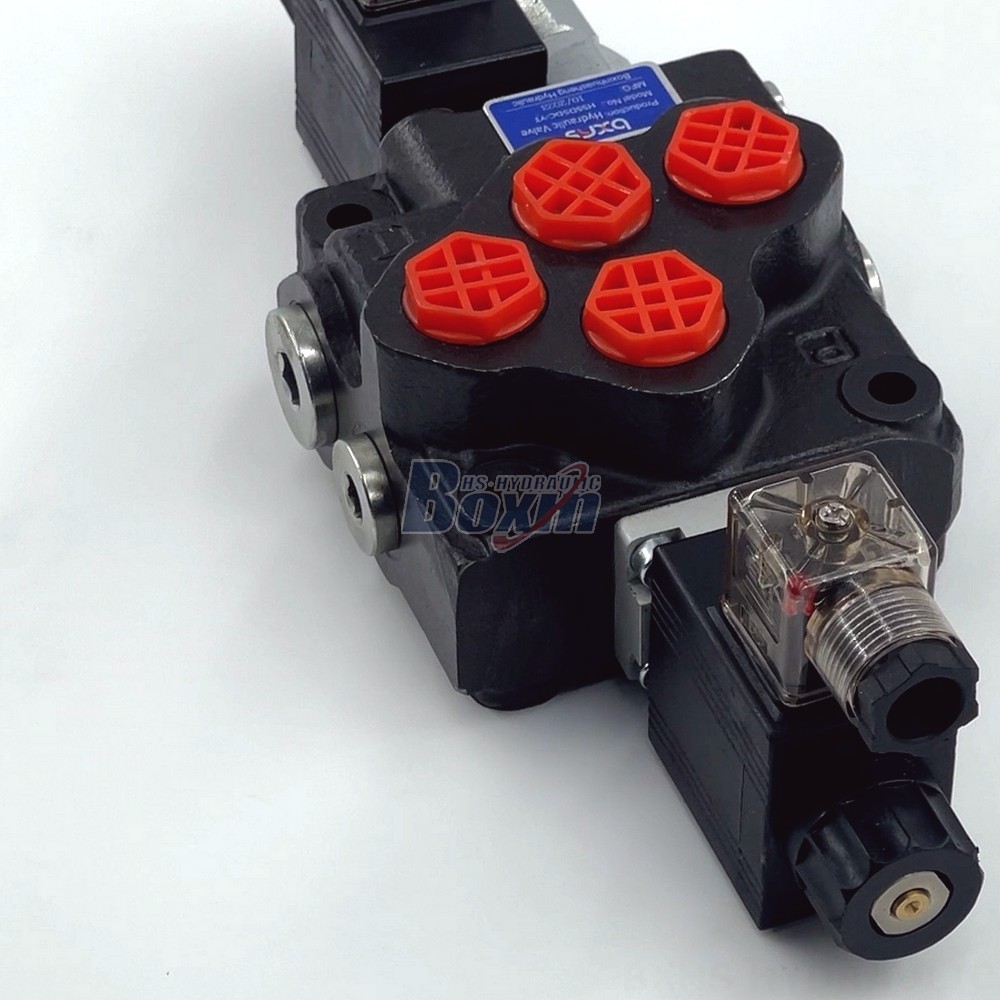

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a durable and reliable valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a solenoid control method, 1 section, 40 L/min rated flow, and 305 bar maximum pressure. It's available directly from the factory and can be customized to meet your specific needs.

SD5 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +60°C (-40°F ila +140°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 305 bar (4400 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Çıkış Portu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Port Boyutu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a high-performance, heavy-duty valve designed for use in demanding applications. It features a compact design, robust construction, and reliable performance. This monoblock valve is controlled by a solenoid, offering precise and responsive operation. The valve is available in a variety of configurations to meet your specific needs. It is also available with a range of options and accessories, including custom-engineered solutions. The SD5 Series is the perfect choice for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It is also suitable for use in a variety of harsh environments. Contact us today to learn more about this high-quality hydraulic valve.
