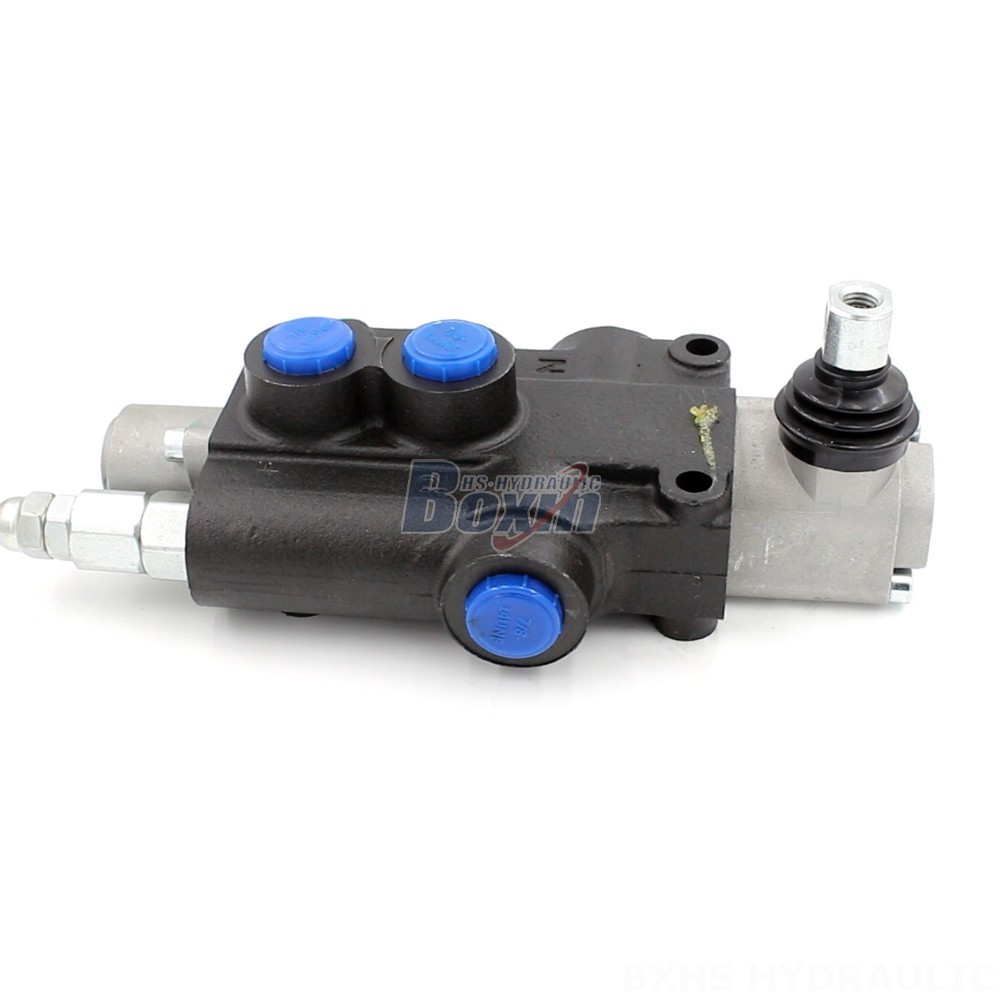

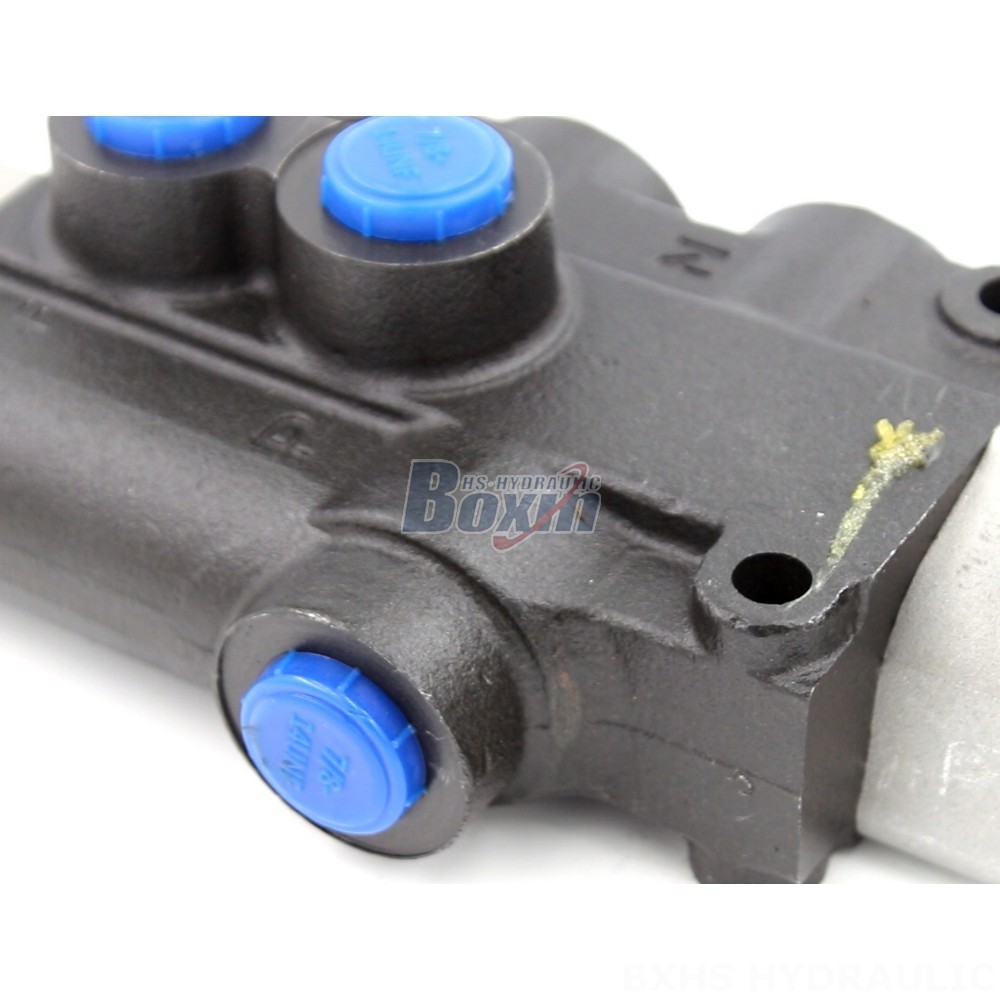

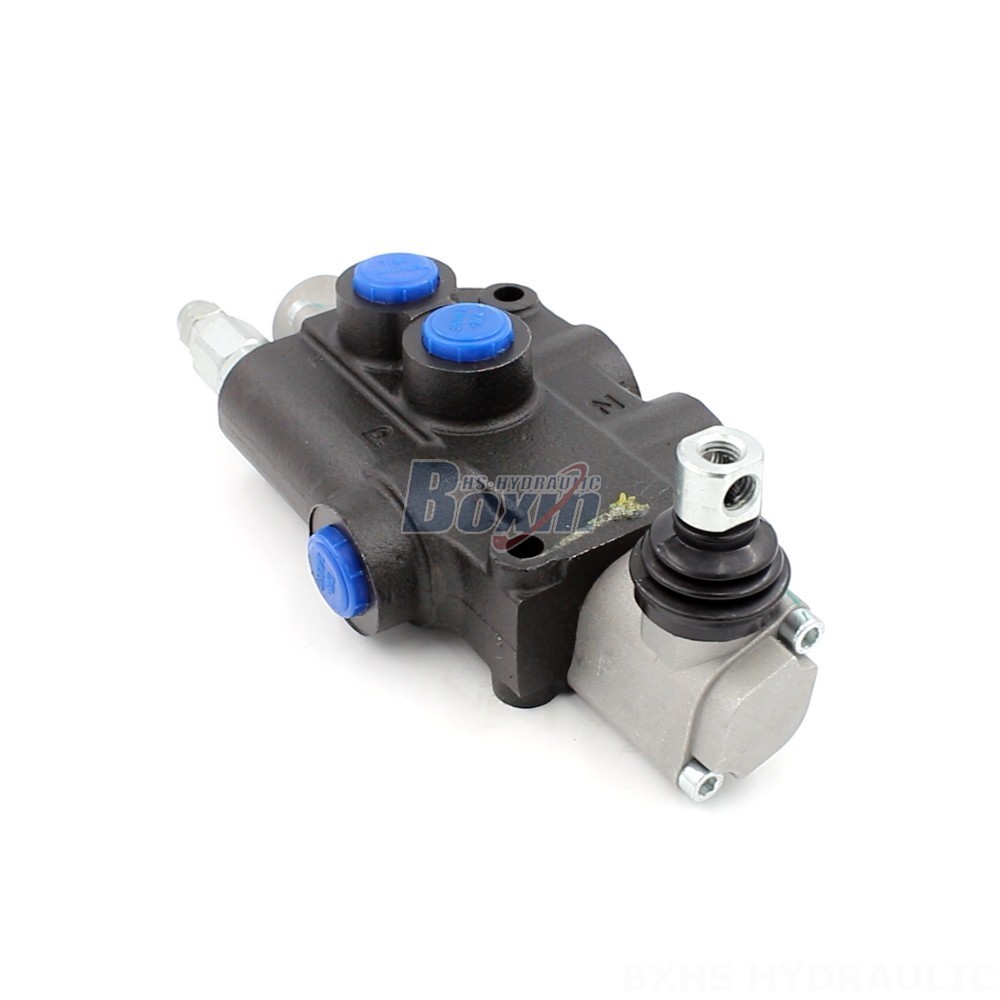

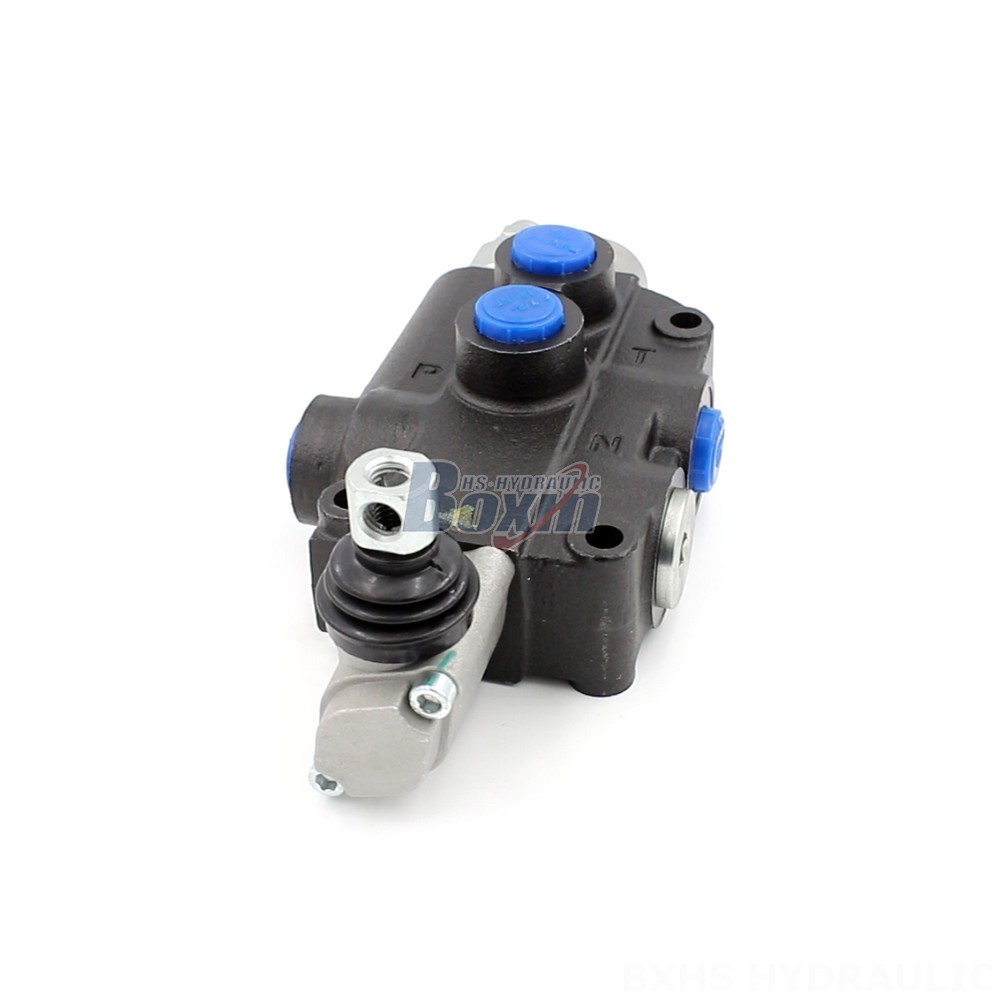

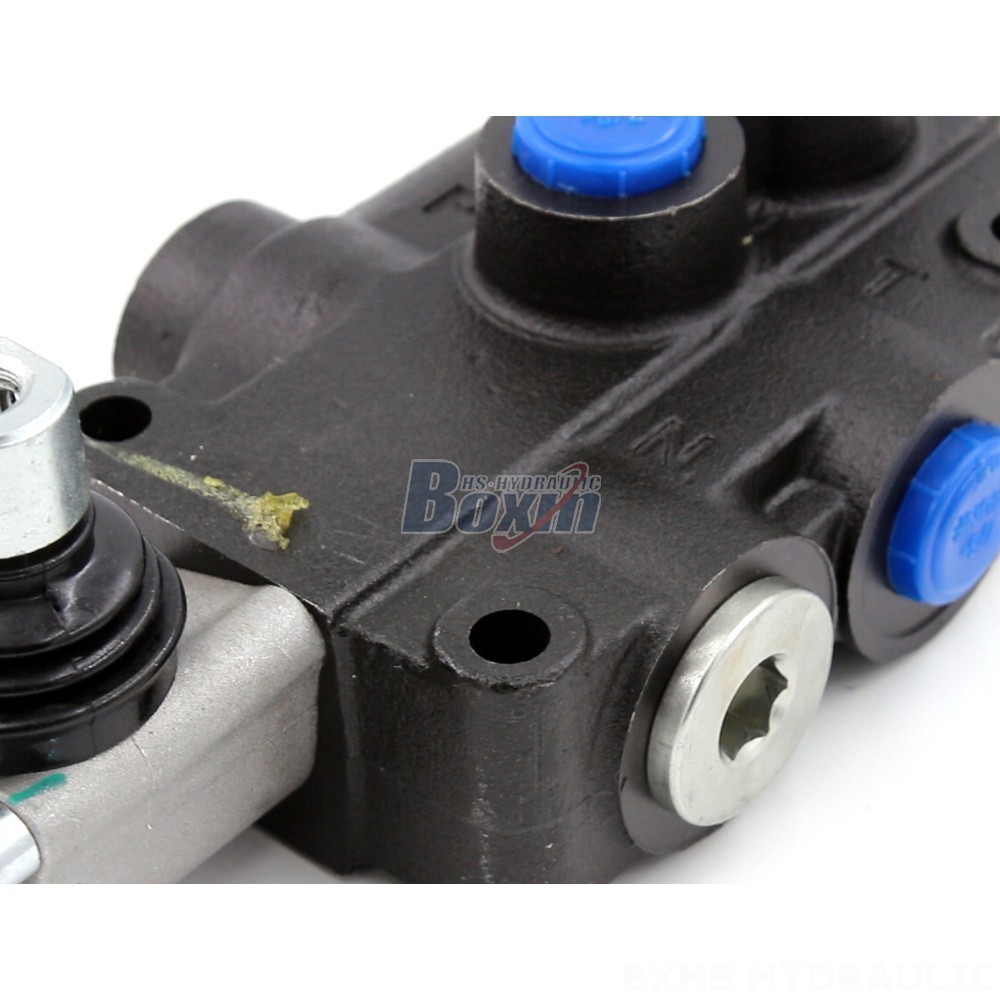

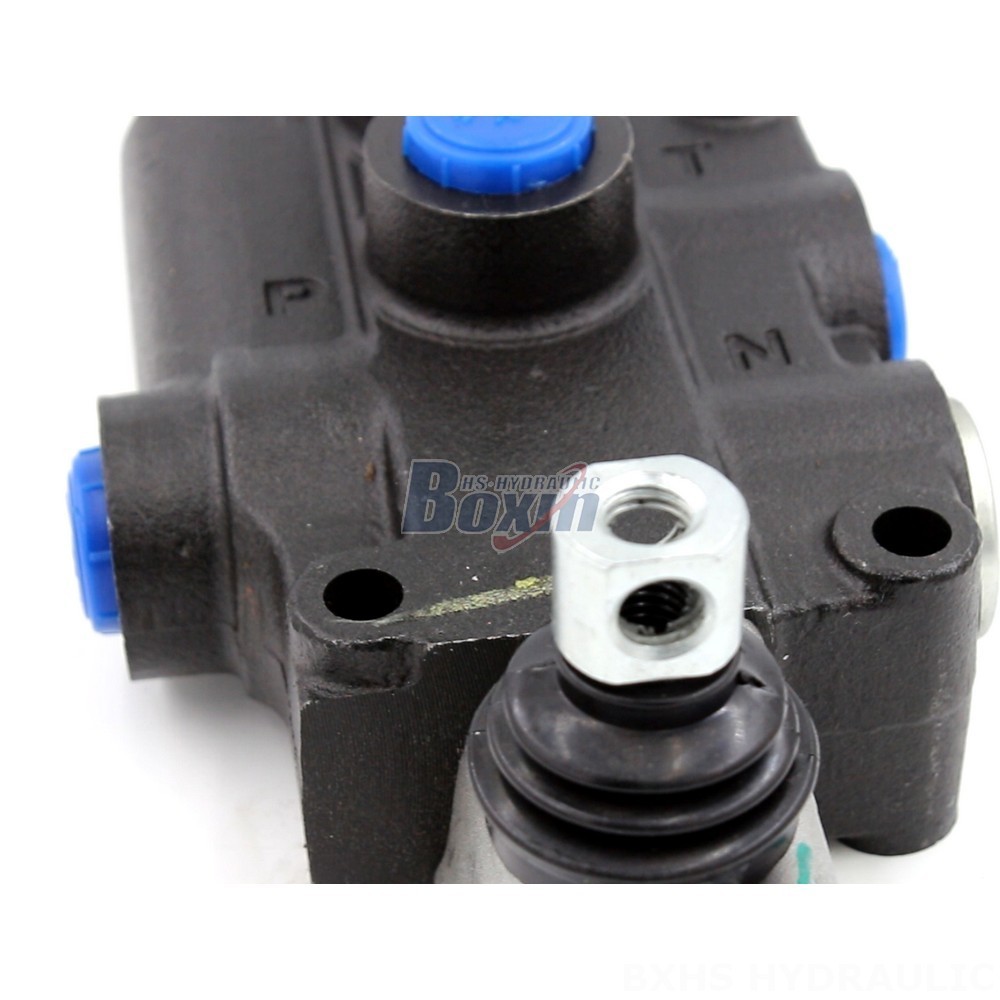

The P80-U78-1OT Series Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise flow control and reliable operation in challenging hydraulic systems.
| P80 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 80 L/dk (21,2 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Çıkış Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Boyutu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- **Manual Control:** Allows for direct and intuitive operation of the valve.
- **1 Section Design:** Simplifies system integration and reduces potential leak points.
- **Monoblock Construction:** Provides structural rigidity and durability, ensuring long-term performance.
- **High Flow Capacity:** Handles high flow rates with minimal pressure drop, optimizing system efficiency.
- **Wide Operating Pressure Range:** Suitable for various hydraulic applications, from low to high-pressure systems.
- **Optimal Viscosity Range:** Operates effectively with a wide range of hydraulic fluids, ensuring compatibility with different system requirements.
- **Versatile Applications:** Ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
**Benefits:**
- Enhanced system control and precision
- Improved efficiency and reduced energy consumption
- Increased durability and reliability in demanding operating conditions
- Ease of installation and maintenance
